Launch X431 ECU Programmer Clone Skoda MG1CA811 ECU

January 10, 2024 Nacy VW key programmer 0

How-to: clone Skoda MG1CA811 ECU with Launch X431 ECU Programmer on bench.

Search ECU type MG1CA811

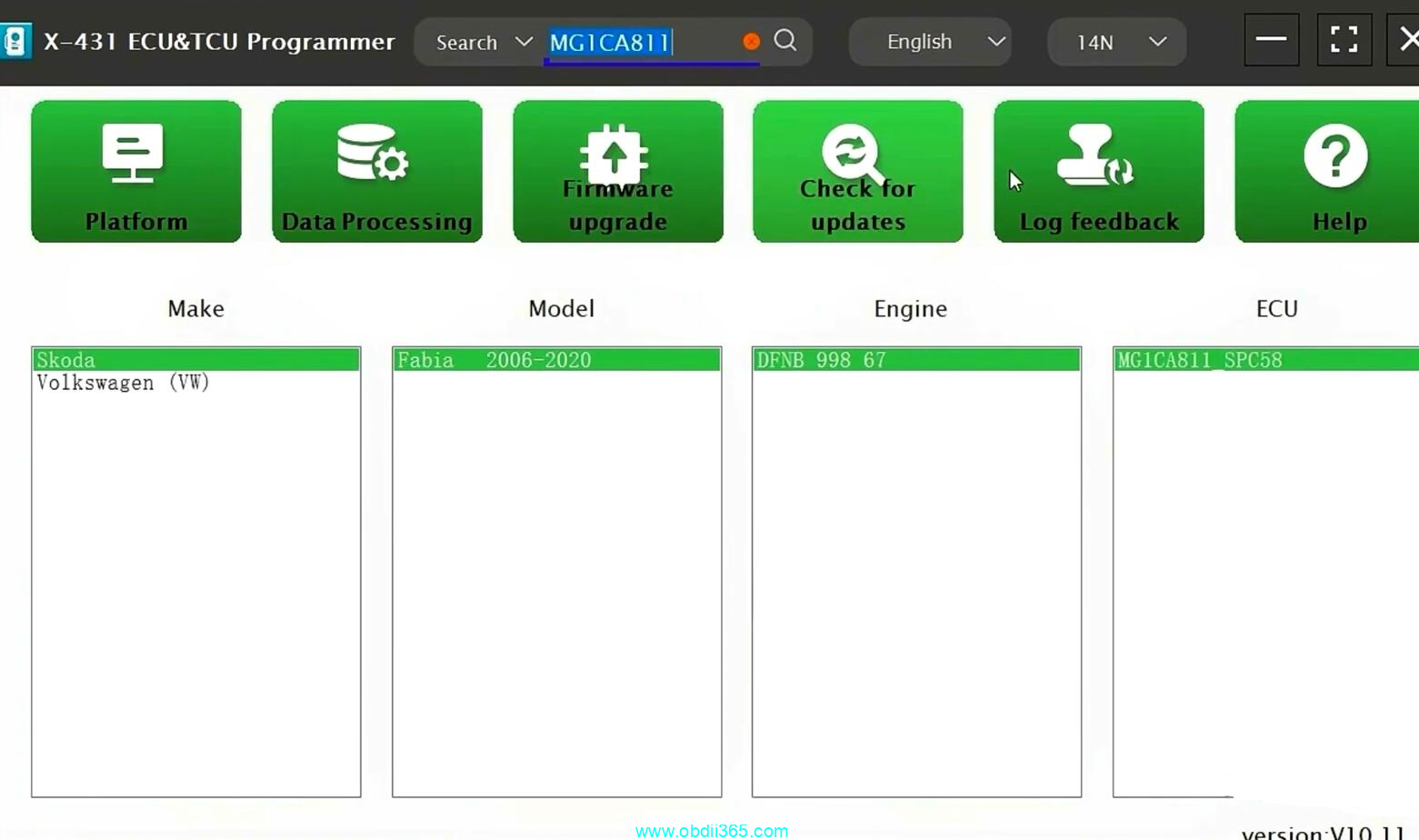

Launch X431 Read Write Skoda Mg1ca811 Ecu 1

Select Skoda Fabia 2006-2020 MG1CA811 SPC58 ECU

Check wiring diagram

Launch X431 Read Write Skoda Mg1ca811 Ecu 2

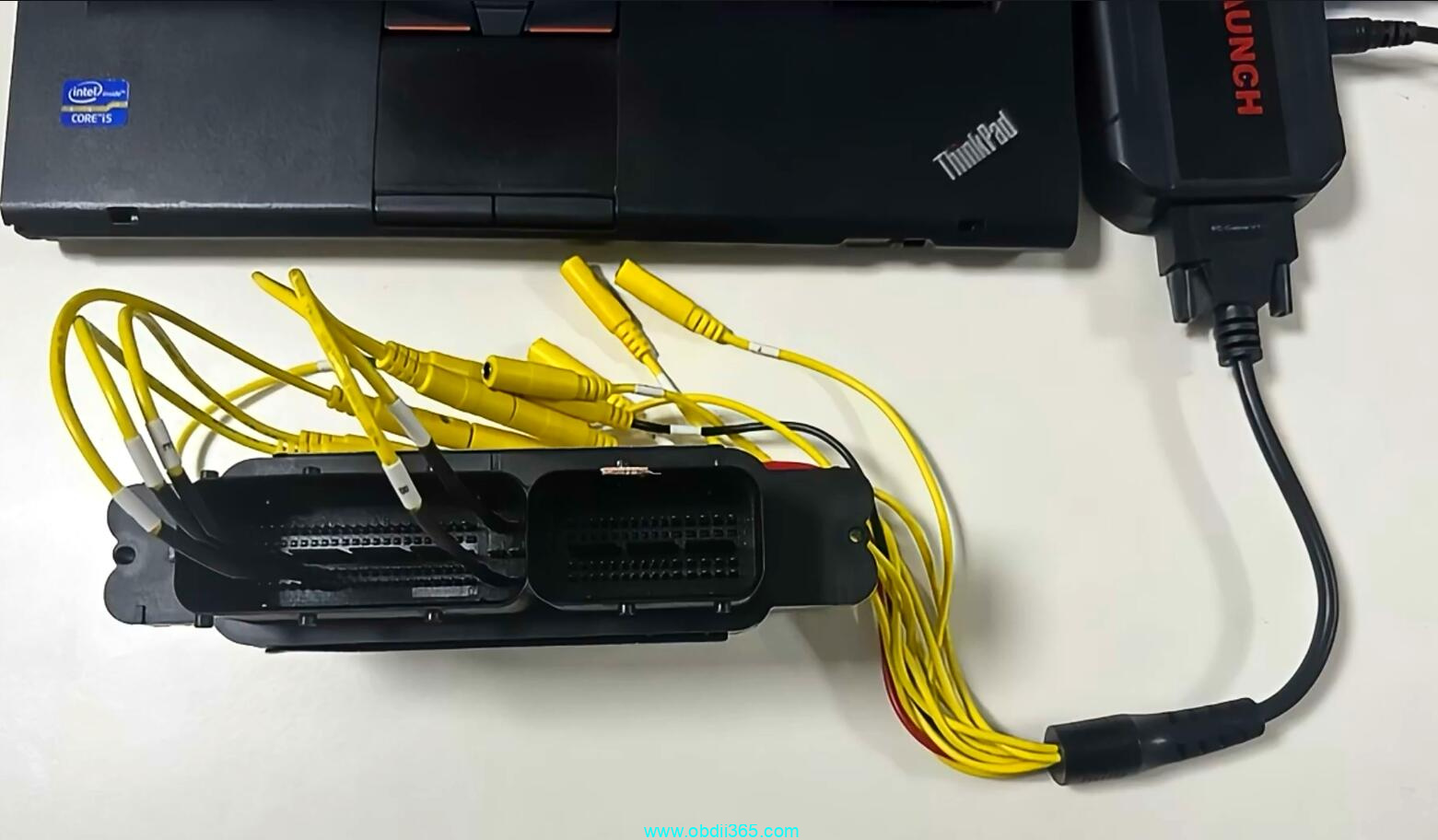

Connect ECU with jumper cables follow the pinout

Launch X431 Read Write Skoda Mg1ca811 Ecu 0

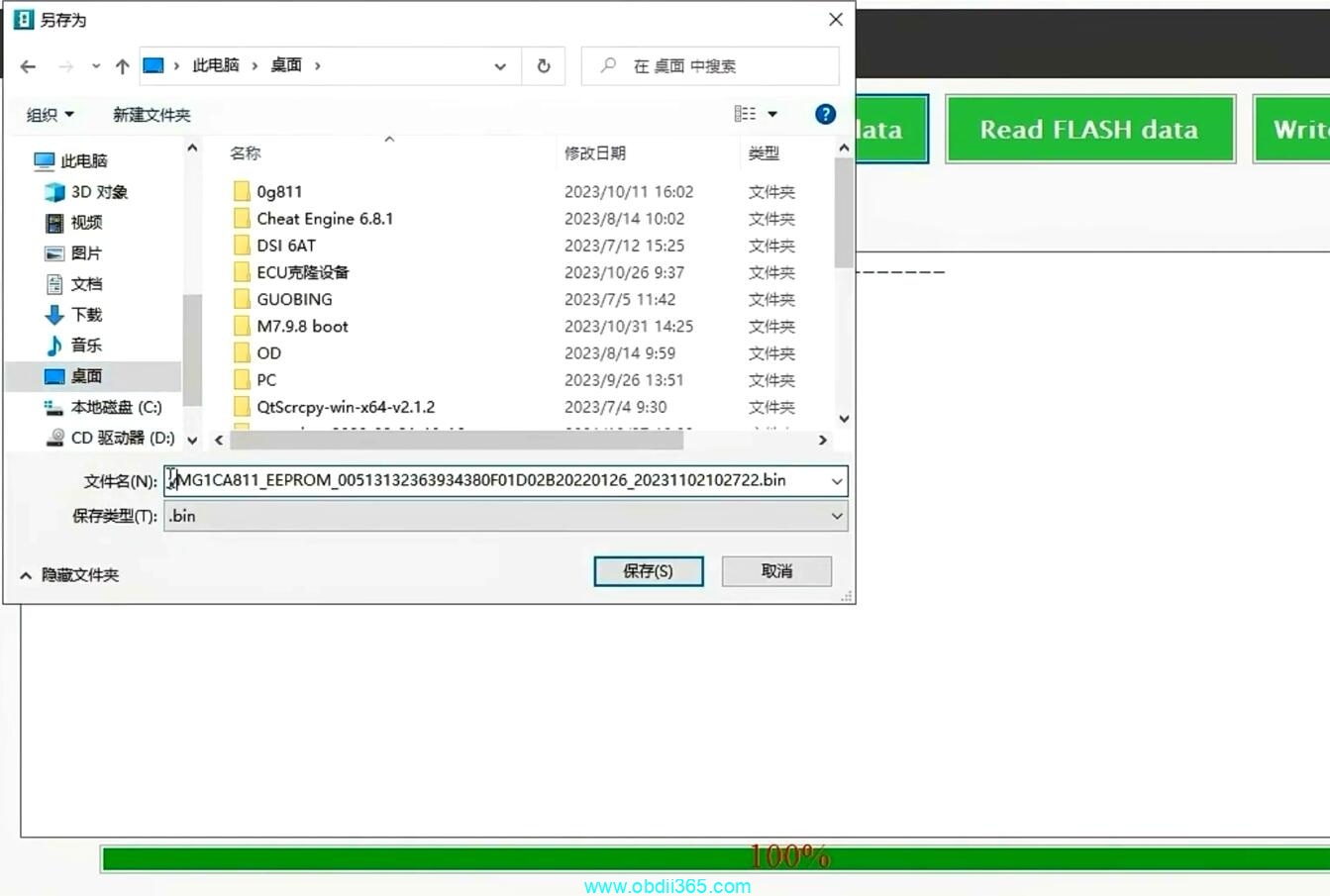

Connect then read eeprom of original ECU

Launch X431 Read Write Skoda Mg1ca811 Ecu 3

Launch X431 Read Write Skoda Mg1ca811 Ecu 4

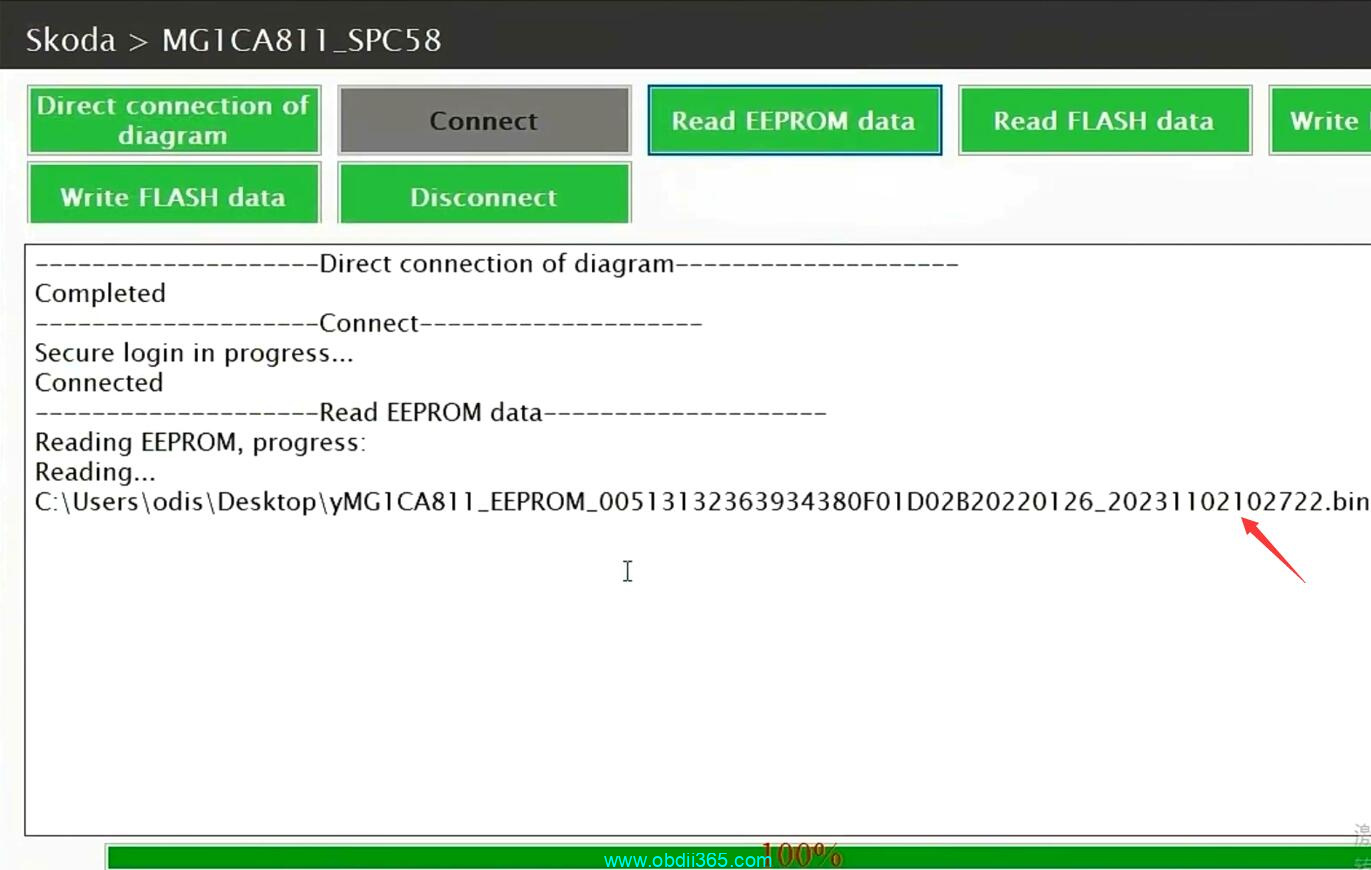

Launch X431 Read Write Skoda Mg1ca811 Ecu 5

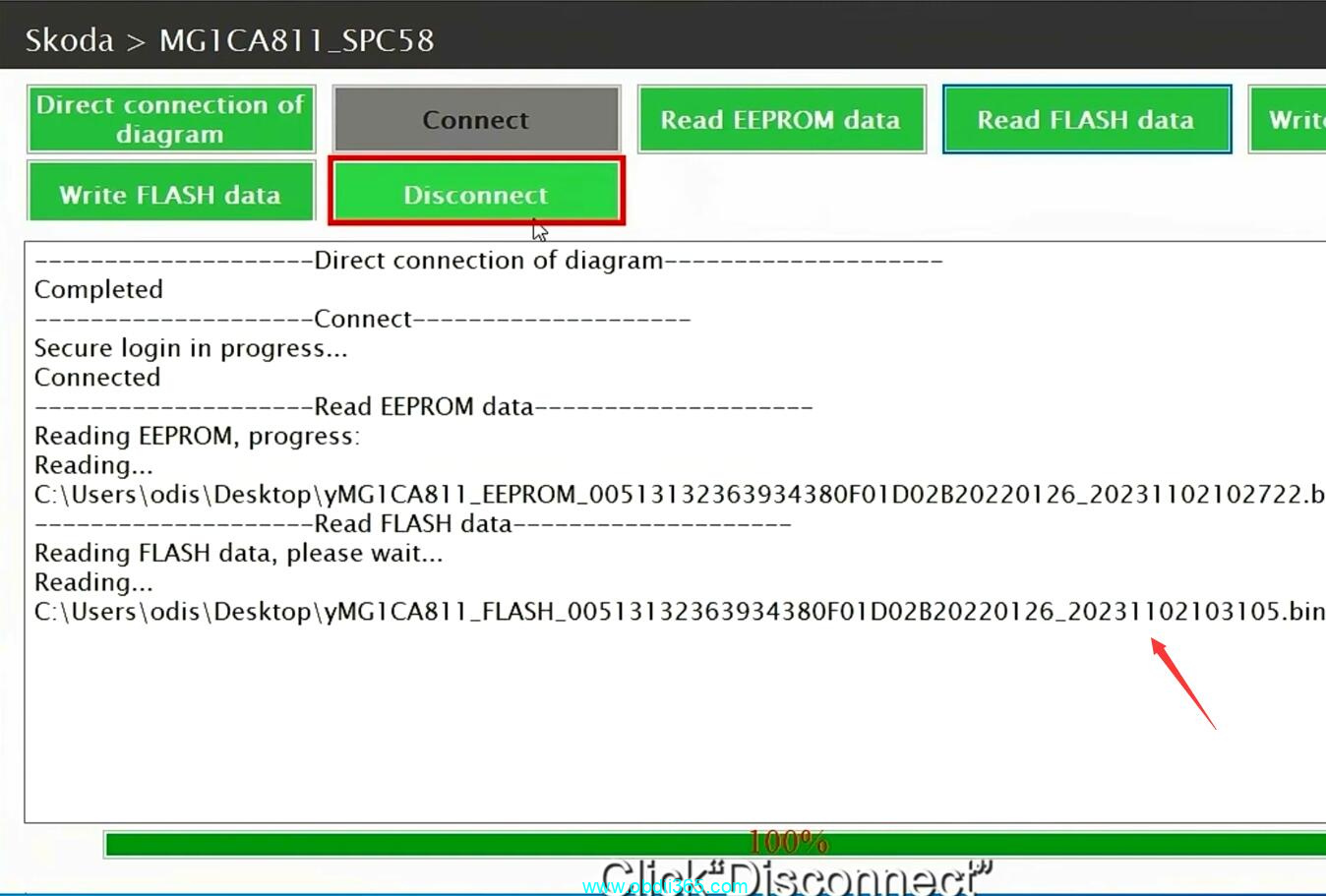

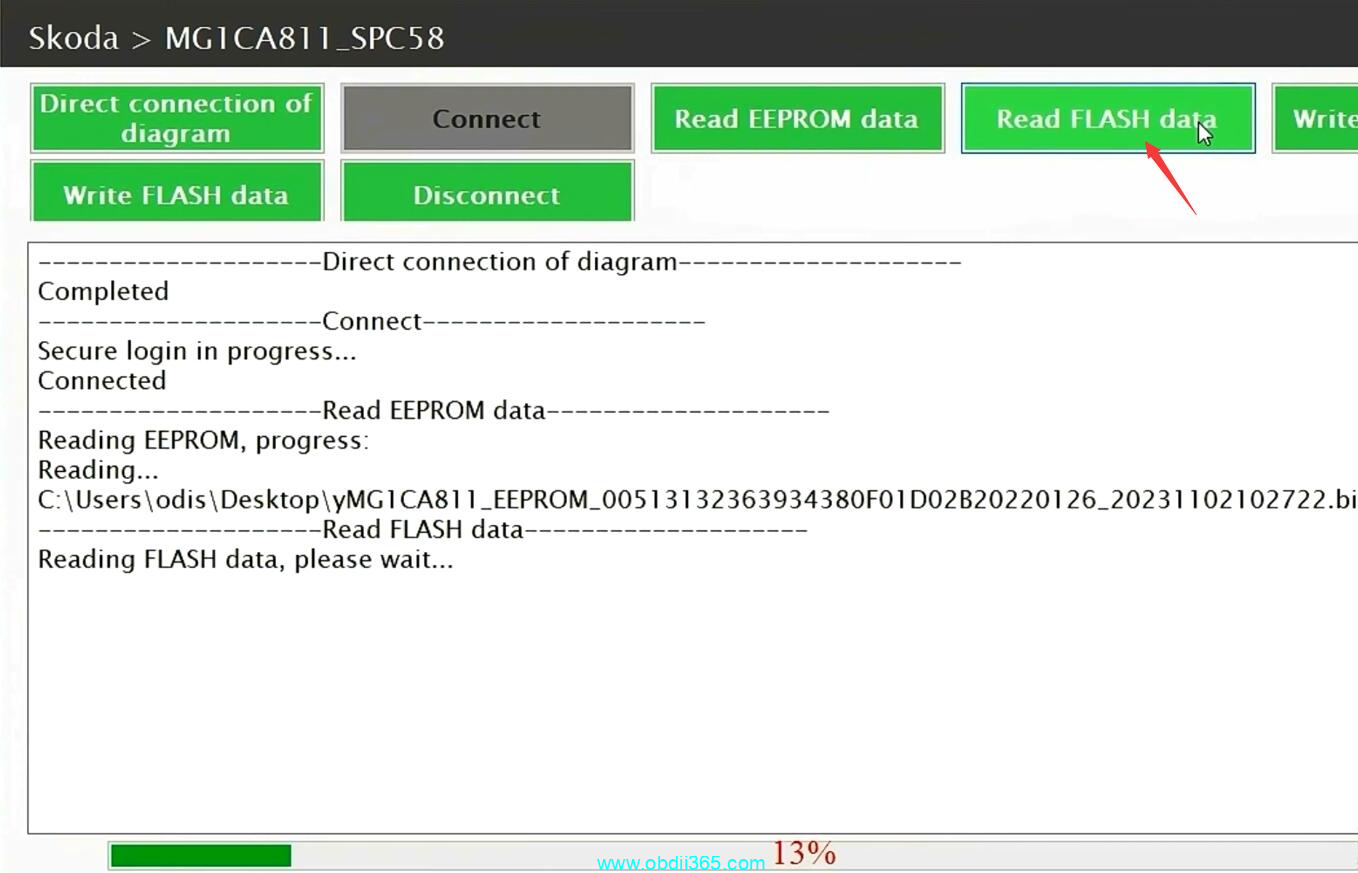

Read and save original Flash data

Launch X431 Read Write Skoda Mg1ca811 Ecu 6

Launch X431 Read Write Skoda Mg1ca811 Ecu 7

Launch X431 Read Write Skoda Mg1ca811 Ecu 8

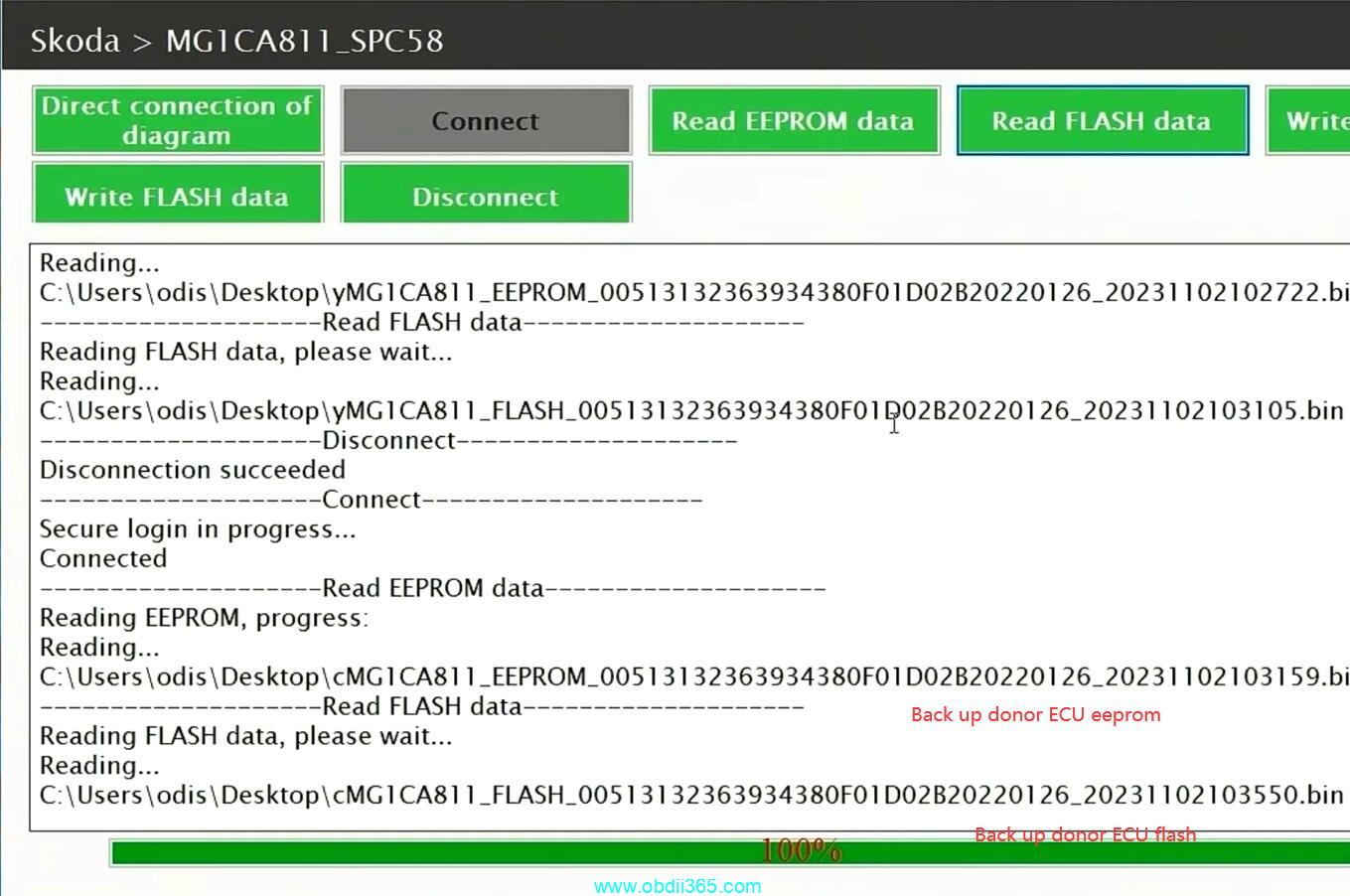

Then back up donor ECU eeprom and flash

Launch X431 Read Write Skoda Mg1ca811 Ecu 9

Write original eeprom to donor ECU

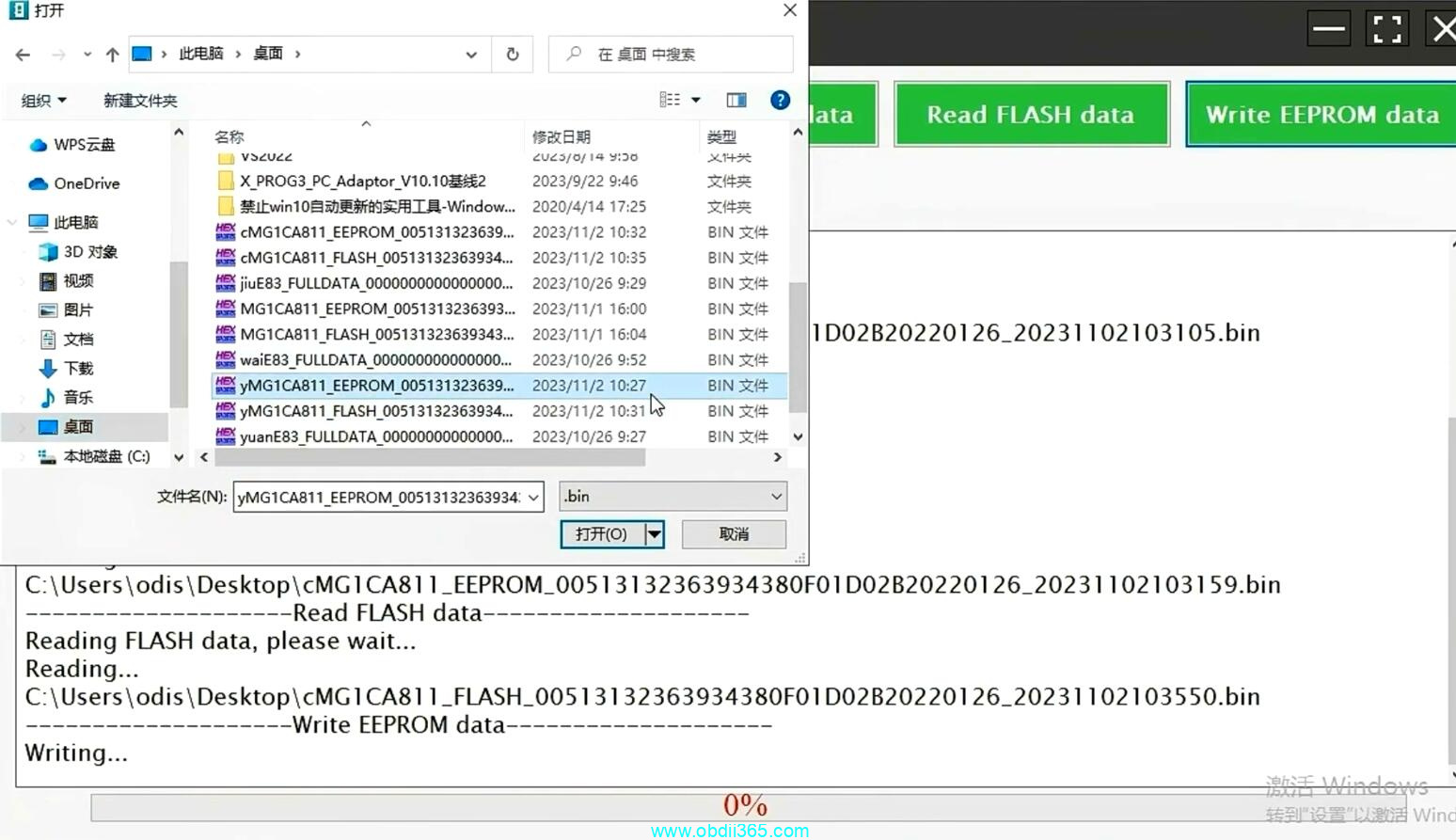

Launch X431 Read Write Skoda Mg1ca811 Ecu 10

Launch X431 Read Write Skoda Mg1ca811 Ecu 12

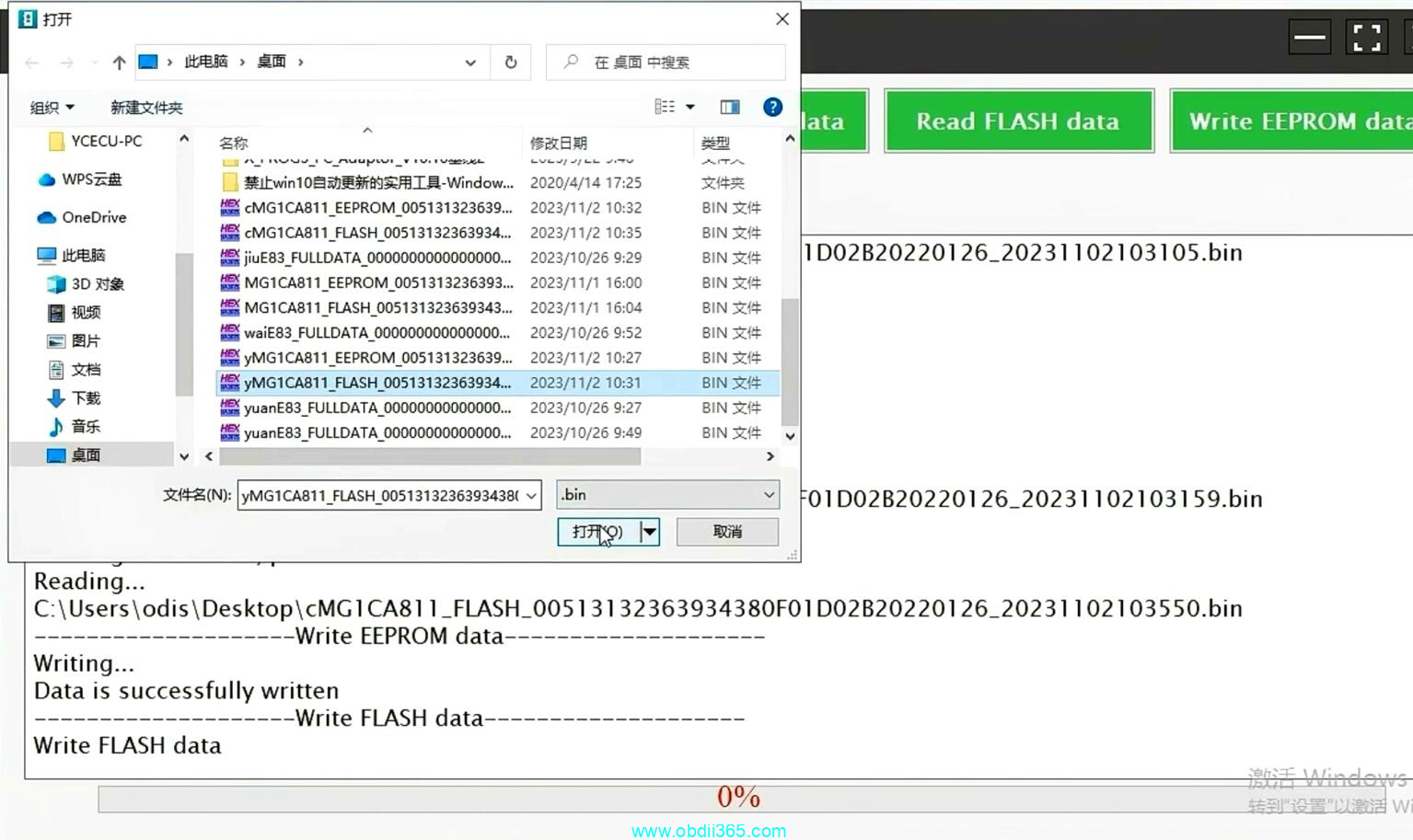

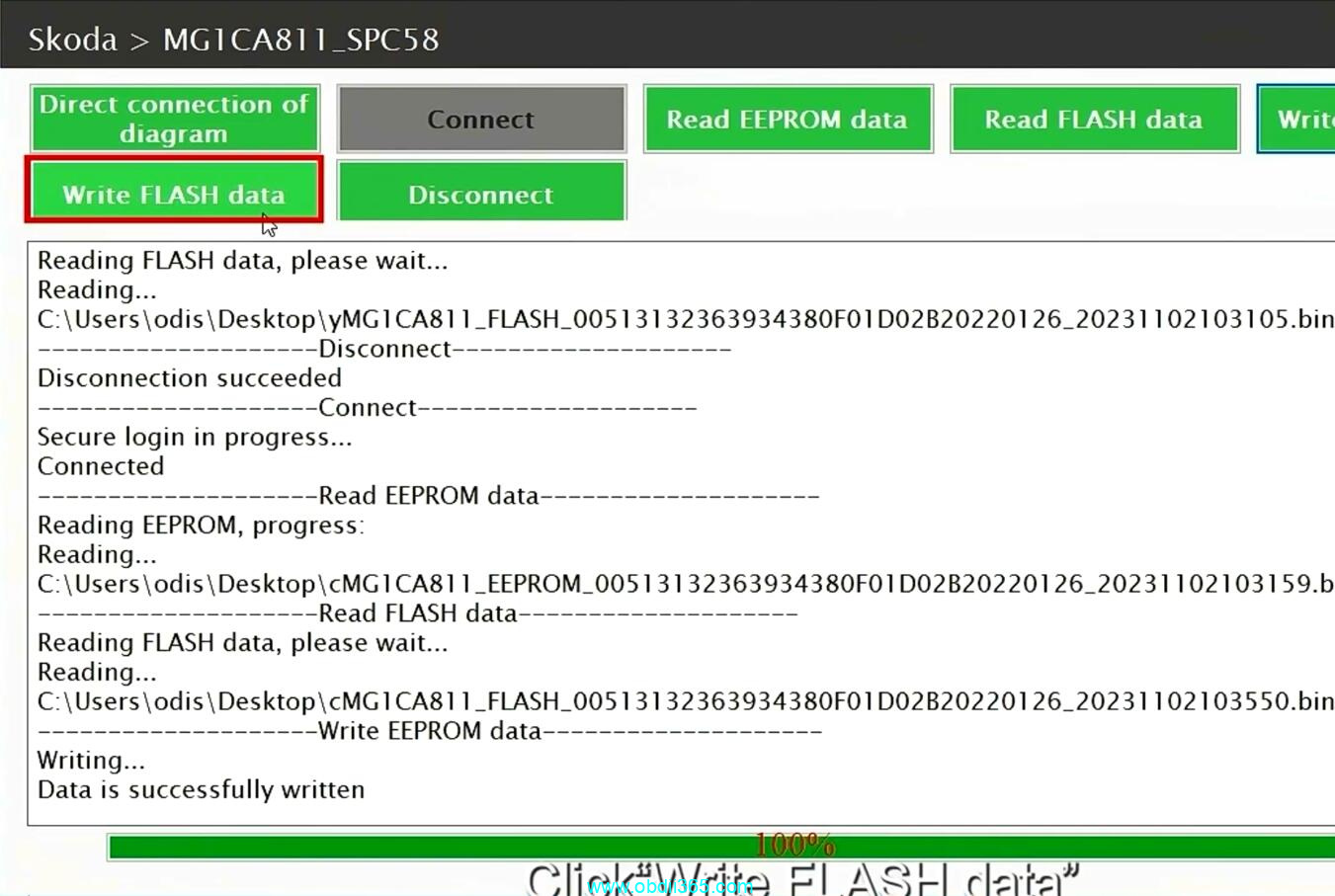

Write original flash to donor ECU

Launch X431 Read Write Skoda Mg1ca811 Ecu 13

Launch X431 Read Write Skoda Mg1ca811 Ecu 14

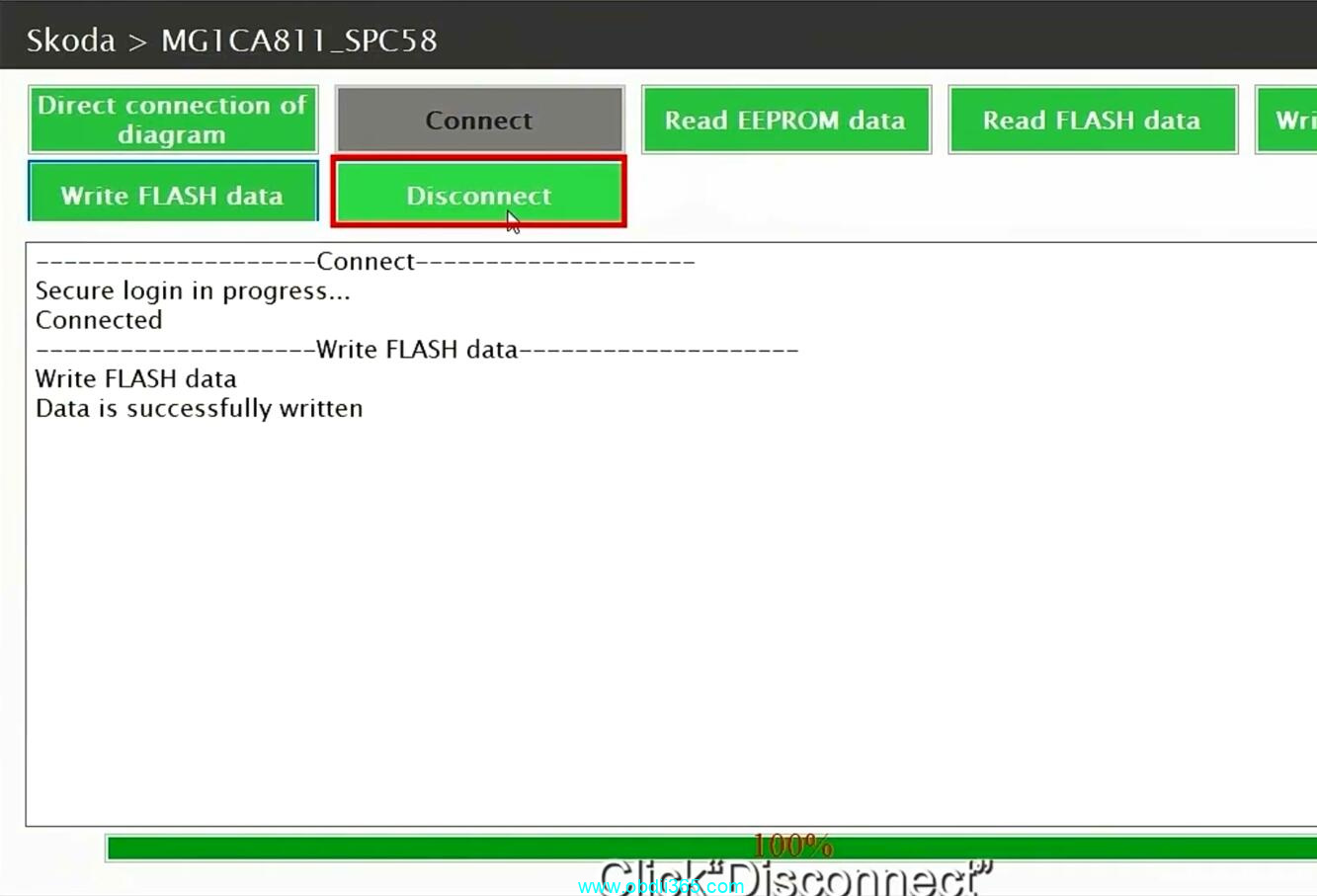

Disconnect after finish cloning.

Then install new ECU to vehicle and test.
