Great Wall H5 has diesel and petrol two engine types. Both use normal 48 chip. Here we show you how to read pin code from the immobilizer and then program key with the PIN code.
Great Wall H5 petrol model:

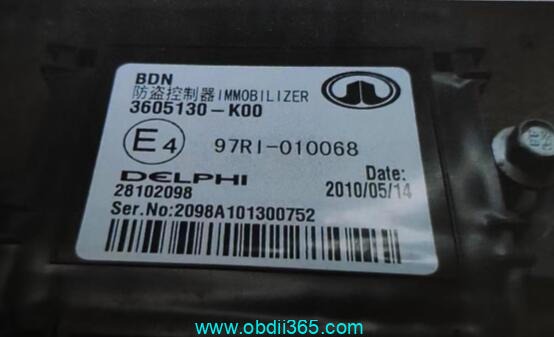

It work with Delphi immobilizer system,the immobilizer box made by Delphi. You need get immobilizer PIN code before programming. If you use X300 or some other programmer, it may can not get correct PIN.
Another choice is immobilizer box,we need to assemble it and remove immobilizer chip.

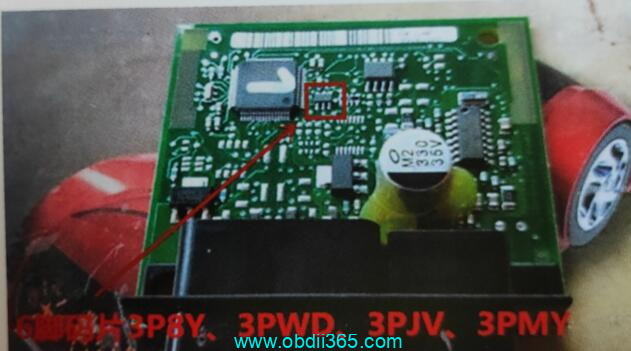

Open immobilizer box cover,find the chip model:3P8Y,3PWD,3PJV or 3PMY.
You may find one of them,it is EEPROM with 6 pins.

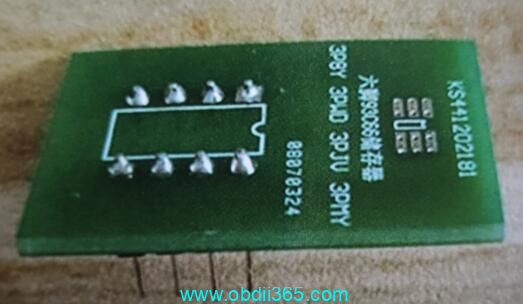

Put the 6 pins EEPROM chip on VVDI Prog or X300 adapter,then select 93C66 to read out data

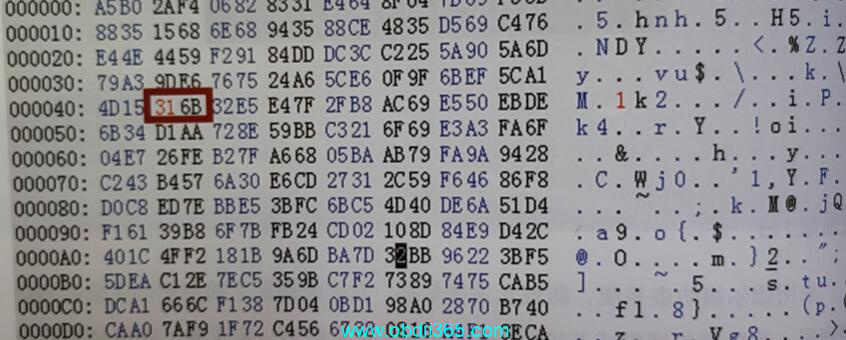

Then PIN code stored at line 040,second and third Byte 316B
We need transfer 316B by XOR calculate to final PIN code 45C0
Great Wall H5 Diesel Model:
Remove engine ECU,then disassemble ECU cover
Find the chip 95C320,after then use normal programmer to read out data from CHIP 95C320

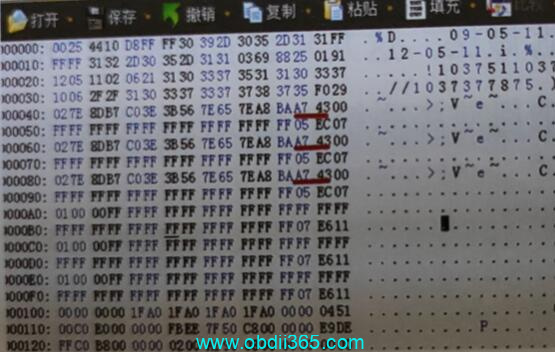

Open the EEPROM data by editor,then locate line 040,line 060 and line 080
You will find PIN is A743
Now you have got PIN code,so you are able to use programmer to do key programming.
Summary,if you find the car models like Great Wall H5 immobilizer system work on normal 48 chip and Delphi immobilizer system, the steps same as.
