OBDSTAR G3 Program 2021 Citroen C3 Blade Key

How to read pin code and add a spare blade key to a Citroen C3 2021 using OBDSTAR X300 Classic G3?



Need to update Peugeot/Citroen software to v42.77.
Select Read Pin Code (By CAN with working key)->Fuel type

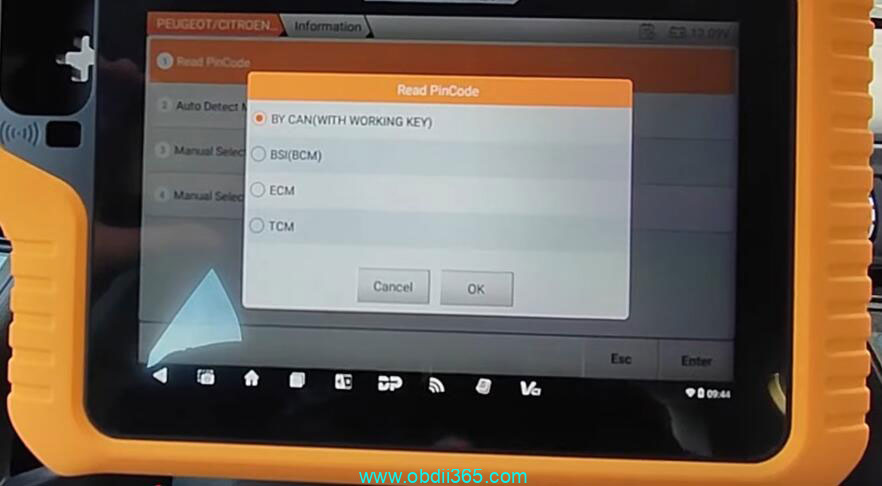

OBDSTAR G3 Citroen C3 2021 Program Key 1

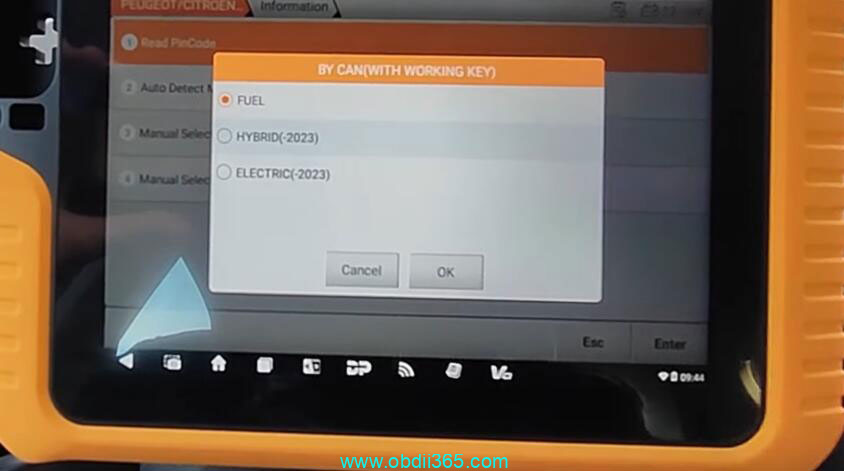

OBDSTAR G3 Citroen C3 2021 Program Key 2
The process takes 1-10 minutes.
Turn off the ignition switch.

OBDSTAR G3 Citroen C3 2021 Program Key 3
Read 4-digit pin code successfully.

OBDSTAR G3 Citroen C3 2021 Program Key 4
Select Auto Detect Model->Peugeot
Enter VIN and confirm vehicle information
Press Yes
Select Blade key->Program Keys

OBDSTAR G3 Citroen C3 2021 Program Key 5
Switch ignition on
All keys will be erased during this procedure.
Enter pin code to access.

OBDSTAR G3 Citroen C3 2021 Program Key 6
Enter number of keys to be programmed. All keys should be learned. Maximum is 5 keys.

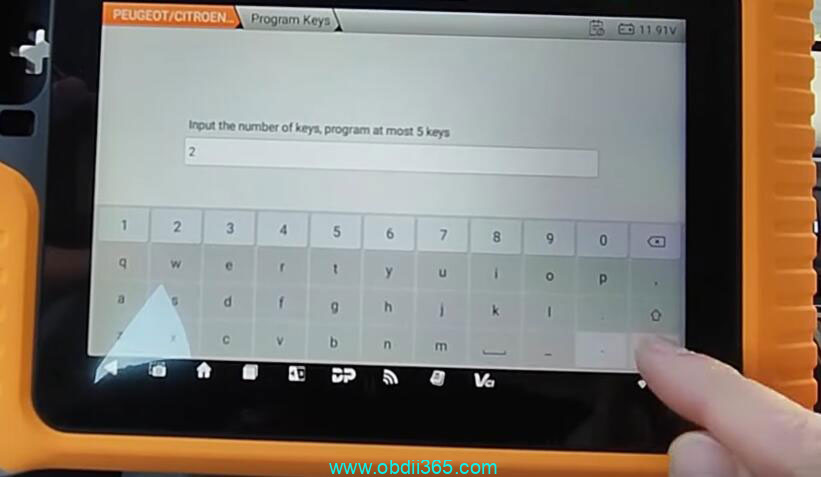

OBDSTAR G3 Citroen C3 2021 Program Key 7
Turn off ignition switch.
Insert 1st key within 15 sec and switch the ignition on
Program success. Switch ignition off and remove the key.

OBDSTAR G3 Citroen C3 2021 Program Key 8
Insert 2nd key within 15sec and switch the ignition on.
Program success. Switch ignition off and remove the key.

Program completed.

OBDSTAR G3 Citroen C3 2021 Program Key 9
