If you’re working on a 2024, 2025, or 2026 Toyota Corolla Cross and need to read immobilizer data or erase keys without adding a new key, you may need to access the vehicle’s bypass connector.
Where to find the bypass location on this model. The process is straightforward and requires no special tools.
Step-by-Step Instructions:
-
Open the glove box – Start by opening the passenger side glove box.
-
Release the latches – There are two latches holding the glove box in place. Release them both.
-

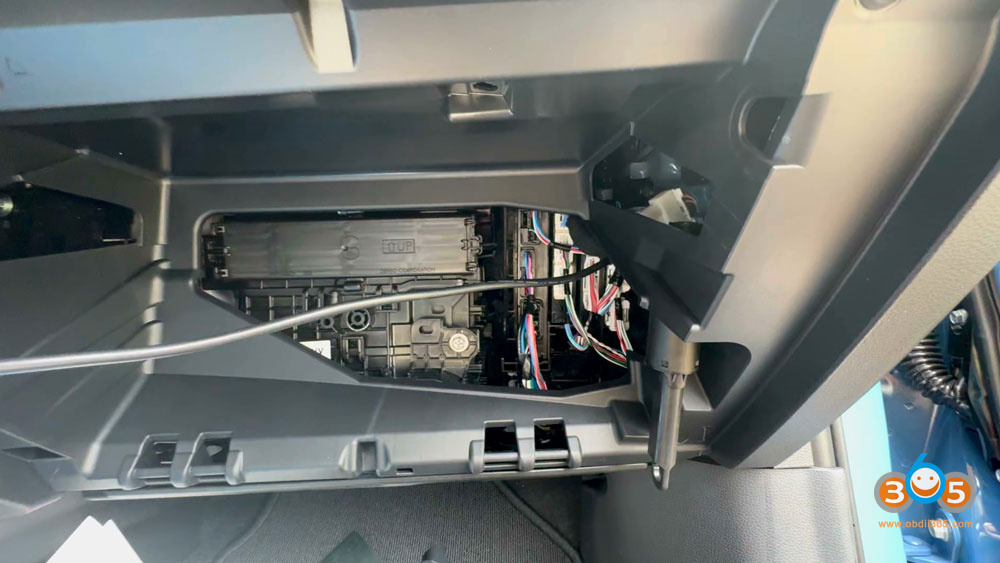

Drop the glove box down – Once the latches are undone, lower the glove box completely to access the area behind it.
-

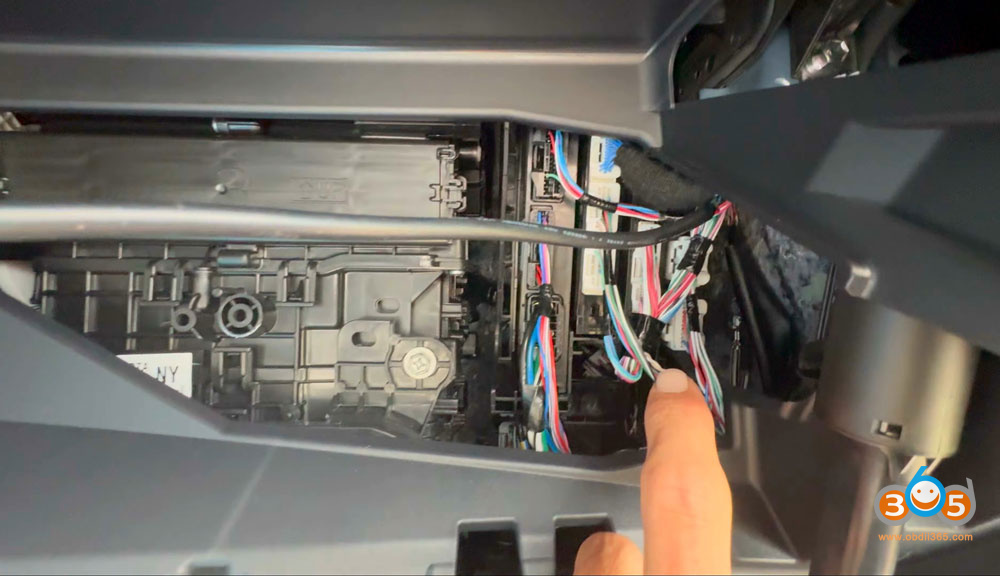

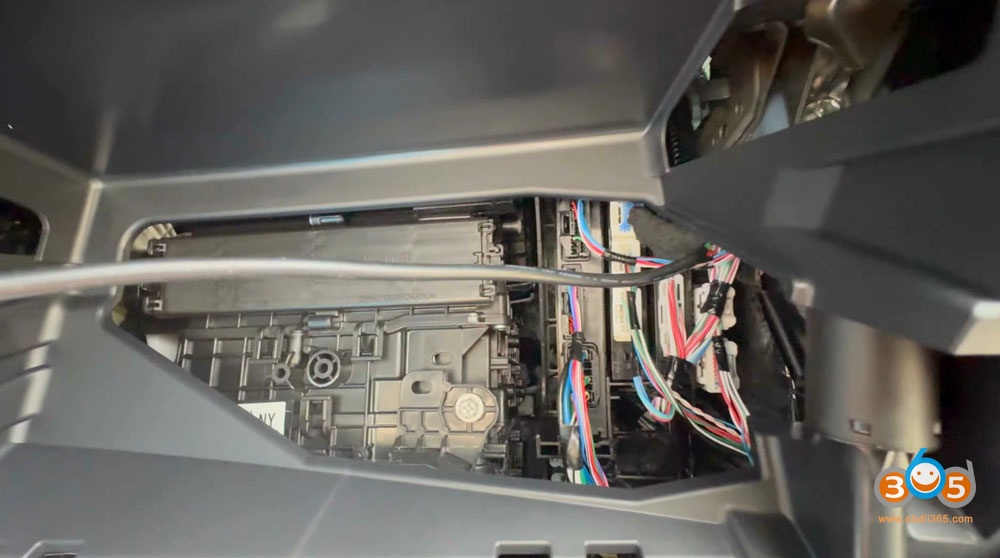

Locate the top plug – Behind the glove box, you will see a series of connectors. The one you need is the top white connector.
-

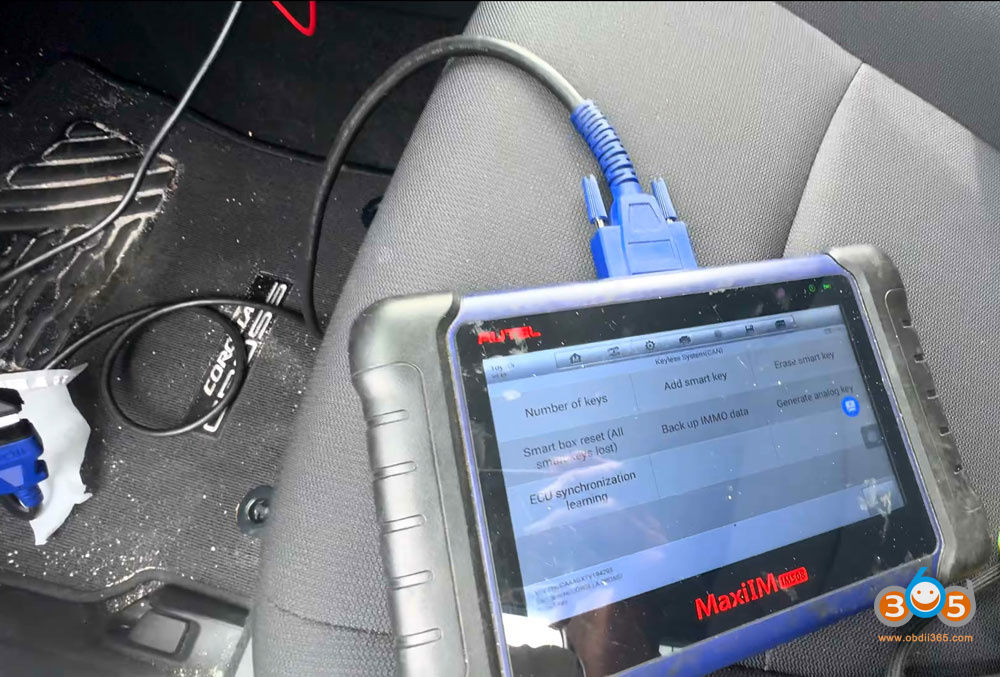

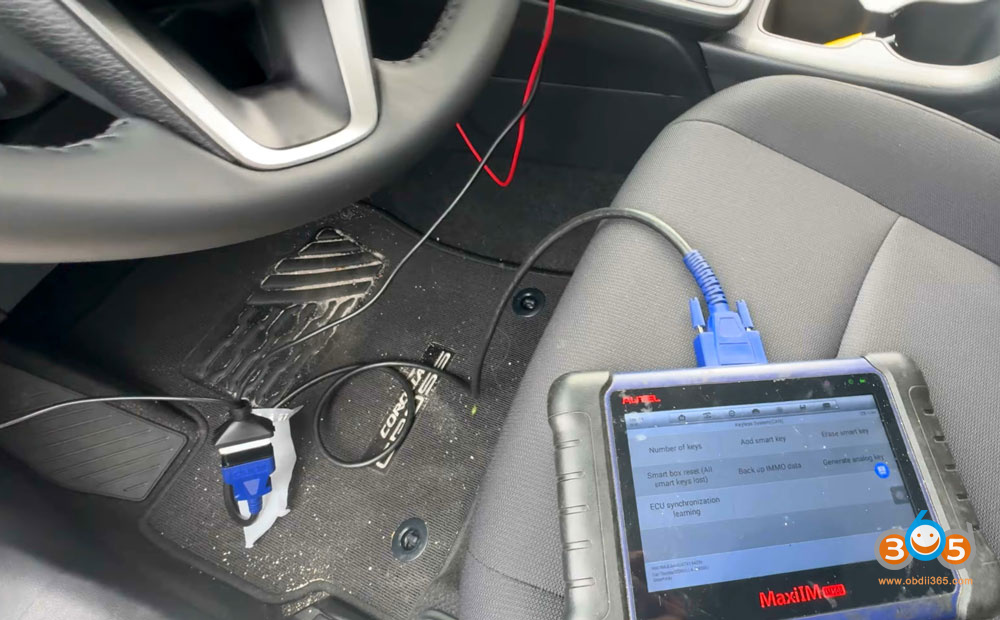

Connect the bypass (Toyota 30 pin cable) – Remove the top plug and connect your bypass module to this port.
This method allows you to read the necessary data and erase keys without needing to add a new key. Once the bypass is connected, you can complete the job as usual.
Quick Tip:
Make sure the vehicle is a 2024–2026 Toyota Corolla Cross, as the connector location may vary on other models or years.
