Program BMW X3 EWS4 Transponder with VVDI Prog & VVDI2

Here’s little guide to make BMW X3 EWS4 transponder key with new VVDI PROG EWS4 adapter and VVDI2 key programmer.



Step 1: Read EWS4 Eeprom by VVDI Prog

vvdi-prog-bmw-ews4-1

Remove dash

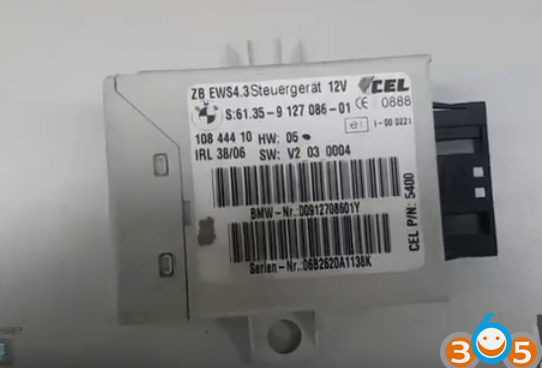

Take out EWS4 immo box

vvdi-prog-bmw-ews4-2

vvdi-prog-bmw-ews4-3

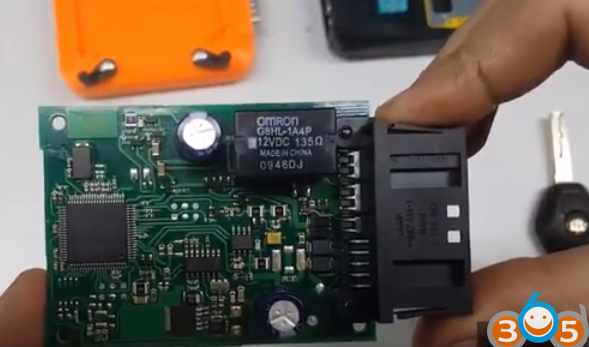

Disassemble the EWS4 module

vvdi-prog-bmw-ews4-4

vvdi-prog-bmw-ews4-5

Put EWS4 module in the VVDI PROG EWS4 adapter and lock it

vvdi-prog-bmw-ews4-6

Connect VVDI PROG with EWS4 adapter, then connect vvdi programmer with computer with USB cable

vvdi-prog-bmw-ews4-7

Open VVDI Prog software

Select Type 4th Immo, BMW and chip EWS4 adapter

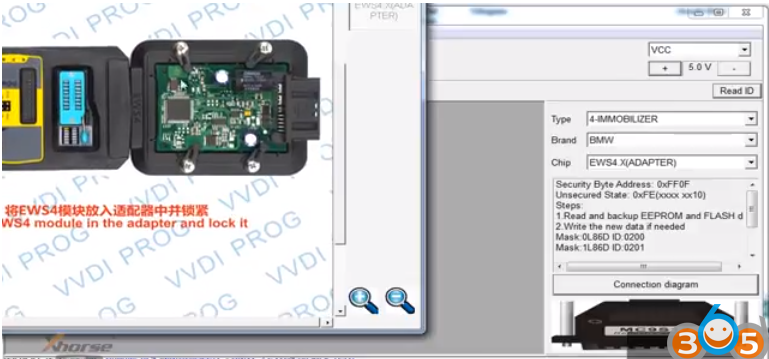

Check connection diagram

vvdi-prog-bmw-ews4-8

Click Read ID to identify the Micro and make sure that the connection is correct to avoid possible failures.

vvdi-prog-bmw-ews4-9

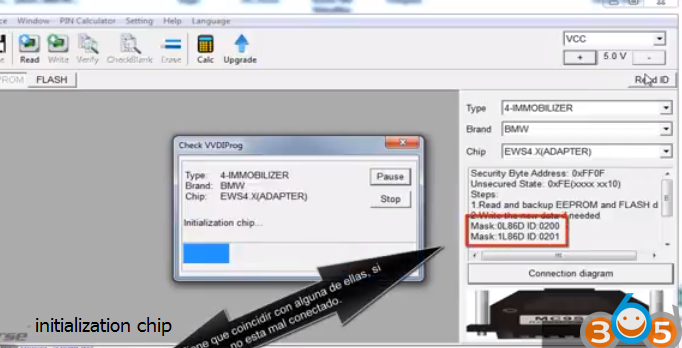

Chip initialization, make sure all chip type matches

It has to match any of them, if not, it is connected badly

vvdi-prog-bmw-ews4-10

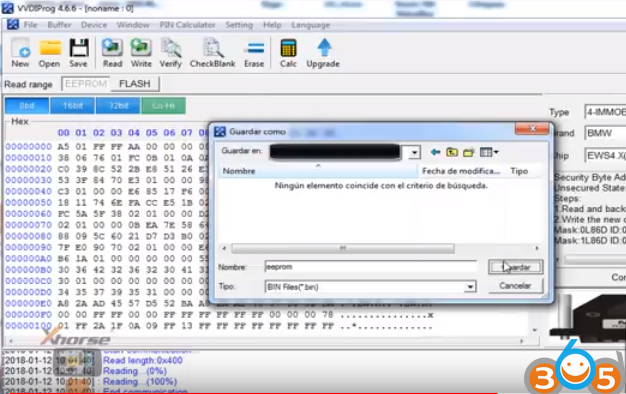

Click Read to read eeprom data and save it

vvdi-prog-bmw-ews4-11

vvdi-prog-bmw-ews4-12

Step 2: Program EWS4 key by VVDI2 key programmer

Open VVDI2 BMW software

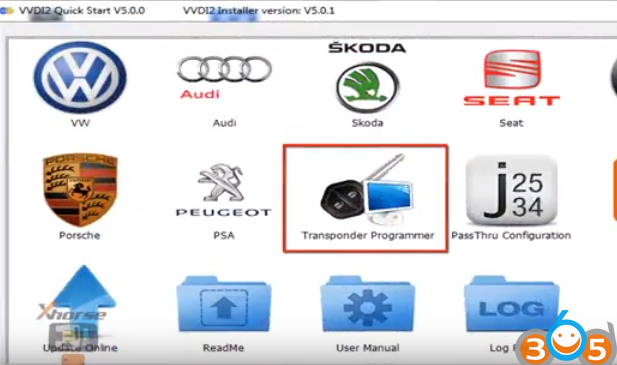

Select Transponder Programmer

vvdi-prog-bmw-ews4-13

Select Auto detect Transponder: PCF7935

vvdi-prog-bmw-ews4-14

Choose Immobilizer Data Tool function

Select region Euro, vehicle make BMW and immo type EWS4

vvdi-prog-bmw-ews4-15

Click Load EEPROM Dump

vvdi-prog-bmw-ews4-16

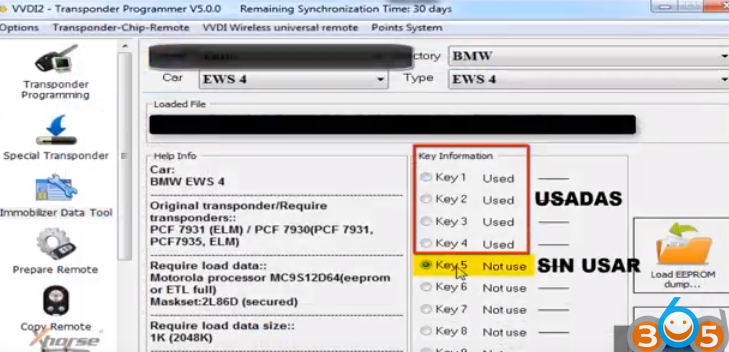

select an unused key position and press Make Dealer Key

vvdi-prog-bmw-ews4-17

Prepare dealer key success. Now the key can start engine.

vvdi-prog-bmw-ews4-18

Reinstall EWS4 module back to car.

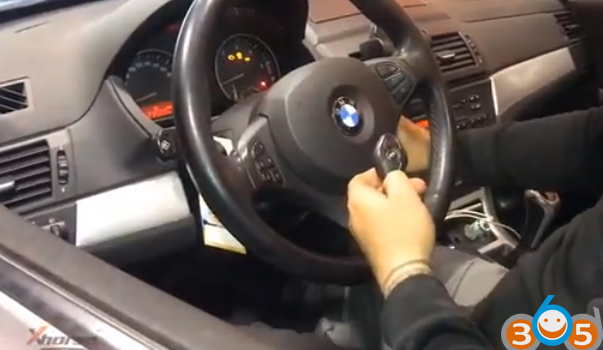

Test the new key, remote works, car starts

vvdi-prog-bmw-ews4-19

Done.
