Program Benz Sprinter 2002-2005 Key with VVDI Prog and Tango

Here’s the guide to add immo key to Mercedes Benz Sprinter year 2002 to 2005 using Xhorse VVDI Prog and Tango transponder key programmer.

Step 1: Read data with VVDI Prog

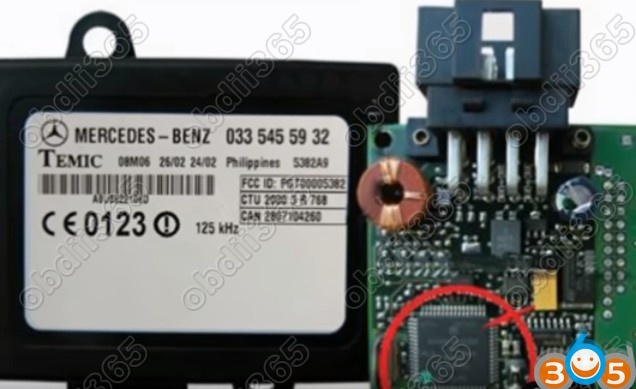

Remove Sprinter Immo box

vvdi-prog-tango-sprinter-key-01

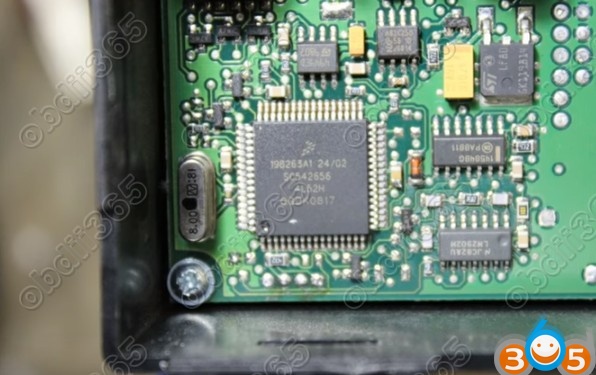

Find 4L52H mcu chip

vvdi-prog-tango-sprinter-key-02

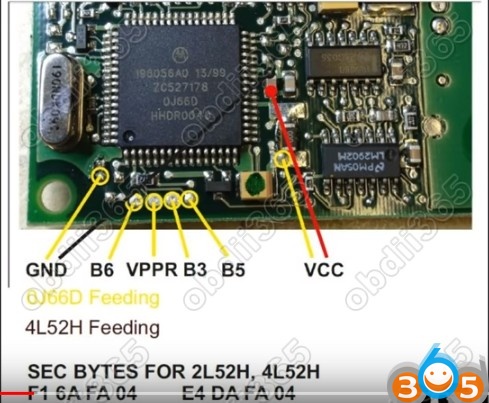

Make connection

vvdi-prog-tango-sprinter-key-03

Open VVDI-Prog software

Select Type, Brand and chip: Sprinter Immo Box (2002-2005)

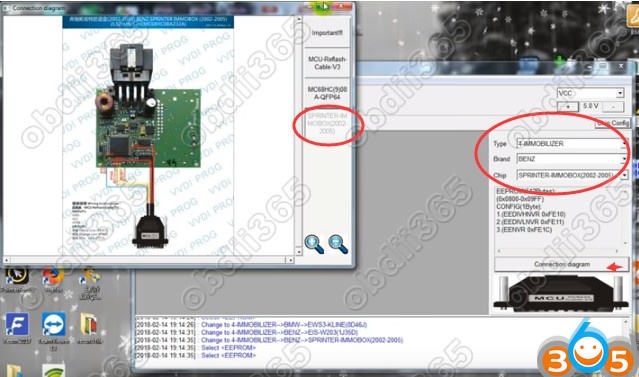

Click on Connection diagram and view diagram

vvdi-prog-tango-sprinter-key-04

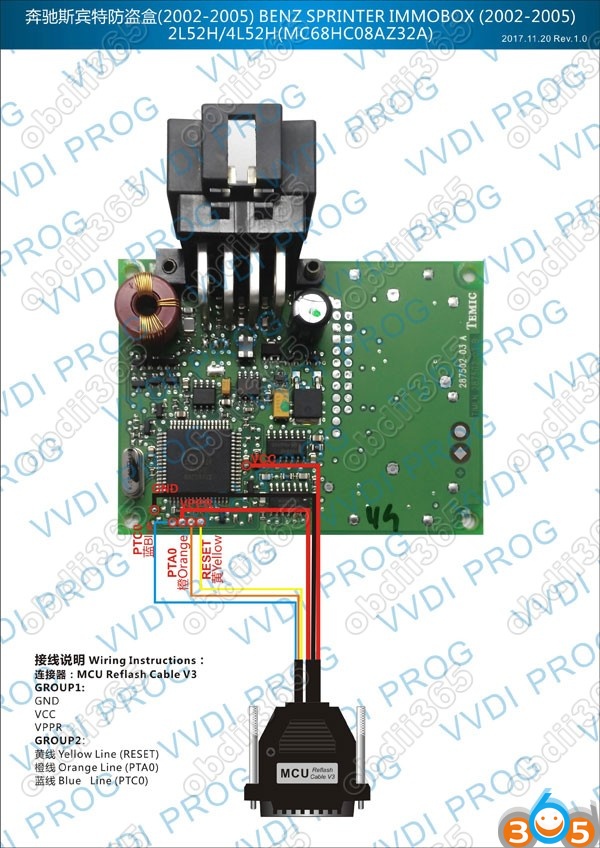

Sprinter 4L52H mcu pinout to VVDI Prog

BENZ-SPRINTER-IMMOBOX-2002-2005

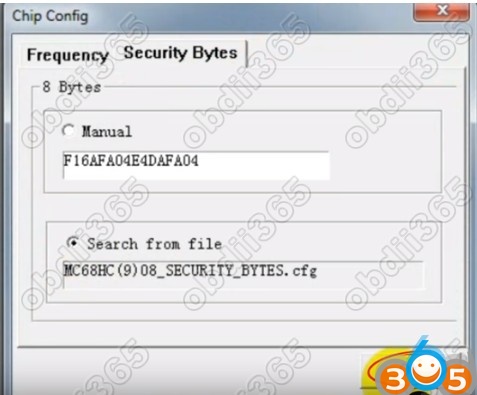

Click on Chip Config

Select Security Bytes->Search from file->MC68HC(9)08_SECURITY_BYTES.cfg

vvdi-prog-tango-sprinter-key-05

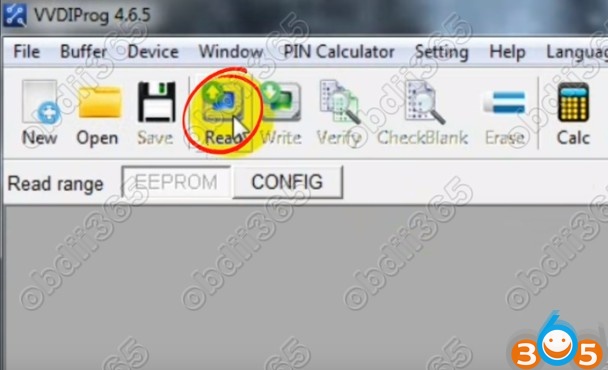

Read data

vvdi-prog-tango-sprinter-key-06

vvdi-prog-tango-sprinter-key-07

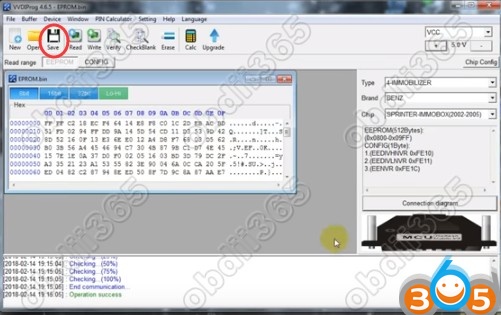

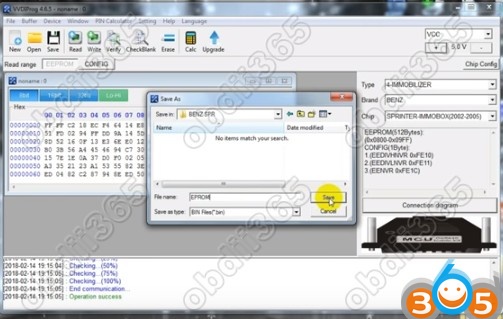

Save eeprom data

vvdi-prog-tango-sprinter-key-08

Step 2: Write transponder with Tango

Open Tango key programmer software

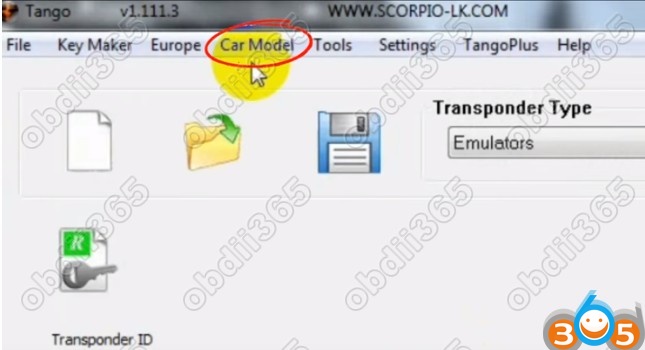

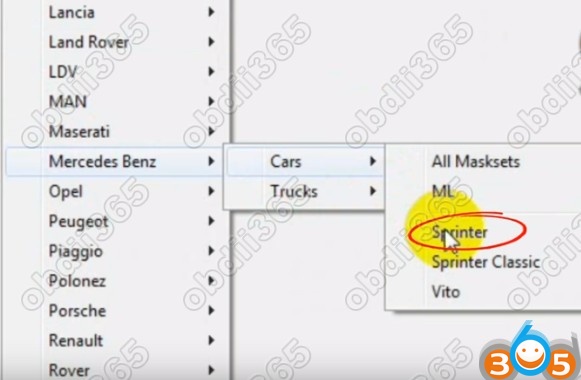

Select Car Model tab->Benz->Cars->Sprinter

vvdi-prog-tango-sprinter-key-09

vvdi-prog-tango-sprinter-key-10

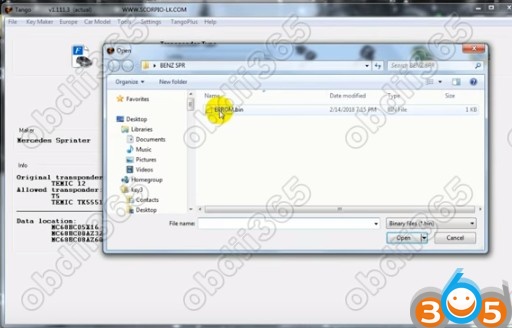

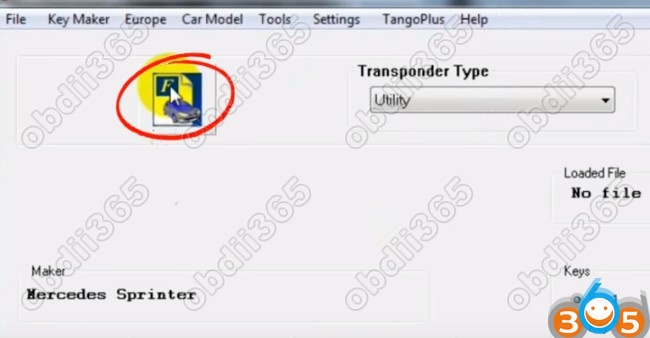

Load eeprom file just read by VVDI prog

vvdi-prog-tango-sprinter-key-11

vvdi-prog-tango-sprinter-key-12

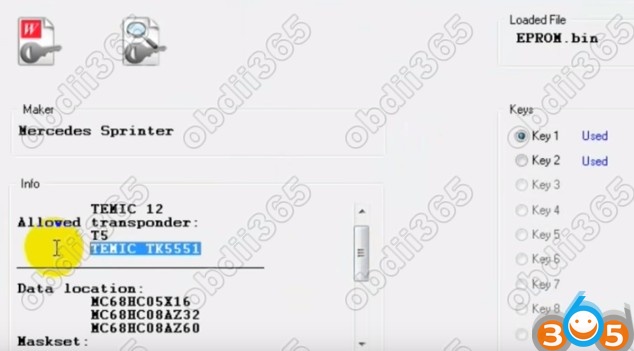

Click on Write key button

vvdi-prog-tango-sprinter-key-13

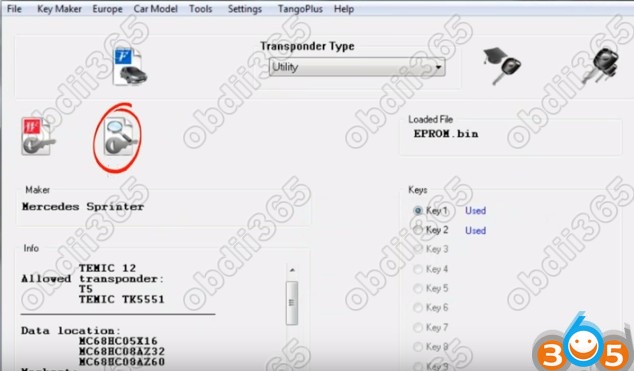

Then

vvdi-prog-tango-sprinter-key-14

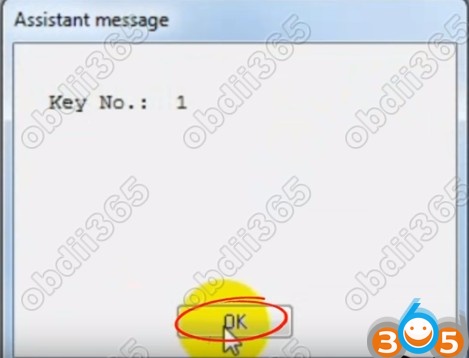

Confirm key position

vvdi-prog-tango-sprinter-key-15

Follow tango prompts until success.
