Program Audi A4 2012 IMMO5 Smart Remote Key by Xtool X100 Pad2

New Test Feedback: Just add a smart remote key on a Audi A4 year 2014 5th generation immobilizer system using Xtool X100 Pad2 Pro full version.

Note: Only X100 Pad2 full version with Xtool KC100 adapter has the VAG 4th & 5th Immo function.

Have a working key and a smart key to be programmed

xtool-x100-pad2-audi-a4-1
Connect X100 Pad2 with vehicle

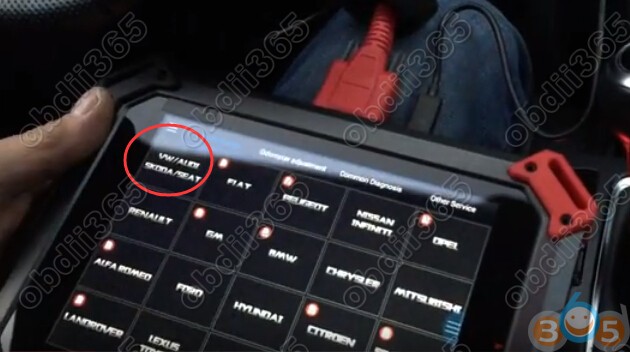

Select VW/Audi/Skoda/Seat->4th/5th Immobilizer System->5th Immobilizer System

xtool-x100-pad2-audi-a4-2
xtool-x100-pad2-audi-a4-3
xtool-x100-pad2-audi-a4-4
Xtool X100 pad 2 will ask 17 digits VIN code to continue
xtool-x100-pad2-audi-a4-5

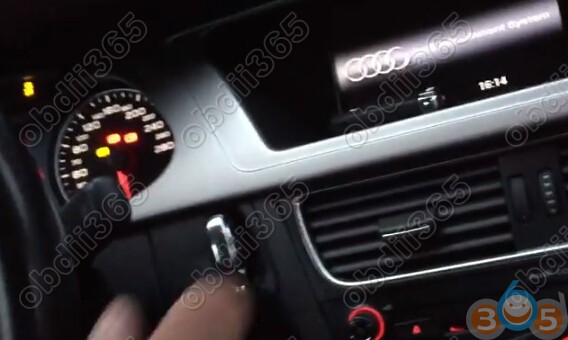

Turn ignition to ON position
xtool-x100-pad2-audi-a4-6
Back to select 5th Immobilizer System

It will not ask for VIN code

Select 1. Read Immokey data

xtool-x100-pad2-audi-a4-7
Name immo key data
xtool-x100-pad2-audi-a4-8

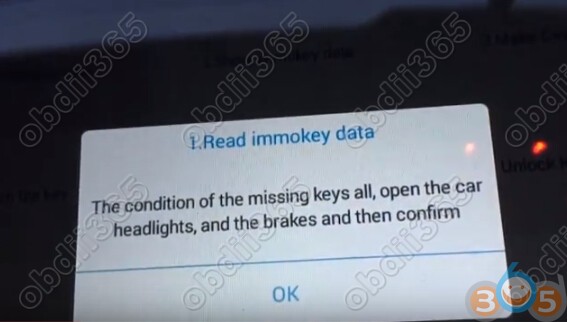

If all keys lost, you should open headlights and press brakes.
xtool-x100-pad2-audi-a4-9
Reading data completed.

Select 2 Show Immokey data

xtool-x100-pad2-audi-a4-10
Select 3.Make Dealer Key
xtool-x100-pad2-audi-a4-11
Insert key to be programmed into Xtool KC100 adapter
xtool-x100-pad2-audi-a4-11
Writing key
Create dealer key success
xtool-x100-pad2-audi-a4-12
Select 4.Match the key (Key Learning)
both 2 keys should be learnt
xtool-x100-pad2-audi-a4-13
close the keys to turn the ignition to identify the key
xtool-x100-pad2-audi-a4-14
Key learning success
xtool-x100-pad2-audi-a4-15
Programming success.

Test the remote control and start vehicle.
