Program Audi Q5 5th IMMO Key with Xtool X100 PAD2

How-to: program Audi Q5 5th generation immobilizer key using Xtool X100 PAD2 via OBD. Both add key and all keys lost are available. Here’s the guide on adding a spare Q5 key with pad2.





Device required:

Xtool X100 PAD2 pro with KC100 adapter in default

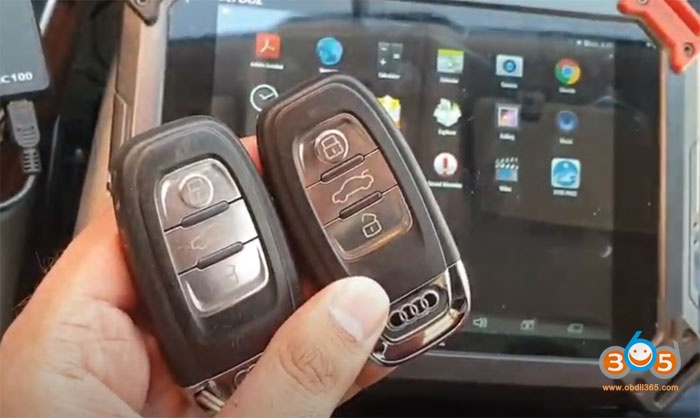

A working key

A new key to be programmed

Xtool X100 Pad2 Audi Q5 Add Key 1

Procedure:

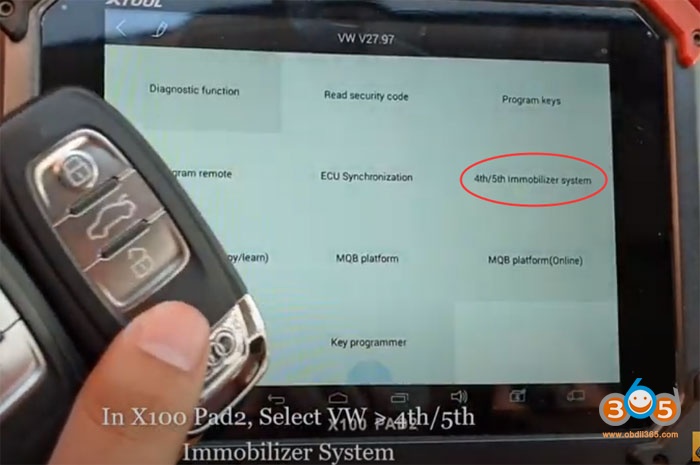

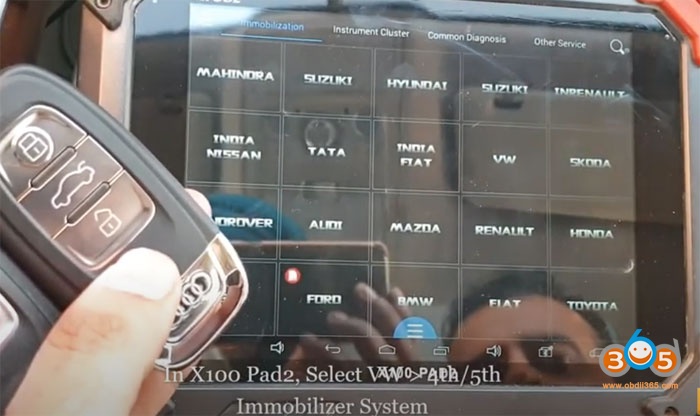

In X100 pad2, select VW-> 4th/5th Immobilizer system

Xtool X100 Pad2 Audi Q5 Add Key 2

Xtool X100 Pad2 Audi Q5 Add Key 3
Turn ON the ignition with one working key

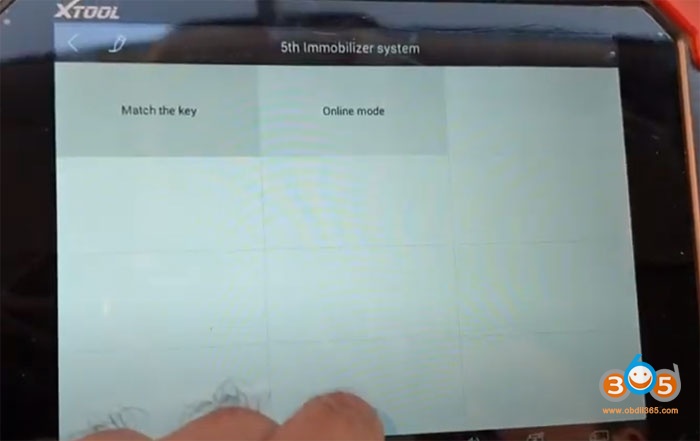

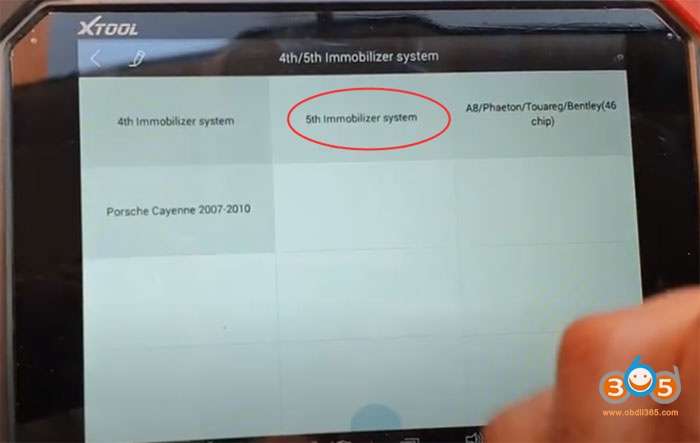

Select 5th Immobilizer System

Xtool X100 Pad2 Audi Q5 Add Key 5

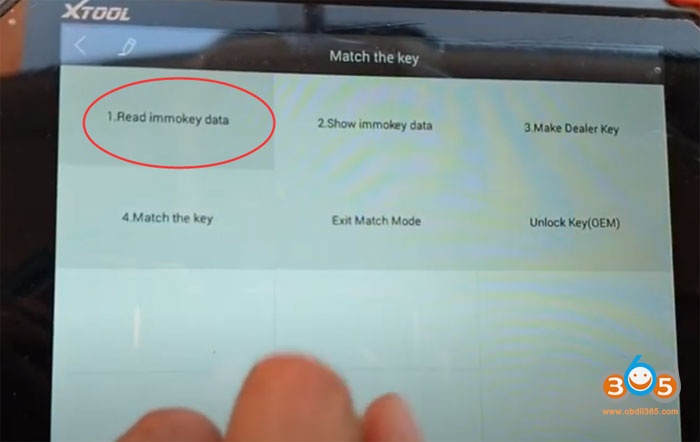

Select Match the Key-> Read Immo key data

Xtool X100 Pad2 Audi Q5 Add Key 6

Xtool X100 Pad2 Audi Q5 Add Key 7

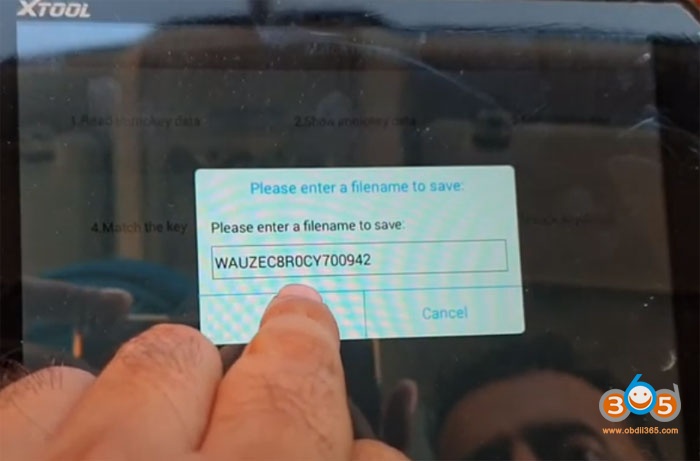

Enter the file name to be saved

Xtool X100 Pad2 Audi Q5 Add Key 8
Turn the ignition on
If lost all keys, open the car headlights, the brakes and then confirm,
Wait for data to be read

Xtool X100 Pad2 Audi Q5 Add Key 9

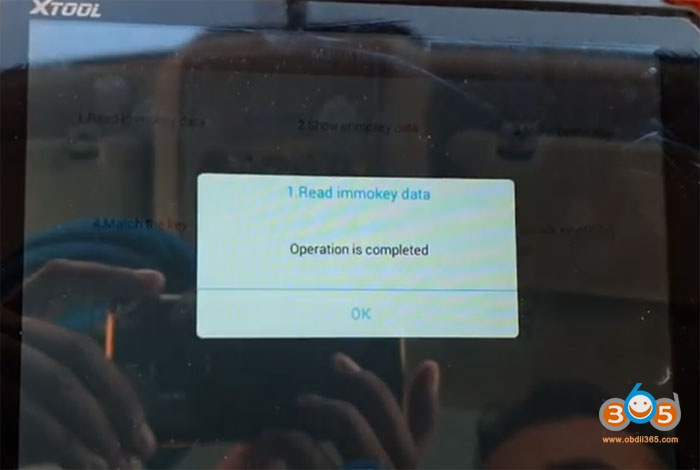

Read data completed

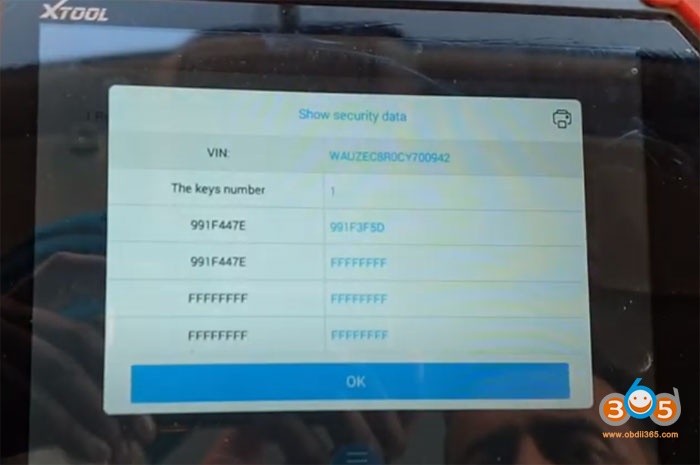

Press Show Immo data to check the security data

Xtool X100 Pad2 Audi Q5 Add Key 10
Now select Make Dealer Key

Xtool X100 Pad2 Audi Q5 Add Key 11
Plug the KC100 adapter into xtool x100 pad 2 tablet, press OK to continue
Select key type: Create A4/A5/Q5 Key

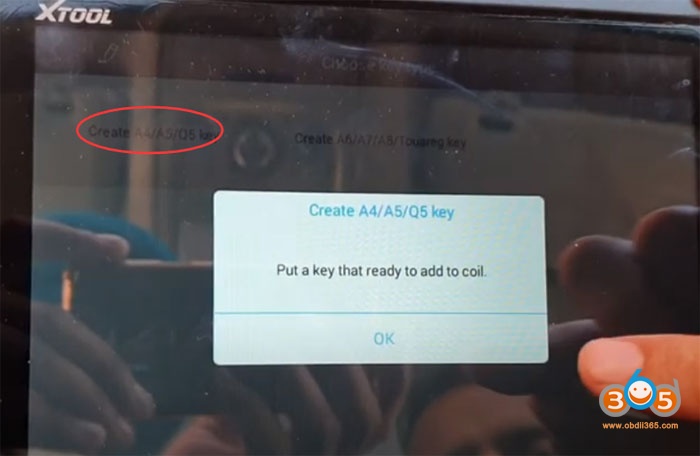

Put a key that ready to add to kc100’s coil

Xtool X100 Pad2 Audi Q5 Add Key 13

Xtool X100 Pad2 Audi Q5 Add Key 12

Creating key
Writing key

Xtool X100 Pad2 Audi Q5 Add Key 14

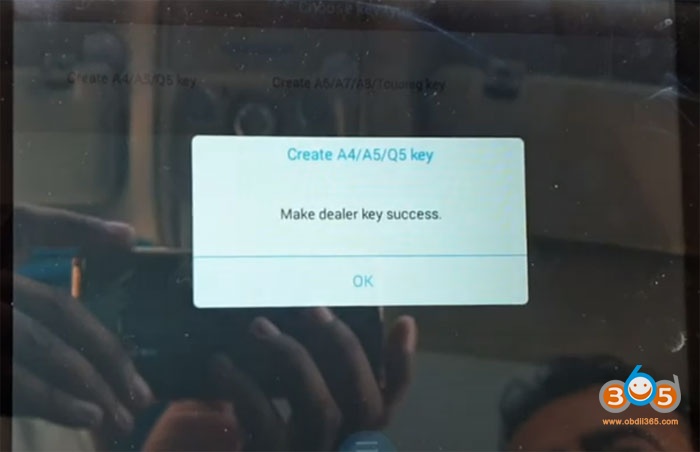

Make dealer key success
Take out the key from KC100 adapter

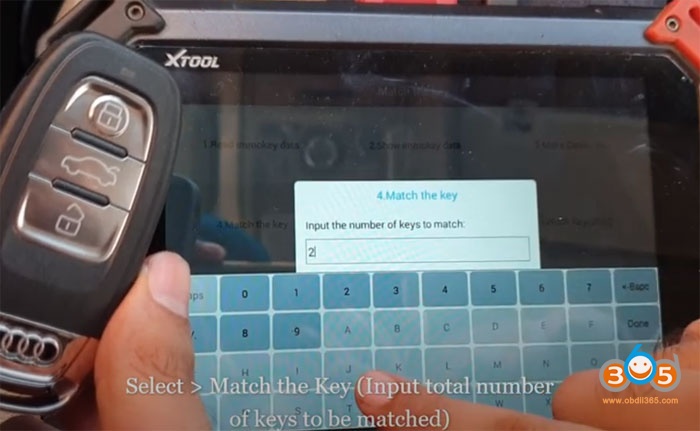

Select Match the key and input the number of keys to match: 2

Xtool X100 Pad2 Audi Q5 Add Key 16
Turn the ignition on
(All keys lost: Insert one dealer key into ignition switch to make it close to the induction coil)

Xtool X100 Pad2 Audi Q5 Add Key 17

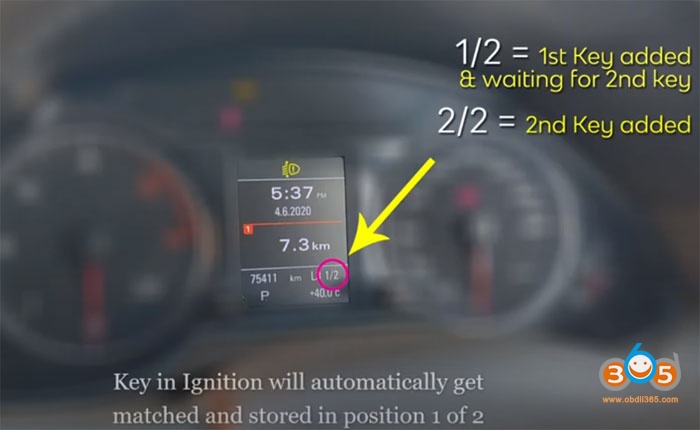

Key in ignition will automatically get matched and stored in position 1 of 2

Xtool X100 Pad2 Audi Q5 Add Key 18

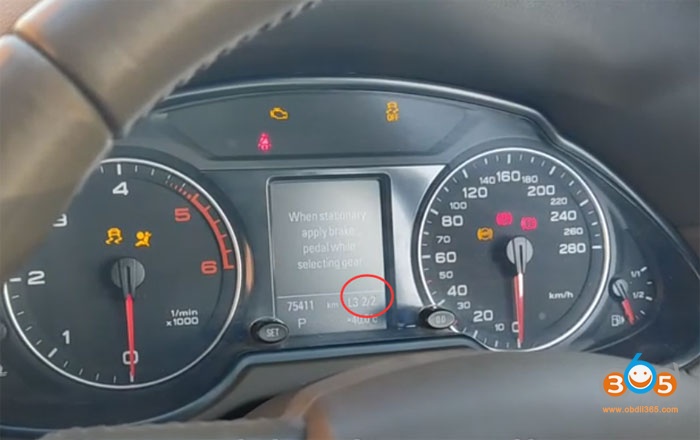

Now remove the key and insert second key to match that in position 2 of 2
Exit key learning
Match the key finished
Check the key for working.
Done.
