How to add VW GOLF 6 NEC+24C32 key with OBDSTAR X300 DP

How to add key for VW GOLF 6 NEC+24C32 by using OBDSTAR X300 DP/Key Master DP via OBD.

obdstar-x300-dp-vw-golf6-1

Procedure:

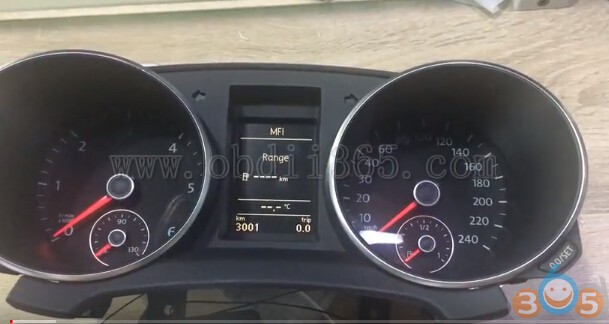

Connect Key Master DP with VCI and vehicle via OBD diagnostic socket

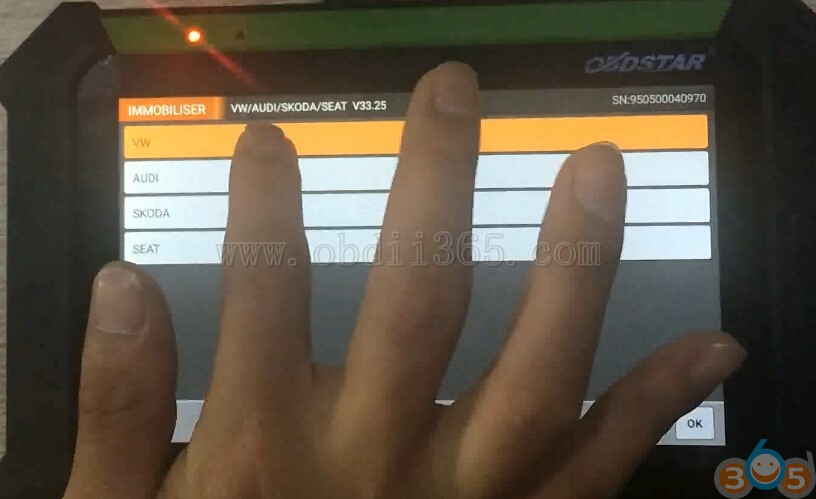

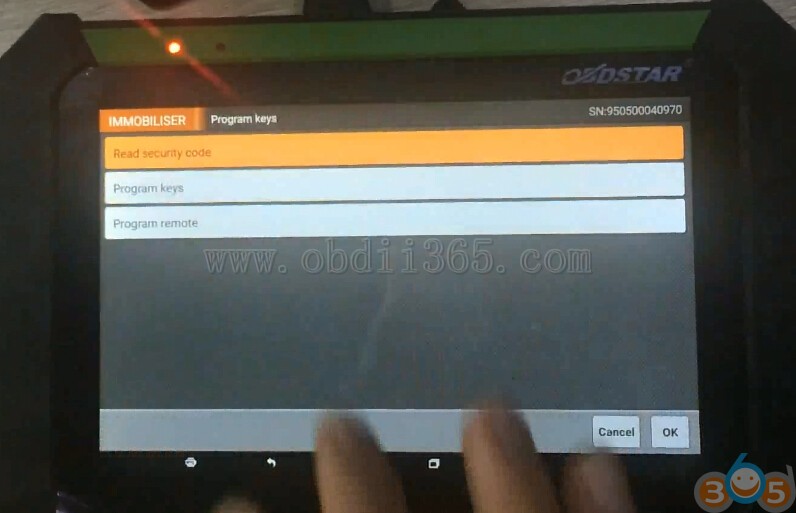

Select Immobilizer function->VW/Audi/Skoda/Seat->VW->Program Keys->4th generation Immobilizer->NEC+24C32 ICM
obdstar-x300-dp-vw-golf6-2
obdstar-x300-dp-vw-golf6-3
obdstar-x300-dp-vw-golf6-4
obdstar-x300-dp-vw-golf6-5

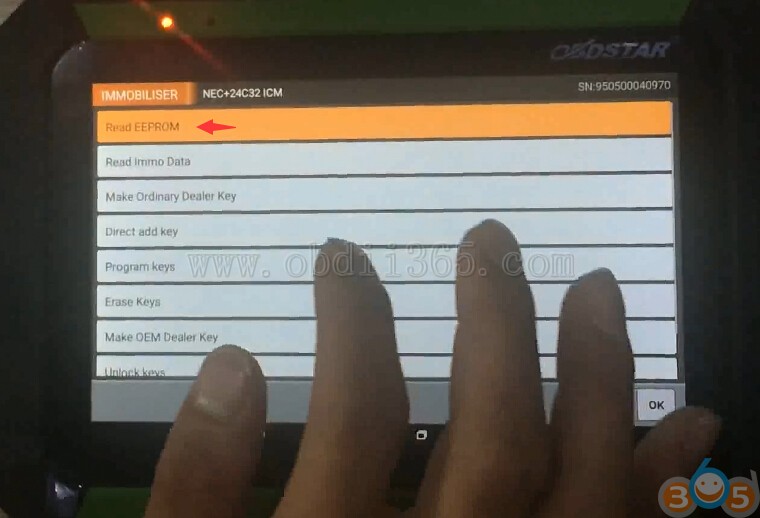

Read EEPROM data
Turn ignition to ON position
Reading data
Immo indicator will flash during this procedure
obdstar-x300-dp-vw-golf6-6

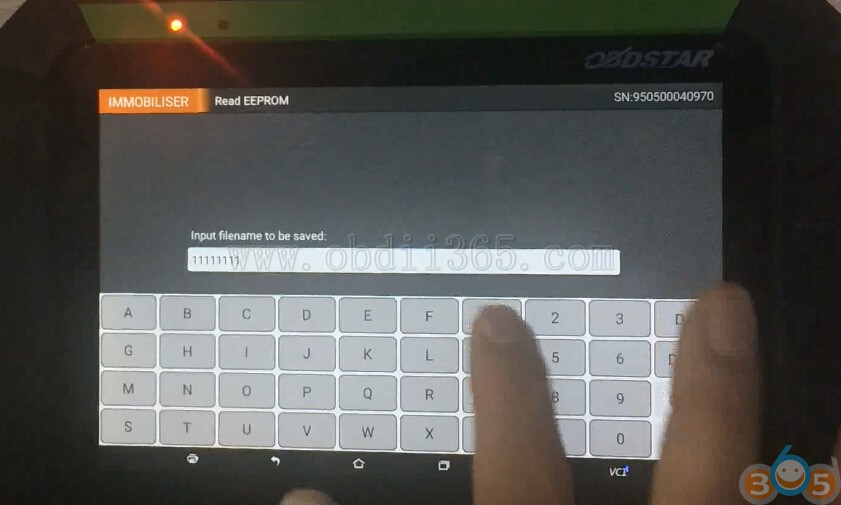

Save eeprom data
obdstar-x300-dp-vw-golf6-7

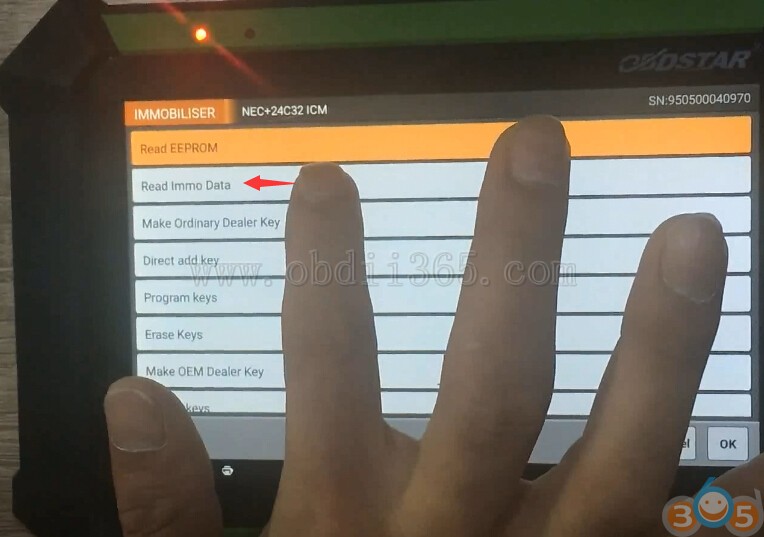

Read IMMO data
Switch ignition on
Reading data
Immo indicator will flash during this procedure
obdstar-x300-dp-vw-golf6-7

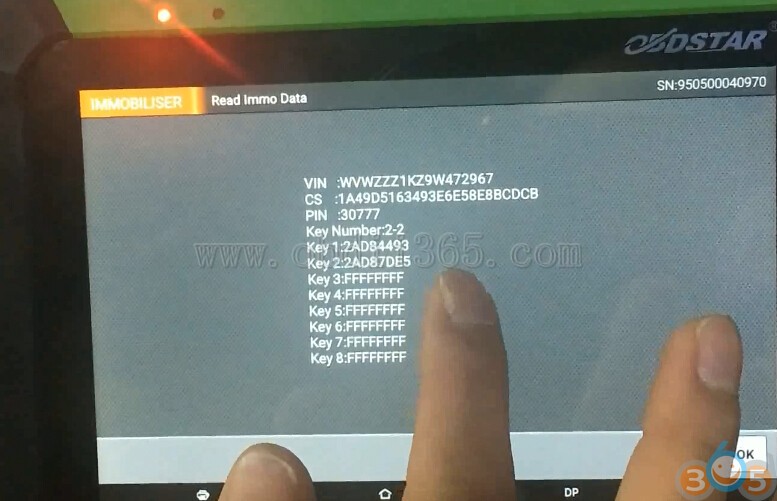

X300 DP read immo data success
Current number of keys: 2
Select Direct add key
Turn ignition on
You must read eeprom data before perform this operation
obdstar-x300-dp-vw-golf6-8
obdstar-x300-dp-vw-golf6-9

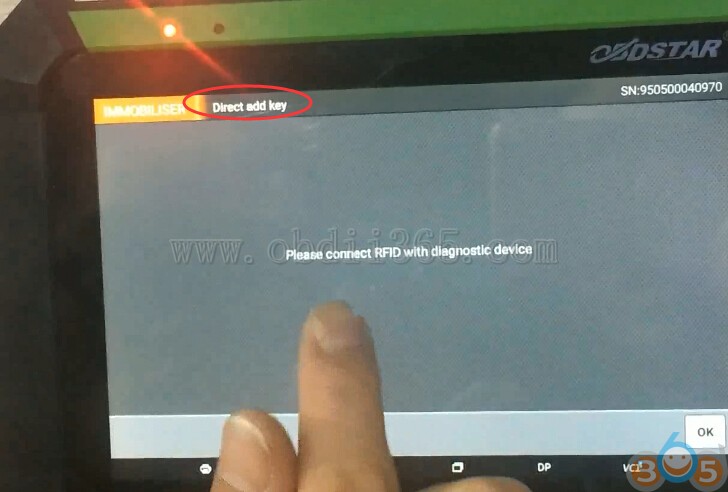

Connect OBDSTAR RFID adapter with key master dp
Reading data
Writing data
obdstar-x300-dp-vw-golf6-10

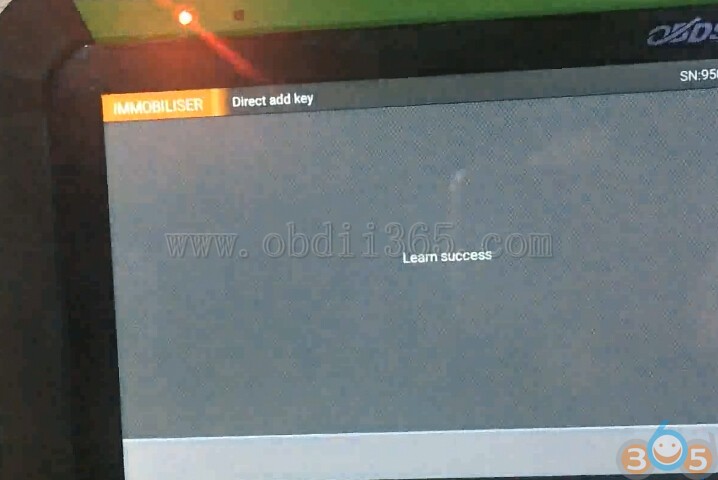

Key learning success.
Go back and read Immo data
obdstar-x300-dp-vw-golf6-11

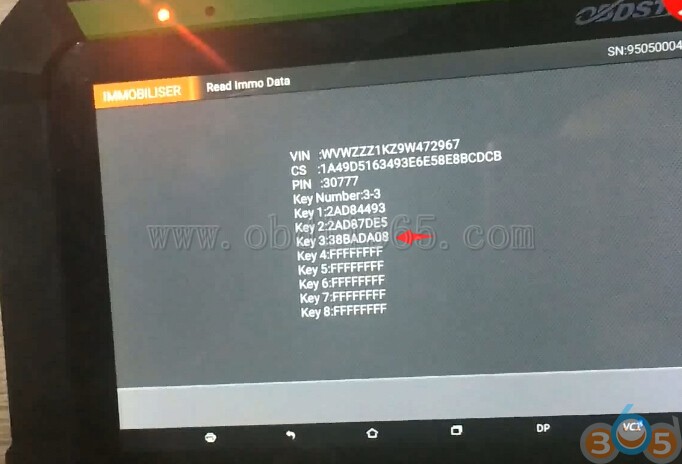

You can see the 3rd key has been successfully programmed.

Start vehicle with the new key.
