OBDSTAR X300 Pro3 Read VW Polo PIN Code via EEPROM Adapter

Just got VW polo pin code by OBDSTAR X300 Pro3 Key Master key programmer via EEPROM/PIC adapter within 2 minutes.

obdstar-key-master-vw-polo-3

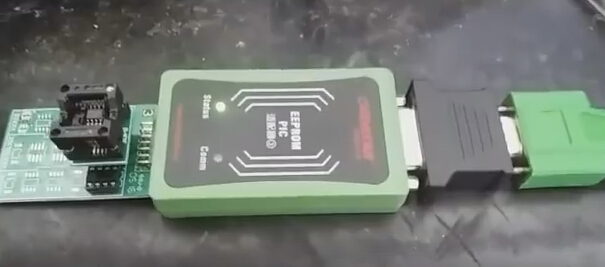

Well connect eeprom/pic 2-in-1 adapter. Status indicator on means well connection is built

obdstar-key-master-vw-polo-2

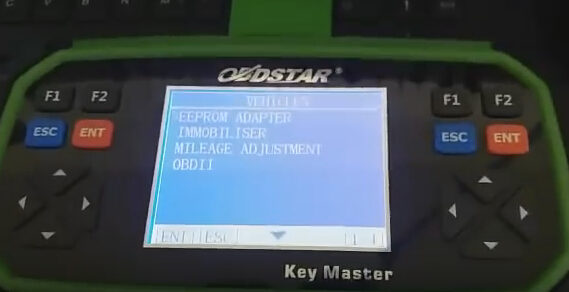

Select EEPROM Adapter function in OBDSTAR Key Master

obdstar-key-master-vw-polo-1

Select PIC/FREESCALE ADAPTER V33-34

obdstar-key-master-vw-polo-4

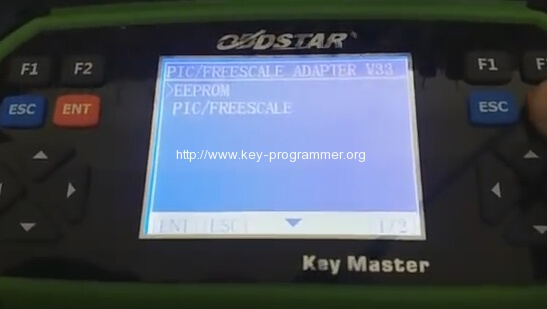

Select EEPROM

obdstar-key-master-vw-polo-5

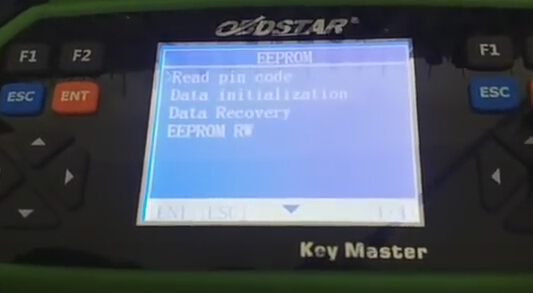

Select Read pin code

obdstar-key-master-vw-polo-6

Select vehicle: VW->Polo

obdstar-key-master-vw-polo-7

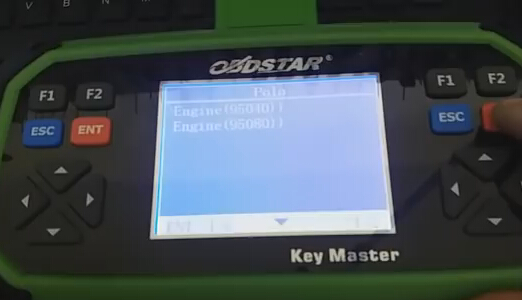

Select engine ECU type 95040

obdstar-key-master-vw-polo-8

Reading data…
EEPROM dapter Comm (communication) light will flash

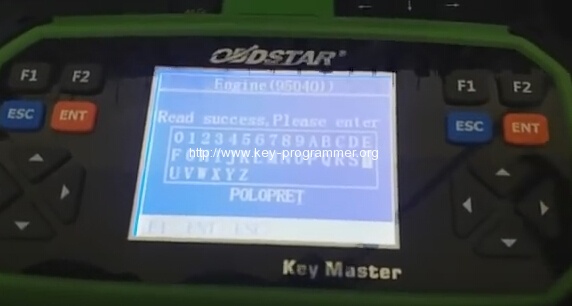

Read success. Please eneter the filename to save, i.e POLOPRET

obdstar-key-master-vw-polo-9

Press enter to confirm
The file name of your enter already exists.

obdstar-key-master-vw-polo-10

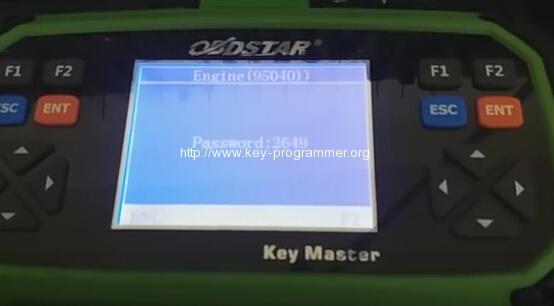

Read VW Polo security password successfully.
