Program Nissan GTR 2010 Remote Key with OBDSTAR X300 DP

How to program smart remote key 3-button to Nissan GTR year 2010 (with card slot) using OBDSTAR X300 DP/ Key Master DP tablet key programmer.

obdstar-x300-dp-nissan-gtr-2

Main steps:

Step 1: Read BCM code
Step 2: Calculate Pin Code
Step 3: Release steering wheel lock
Step 4: Program smart key
Step 5: Program chip
Step 6: Synchronize to start



Procedure:

obdstar-x300-dp-nissan-gtr-3

Mark all remotes with number 1, 2,3

obdstar-x300-dp-nissan-gtr-4

Remote number 1, 2 are programmed and number 3 is a new remote

Take all remotes out of the car

Close all doors and lock the steering lock

Step 1: Read 5-digit BCM Nissan code with  X300 DP
Select Nissan->Nissan/Infitini V31.56->4-digital Pin code->Smart key system->Auto search->Button type->with card slot

obdstar-x300-dp-nissan-gtr-16

Take all smart key out of the car and press Start button

Select Read BCM Code

obdstar-x300-dp-nissan-gtr-6
Read 5-digit BCM code success: 8D060

Step 2: Calculate pin code
Select Pincode calculate->4 Digit Pincode->BCM code
Turn ignition off
Confirm BCM code

obdstar-x300-dp-nissan-gtr-8

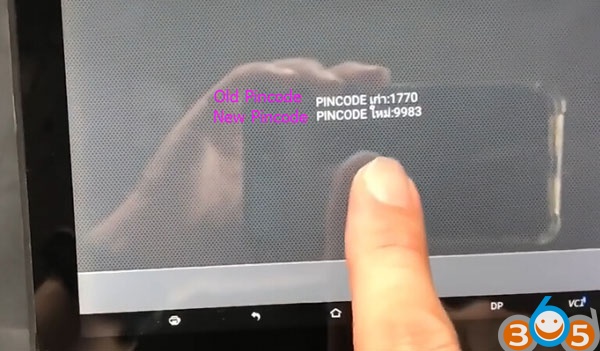

OBDSTAR X300DP calculated old pin code and new pin code

*GTR pre-2009 use old pincode
post-2009 use new pincode

Step 3 Release steering wheel lock

obdstar-x300-dp-nissan-gtr-9
Select BCM (steering wheel lock)
Turn ignition off
X300 DP will ask pin code to access

This car is year 2010, so we enter new pin code

obdstar-x300-dp-nissan-gtr-10

Steering wheel release success



Step 4: Program smart key with OBDSTAR X300 DP

Put all remotes inside the car

Turn on hazard light
Select With card slot->smart key system

obdstar-x300-dp-nissan-gtr-11

Insert smart key into the slot (The slot is below the start button or the lower left corner

of the steering wheel) and switch ignition on

Select Program smart key
Press Yes if already releases steering wheel lock
Enter new pin code to access
Program successfully

Insert and turn on 5 seconds every keys

obdstar-x300-dp-nissan-gtr-12
Insert 1st remote and turn on 5 seconds
Insert 2nd remote and turn on 5 seconds

obdstar-x300-dp-nissan-gtr-13

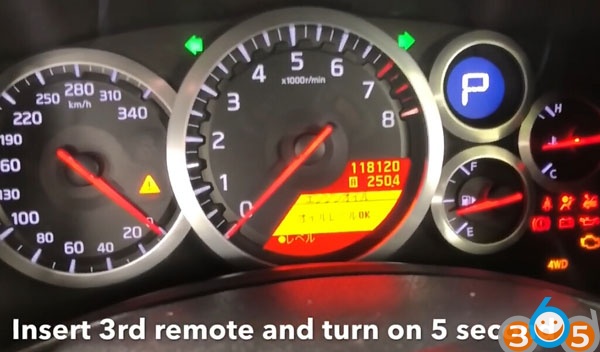

Insert 3rd remote and turn on 5 seconds
Turn ignition off and take 3rd remote out



Step 5: Program chip

Insert 1st remote again turn ignition on and take out
Steering wheel lock release
Insert 2nd remote again turn ignition on and take out
Steering wheel lock release

obdstar-x300-dp-nissan-gtr-14
Insert 3rd remote, turn ignition on and press brake to start car for 10 seconds



Step 6: Synchronize to start

Turn off and take out remote
Open and close driver door
Turn off hazard light

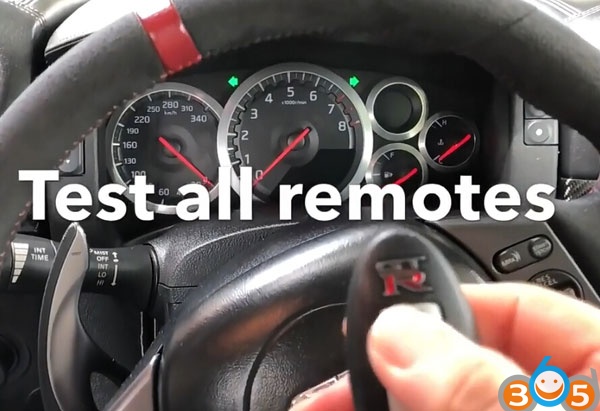

Test all remotes

obdstar-x300-dp-nissan-gtr-15
All remote worked.
