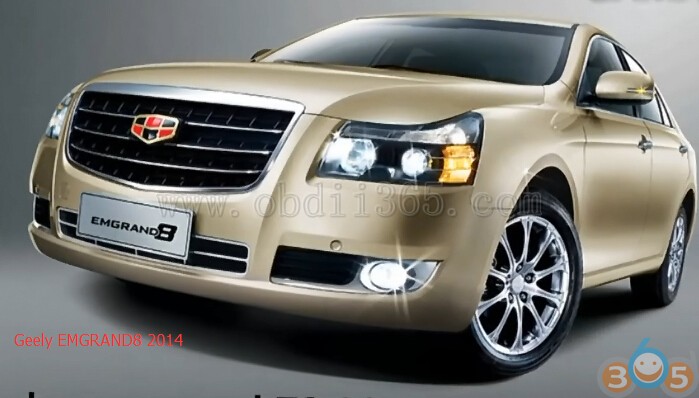

OBDSTAR X300 DP Program New Key for Geely EMGRAND8 2014

How-to: add new keys to a Geely Emgrand 8 year 2018 with OBDSTAR X300 DP/ Key master DP via OBD.

obdstar-x300-dp-geely-emgrand8-2014-1

Pin code is required to program new key. The car comes with a card with IMMO security code. If you lose the card, X300 DP gives you an option to read pin code as well.

obdstar-x300-dp-geely-emgrand8-2014-2

4-digit PIN code: 1606

Connect X300 DP with vehicle via OBD
Turn on ignition switch

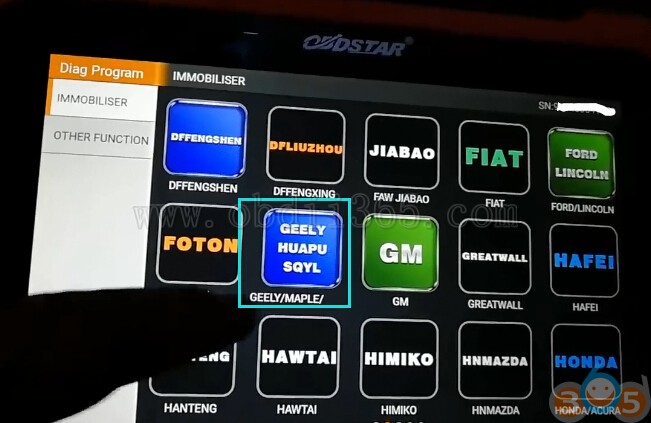

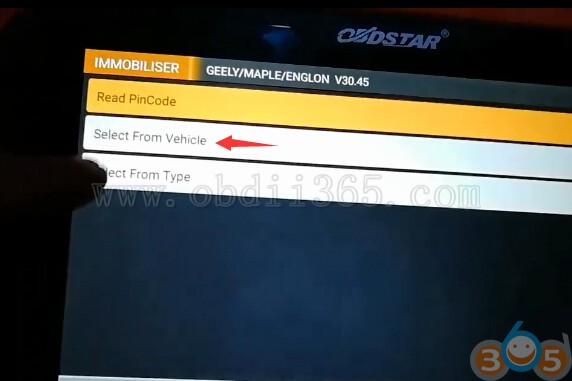

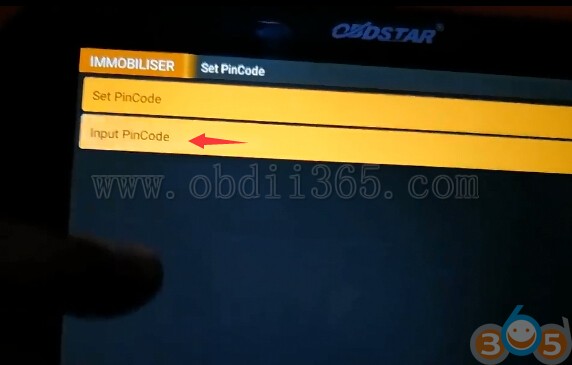

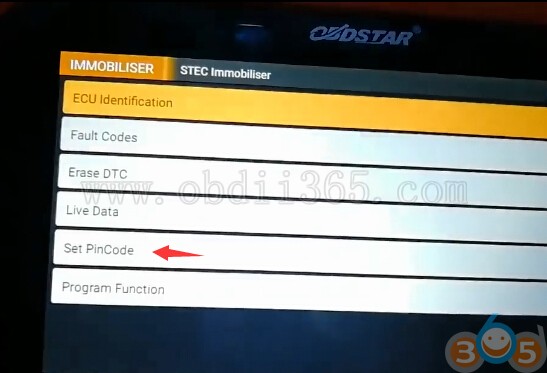

Select IMMOBILIZER->GEELY/HUAPU/AQYL->Select from Vehicle->Geely->EMGRAND->E820->Immobilizer->STEC Immobilizer->Set Pincode->Input Pin code

obdstar-x300-dp-geely-emgrand8-2014-3

obdstar-x300-dp-geely-emgrand8-2014-4

obdstar-x300-dp-geely-emgrand8-2014-5

obdstar-x300-dp-geely-emgrand8-2014-6

obdstar-x300-dp-geely-emgrand8-2014-7

obdstar-x300-dp-geely-emgrand8-2014-8

obdstar-x300-dp-geely-emgrand8-2014-9

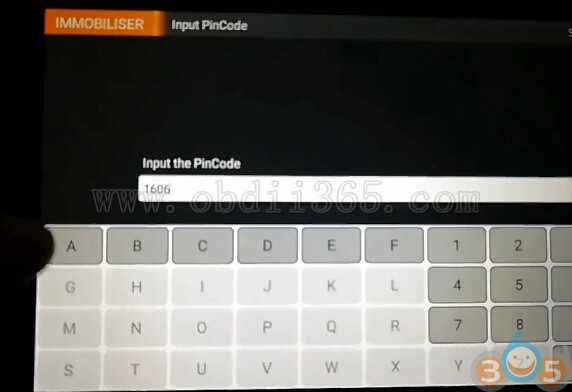

OBDSTAR X300DP asks to enter 4-digit pin code and confirm

obdstar-x300-dp-geely-emgrand8-2014-10
Pin code input completed.

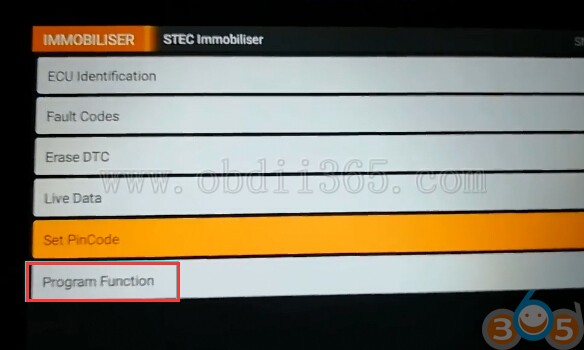

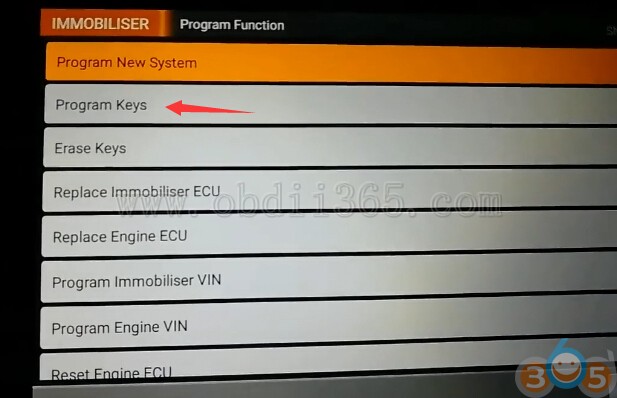

Select Program function->Program keys

obdstar-x300-dp-geely-emgrand8-2014-11

obdstar-x300-dp-geely-emgrand8-2014-12

Before program new keys must delete all keys.

obdstar-x300-dp-geely-emgrand8-2014-13
obdstar-x300-dp-geely-emgrand8-2014-14

Program success

obdstar-x300-dp-geely-emgrand8-2014-15

Number of programmed keys: 1

obdstar-x300-dp-geely-emgrand8-2014-16

If you want to program next key, insert next key and turn on ignition switch, press ENTER to continue within 5 sec. If don’t, press ESC.

obdstar-x300-dp-geely-emgrand8-2014-17

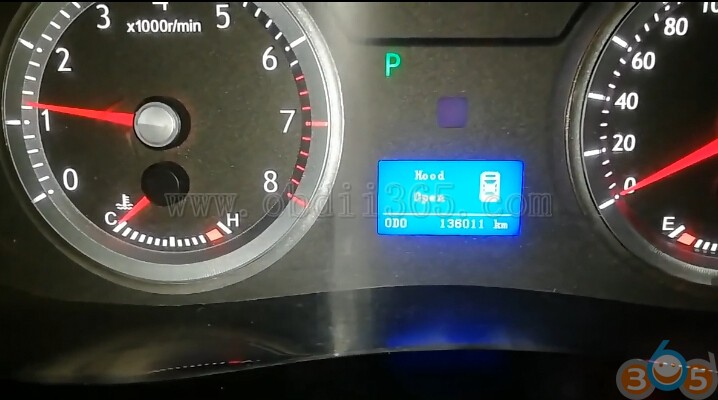

Test the new key

obdstar-x300-dp-geely-emgrand8-2014-18
