Auro OtoSys IM600 Program Audi A6 2011 All Keys Lost on Bench

Car model: Audi A6 3.0 TDI 2011

Key type: 8E chip transponder

Purpose: program dealer key when all keys lost

Method: on the bench

Devices used:

8E transponder and key blank

Auro OtoSys IM600/ Autel MaxiIM IM608 key programmer



Major progress:

1.Read EZS

2.Load EZS

3.Make dealer key

4.Learn key



Procedure:

1.Read IMMO data from EZS

auro-im600-audi-a6-ezs-1

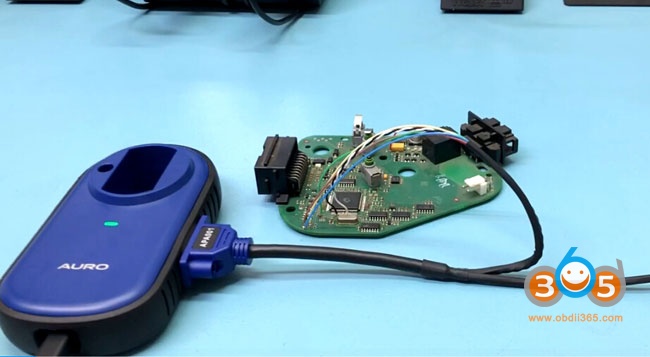

Connect UP400 eeprom programmer with EZS follow the wiring diagram (you can check the wiring in IM600/IM608 menu)

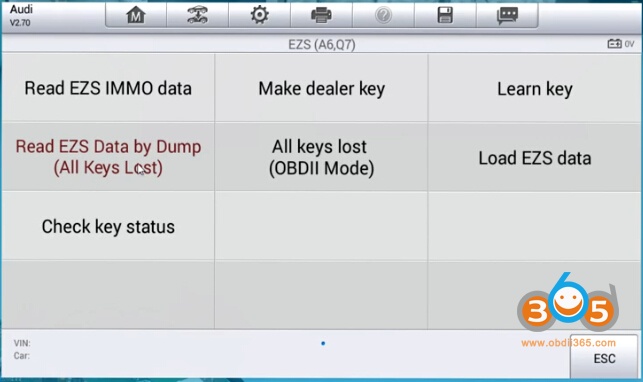

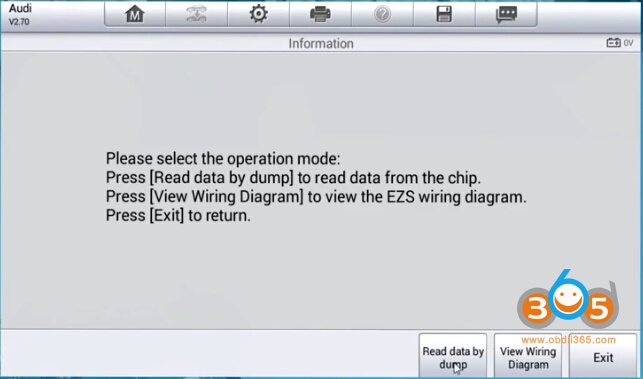

Select Read EZS data by dump (All key lost)-> Read data by dump

auro-im600-audi-a6-ezs-2

auro-im600-audi-a6-ezs-3

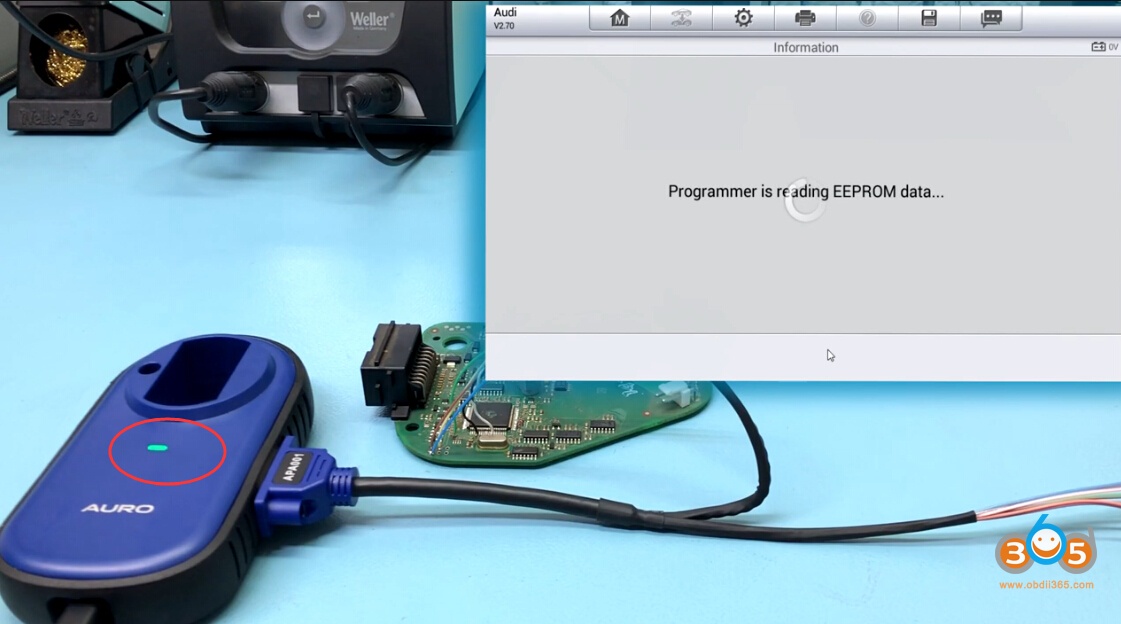

Reading EZS dump in process, the green indicator on up400 programmer will turn on

auro-im600-audi-a6-ezs-4

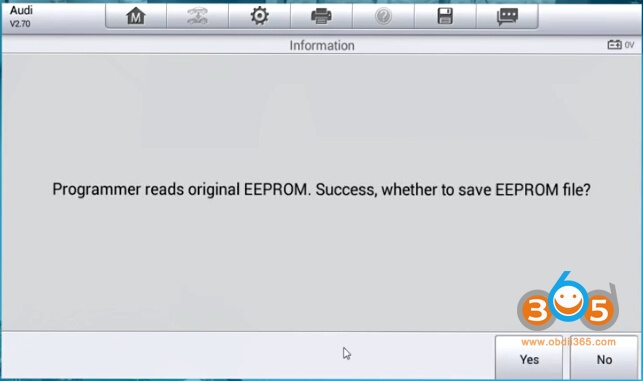

Read EEPROM from EZS success. Save data

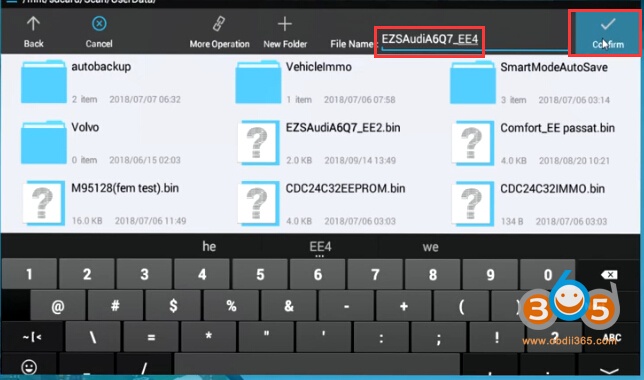

auro-im600-audi-a6-ezs-5

auro-im600-audi-a6-ezs-6

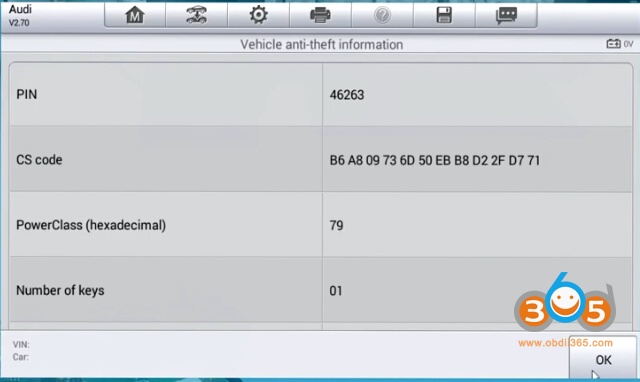

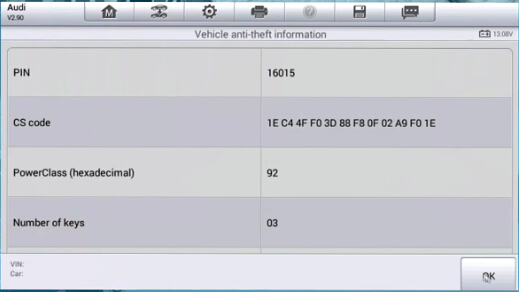

Save data success. Display vehicle information, PIN, CS, key number etc

auro-im600-audi-a6-ezs-7

2. Load EZS Data

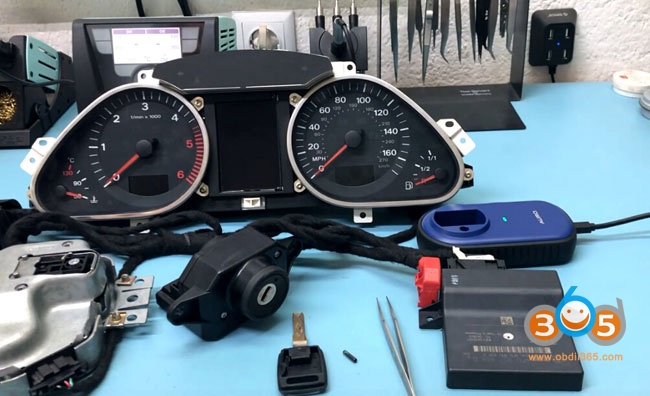

set up bench connection

auro-im600-audi-a6-all-key-lost-1

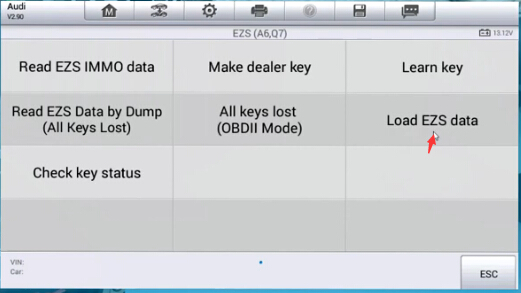

Select EZS-Kessy AUDI A6/Q7->Load EZS data

auro-im600-audi-a6-all-key-lost-2

auro-im600-audi-a6-all-key-lost-3

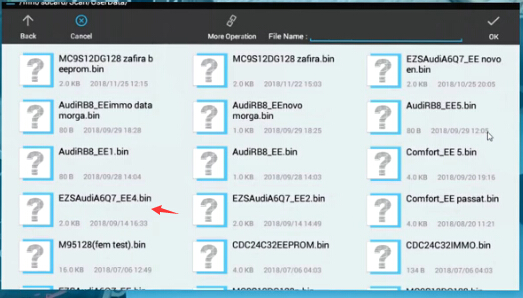

Load data saved in step 1 and confirm vehicle information

auro-im600-audi-a6-all-key-lost-4

auro-im600-audi-a6-all-key-lost-5

3.Make dealer key

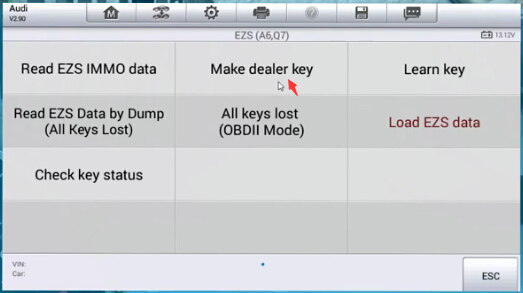

Select Make dealer key

auro-im600-audi-a6-all-key-lost-6

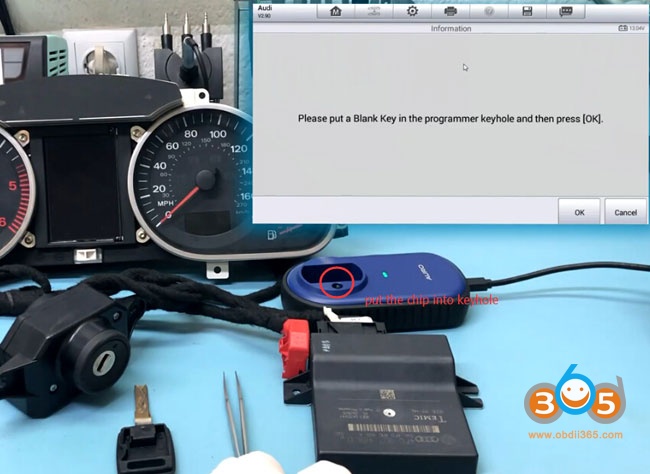

Put a blank key or chip into Autel IM608 xp400/ IM600 up400 programmer keyhole and press OK to continue

auro-im600-audi-a6-all-key-lost-7

Communication

Make dealer key success

auro-im600-audi-a6-all-key-lost-8

4. Learn key

Select Learn key

auro-im600-audi-a6-all-key-lost-9

Remove key chip form keyhole

Insert chip into key blank and turn on ignition

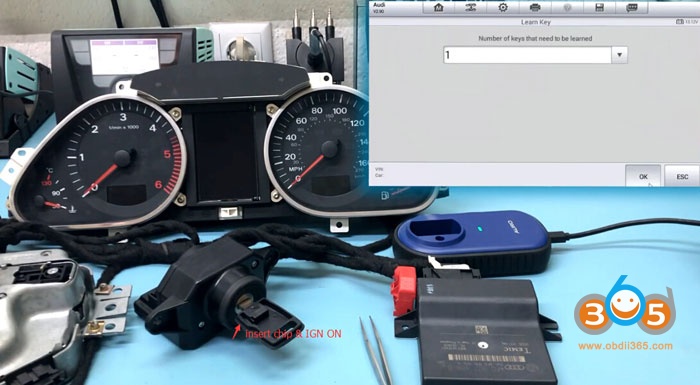

Select number of keys need to learn

auro-im600-audi-a6-all-key-lost-10

Turn ignition OFF

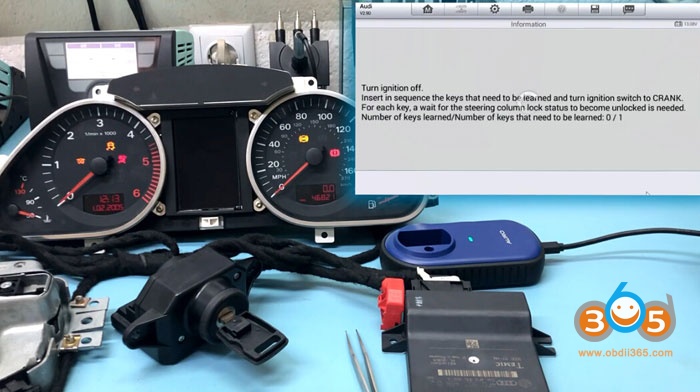

Insert the sequence keys that need to be learned and turn ignition switch to CRANK.

For each key, wait for the steering column lock status to become unlocked is need.

auro-im600-audi-a6-all-key-lost-11

auro-im600-audi-a6-all-key-lost-12

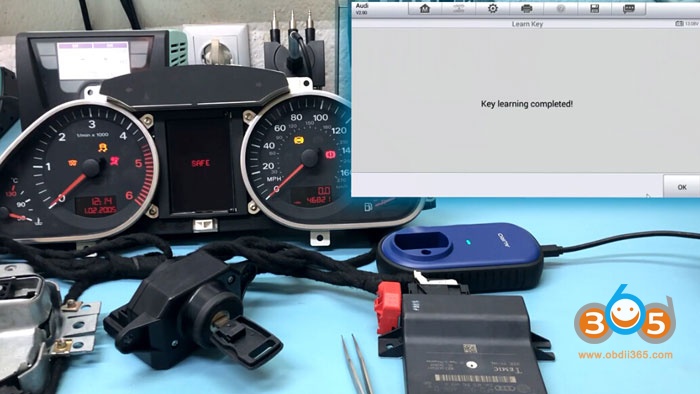

Key learning completed.

Done.
