Autel IM608 Program Renault Koleos 2013 Smart Card

Test report: successfully programmed new smart card on a Renault Koleos year 2013 using Autel MaxiIM IM608 key programmer via OBD.



Connect IM608 with vehicle

Select IMMO->Renault->Manual Selection->Koleos->Keyless System (CAN)->Key learning->Learn the key

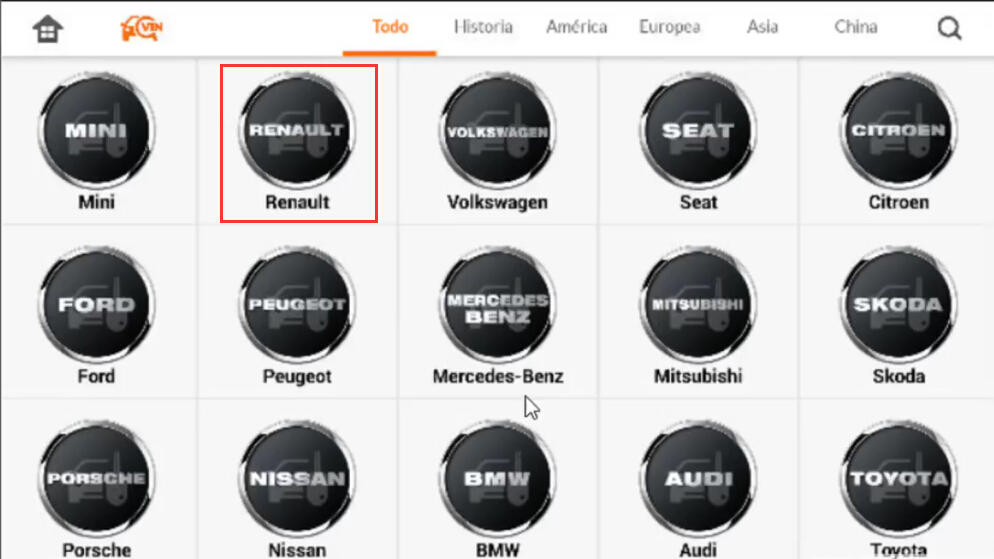

autel-im608-2013-renault-koleos-1

autel-im608-2013-renault-koleos-2

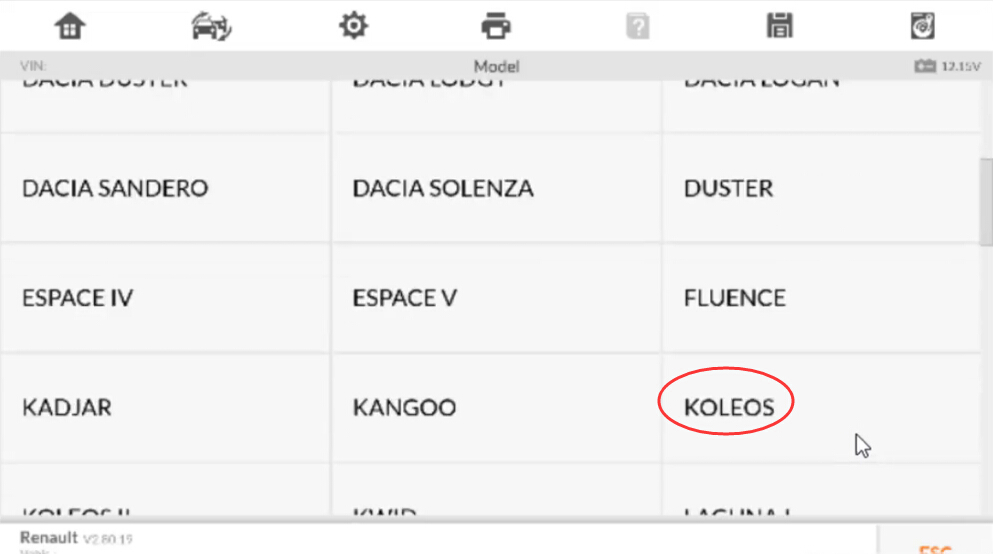

autel-im608-2013-renault-koleos-3

autel-im608-2013-renault-koleos-4

autel-im608-2013-renault-koleos-5

autel-im608-2013-renault-koleos-6

Turn on emergency indicator and switch ignition off

autel-im608-2013-renault-koleos-7

Autel IM608 will delete keys not available

Remove smart card

Learning key in process

Insert smart card

autel-im608-2013-renault-koleos-9

Program successful. Insert next card to program

autel-im608-2013-renault-koleos-10

Remove card and insert next card

autel-im608-2013-renault-koleos-11

Program successfully

Remove card and disconnect im608

Insert card, start engine to complete procedure.

autel-im608-2013-renault-koleos-12

Done.
