Program Renault Megane III 09-15 Key Card with Autel MaxiIM IM608

How-to: add a spare remote key card to Renault Megane III year 2009 to 2015 by using Autel MaxiIM IM608 key programmer. No doubt the smartest investment for your workshop.



Tools needed:

IM608 tablet

2 key cards, original key card and blank key card

Enable network connection (required when reading password)

auro-im608-renault-key-1

auro-im608-renault-key-6

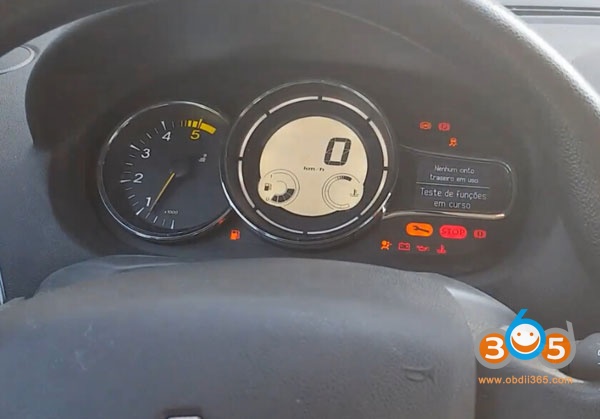

Original key can start engine

auro-im608-renault-key-7

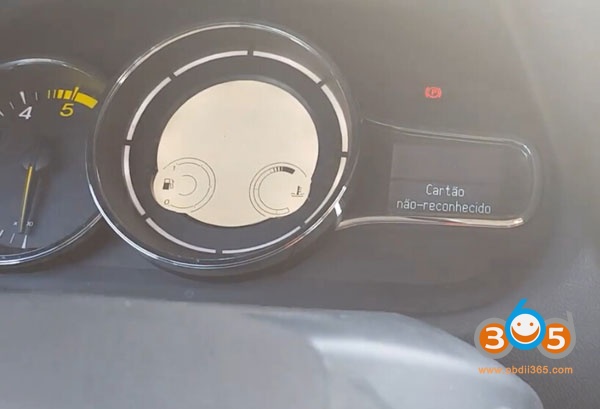

New blank key cannot start engine





Procedure:

Insert original key card into card slot and turn on ignition switch

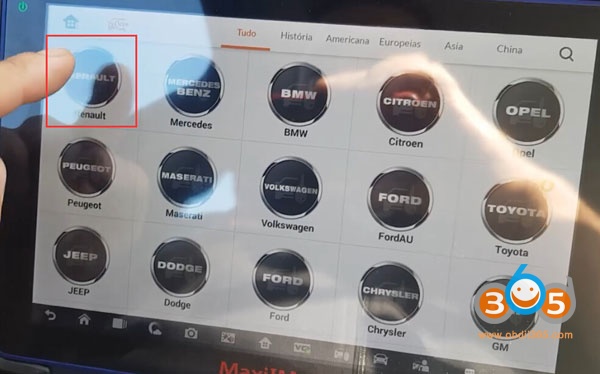

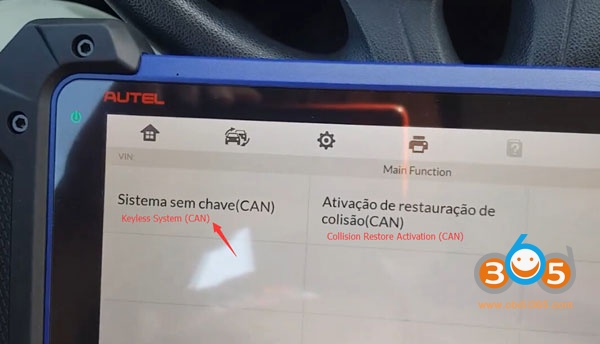

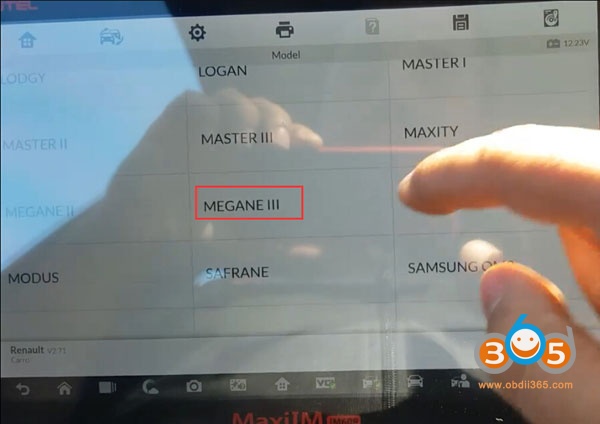

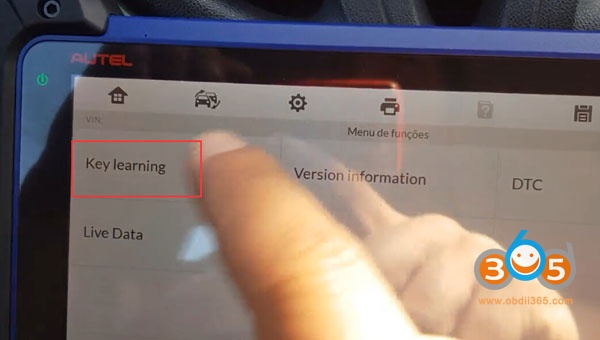

In Autel IM608, Select IMMO function->Manual selection->Renault->Megane III->2009-2015-> Keyless System (CAN)->Key learning->Learn the key

auro-im608-renault-key-2

auro-im608-renault-key-3

auro-im608-renault-key-4

auro-im608-renault-key-5

Both 2 keys need to be learnt

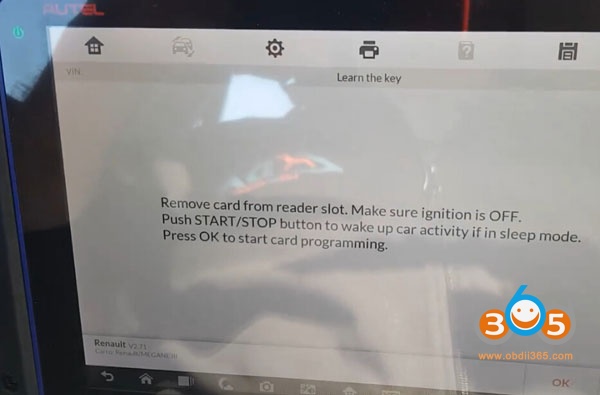

auro-im608-renault-key-8

Remove key card from slot and turn off ignition

Push START/STOP button to wake up car activity if in sleep mode.
Press OK to start key programming

auro-im608-renault-key-9

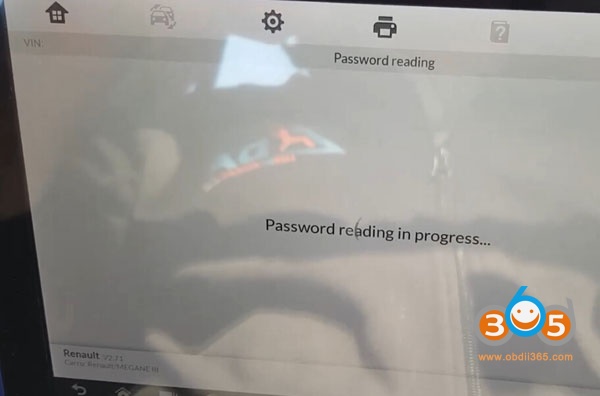

Reading password in progress

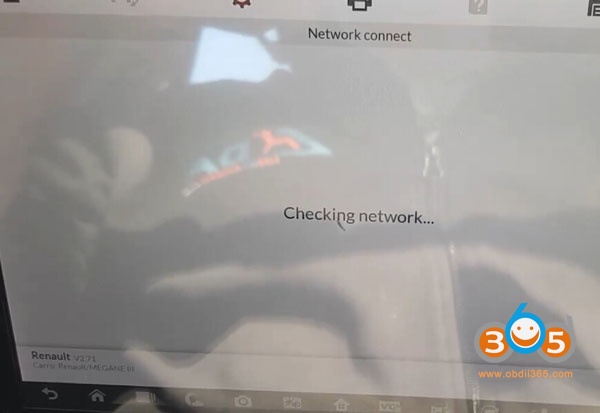

auro-im608-renault-key-10

Make sure network is enabled

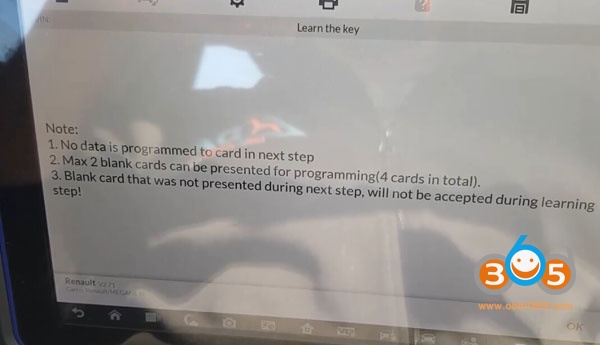

auro-im608-renault-key-11

Note:

1.No data is programmed to card in next step

2. Max 2 blank card can be presented for programming (4 cards in total)

3.Blank card that was not presented during next step, will not be accepted during learning step.

auro-im608-renault-key-12

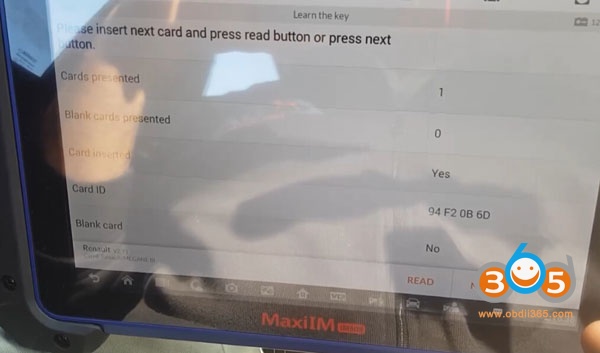

Insert next key card and press READ button to read card information

Press Next to continue

Remove card

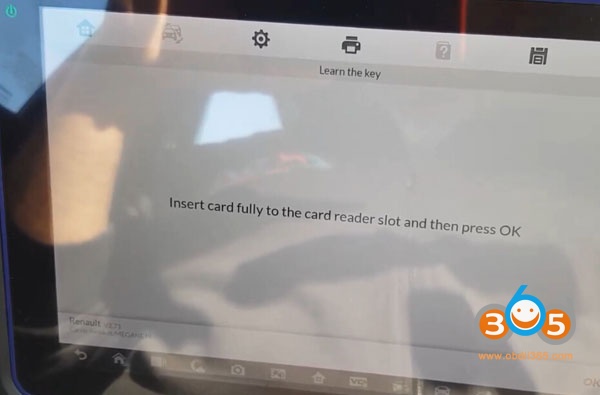

auro-im608-renault-key-13

Insert card (original key card) fully to the card reader slot and then press OK

Programming card in process

auro-im608-renault-key-14

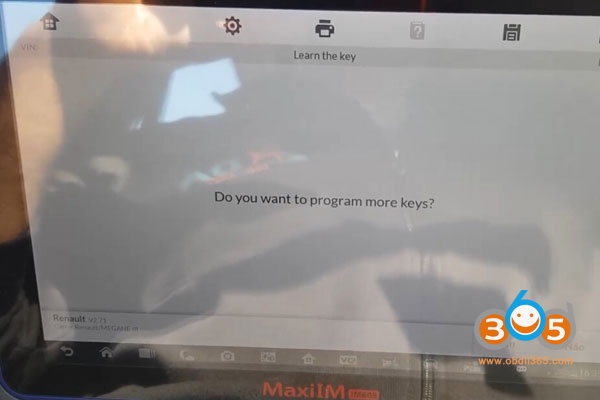

Program key card success. Press Yes to program next key card

Remove 1st key card and insert 2nd one

Follow same steps to program 2nd key card until success

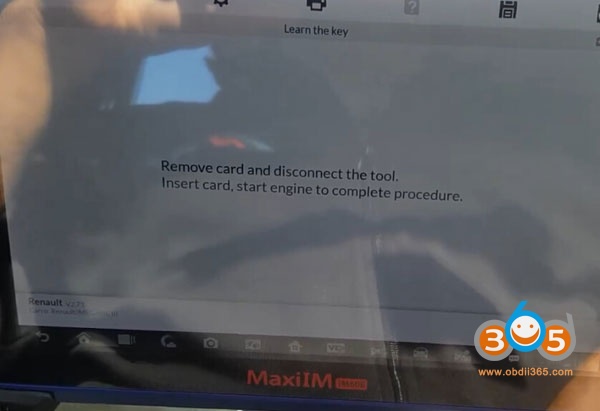

auro-im608-renault-key-15

Remove card and disconnect Autel MaxiIM IM608 key programmer

Test remote control and start engine with the new key card.

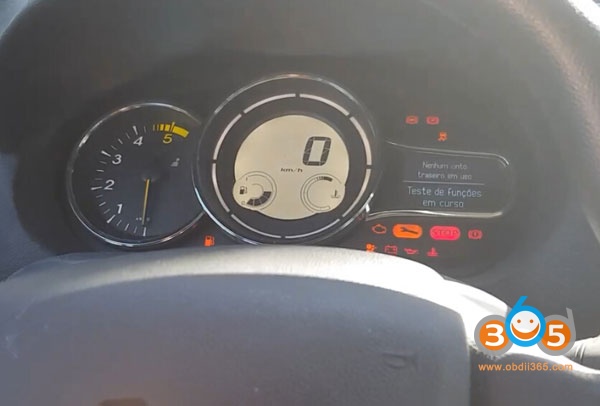

auro-im608-renault-key-16

Both key works.
