Program Mitsubishi Attrage 2016 Remote with OBDSTAR X300 DP Plus

Program remote on a Mitsubishi Attrage 2016 by OBDSTAR X300 Dp Plus key programmer.
obdstar-mitsubishi-1

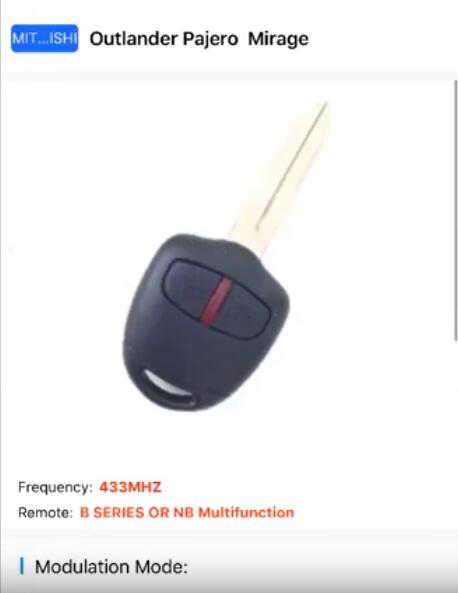

Frequency 433MHz
obdstar-mitsubishi-2

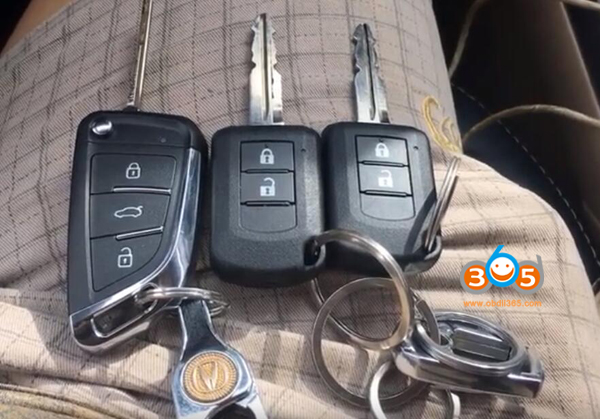

1 original remote and 2 remote to be programmed

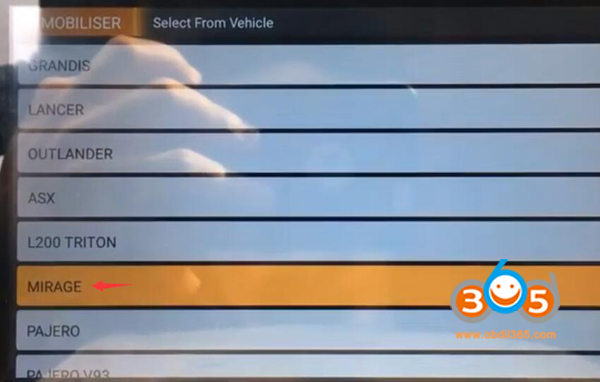

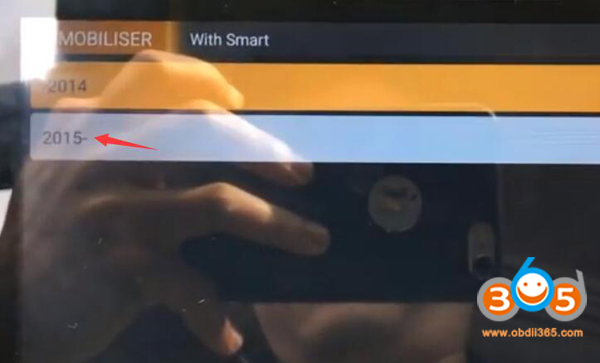

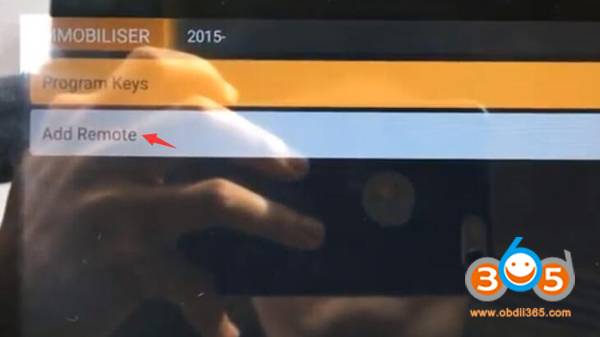

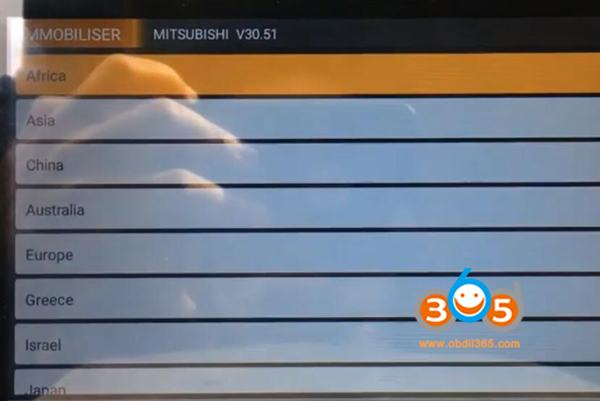

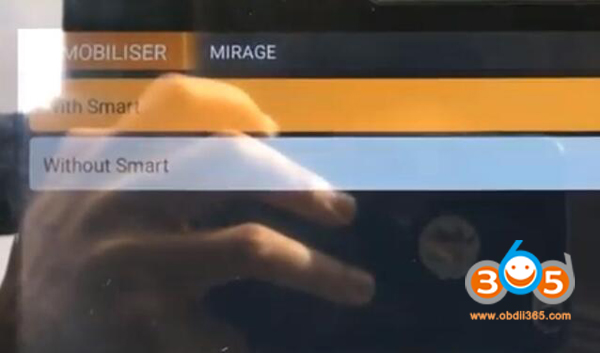

Go to Immobilizer->Mitsubishi->China->Select from vehicle->Mirage->with Smart->2015 up->Add remote
obdstar-mitsubishi-4
obdstar-mitsubishi-6
obdstar-mitsubishi-7
obdstar-mitsubishi-8
obdstar-mitsubishi-9
Turn on ignition switch
This function will erase all remotes, up to 4 remotes can be programmed

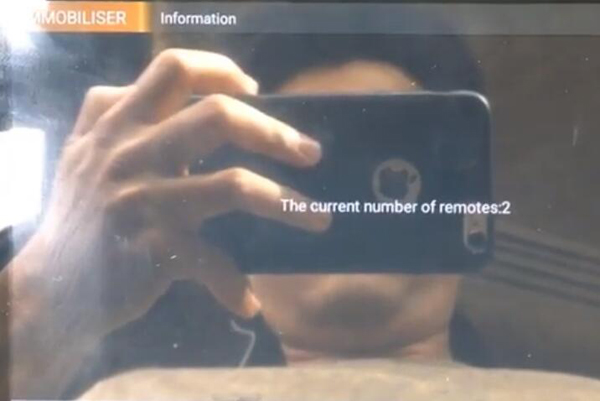

2 remotes has been programmed
obdstar-mitsubishi-10

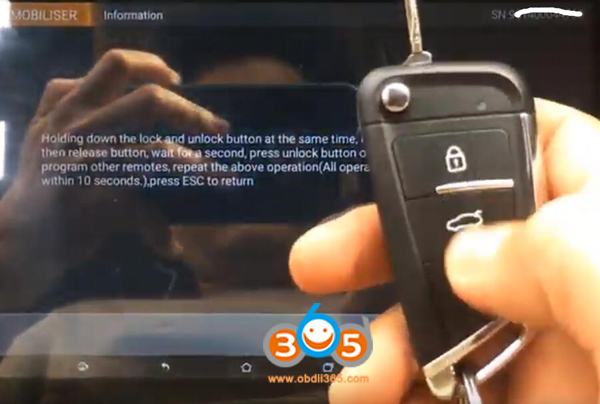

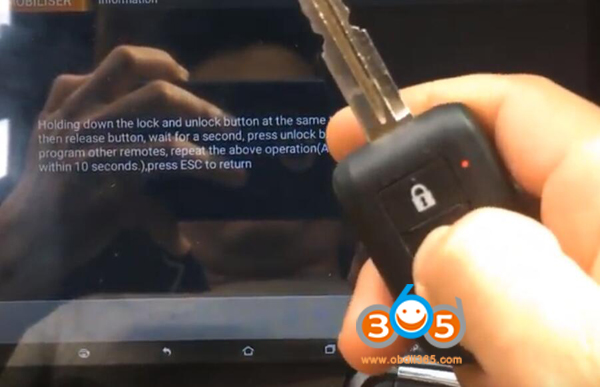

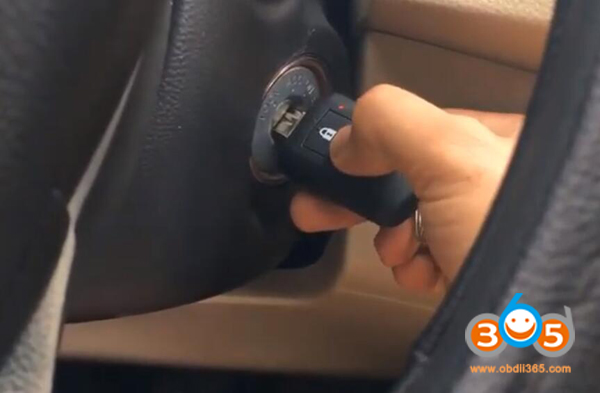

Holding down the lock and unlock button at the same time, remote lights flash three times, then release button, wait for a second, press unlock button once again, if you want to
program other remotes, repeat the above operation (all operations must be completed within 10 seconds), press ESC to return.
obdstar-mitsubishi-11
obdstar-mitsubishi-12
obdstar-mitsubishi-13

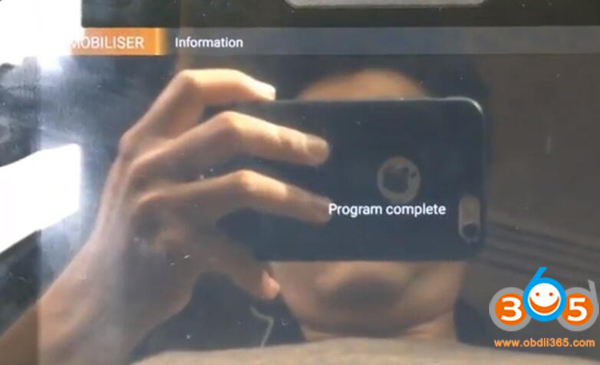

Program 3 remotes completed
obdstar-mitsubishi-14

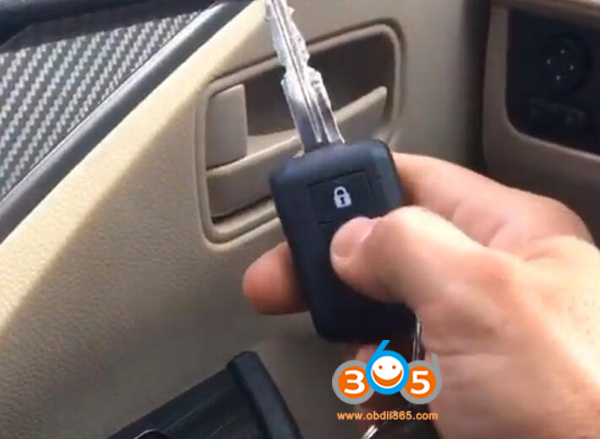

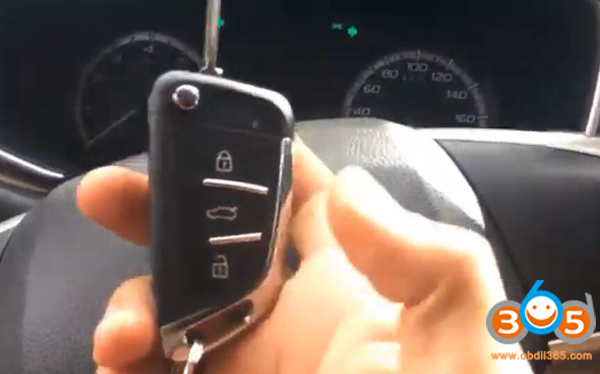

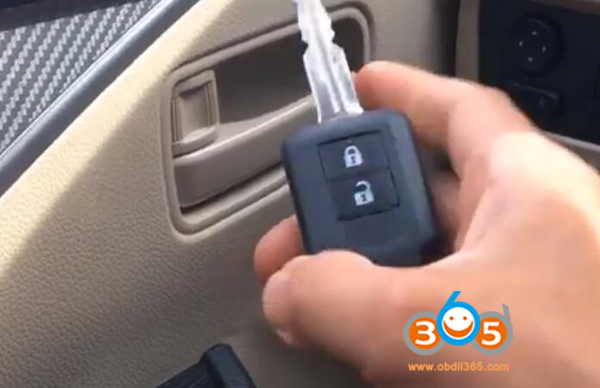

Test remote control
obdstar-mitsubishi-15
obdstar-mitsubishi-16
obdstar-mitsubishi-17
All working.
Done.
