2007 Benz C180 W203 Add Smart Remote by Autel IM508 & XP400

This article is available with the procedure on how to add smart remote for 2007 Mercedes Benz C180 Kompressor W203 using Autel MaxiIM IM508, Autel XP400, IR cable (AP102) via OBD.

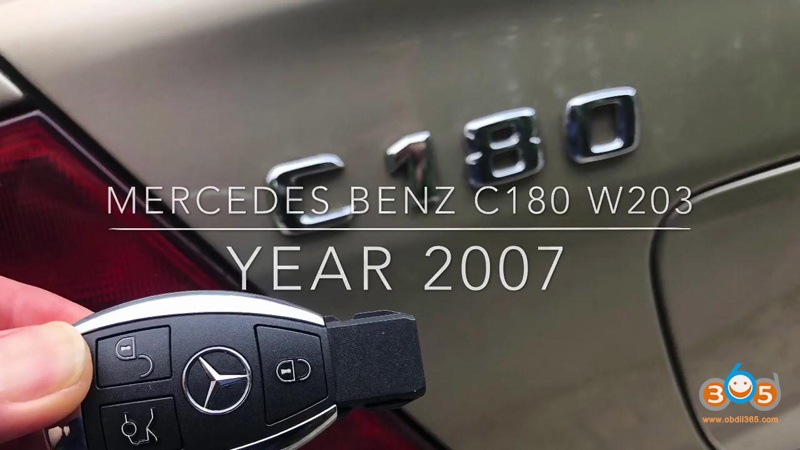

This is Mercedes Benz C180 W203 Year 2007.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 03

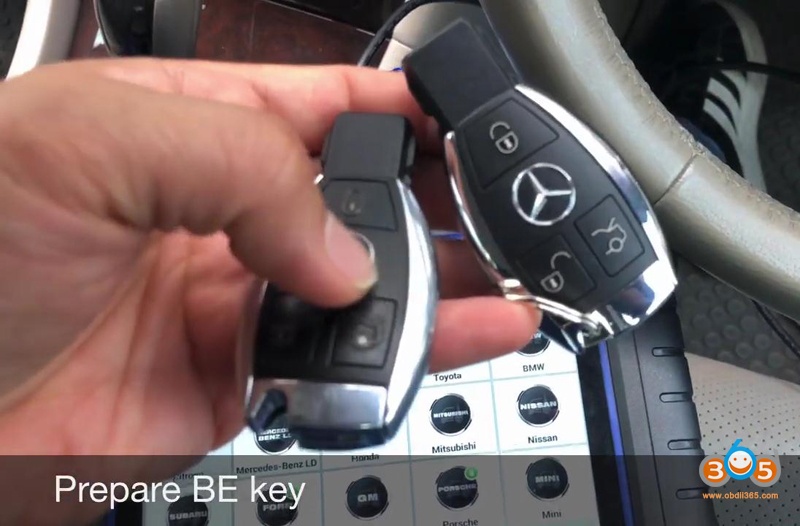

Prepare BE key.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 05

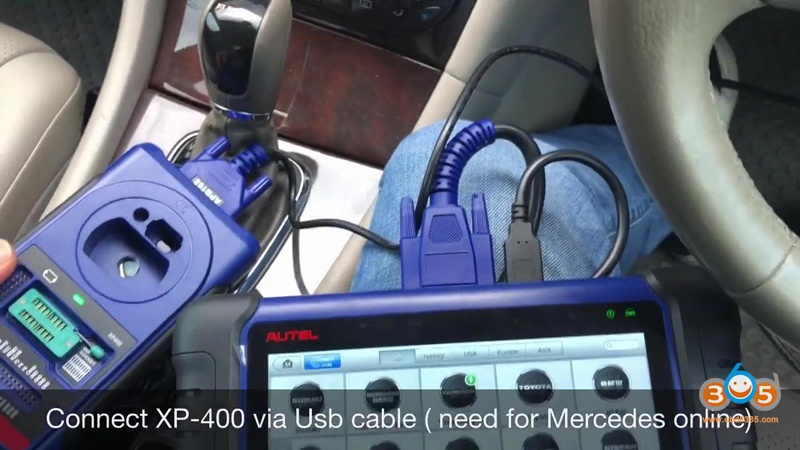

Connect XP400 via USB cable (need for Mercedes online).

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 06

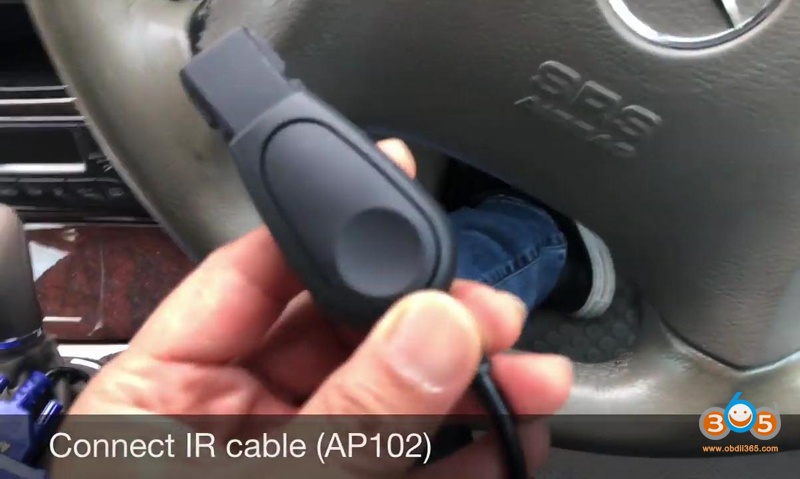

Connect IR cable (AP102).

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 08



Connect IM508 to OBDII port.

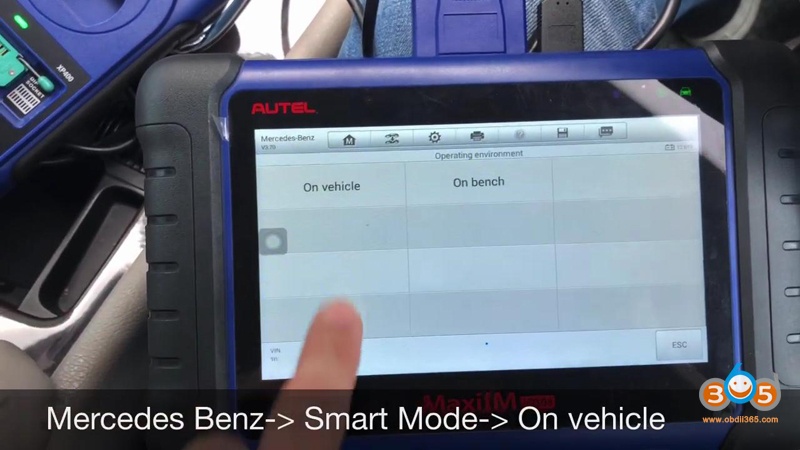

On Autel MaxiIM IM508, tap “Mercedes Benz -> Smart Mode -> On vehicle”.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 10



Reading vehicle information…

Unable to read vehicle information.

Smart mode cannot read, change to choose “Manual selection”.

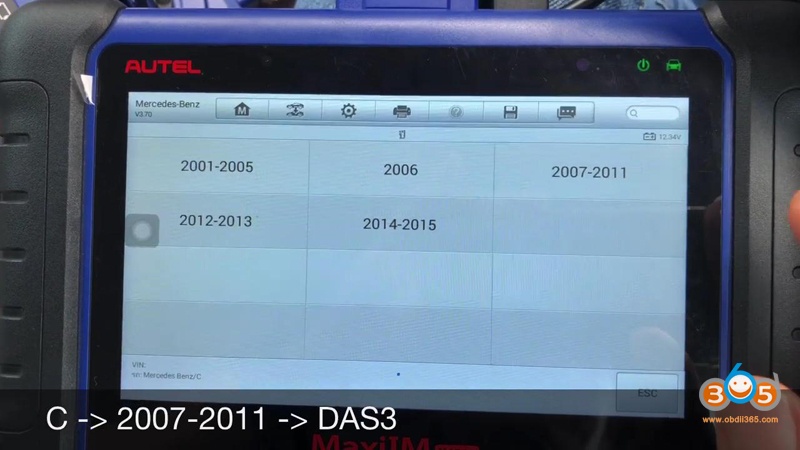

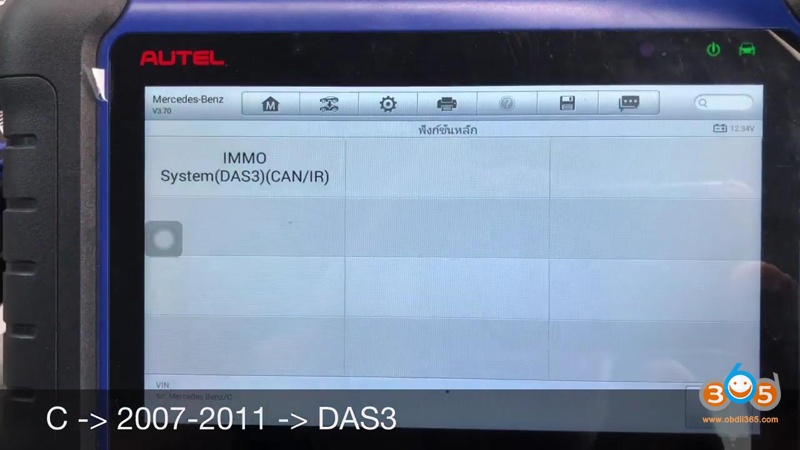

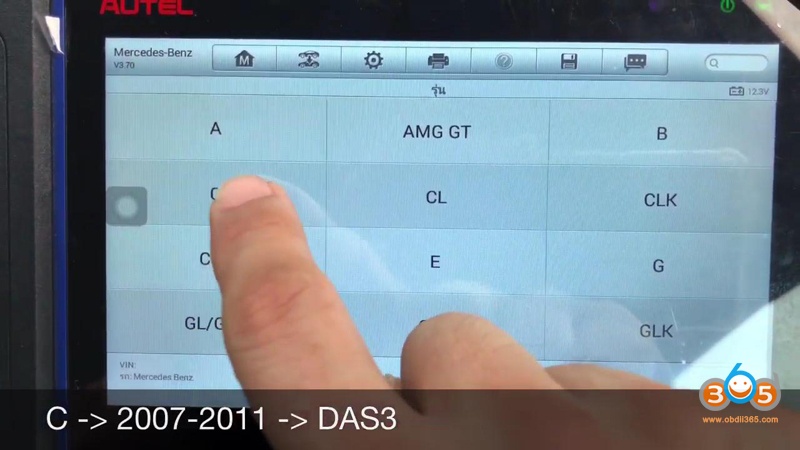

Tap C->2007-2011 -> DAS3

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 11

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 12

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 13

Establishing vehicle communication…

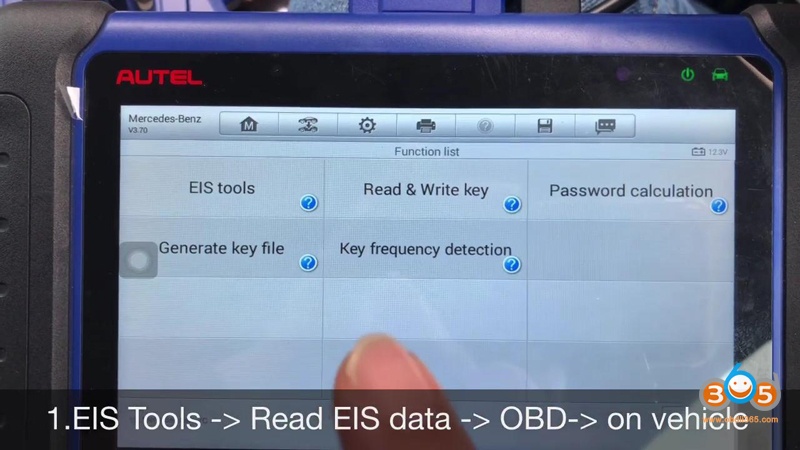

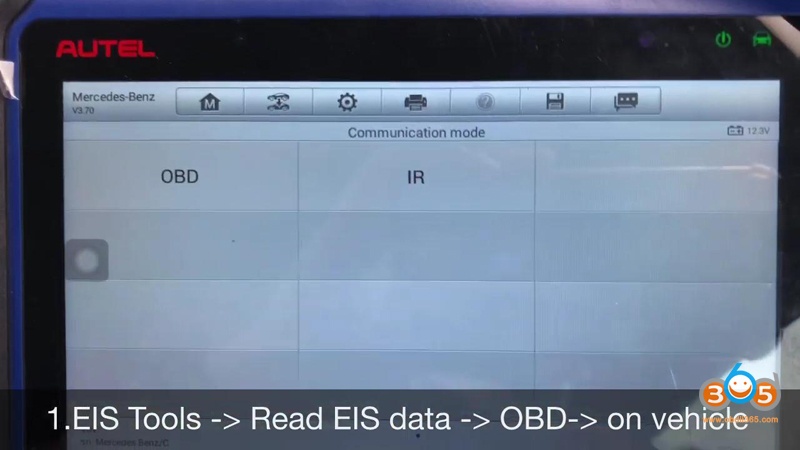

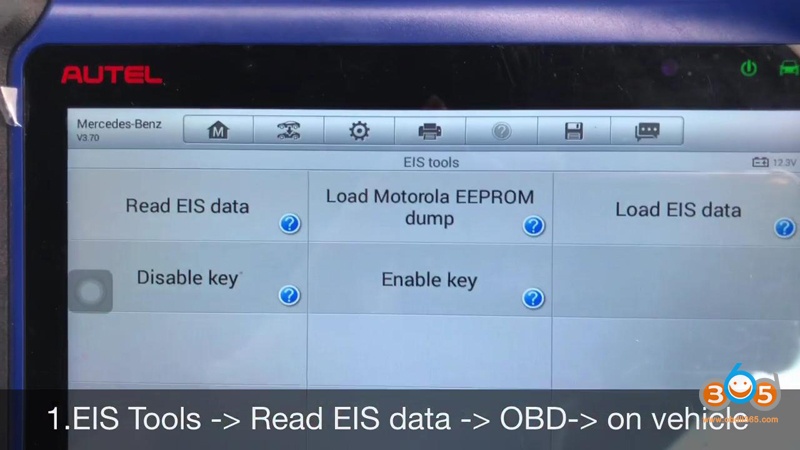

1.EIS Tools -> read EIS data -> OBD -> on vehicle

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 14

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 15

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 17



Establishing vehicle communication.

Reading EIS information.



Do you want to read the key password by infrared? The process takes about 1 to 4 minutes.

Press “No” (Try with IR cable (AP102), we skip this process in this article).

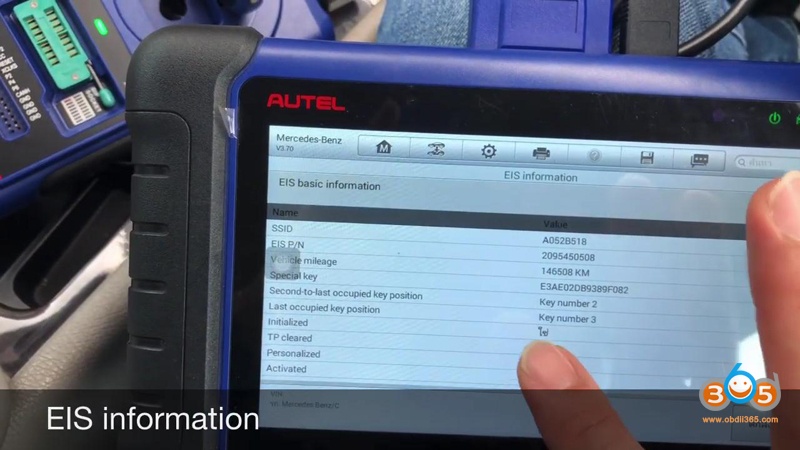

This is EIS information.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 19

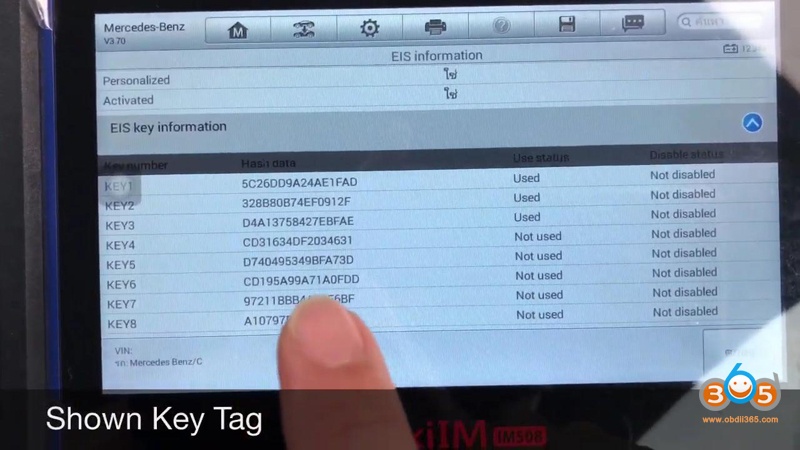

Shown key tag.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 20

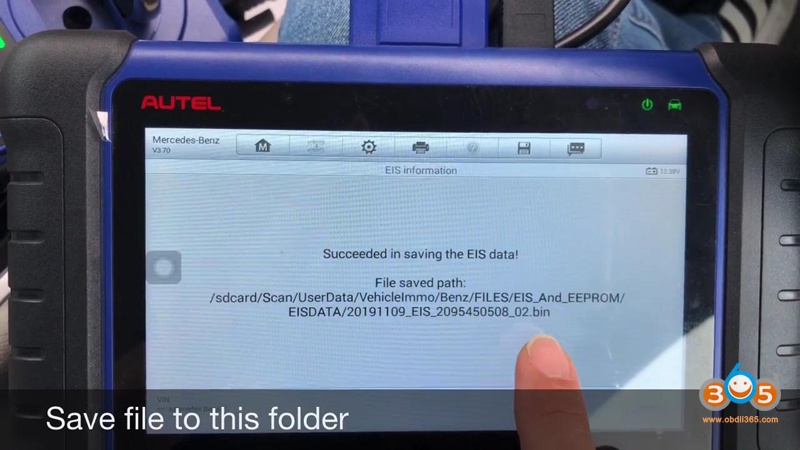

Save EIS data file.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 21

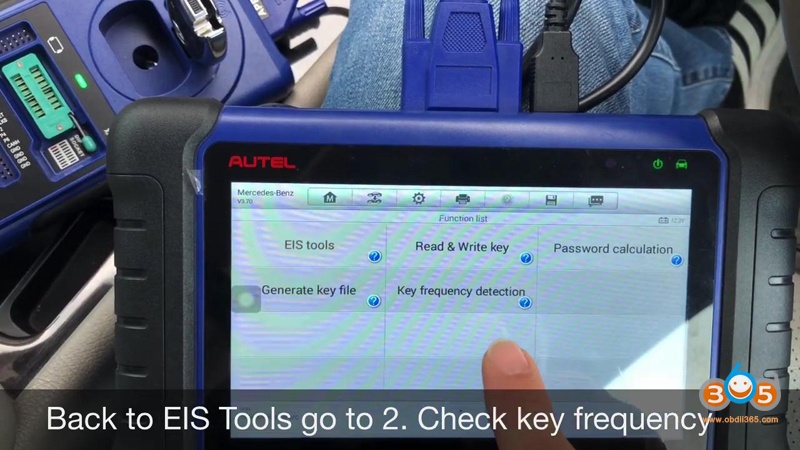

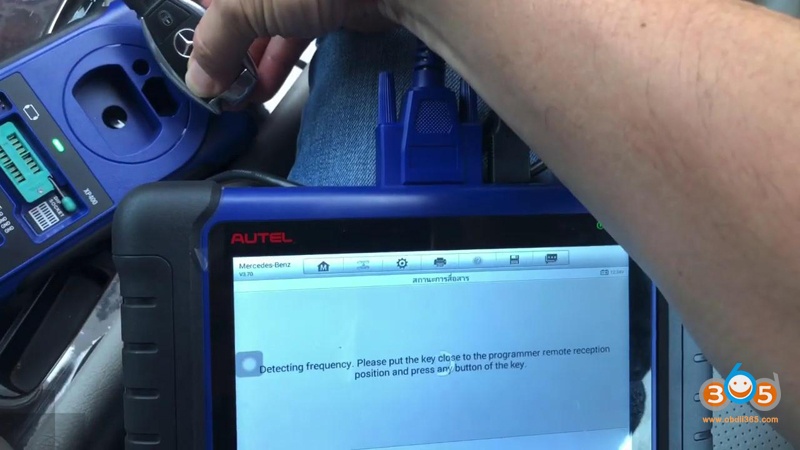

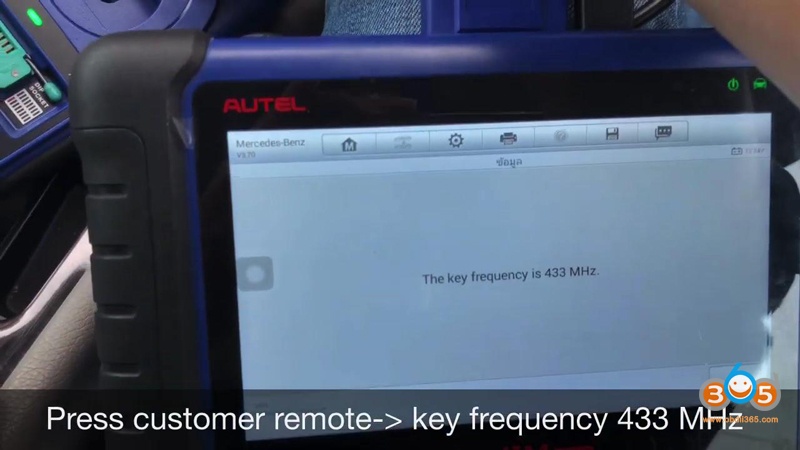

Back to EIS Tools go to 2. Check key frequency.

The key frequency 433MHz.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 22

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 23

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 24

Prepare BE key frequency 433Mhz.

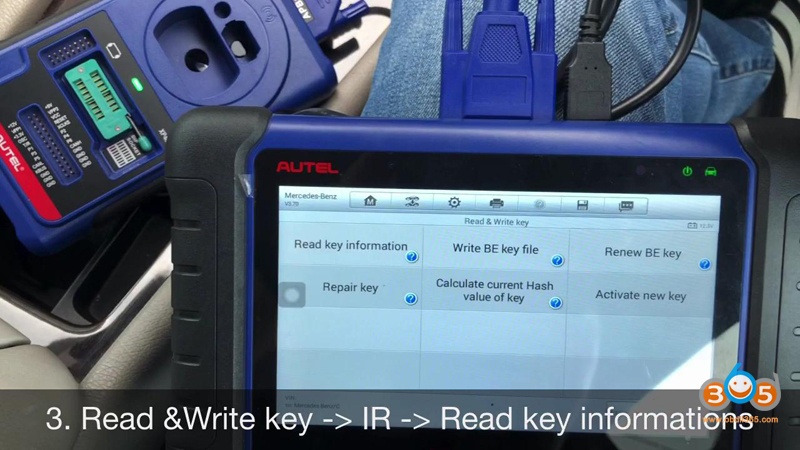

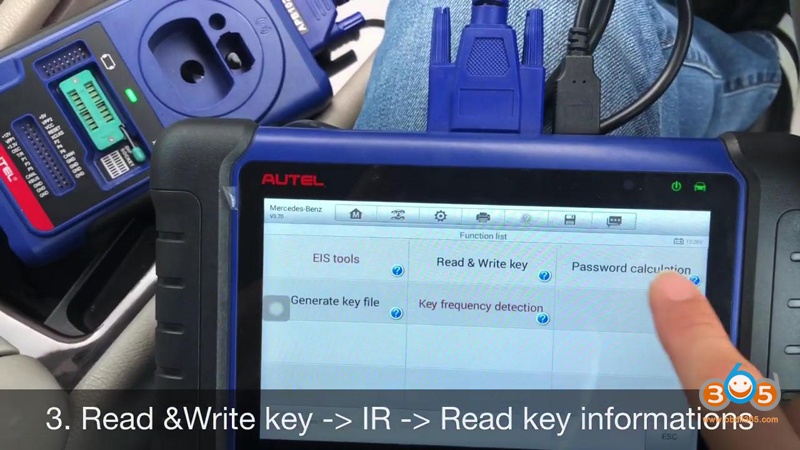

  1. Read & write key -> IR -> Read key information.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 25

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 26

Insert key into IR key hole in XP400.

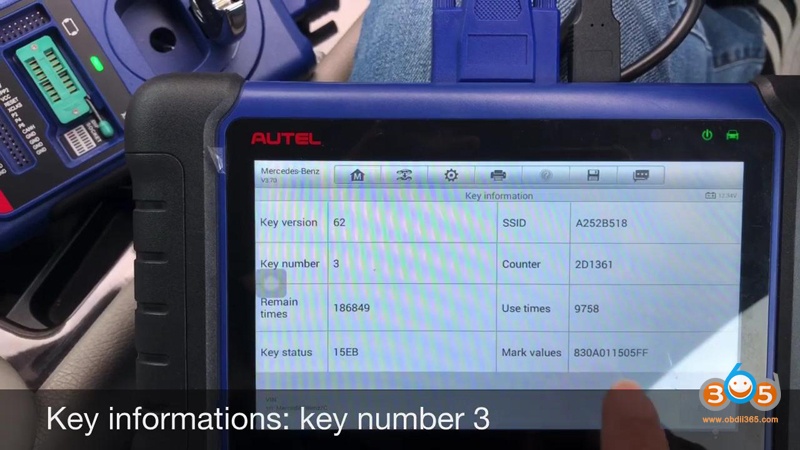

Key information: key number 3.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 27

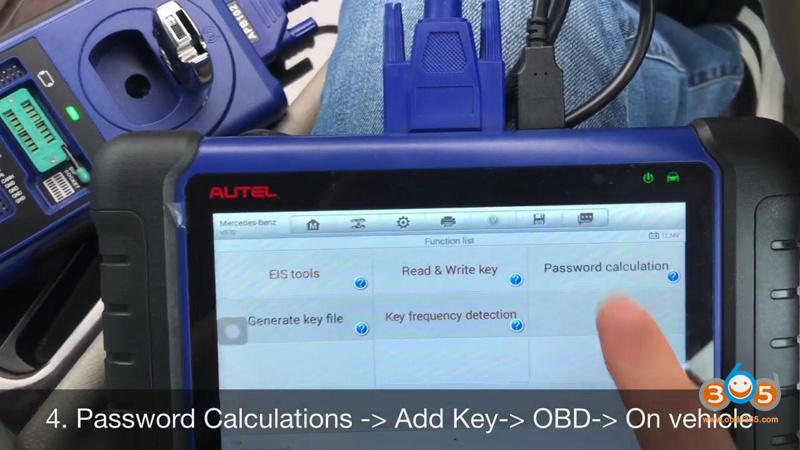

  1. Password calculations -> Add key -> OBD -> On vehicle.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 28

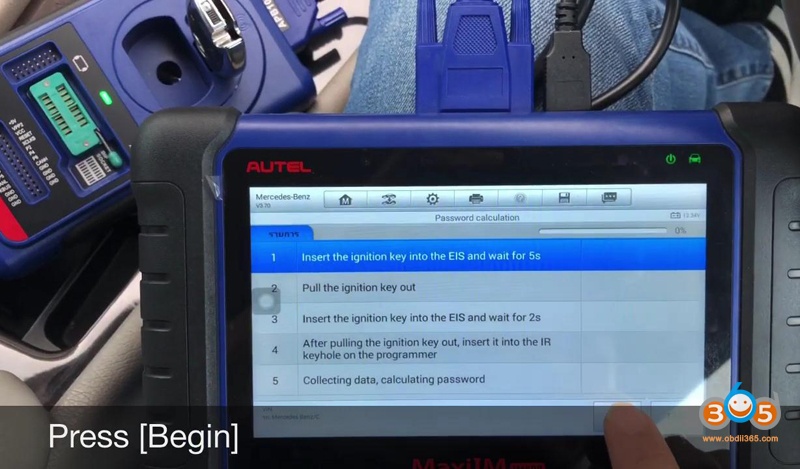

Press “Begin”.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 29

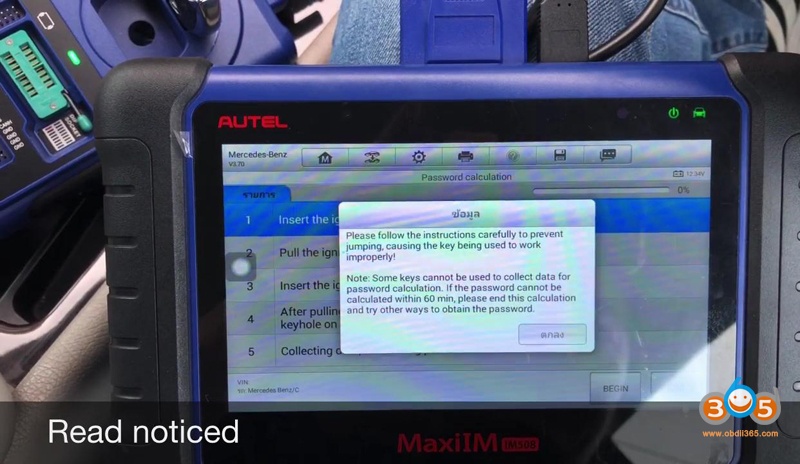

Read notice.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 30

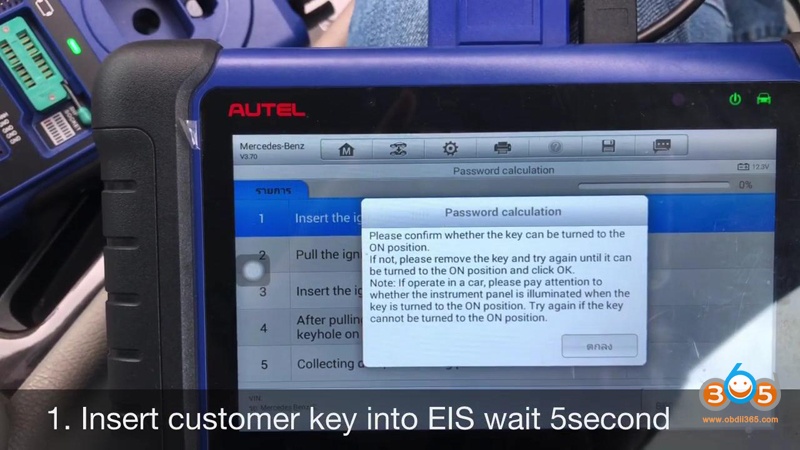

Insert customer key into EIS wait 5 seconds.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 32

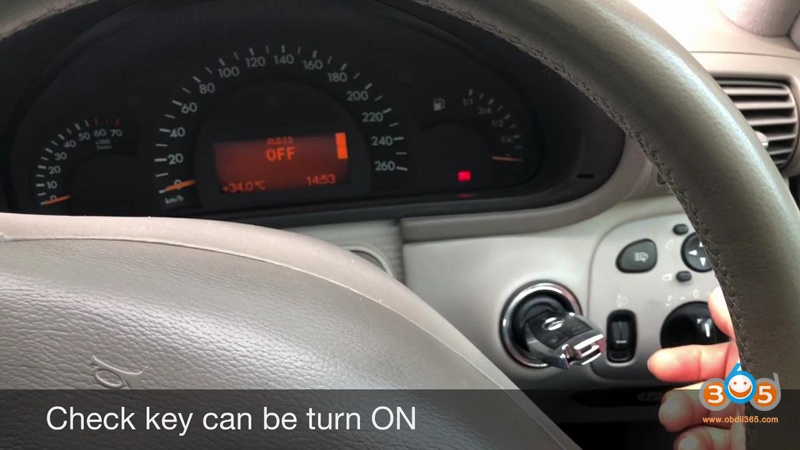

Check key can be turn on.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 33



Pull key out.

Establishing vehicle information.

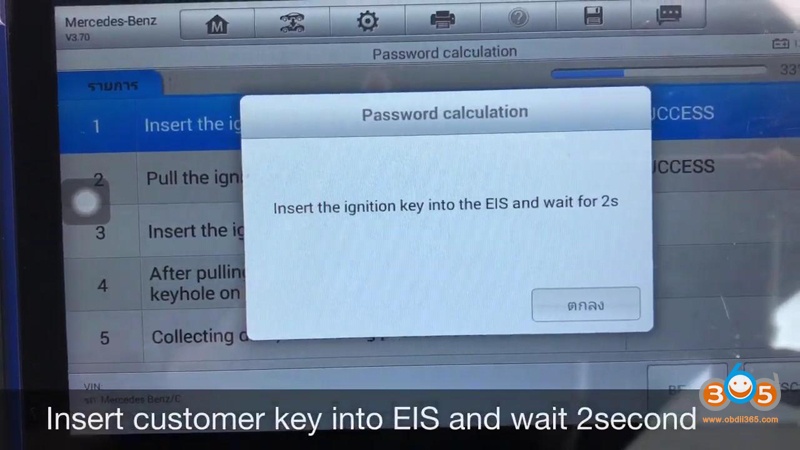

Insert the customer key into EIS and wait 2 seconds.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 34



Check whether key can turn on?

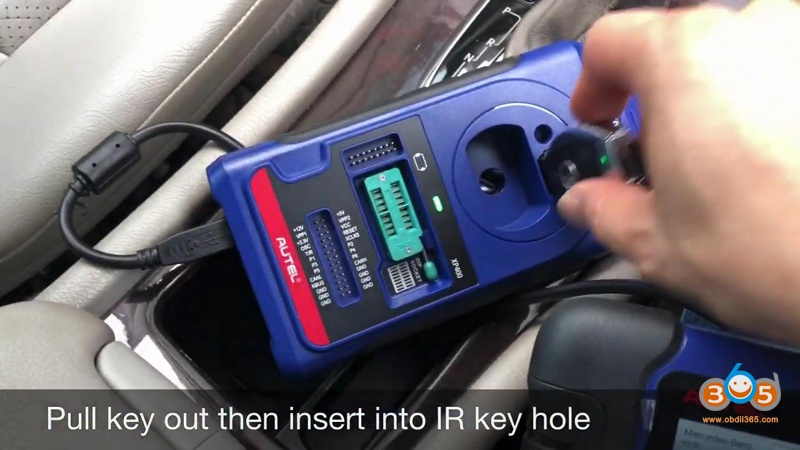

Pull key out and insert it into IR key hole.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 36

Don’t pull the key out during process.

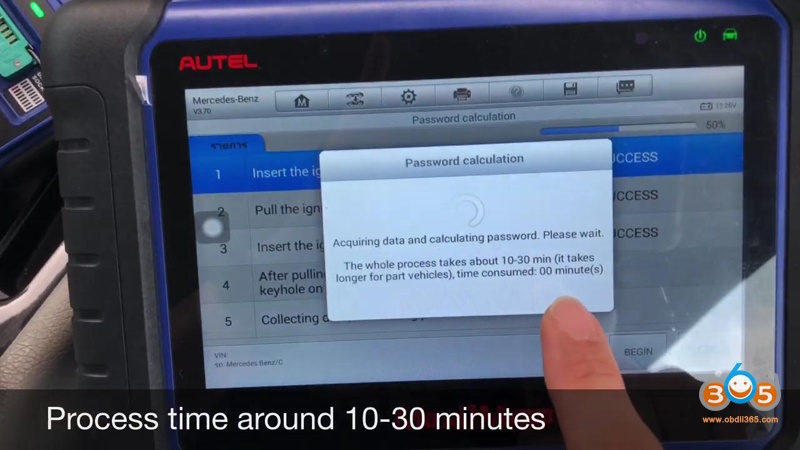

Password calculation will take around 10-30 minutes.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 38

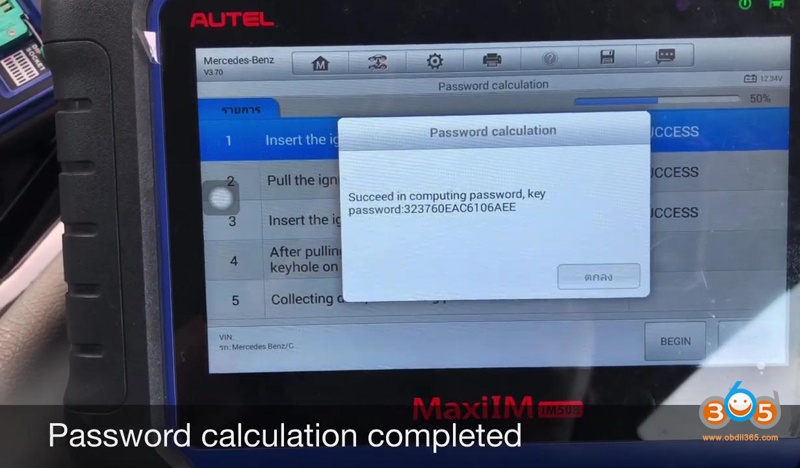

Password calculation complete.

The car is calculated password before, so the calculation time very fast.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 39

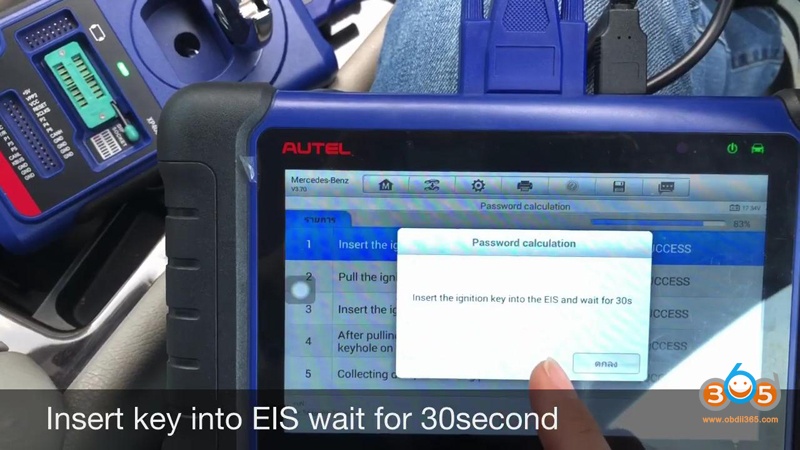

Insert key into EIS wait for 30 seconds.

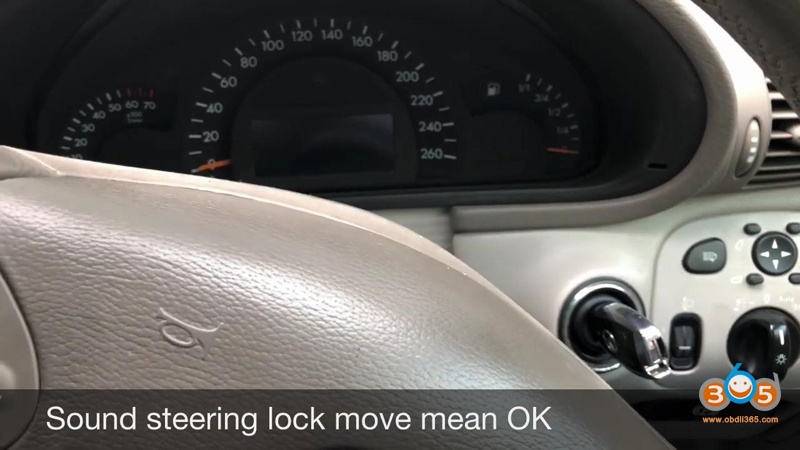

Sound steering lock move mean OK.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 40

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 41



Password calculate completed.



Back to EIS Tools menu.



  1. Generate Key File.

Establishing vehicle communication.

Reading EIS information.

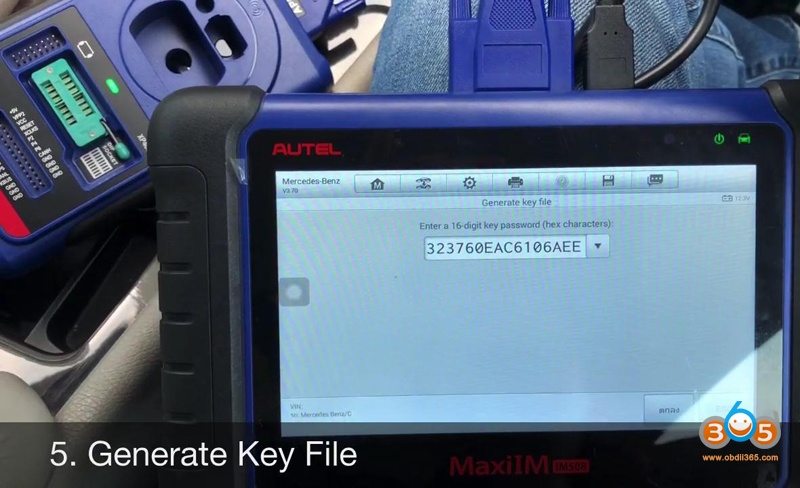

Enter a 16-digit key password (hex characters).

Password automatic shown.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 42

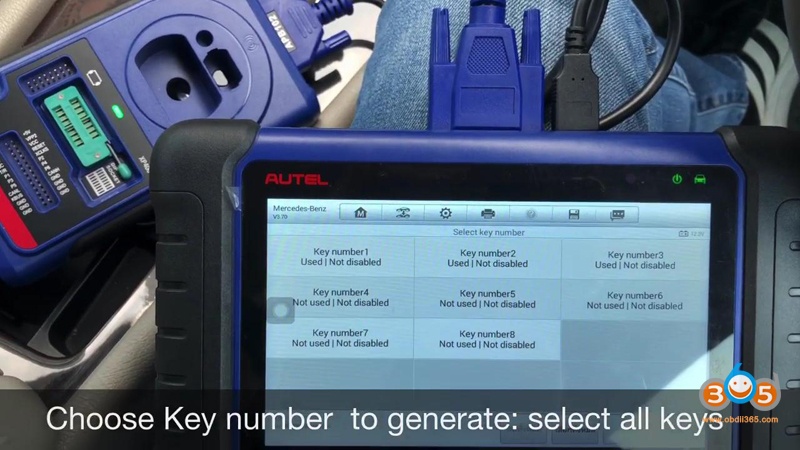

Select key number to generate: select all keys.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 43

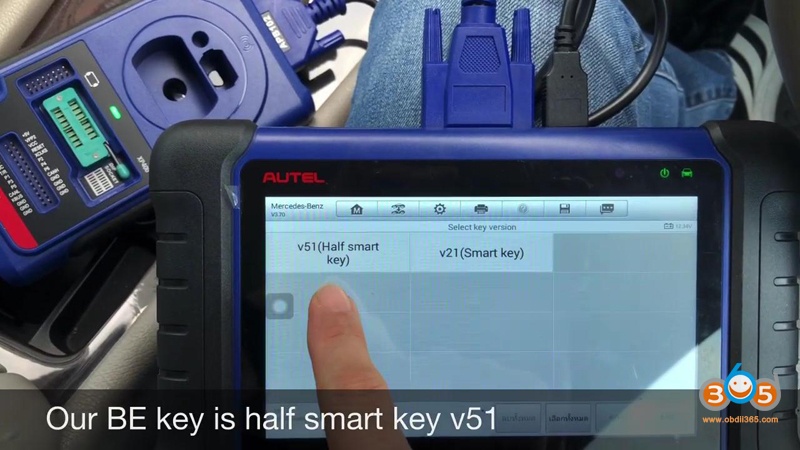

Our BE key is half smart key V51.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 44

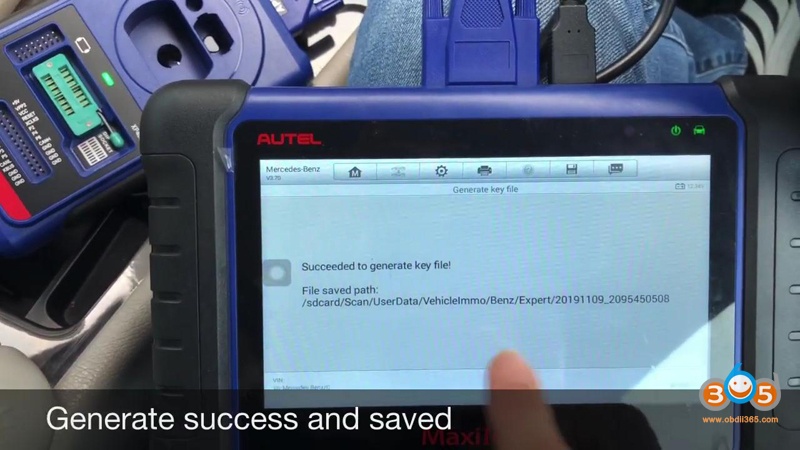

Generating key files…

Succeed and saved.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 45



Write key file to BE key.

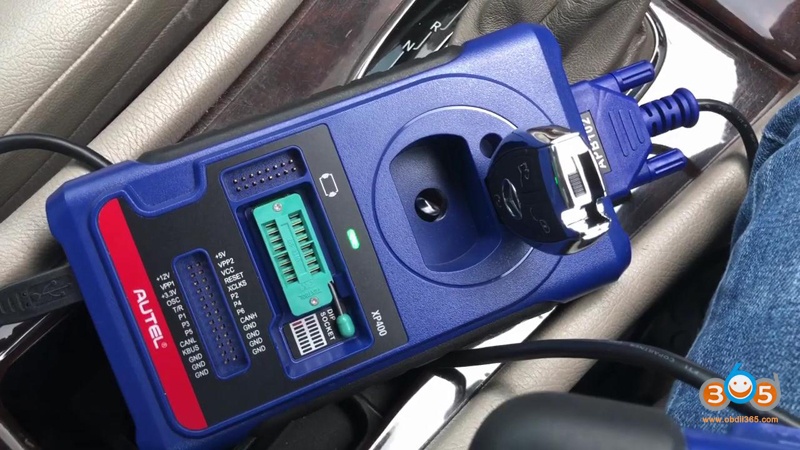

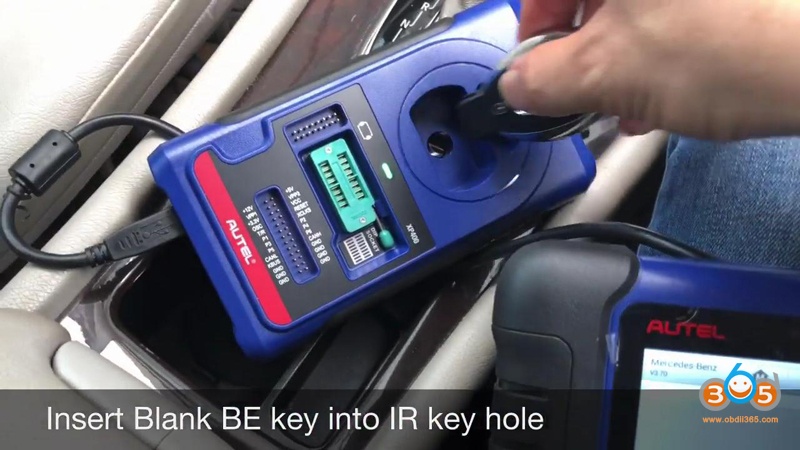

Insert Blank BE key into IR key hole.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 46

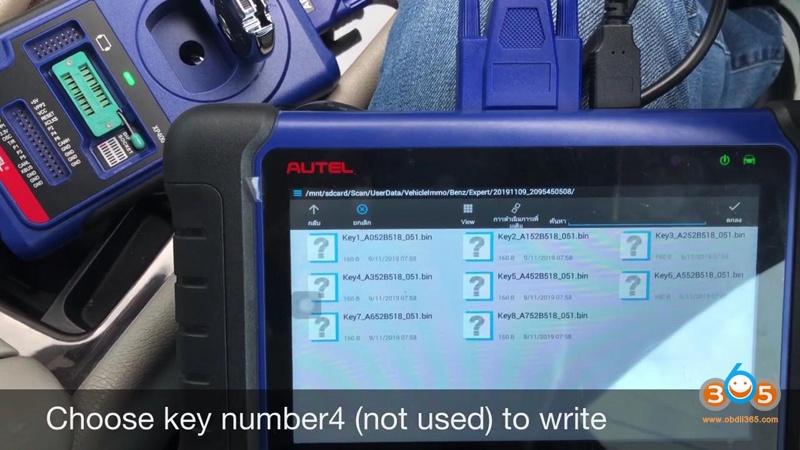

Choose key files -> key number 4.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 47

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 48

Write key successfully.

Check new key can turn on and start the car.

Start OK

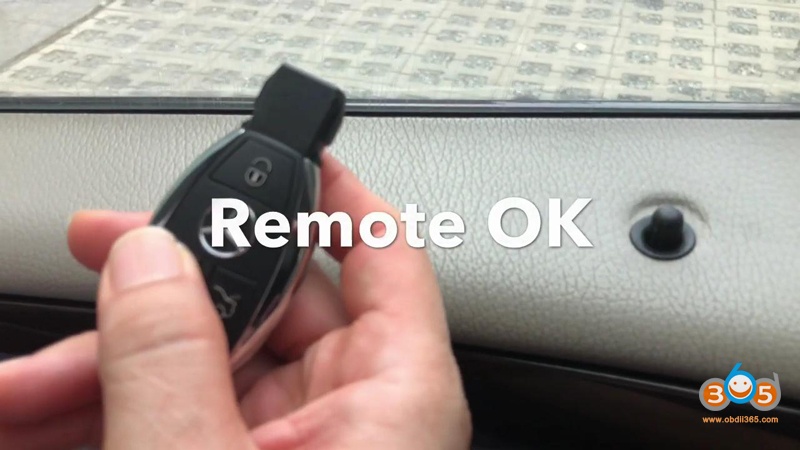

Remote OK.

Autel Maxiim Im508 And Xp400 Add Smart Remote Benz C180 50

Done.



Big thanks to Autel MaxiIM IM508, Autel XP400, IR cable (AP102).
