Question: I need a Yanhua Mini ACDP pinout for BMW CAS 2 module without interface board. I don’t have the interface board, where can i get the pinout?
Answer:
Pinout from obdii365.com engineer.

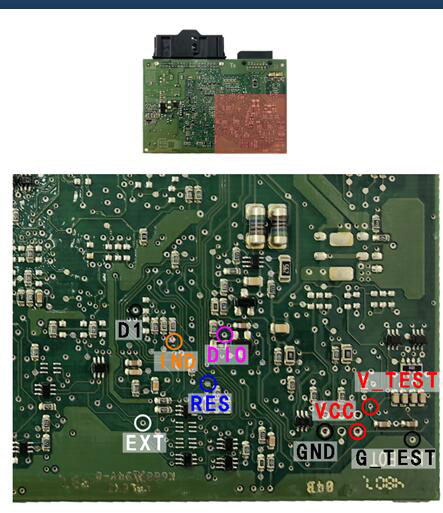

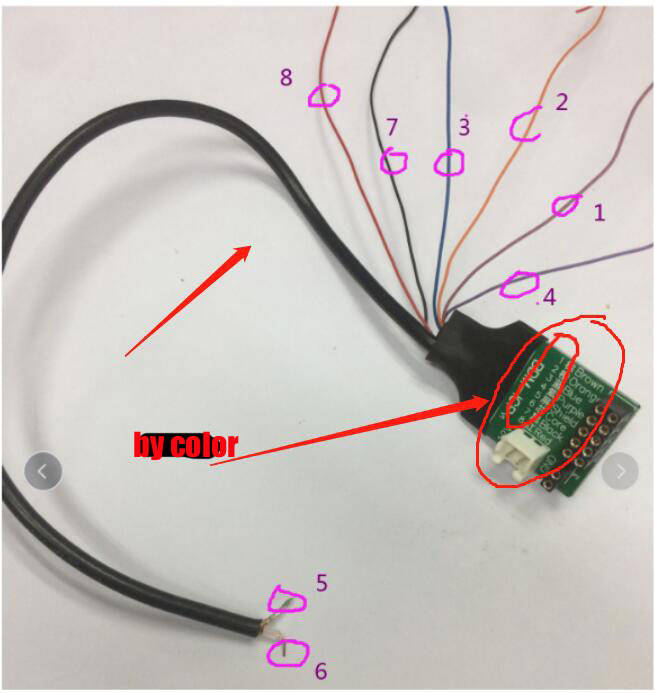

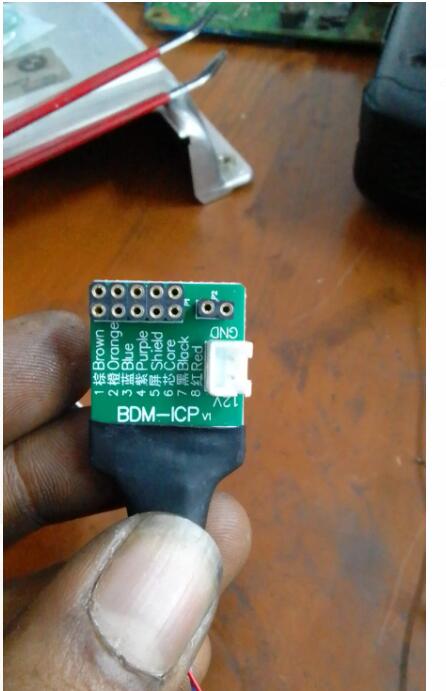

1-(leave it blank)
2-IND
3-RES
4-DIO
6-EXT
5 & 7-GND
8-VCC
V-TEST G-TEST only when using interface board
