How to Clear BMW EGS ISN with Yanhua Mini ACDP?

Yanhua Mini acdp adds EGS ISN clear function. To perform this function, you need both Mini ACDP host and Module 11 EGS ISN authorization.

How to Clear EGS 8HP ISN with Yanhua ACDP?
yanhua-mini-acdp-clear-egs-isn-3

yanhua-mini-acdp-clear-egs-isn-4

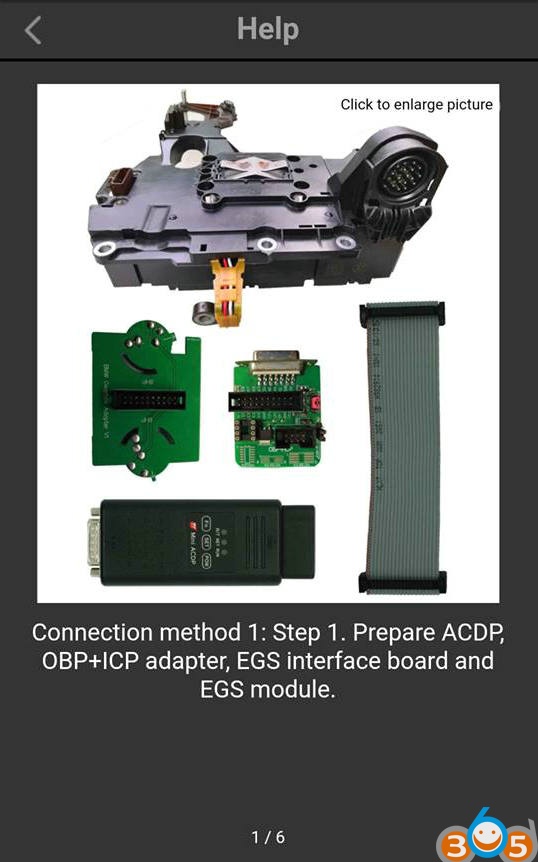

Step 1: Prepare ACDP, OBP+ICP adapter, EGS interface board and EGS module
yanhua-mini-acdp-clear-egs-isn-5

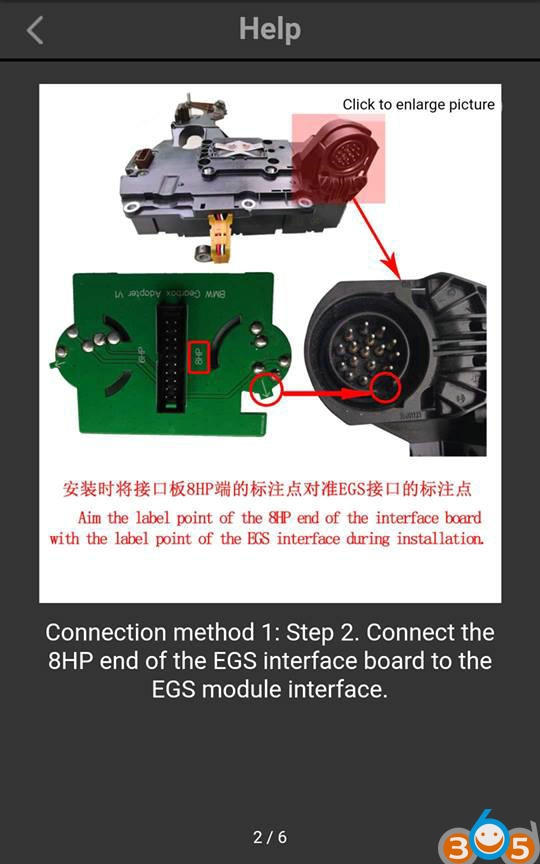

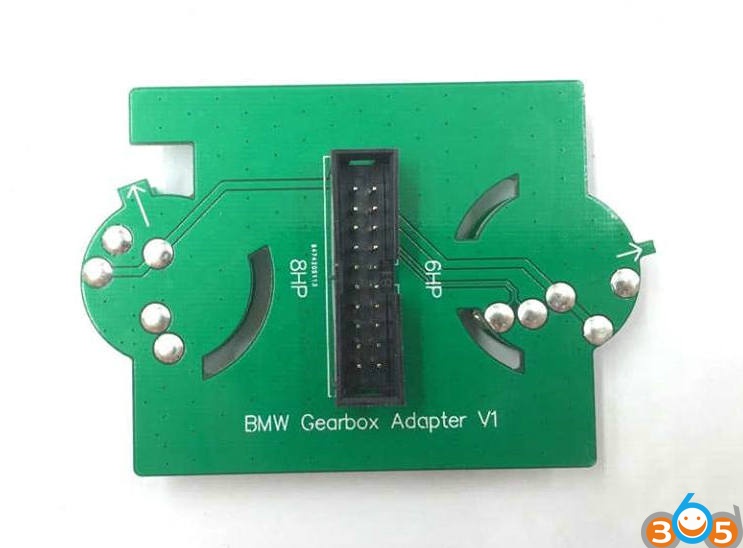

Step 2: Connect the EGS interface board 8HP end to the EGS module
yanhua-mini-acdp-clear-egs-isn-6

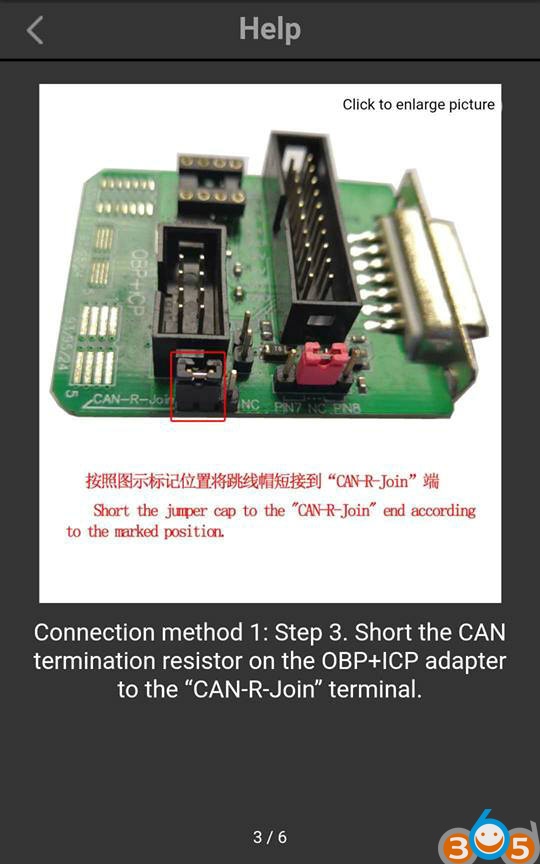

Step 3: Short the CAN termination resister on the OBP+ICP adapter to the “CAN-R-Join” terminal.
yanhua-mini-acdp-clear-egs-isn-7
Step 4: Connect the ACDP, OBP+ICP adapter, EGS interface board and EGS module.
yanhua-mini-acdp-clear-egs-isn-8

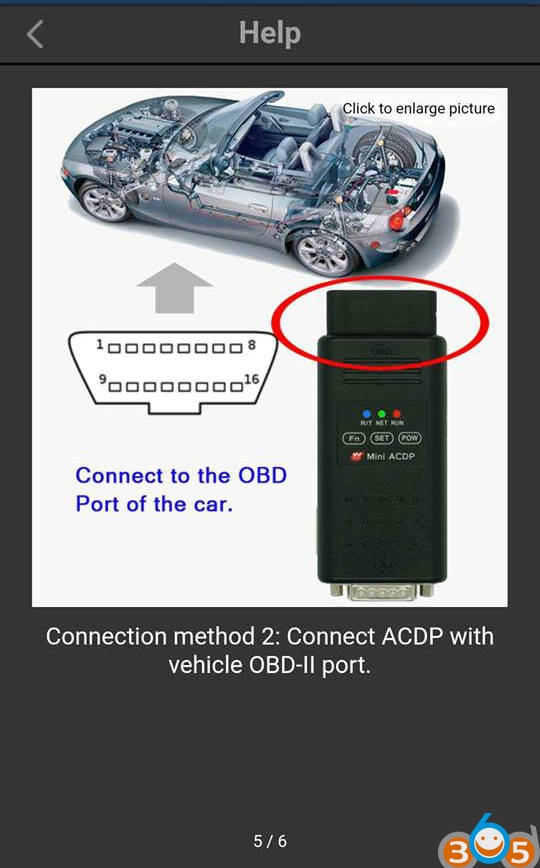

Step 5: Connect ACDP with vehicle via OBDII port
yanhua-mini-acdp-clear-egs-isn-9

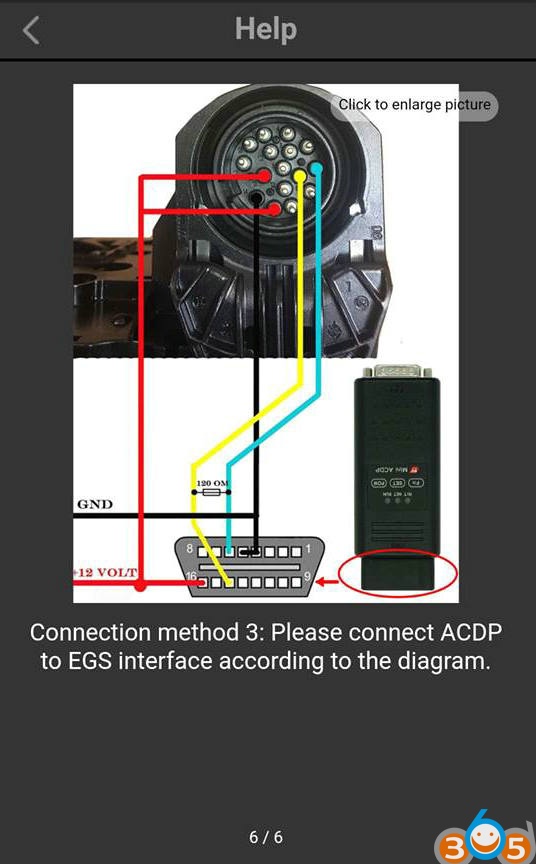

Connect ACDP to EGS interface according to the diagram
Step 6: Go to BMW Programming function->Clear EGS ISN-> Clear ISN
yanhua-acdp-clear-egs-isn-1

yanhua-acdp-clear-egs-isn-2

Follow ACDP mini prompts until success.



http://www.obdii365.com/wholesale/yanhua-mini-acdp-module-11-clear-egs-isn.html
