Problem:
Anyone have issues reading a mevd17.2 N55 DME? Yanhua Mini Acdp could not connect to either DME but my other tools could.
Solution:
You need to move green jumper and, will read easily
Happens with N55 a lot.

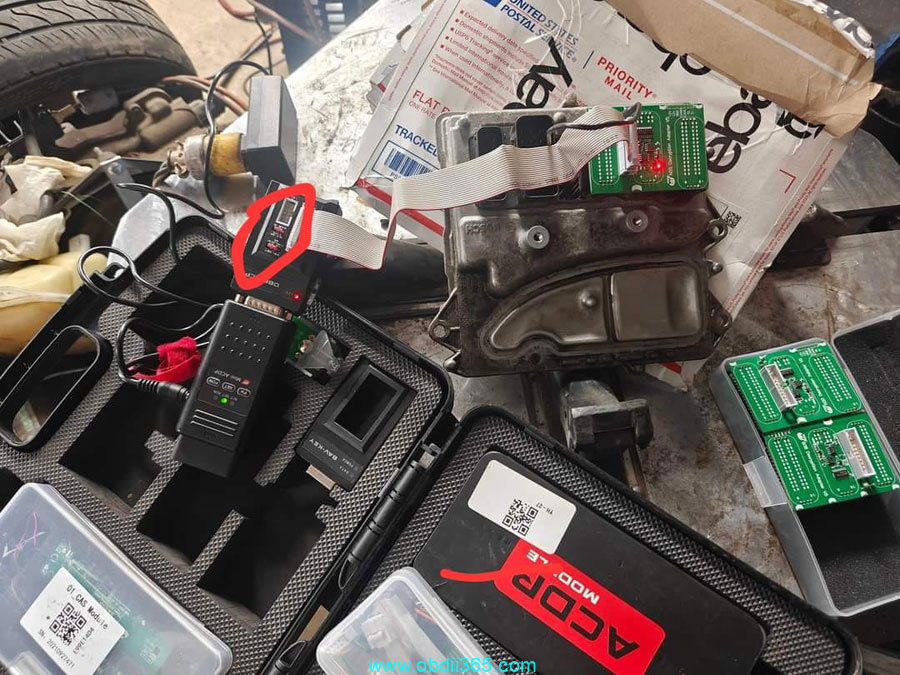

this one marked in red. Move JUMPER.
Try again after moving jumper.

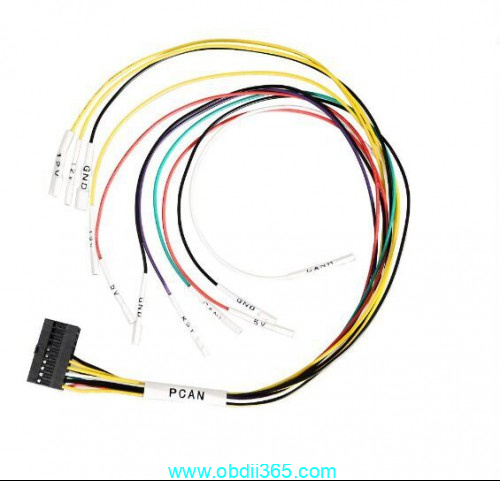

ACDP also makes a fly out harness with wires and pins you should try that.
you should be able to it does the same as the circuit board. The circuit board only have traces that go direct to the pins to save the hassle of using the harness but you should be able to use the harness too.
OBDSTAR DC706 and MP001 will also read this DME without issue.
