What cables can be used to disable active alarm for 2015+ Ford all smart keys lost?
NOTE:
Only need bypass cable when the alarm is active, if not active you don’t need bypass cable. If it us active just look and see if they have e a door key pad. if so get the code off the bcm sticker and deactivate the alarm and then you don’t need a bypass cable.
1. Autel Cable
What cable is needed to stop the active alarm on a ford with the Autel im508 or im608?
Autel uses gbox2/gbox3 and you manually do the disconnecting and reconnecting.
How to use Gbox to disable active alarm?
Leave ground connected, then 1 wire from battery + to gbox then 1 wire from battery + terminal to gbox.
the tool controls power then.
The + from battery goes to the GBOX2, and the battery post connector goes to the GBOX2 also.
THE POWER IS GOING TO THE GBOX2 FROM THE BATTERY!! . GUESS WHAT THE GBOX2 IS PLUGGED INTO? THE OBD PORT!!! .
Power from the battery goes to the gbox2, which gives power to the obd port. Gbox OBD connections are really tight.
The tools makes the connection of power and disables the alarm before it activates.
The tool switches the vehicle power on and off, its the whole entire purpose of using the Gbox2.
The gbox2 is acting as a switch to power on the vehicle. The whole entire purpose of using the Gbox2 is so the tool can control power to the vehicle.

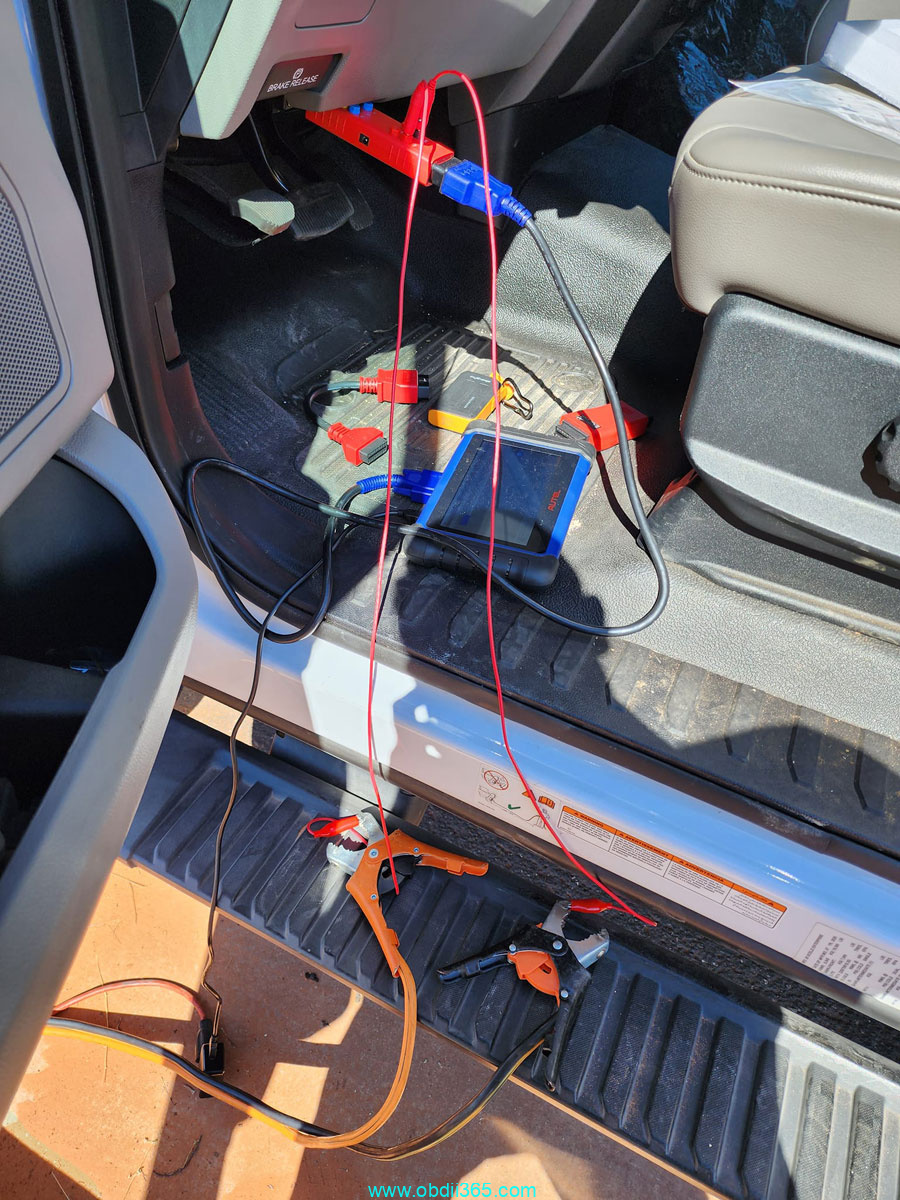

Connection example:
2020 Ford F550 all keys lost with active alarm.
Autel really sucks at doing active alarm, I have been successful with it but it’s a headache. Roughly 20 mins of connecting and disconnecting battery.
Autel really needs to just make a real ford bypass cable. Other tools out have bypass cable setup that works great.

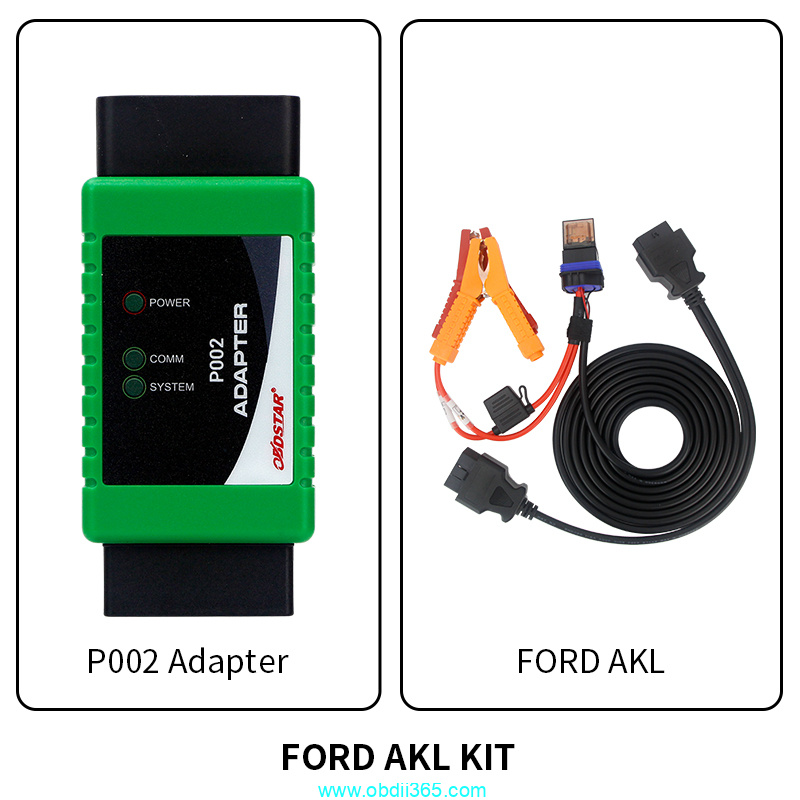

2. OBDSTAR Cable
The OBDSTAR Ford AKL cable is a lot better than the Autel way of doing it. This is one of the main reasons many people buy the obdstar x300 dp plus or G3, the OBDSTAR ford bypass cable and tablet do the actual disconnecting and reconnecting of the battery, you don’t do it manually like the autel, works much better.
Support Car Models
ECOSPORT 2018-
EDGE 2017-
ESCAPE 2020
ESCORT 2018-
EXPEDITION 2020
EVEREST 2017-
EXPLORER 2017-
F-150 2017-
F-250 2017-
FOCUS 2018-
MUSTANG 2017-
TAURUS 2017-
MONDEO 2017-
FUSION 2017-
RANGER 2017-
AVIATOR 2020
CONTINENTAL 2016-
CORSAIR 2020
MKC2015-
MKT 2020
MKX2015-
MKZ2015-
NAUTILUS 2018-
NAVIGATOR 2018-

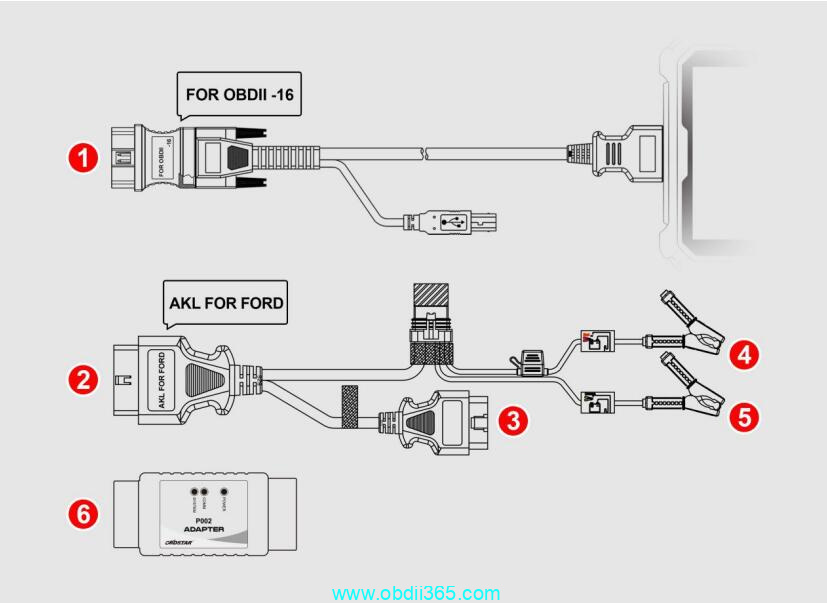

Ford AKL cable connection diagram
Example:
Program Ford Endeavour 2016-2018 All Keys Lost with Active Alarm by OBDSTAR

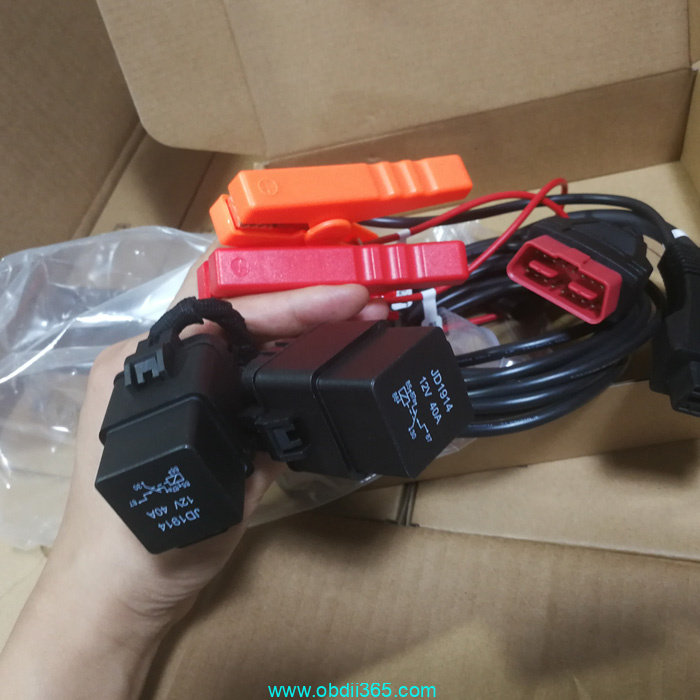

Xhorse also has a Ford AKL adapter cable for 15+ ford’s akl active alarm, you just plug it into the bcm without removing it, it reads the flash file it needs and then you make the key.
This cable is designed for use with the Xhorse VVDI Key Tool Plus or Key Tool Max Pro device to support all keys lost jobs on Ford and Lincoln vehicles from around 2015 (varies by model) onwards with an active alarm. This allows you to bypass the alarm and remove the need to constantly power the battery on and off.
Smart Key All Key Lost Programming for Following Models:
Ford Taurus 2016-
Ford Mondeo 2016-
Ford EcoSport 2018-
Ford Edge 2016-
Ford Escape 2020
Ford Escort 2018-
Ford Focus 2018-
Ford Mustang 2016-
Ford Expedition 2020
Ford Everest 2016-
Ford Explorer 2016-
Ford Raptor F150 2018-2019
Ford Raptor F250 2016-
Lincoln Aviator 2020
Lincoln MKX 2015-
Lincoln Corsair 2020
Lincoln MKZ 2016-
Lincoln Continental 2016-
Lincoln Nautilus 2018-2020
Lincoln MKT 2020
Lincoln Navigator 2020

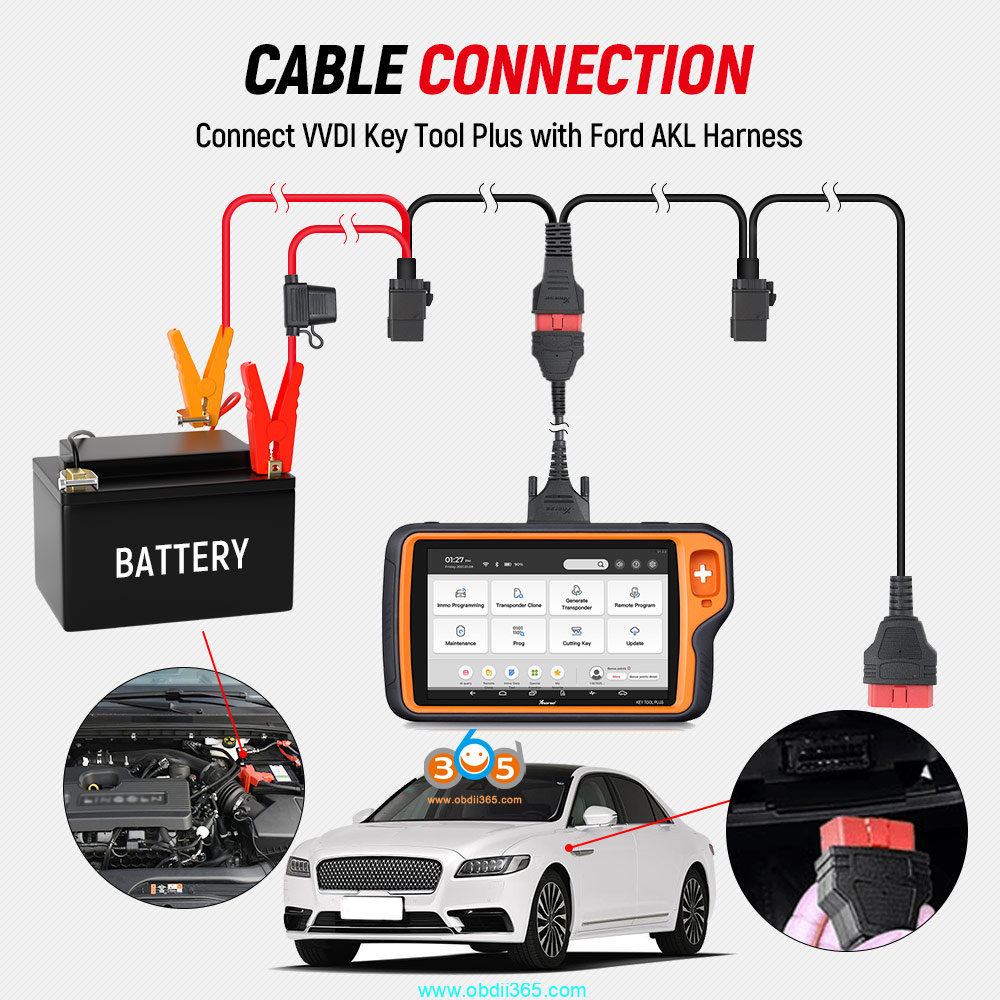

Xhorse Ford AKL Cable connection diagram

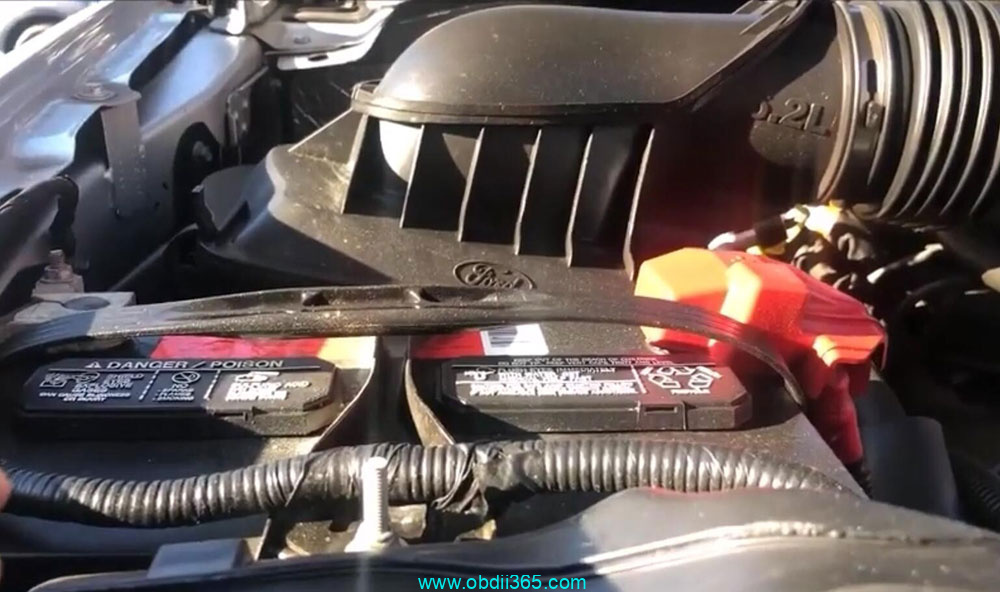

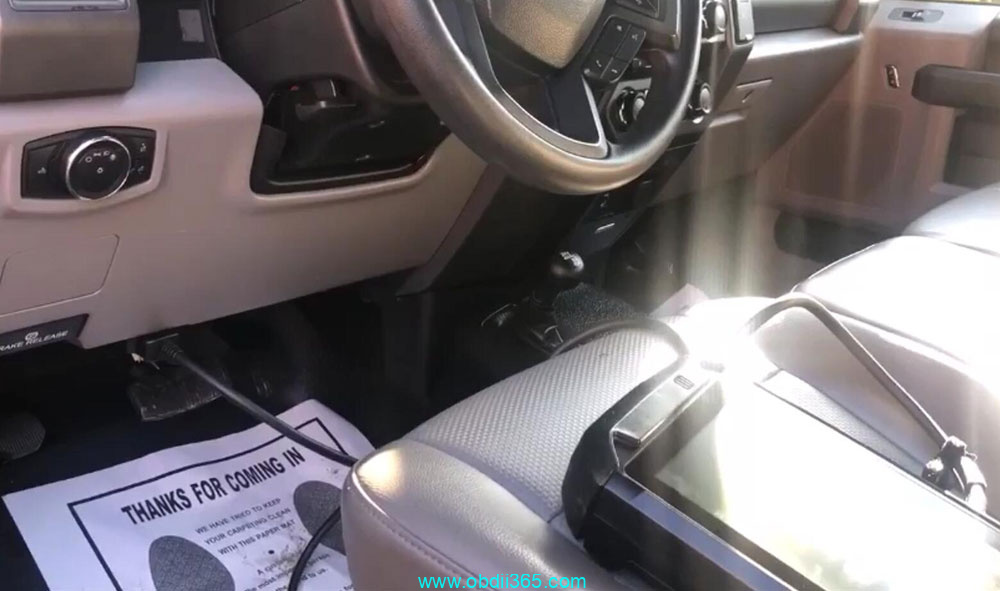

4.AutoPro PAD
Use the auto pro pad and it works every time on the first try.
5.SmartPro
Did a 20 mustang active alarm. Had to do it 4 times. Very rarely it works the first time. Smart pro is very good for these.
