Read Bosch MD1CS006 ECU with Launch X431 + X-PROG3

October 4, 2025 Nacy Universal car key programmer 0

Bosch MD1CS006 ECU reading successfully by Launch x431 with X-prog3.



Tools required:

Launch X431 IMMO Plus or X431 tablet with smartlink

X-prog3 programmer

MCU3 adapter

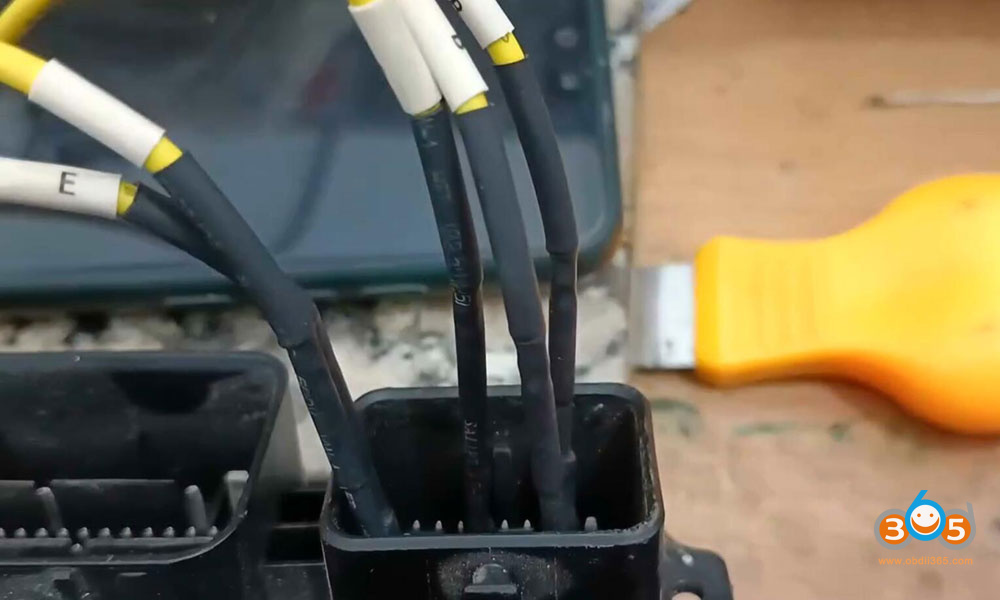

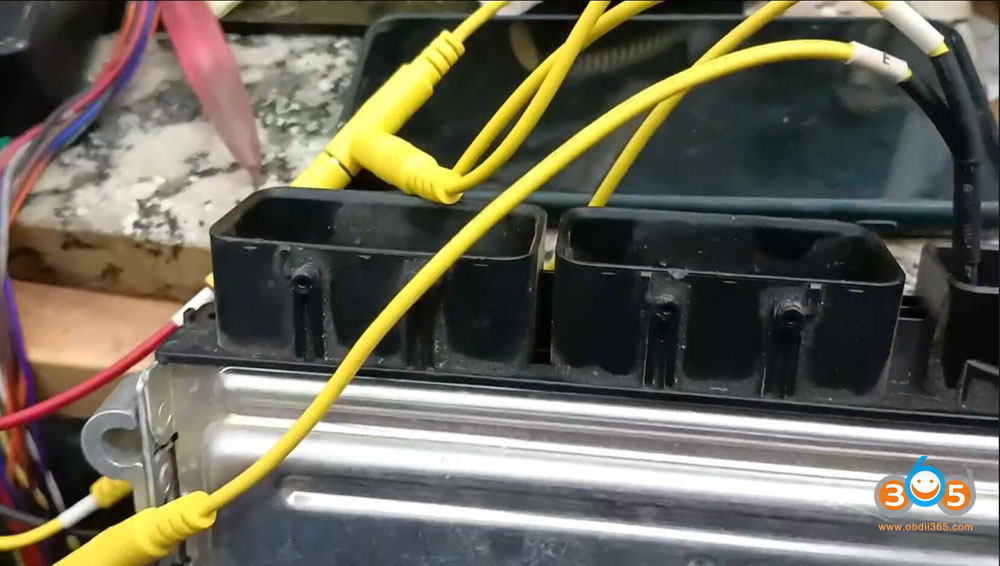

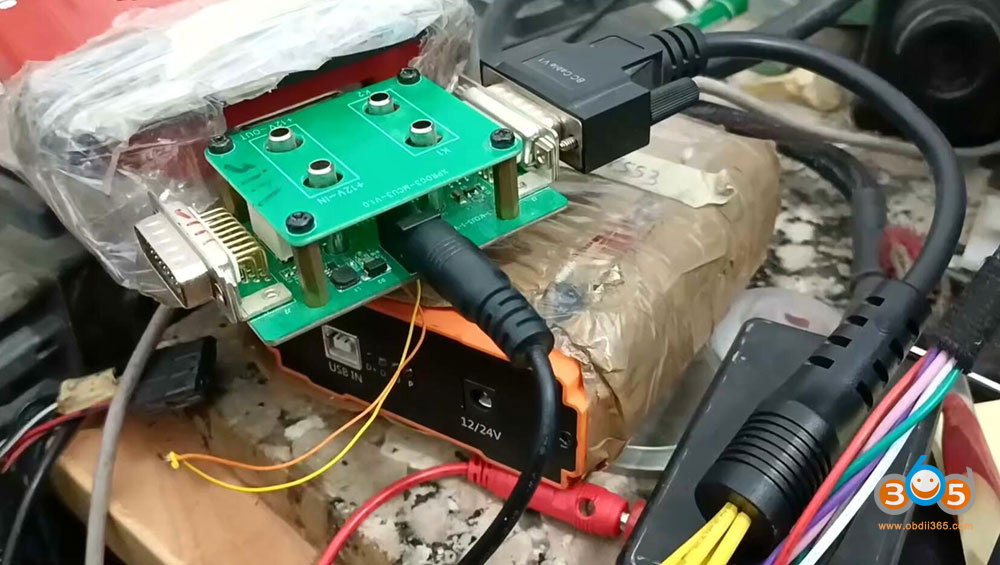

Check wiring diagram and connect ECU with X431 via X-prog3 and MCU3 adapter.

Launch X431 Md1cs0006 Ecu 1

Launch X431 Md1cs0006 Ecu 2

Launch X431 Md1cs0006 Ecu 3

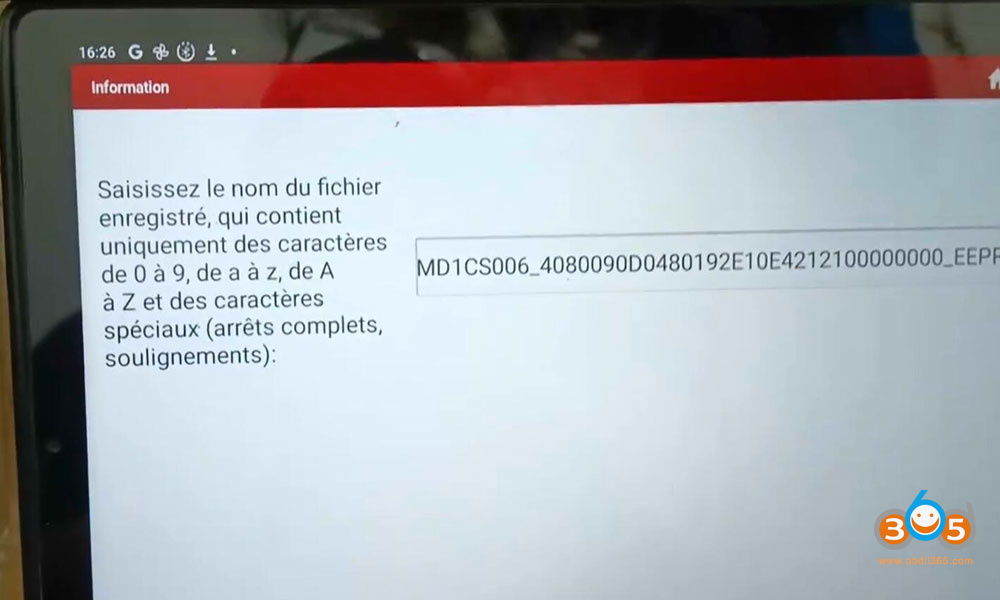

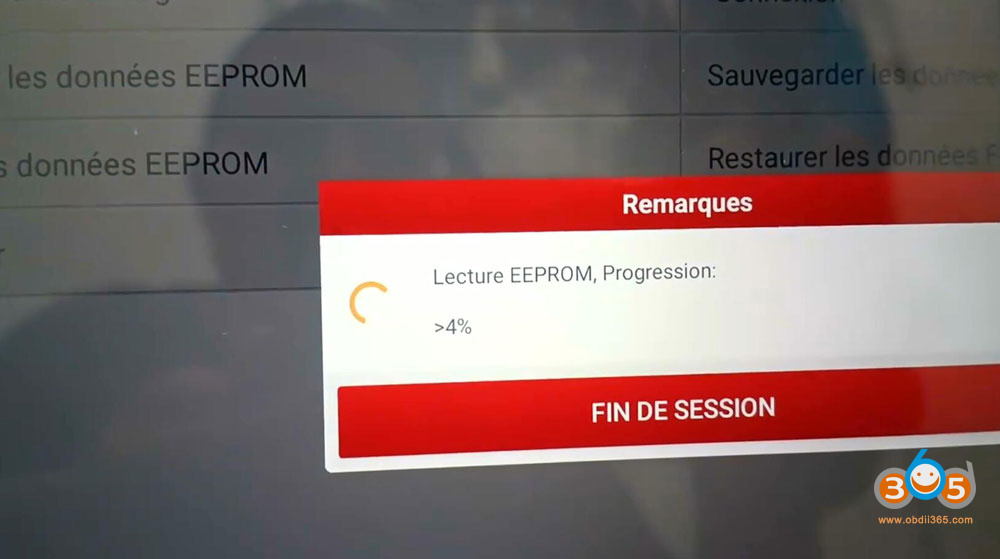

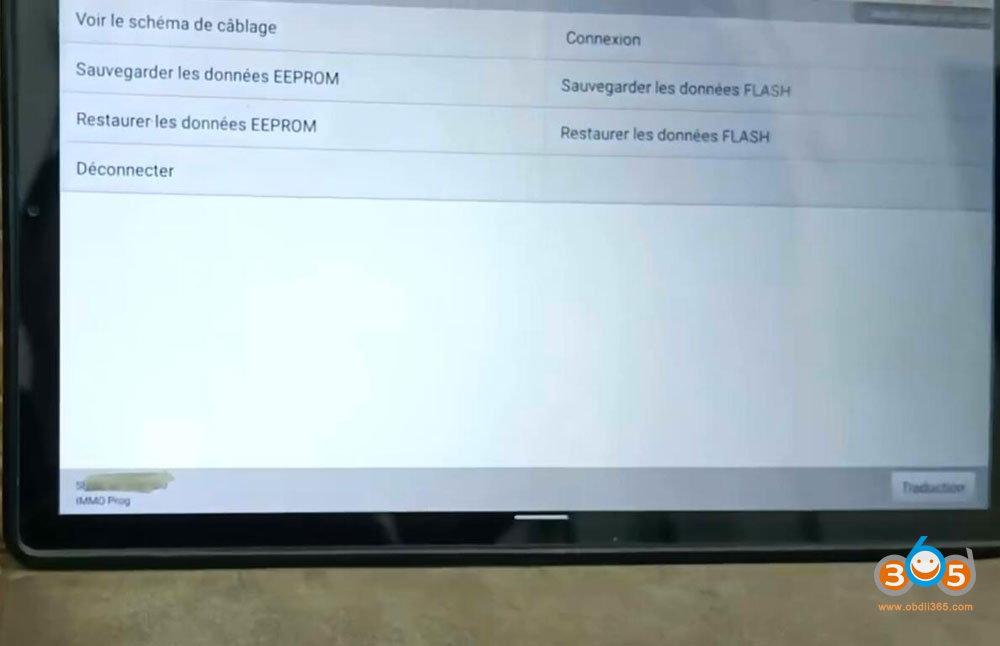

Read eeprom ok.

Launch X431 Md1cs0006 Ecu 4

Launch X431 Md1cs0006 Ecu 5

Launch X431 Md1cs0006 Ecu 6

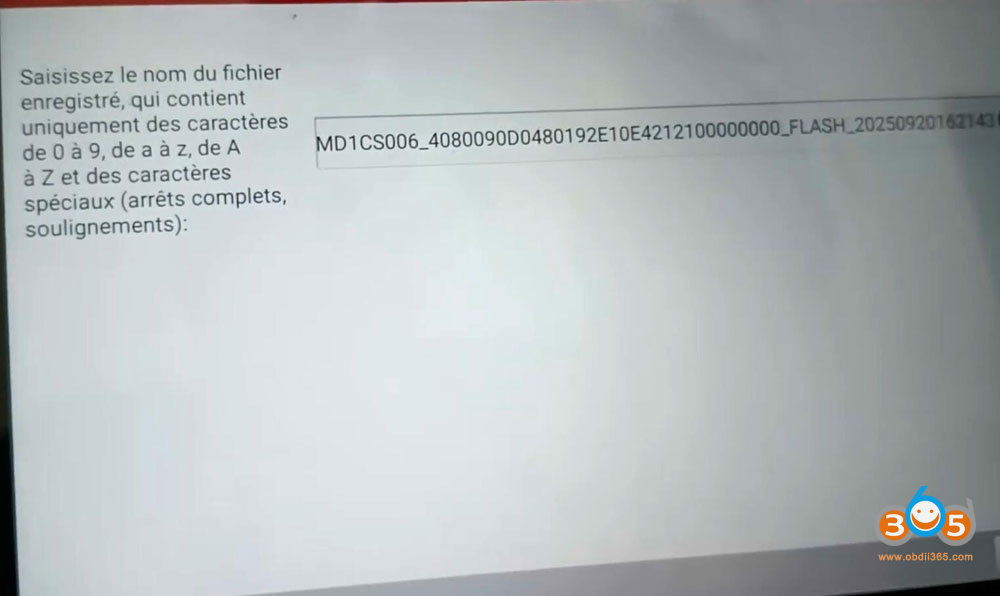

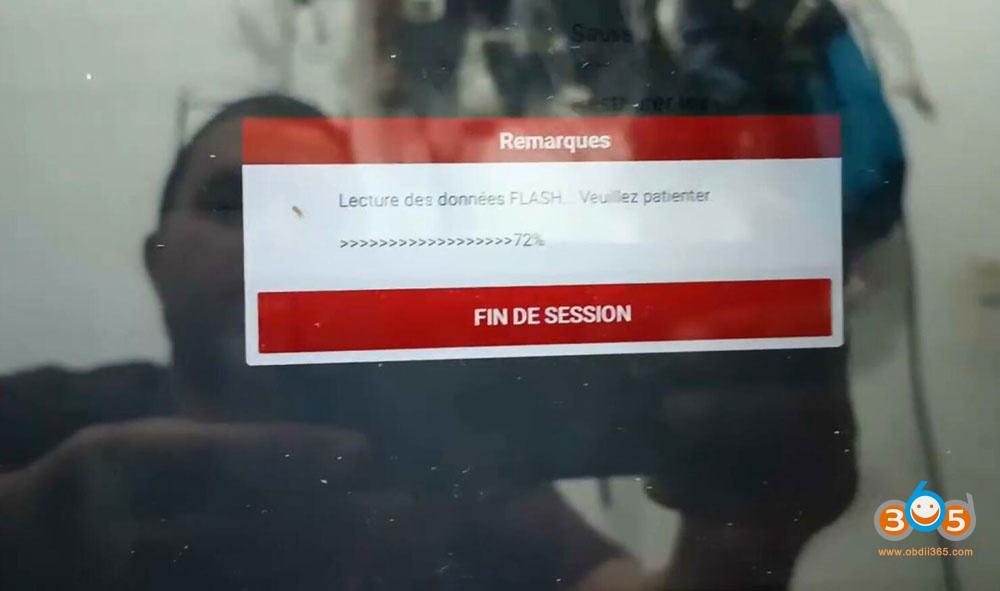

Read flash ok.

Launch X431 Md1cs0006 Ecu 7

Launch X431 Md1cs0006 Ecu 8
