Program Mazda 3 2015 All Smart Keys Lost via OBDSTAR Key Master

Programming Mazda 3 SkyActive 2015 smart remote keys when all keys lost by using OBDSTAR X300 Pro3 Key Master in action.



You need at least 2 remotes to be programmed.

key-master-mazda-3-smart-remote-1

Connect X300 pro3 with vehicle via OBD socket

Select Mazda

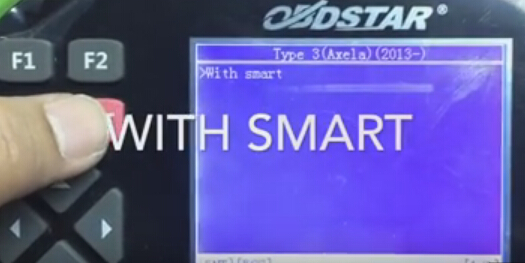

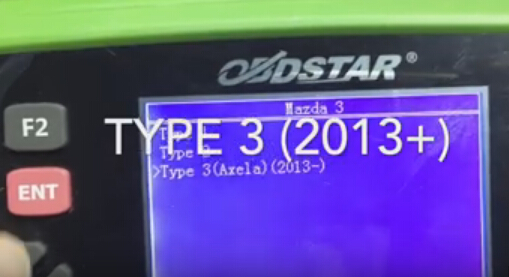

Select Mazda 3->Type 3 (2013+)->With Smart

key-master-mazda-3-smart-remote-2

key-master-mazda-3-smart-remote-3

key-master-mazda-3-smart-remote-4

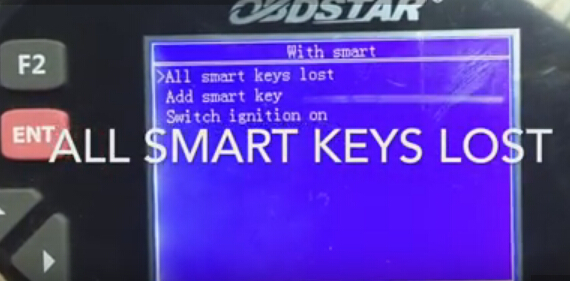

Select All smart keys lost

key-master-mazda-3-smart-remote-5

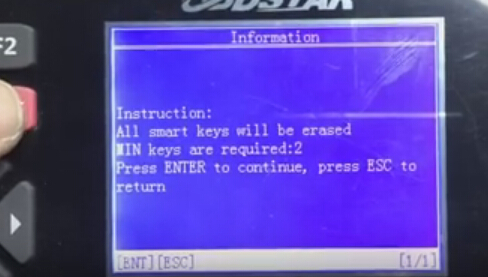

minimum 2pcs keys are required. All smart keys will be erased.

key-master-mazda-3-smart-remote-6

switch ignition on, press Start button for twice

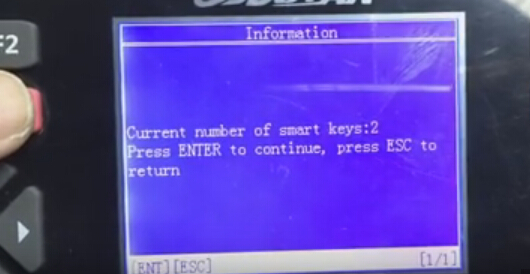

Current number of smart keys: 2

key-master-mazda-3-smart-remote-7

OBDSTAR Key Master reading vehicle information

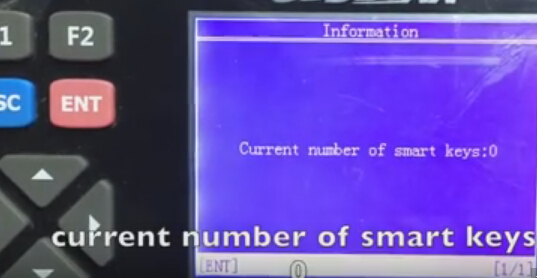

Current number of smart keys: 0

key-master-mazda-3-smart-remote-8
Erase keys complete

switch ignition OFF

switch ignition on

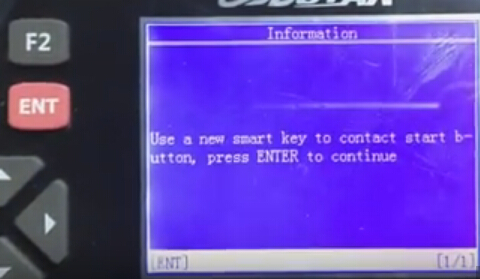

Use a new smart key to contact Start button, pres ENTER to continue

key-master-mazda-3-smart-remote-9

Security light stop fashing
First remote programm OK

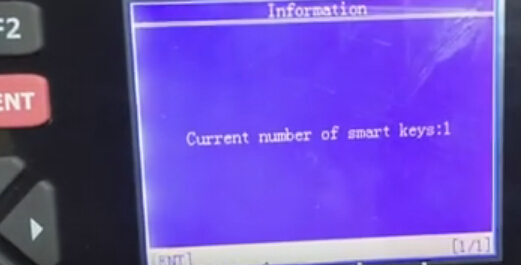

Current number of smart keys:1

key-master-mazda-3-smart-remote-10
X300 pro3 prompt whether to program next one? Press Yes to continue
Switch ignition OFF

Switch ignition on

Again use a new smart key to contact Start button, pres ENTER to continue

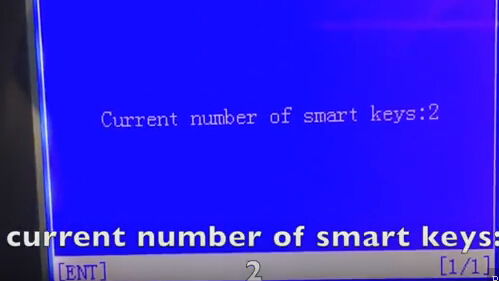

Program success press enter to program next of not press ESC

key-master-mazda-3-smart-remote-11

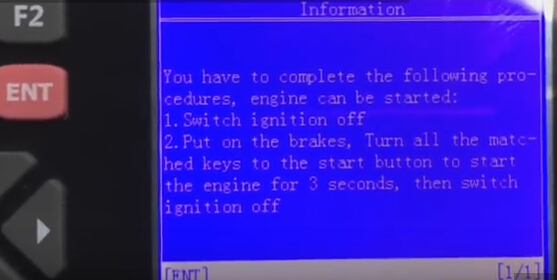

You have to complete the following procedure to start engine:
1. Switch ignition off
2.Put on the brakes, turn all the matched keys to the start button to start the engine for 3 seconds, then switch ignition off
In short, use all keys to start engine for 3 seconds

key-master-mazda-3-smart-remote-12

Test all remote function

key-master-mazda-3-smart-remote-13
Success!
