Program Hyundai Sonata 2018 8A Smart Key with OBDSTAR X300 DP Plus

How to: read pin code from 8A Smart card key and add a smart key on a Hyundai Sonata 2018 using OBDSTAR X300 DP PLUS.

obdstar-x300-dp-hyundai-ix35-1

Original key and new key to be programmed



Procedure:

Connect X300 DP PLUS with vehicle via OBD socket

Select Diag Program->Hyundai->Hyundai v30.63->Read Pin Code->Read PinCode (8A Smart Card)

obdstar-x300-dp-hyundai-ix35-2

obdstar-x300-dp-hyundai-ix35-3

obdstar-x300-dp-hyundai-ix35-4

Turn on ignition switch

Open and close the driver door

Reading data

obdstar-x300-dp-hyundai-ix35-5

Read 6-digit Pin code success

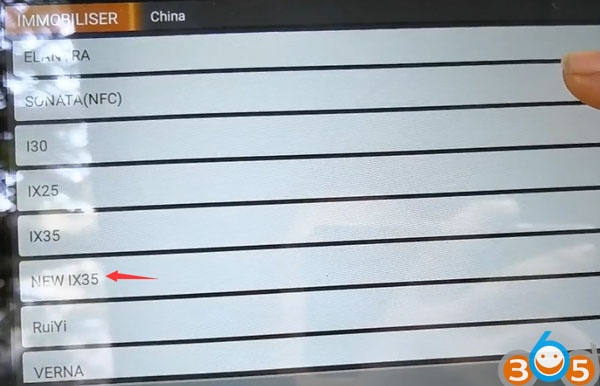

Select Hyundai->Hyundai v30.63->Select from vehicle->Asia->China->New IX35->Smart Key System->Program smart key

obdstar-x300-dp-hyundai-ix35-6

obdstar-x300-dp-hyundai-ix35-7

obdstar-x300-dp-hyundai-ix35-8

obdstar-x300-dp-hyundai-ix35-9

obdstar-x300-dp-hyundai-ix35-10

Press Start button and click on ENTER to continue

Turn ignition OFF

obdstar-x300-dp-hyundai-ix35-11

OBDSTAR X300 DP plus will ask you enter pin code to continue

Enter PIN and confirm

obdstar-x300-dp-hyundai-ix35-12

Put the original smart key vertically close to the Start button within 5s, and press Start button

obdstar-x300-dp-hyundai-ix35-13

Program success. Follow same procedure to program a new smart key

obdstar-x300-dp-hyundai-ix35-14

Both smart key programming success

Test the remote and start car.

obdstar-x300-dp-hyundai-ix35-15

obdstar-x300-dp-hyundai-ix35-16

Done.
