Program Hyundai i20 Smart Key with VVDI & Xtool X100 Pad2

How-to: generate and program Hyundai i20 smart key with VVDI Mini Key Tool and Xtool X100 Pad2.



Step 1: Generate remote with VVDI Mini Key Tool

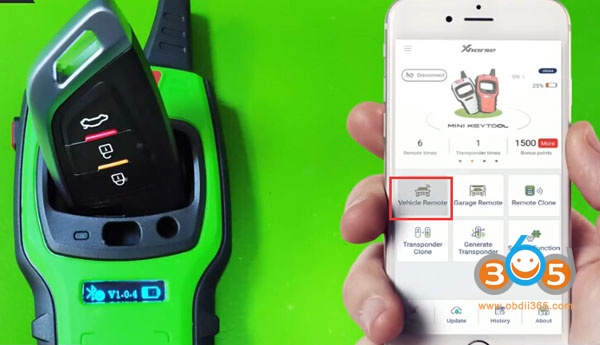

Insert Xhorse universal smart key into detection coil

hyundai-i20-vvdi-mini-key-tool-1 hyundai-i20-vvdi-mini-key-tool-2 hyundai-i20-vvdi-mini-key-tool-3 hyundai-i20-vvdi-mini-key-tool-4

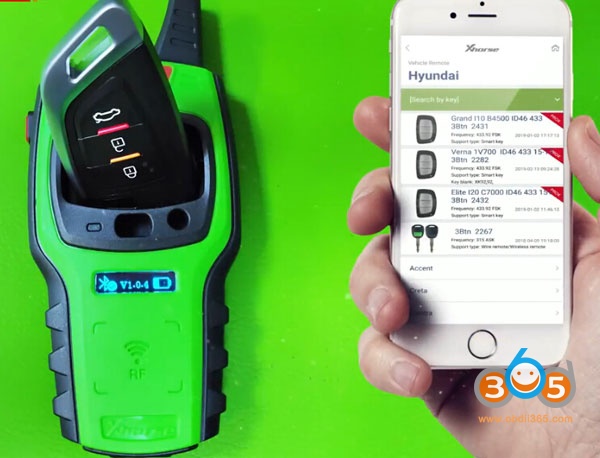

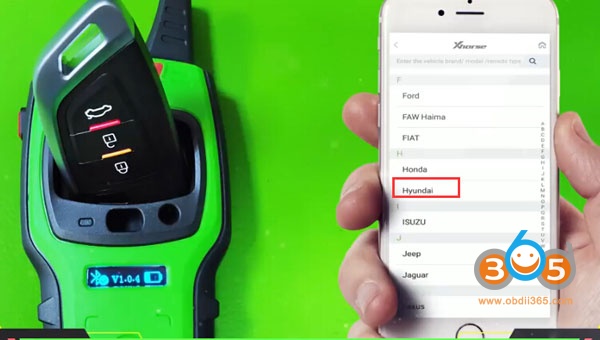

Select Vehicle Remote->Hyundai->Elite i20 C7000 ID46 433 15+ 3BTn 2432

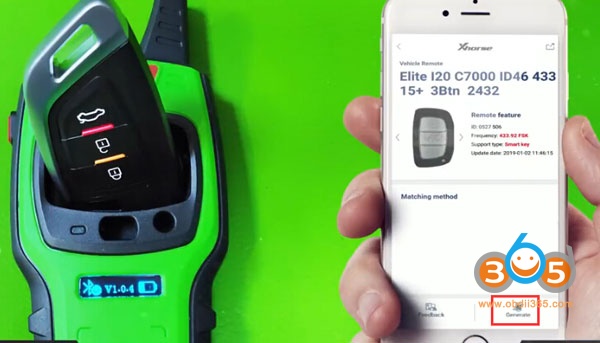

Press Generate

hyundai-i20-vvdi-mini-key-tool-5

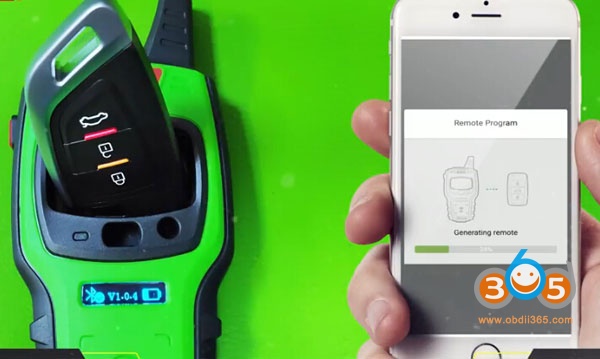

Generating remote in progress

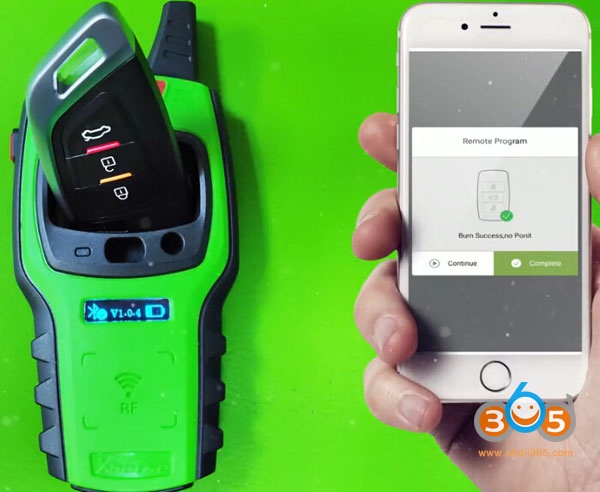

hyundai-i20-vvdi-mini-key-tool-6

Generate remote succeed





Step 2: Program smart key with xtool x100 pad2

Connect X100 pad 2 with vehicle via OBD socket

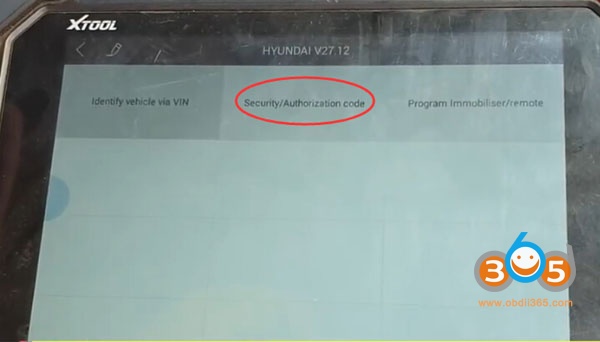

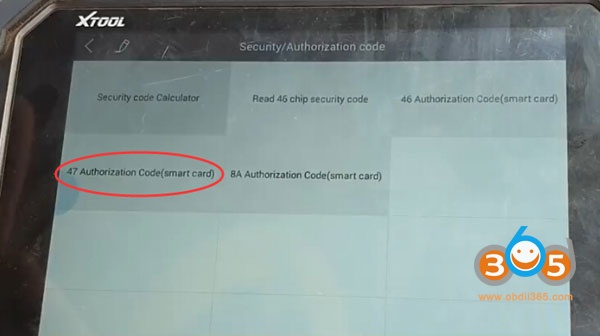

Select Hyundai->Security Code->47 Authorization code (smart card)

hyundai-i20-xtool-x100-pad2-1

hyundai-i20-xtool-x100-pad2-2

Enable network connection before reading security code

Turn on ignition switch

hyundai-i20-xtool-x100-pad2-3

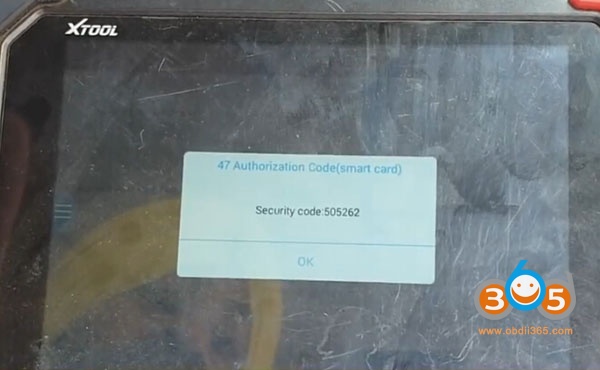

Read security code success

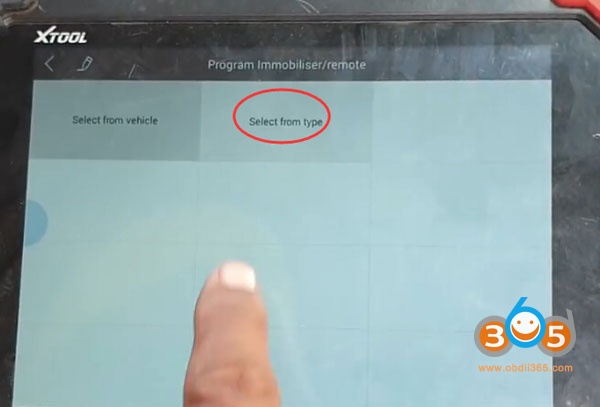

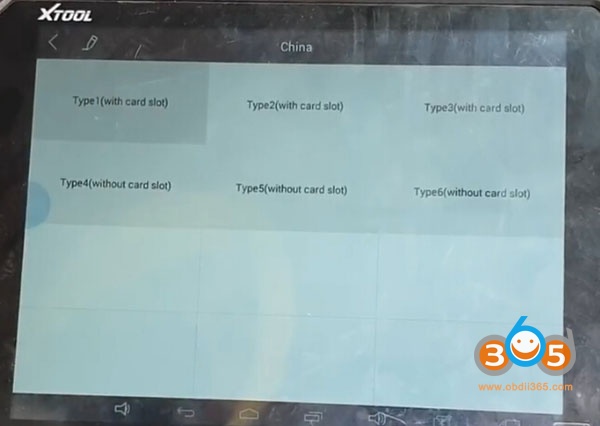

Select Program Immobilizer/remote->Smart key system->China-> Type 5 (without card slot)

hyundai-i20-xtool-x100-pad2-4

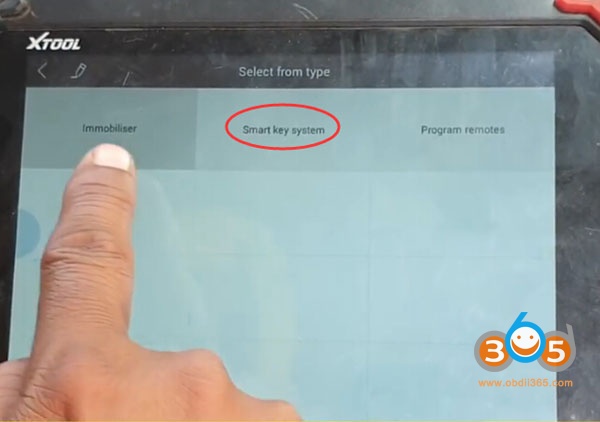

hyundai-i20-xtool-x100-pad2-5

hyundai-i20-xtool-x100-pad2-6

hyundai-i20-xtool-x100-pad2-7

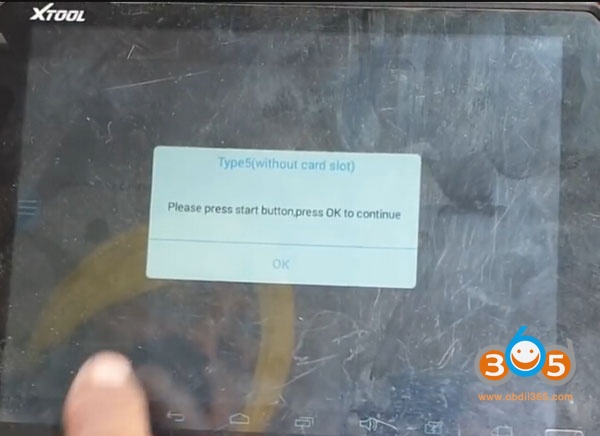

Press Start button to continue

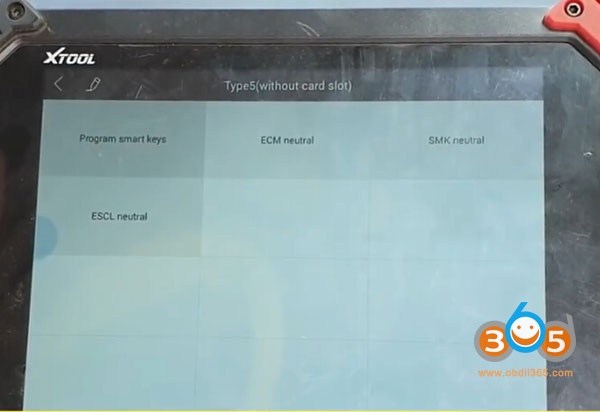

hyundai-i20-xtool-x100-pad2-8

Select Program smart keys

hyundai-i20-xtool-x100-pad2-9

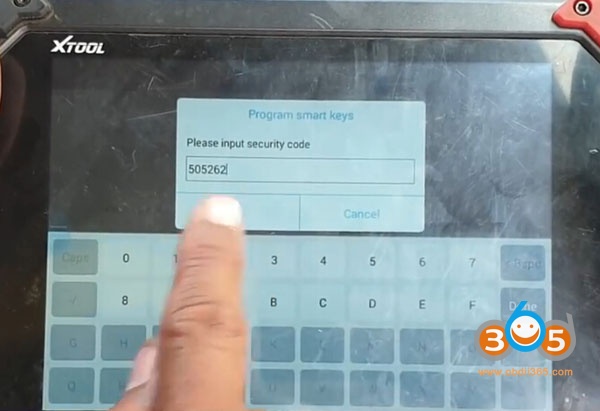

Xtool X100 pad 2 will ask to enter security code to access

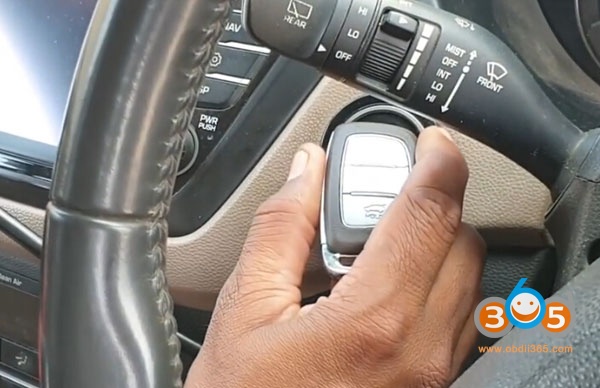

hyundai-i20-xtool-x100-pad2-10

Put the original key close to the Start button

hyundai-i20-xtool-x100-pad2-11

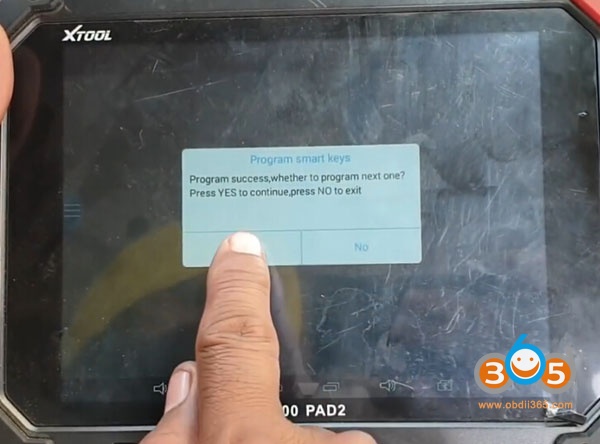

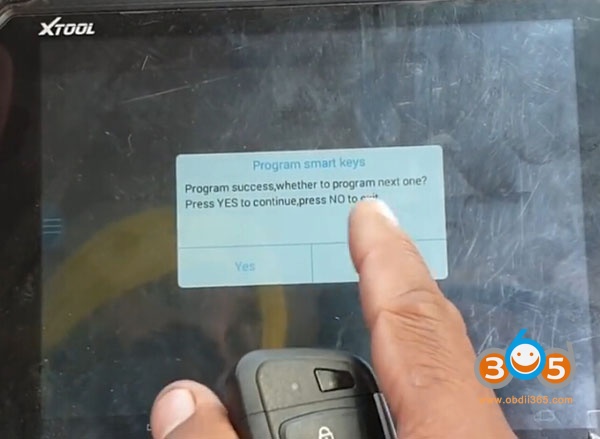

Program success. Press YES to program next key

hyundai-i20-xtool-x100-pad2-12

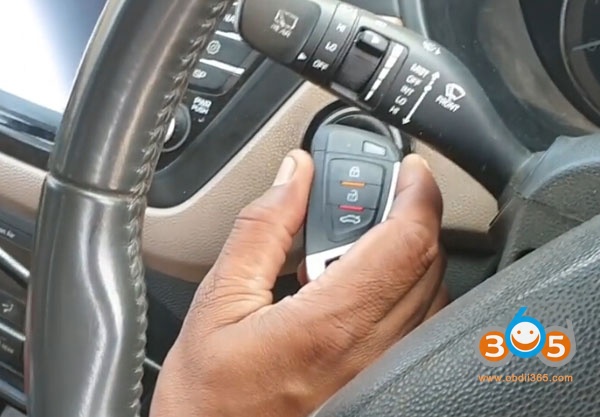

Put the smart key to be programmed close to the Start button

hyundai-i20-xtool-x100-pad2-13

Program smart key success

hyundai-i20-xtool-x100-pad2-14

hyundai-i20-xtool-x100-pad2-15

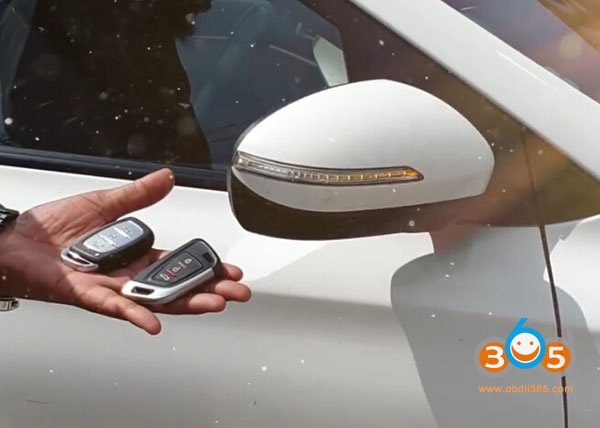

Test remote control and start car.

Done.
