Renew Chervolet Cruze 7952E Smart Key by OBDSTAR X300 DP PLUS

How-to:  Renew Chervolet Cruze smart key 7952E by OBDSTAR X300 DP PLUS (Key master DP Plus) tablet.





Chip Type: Chip 46

Smart key type:  7952E

x300-dp-plus-cruze-key-renew-1

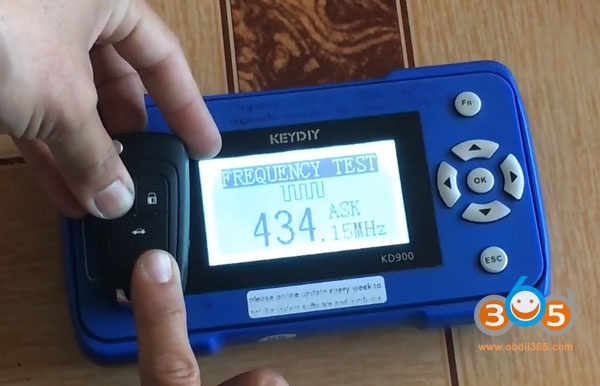

Frequency:   434MHz

x300-dp-plus-cruze-key-renew-3

x300-dp-plus-cruze-key-renew-2

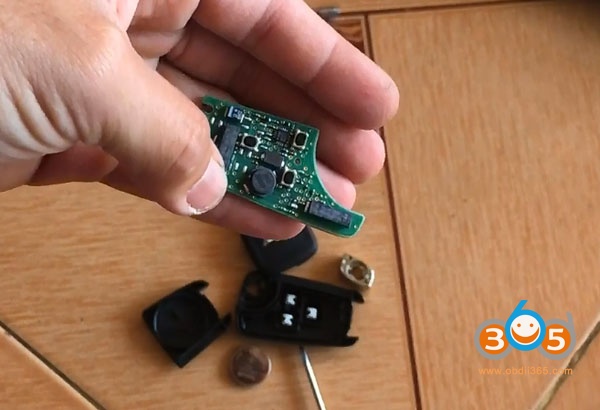

Disassemble the remote key

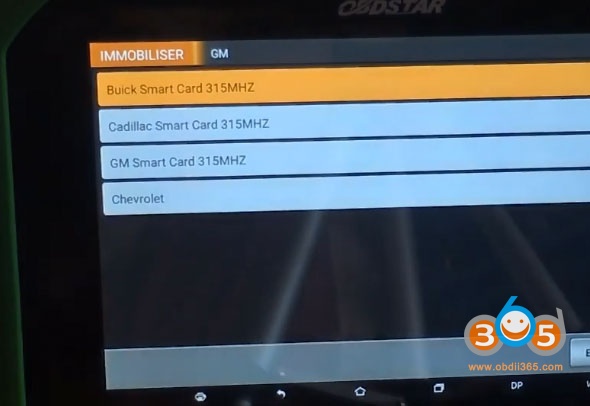

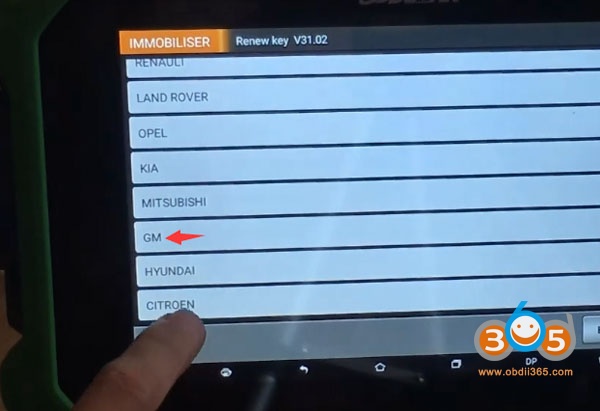

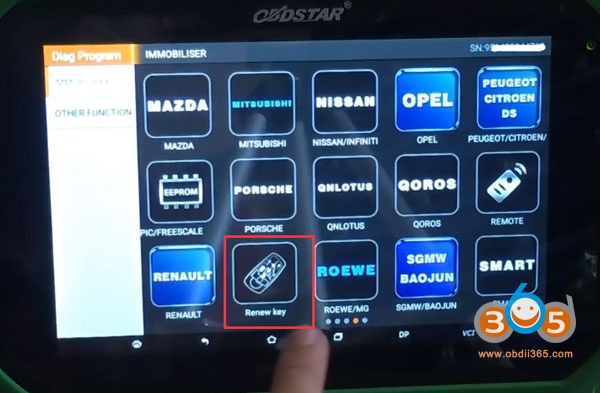

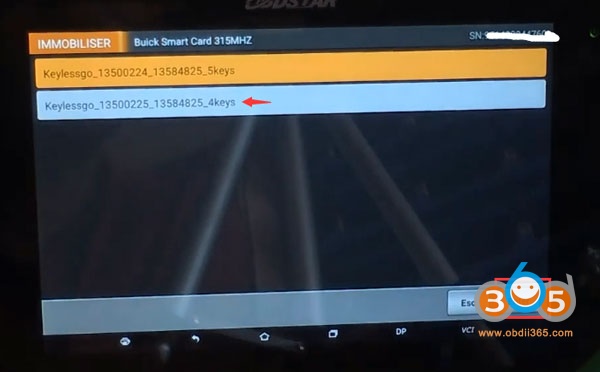

In X300 DP PLUS, select Diag Program-> Renew Key->GM->Buick Smart Key 315MHz->
Keylessgo_13500225_1358425_4keys

x300-dp-plus-cruze-key-renew-4

x300-dp-plus-cruze-key-renew-5

x300-dp-plus-cruze-key-renew-6

x300-dp-plus-cruze-key-renew-7

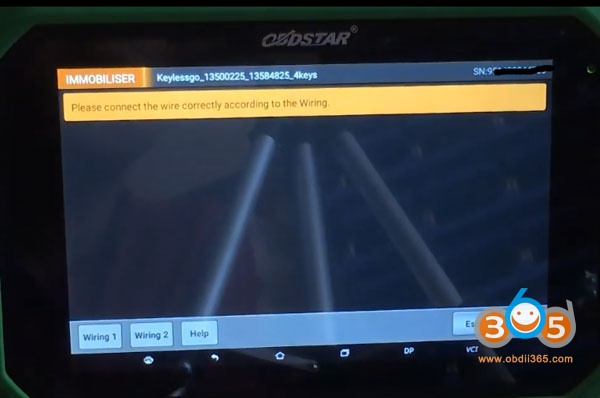

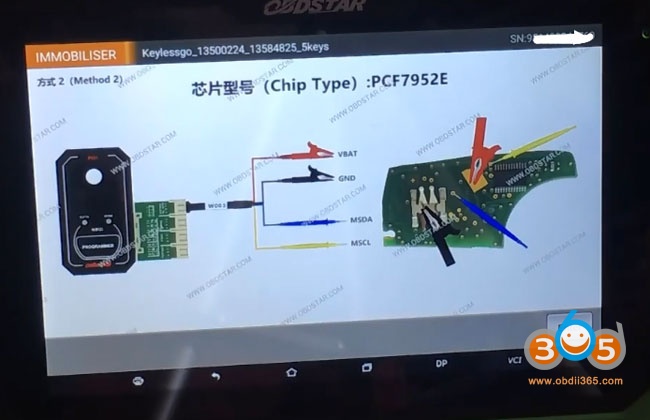

Then check the wiring connection

x300-dp-plus-cruze-key-renew-8

x300-dp-plus-cruze-key-renew-9

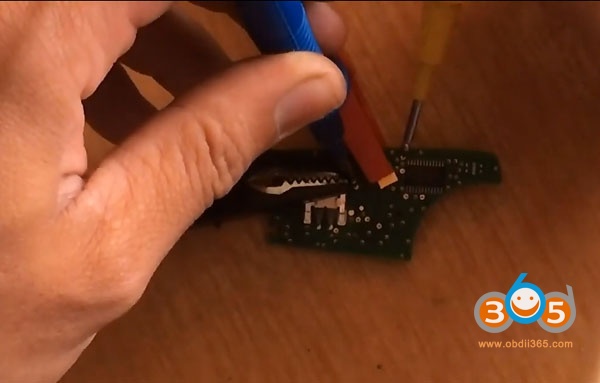

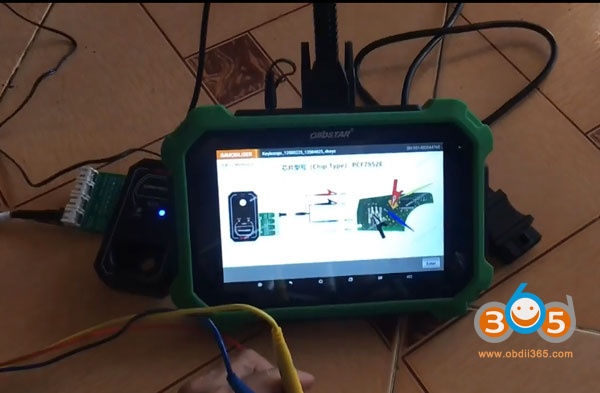

Connect test probe with OBDSTAR P001 adapter and X300 DP PLUS

x300-dp-plus-cruze-key-renew-10

x300-dp-plus-cruze-key-renew-11

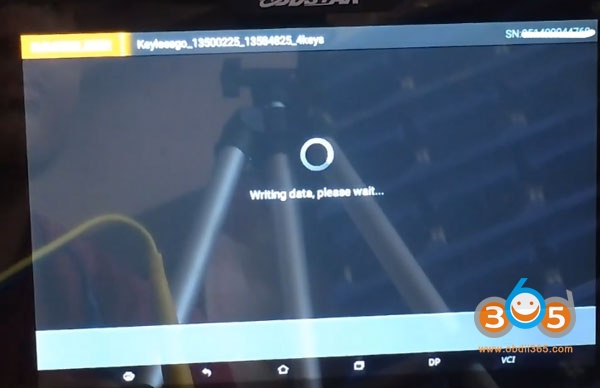

Press Enter to write data

x300-dp-plus-cruze-key-renew-12

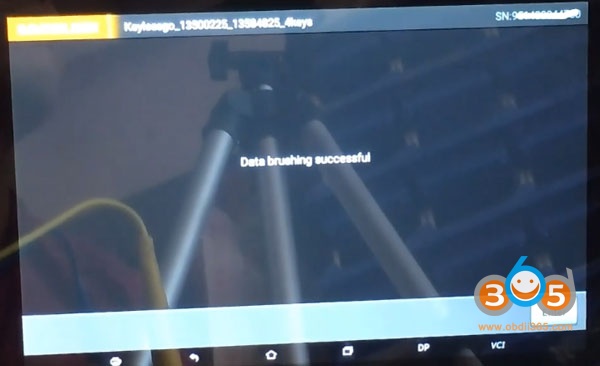

Renew key success

x300-dp-plus-cruze-key-renew-13
