Program Benz old W164 All Keys Lost with CGDI MB and AC Adapter

Guide: add key to the Mercedes Benz old (A1645450909) EZS W164 when all keys lost using CGDI Prog MB key programmer. With the CGDI MB AC adapter, the data acquisition procedure can be shorten to 9 minutes.
cgdi-mb-old-w164-all-key-lost-1

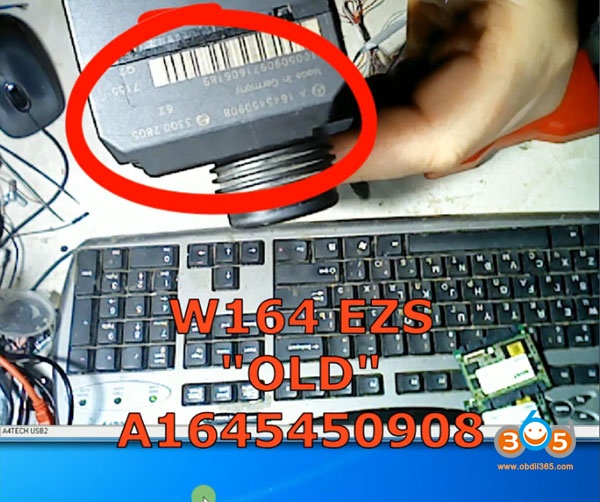

W164 EZS Old A1645450909
cgdi-mb-old-w164-all-key-lost-2

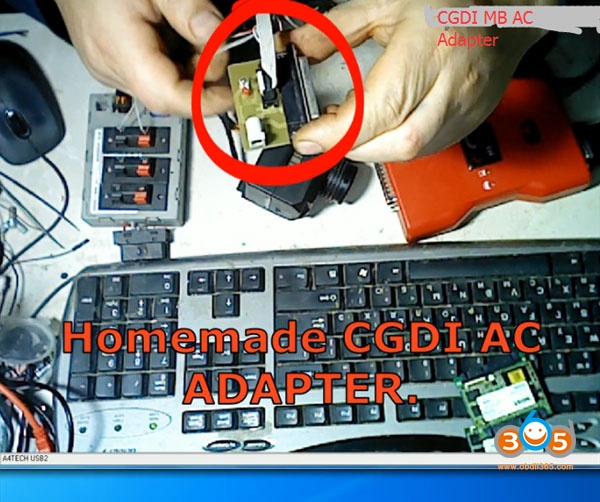

CGDI AC Adapter is necessary to faster calculate key password.
Credit to Mr. Edward Markin.
Step 1:  Calculate password
Connect AC Adapter with CGDI MB
cgdi-mb-old-w164-all-key-lost-3

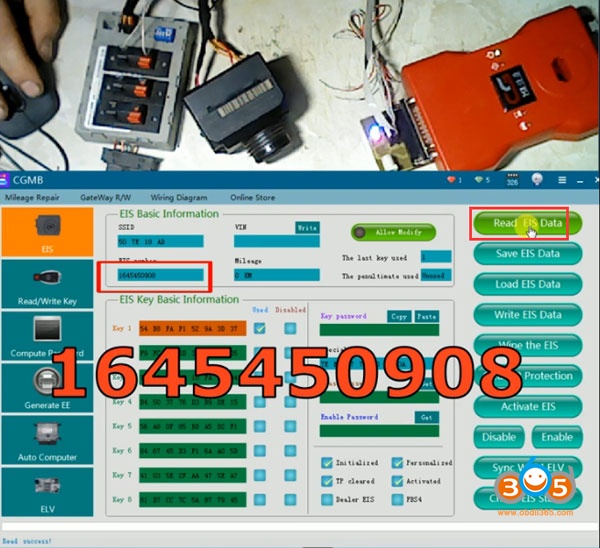

Read EIS data

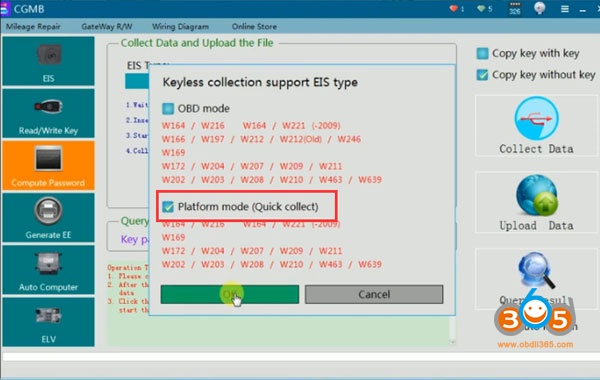

Go to Compute Password->Copy Key without Key ->Collect Data-> Platform mode
cgdi-mb-old-w164-all-key-lost-4
cgdi-mb-old-w164-all-key-lost-5

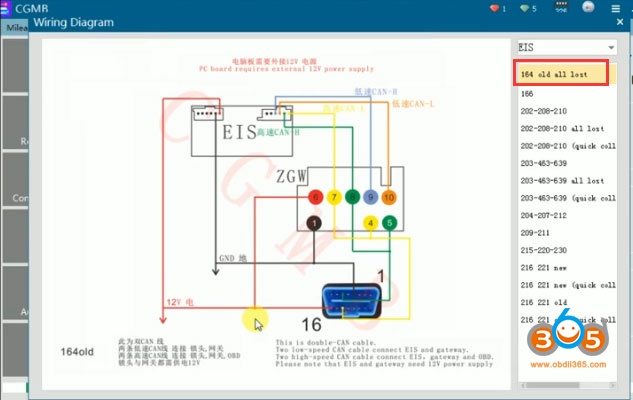

Check old W164 wiring diagram
cgdi-mb-old-w164-all-key-lost-6

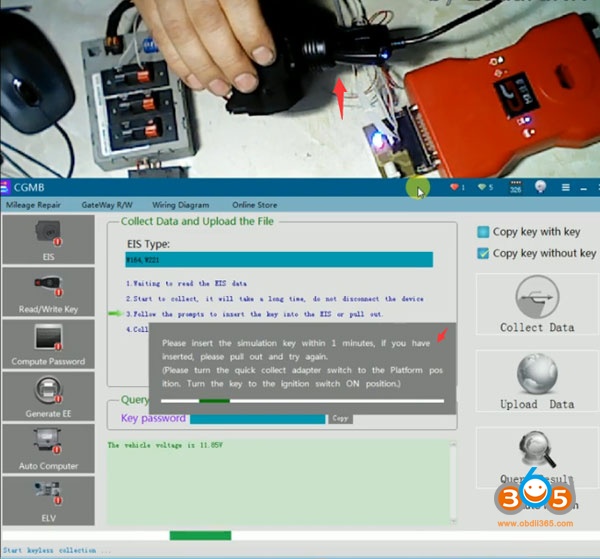

Insert the simulation key within 1 minutes.
Turn the quick collect adapter (AC adapter) switch to the platform position. Turn the key
to the ignition switch to ON position.
cgdi-mb-old-w164-all-key-lost-7
If CGDI prompts data acquisition failure.  Try again.
cgdi-mb-old-w164-all-key-lost-8
If still fail to read ezs data, to rotate the simulation key, you need not knock on the EZS
cgdi-mb-old-w164-all-key-lost-9

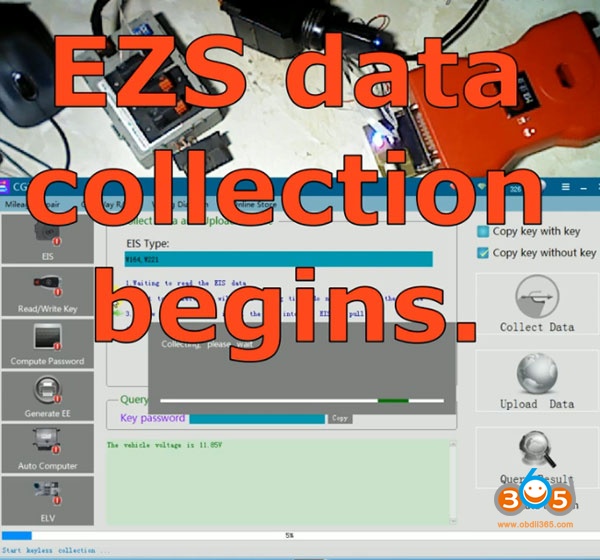

EZS data collection begins
cgdi-mb-old-w164-all-key-lost-10
Data collection success after 9 minutes

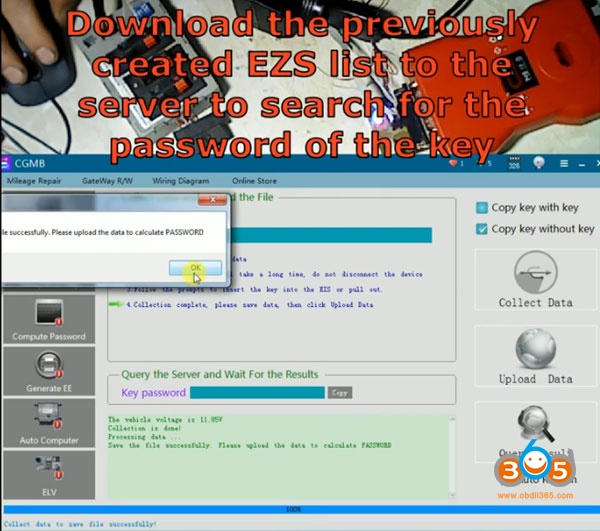

Save data
cgdi-mb-old-w164-all-key-lost-11

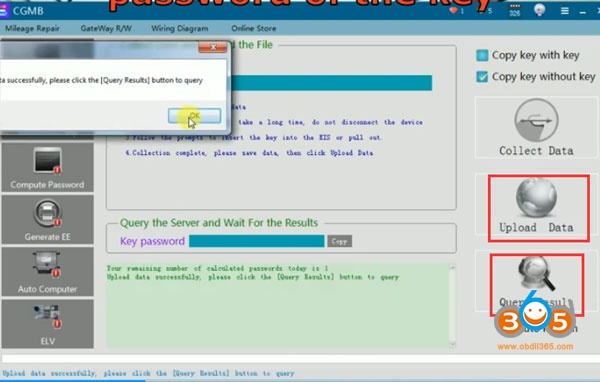

Upload the data to calculate password
cgdi-mb-old-w164-all-key-lost-12
Press Query Result
cgdi-mb-old-w164-all-key-lost-13

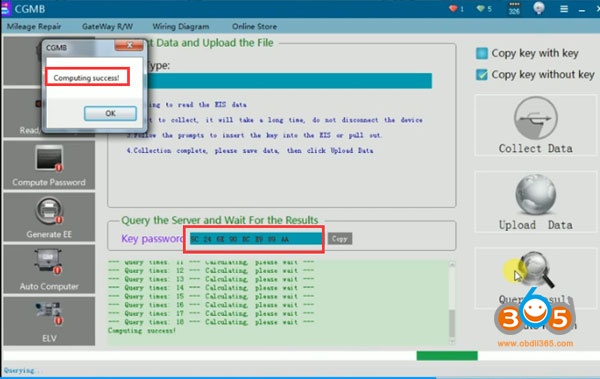

Calculate password success

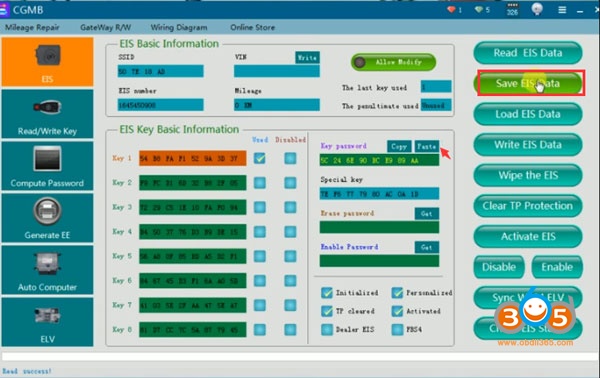

Go to EIS function, paste password to Key password area
Read EIS data again
cgdi-mb-old-w164-all-key-lost-14
cgdi-mb-old-w164-all-key-lost-15
cgdi-mb-old-w164-all-key-lost-16

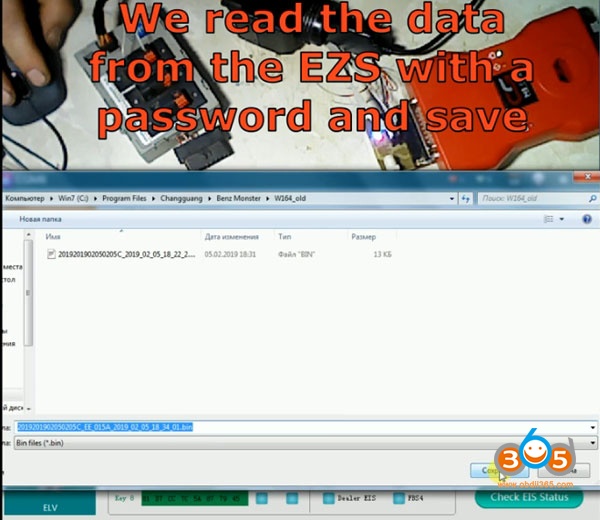

We read the data from the EZS with a password and save.
Step 2: Generate EE

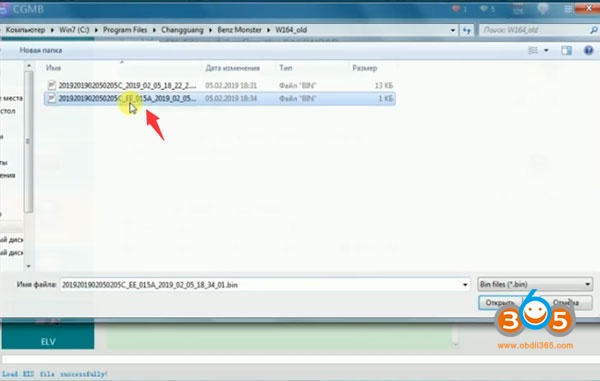

Generate key dumps from the created EZS file
cgdi-mb-old-w164-all-key-lost-17
cgdi-mb-old-w164-all-key-lost-18
cgdi-mb-old-w164-all-key-lost-19

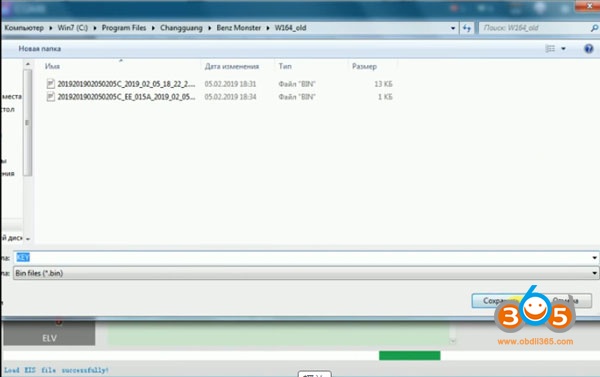

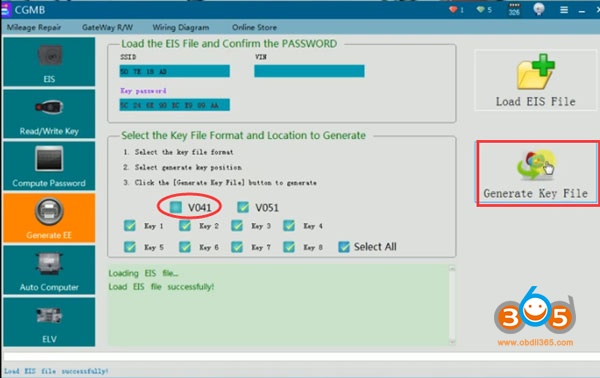

Generate Key File
cgdi-mb-old-w164-all-key-lost-20
cgdi-mb-old-w164-all-key-lost-21

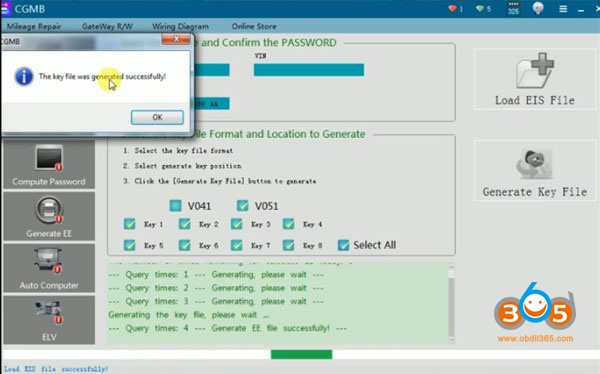

Generate key file success and save it
Step 3:  Write Key
Go to Read/Write Key

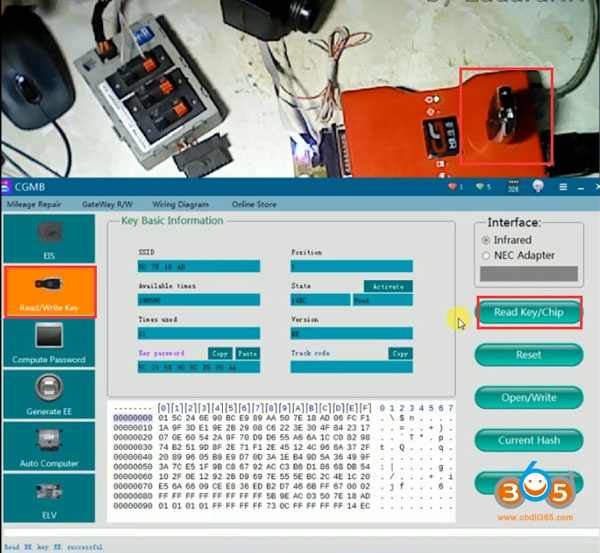

Insert key into CGDI MB detection coil
cgdi-mb-old-w164-all-key-lost-22
Read key/chip
cgdi-mb-old-w164-all-key-lost-23

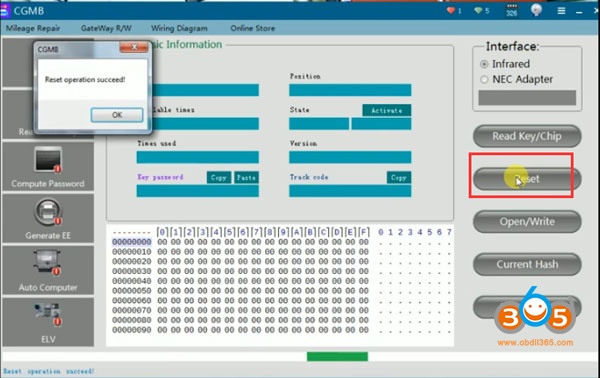

Reset key
cgdi-mb-old-w164-all-key-lost-24

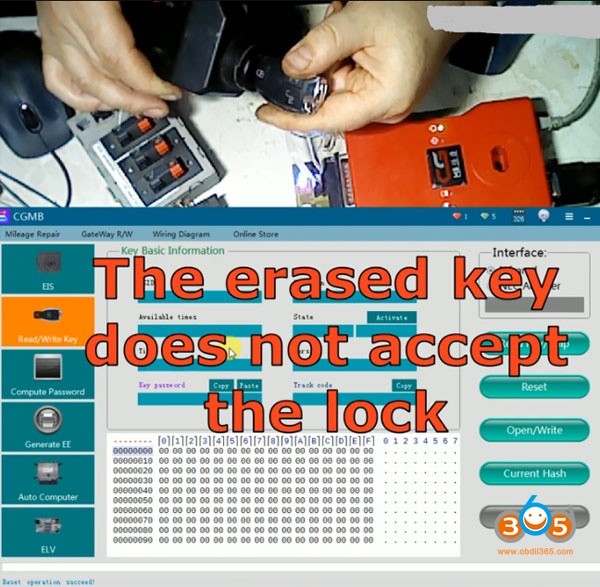

Insert new key into EZS, the erased key does not accept the lock
cgdi-mb-old-w164-all-key-lost-25

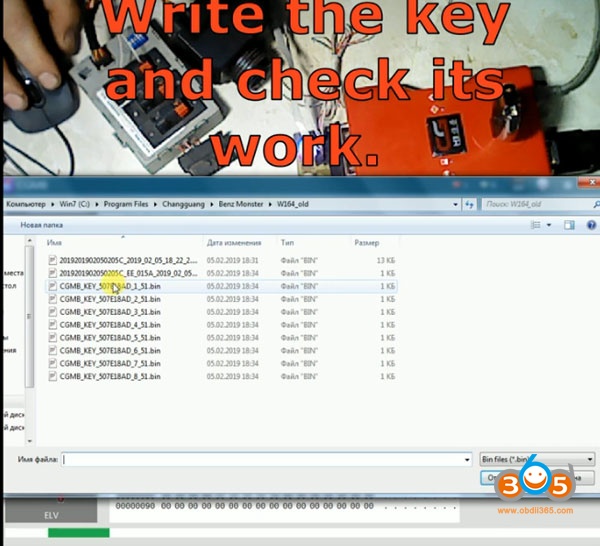

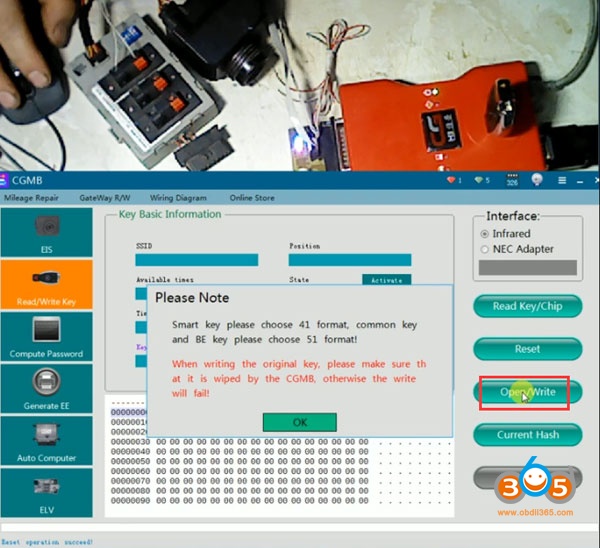

Write the key and check its work
Go to Open/Write Key
cgdi-mb-old-w164-all-key-lost-26
Select a key position
cgdi-mb-old-w164-all-key-lost-27

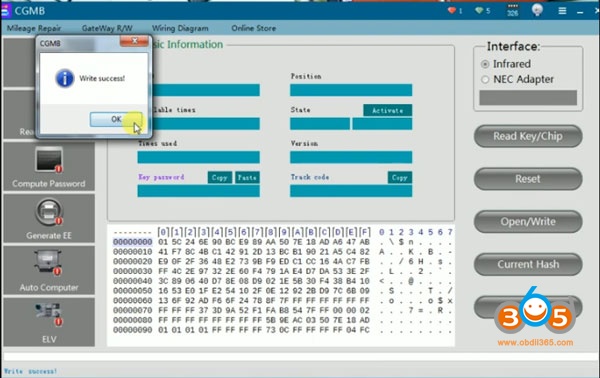

Write key success
cgdi-mb-old-w164-all-key-lost-28

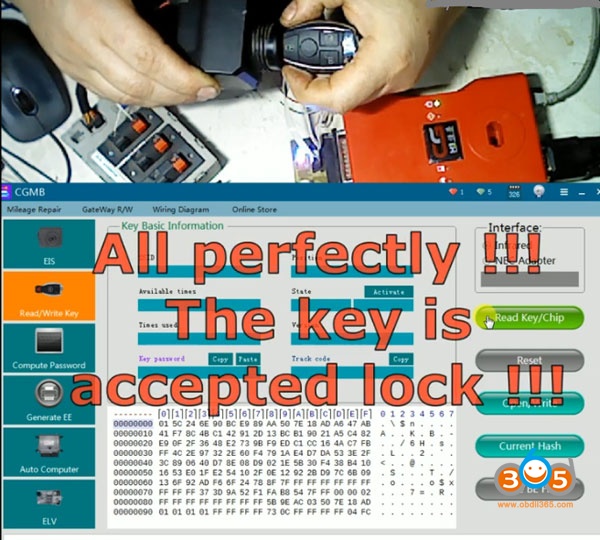

Now the new key works perfectly.
In general, at the moment CGDI MB is the best device for the money!!!
