Autel MaxiIM IM608 Adds Volvo XC60 Semi Smart Key Success

This is a test report of a new universal key programming tool – Autel MaxiIM IM608, the replacement of Auro Otosys IM600.



Key programmer: Autel MaxiIM IM608

Car: volvo xc60



The test:

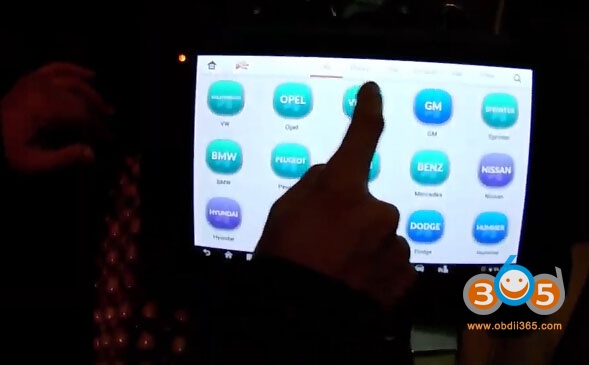

Go to Autel IM608 Volvo application

autel-maxiIM-im608-volvo-xc60-1

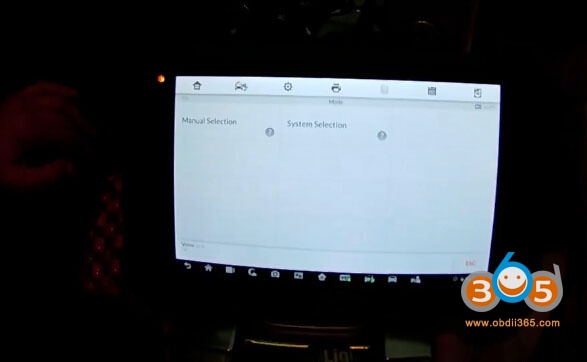

Manual selection

autel-maxiIM-im608-volvo-xc60-2

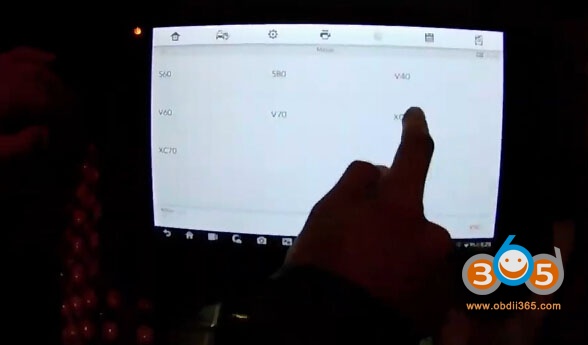

The Autel supports XC60 made in 2008-2018

autel-maxiIM-im608-volvo-xc60-3

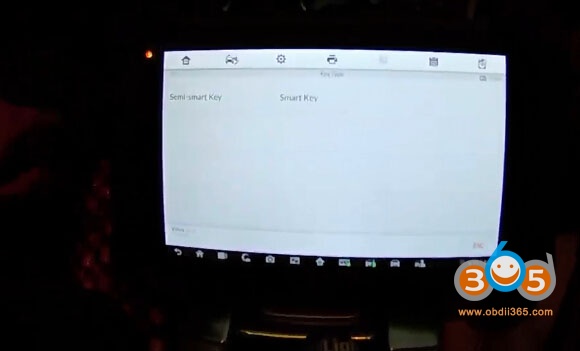

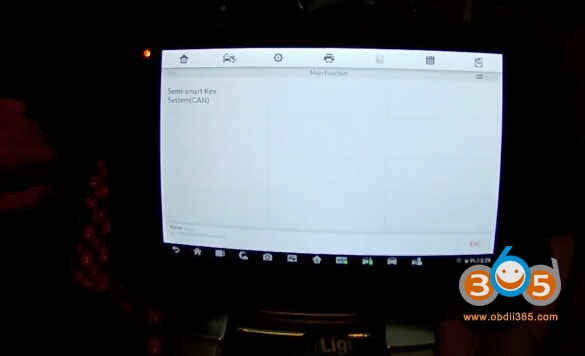

Semi smart key – Semi smart key system (CAN)

autel-maxiIM-im608-volvo-xc60-4

autel-maxiIM-im608-volvo-xc60-5

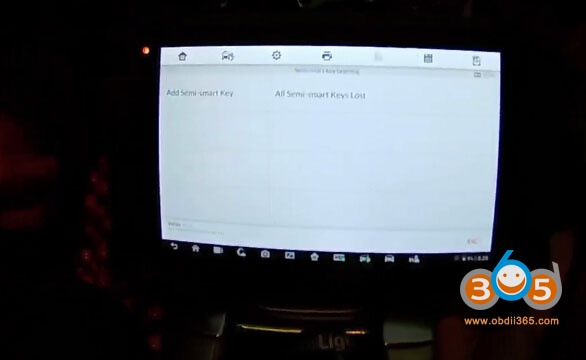

Add semi smart keys

autel-maxiIM-im608-volvo-xc60-6

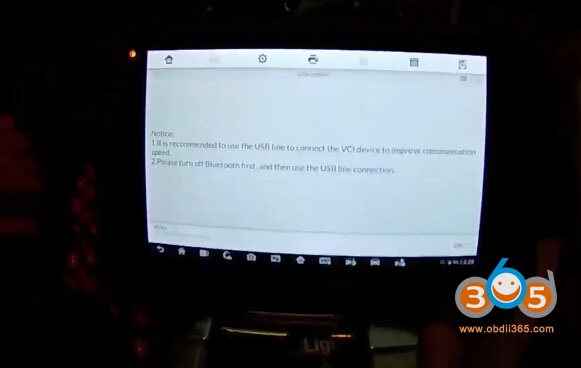

Note:

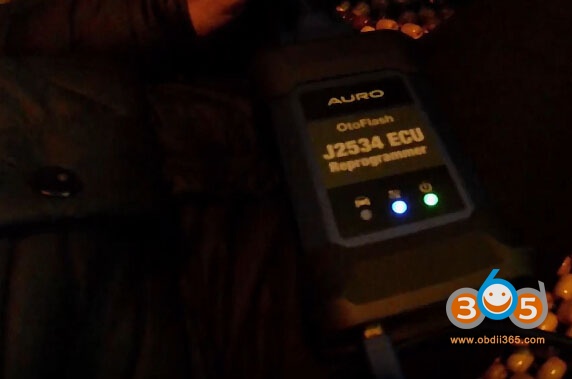

  1. you’re advised to use the USB cable to connect the vci device to improve connection speed
  2. please turn off Bluetooth first and then use the USB connection

autel-maxiIM-im608-volvo-xc60-7

autel-maxiIM-im608-volvo-xc60-8

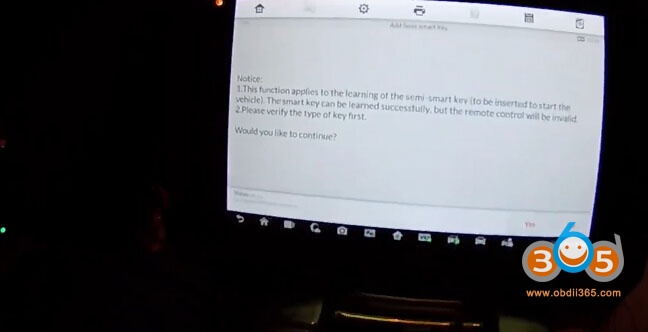

Note:

  1. this function is applied to the learning of the semi smart key (to be inserted to start the vehicle)

the smart key can be learned successfully, but the remote control will be invalid

  1. pls verify the type of the key first

autel-maxiIM-im608-volvo-xc60-9

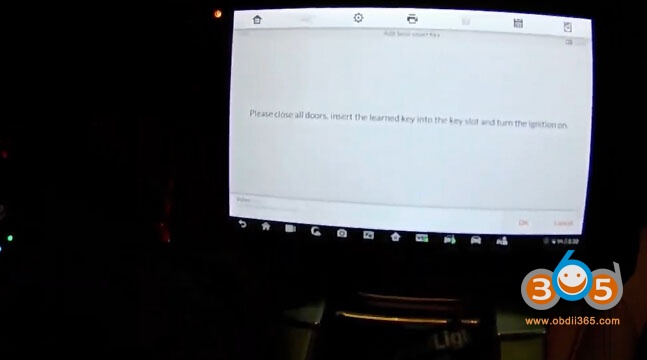

Pls close all dors, insert the learned key into the key slot and turn the ignition on

autel-maxiIM-im608-volvo-xc60-10

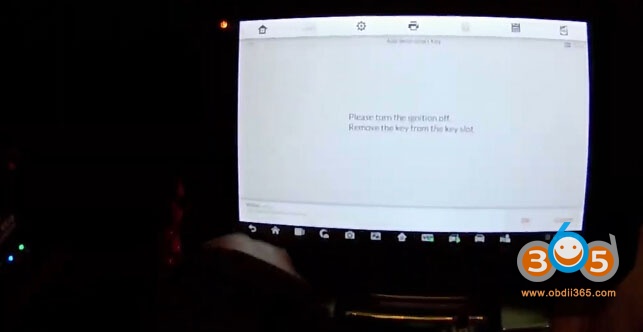

Pls turn the ignition off

Remove the key from the key slot

autel-maxiIM-im608-volvo-xc60-11

autel-maxiIM-im608-volvo-xc60-12

Establishing vehicle communication…

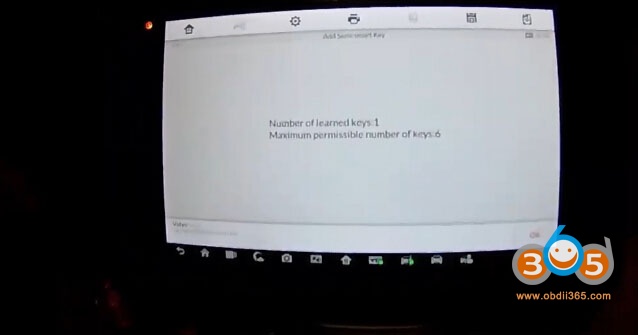

Number of the key learned: 1

Maximum possible number of keys: 6

autel-maxiIM-im608-volvo-xc60-13

Establishing vehicle communication…

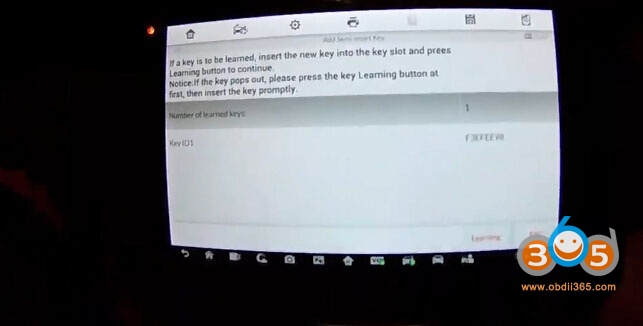

If a key is to be learned, insert the new key into the key slot and press learning button to continue

Notice: if the key pops out, pls press the key learning button first, then insert the key promptly

autel-maxiIM-im608-volvo-xc60-14

autel-maxiIM-im608-volvo-xc60-15

Establishing vehicle communication…

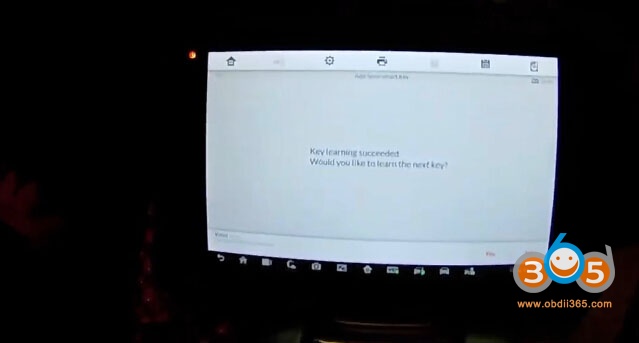

Key learning success

autel-maxiIM-im608-volvo-xc60-16

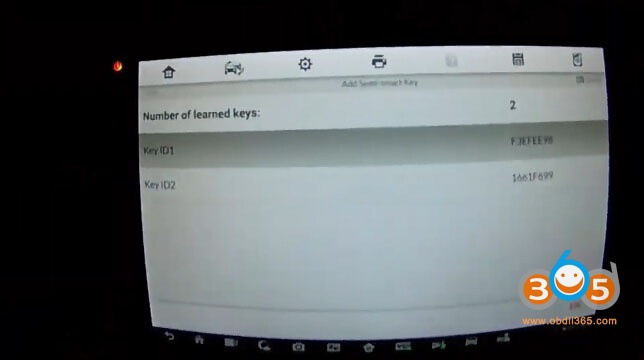

Key learned and id

autel-maxiIM-im608-volvo-xc60-17

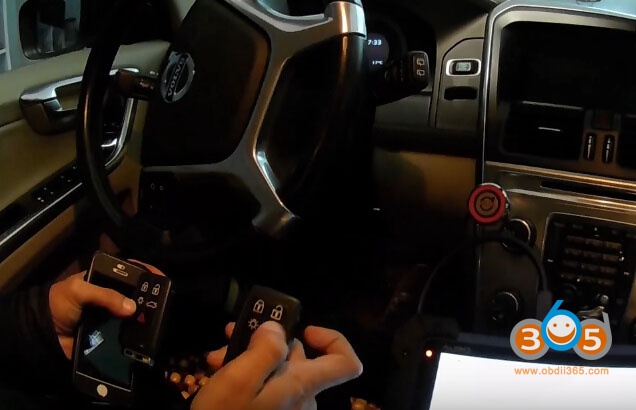

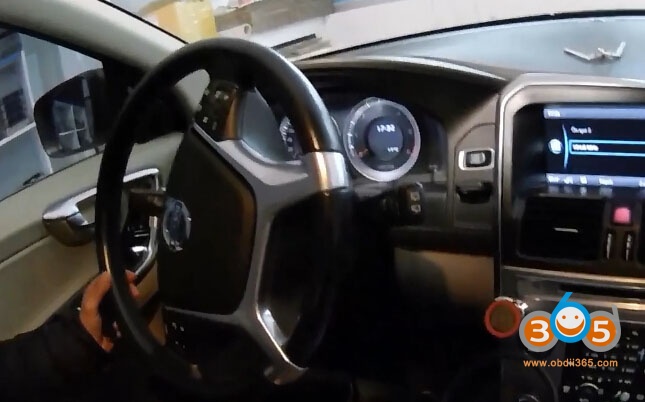

Take out the key and insert it again to test the functionality

autel-maxiIM-im608-volvo-xc60-18

autel-maxiIM-im608-volvo-xc60-19

autel-maxiIM-im608-volvo-xc60-20

Done!

Autel IM608 is verified to be able to add new keys to Volvo XC60!
