Program Mercedes W204 All Keys Lost with CGDI Prog MB

Here’s the instruction to program Mercedes Benz C class W204 all keys lost with CGDI Prog MB key programmer.



Main steps:

Calculate password online

Generate key file

Read/Write key



Procedure:

Step 1: Calculate password

cgdi-mb-w204-all-keys-lost-1

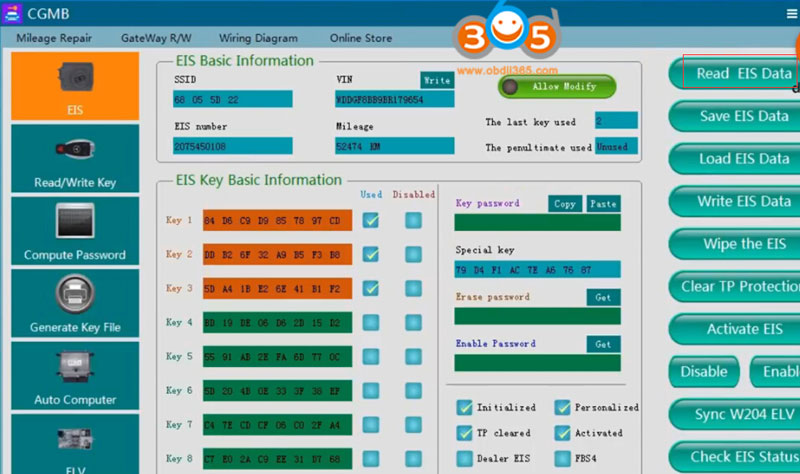

Go to EIS->Read EIS data to check current key status

cgdi-mb-w204-all-keys-lost-2

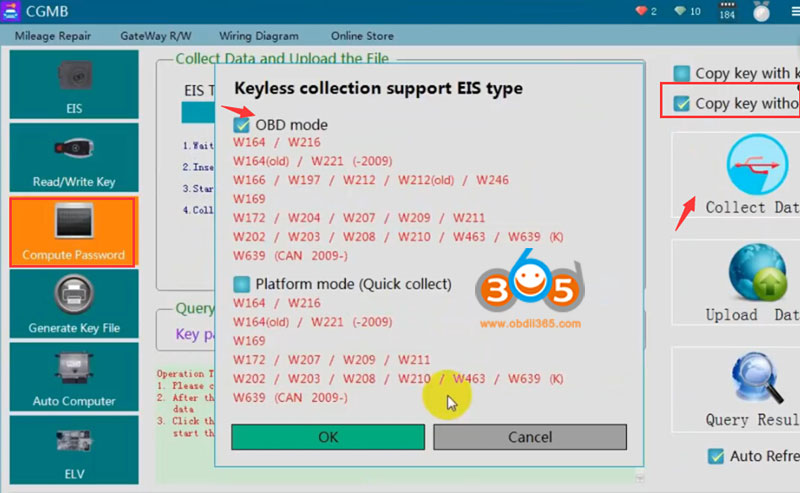

Go to Compute Password->Copy key without key->Collect data->OBD mode

Connect the K-line

cgdi-mb-w204-all-keys-lost-3

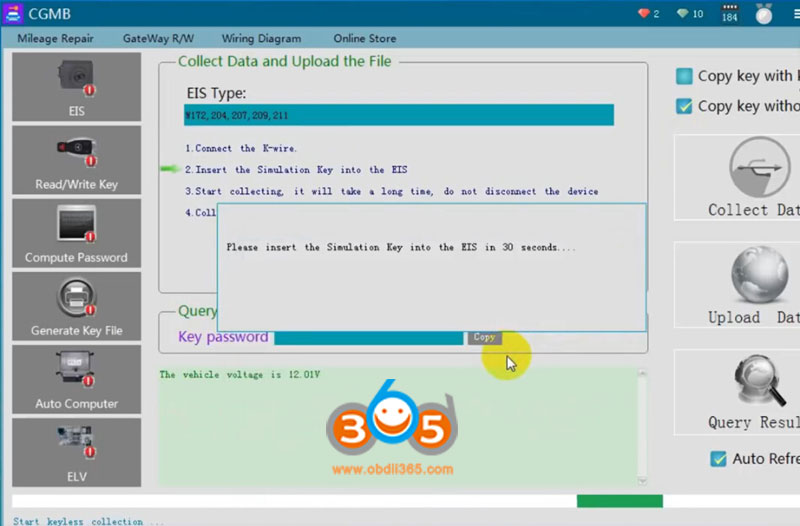

Insert the simulation key into the EIS in 30 seconds

Start collecting data. Don’t disconnect CGDI device

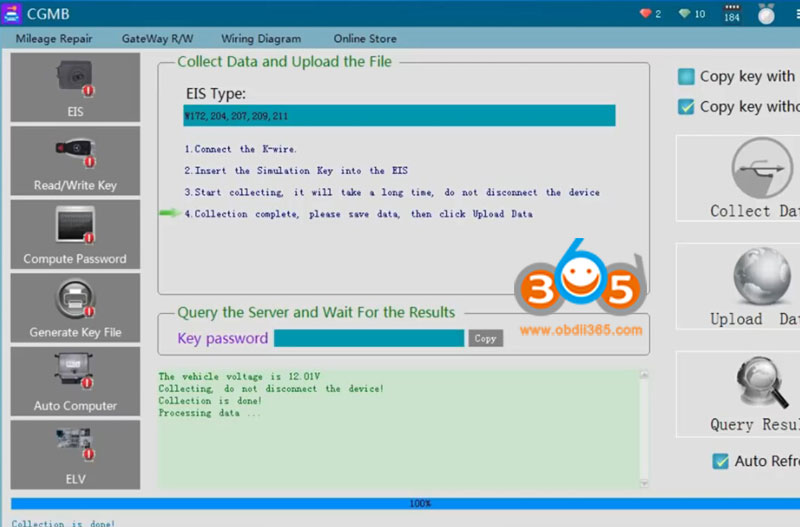

cgdi-mb-w204-all-keys-lost-4
Collect data success

cgdi-mb-w204-all-keys-lost-5

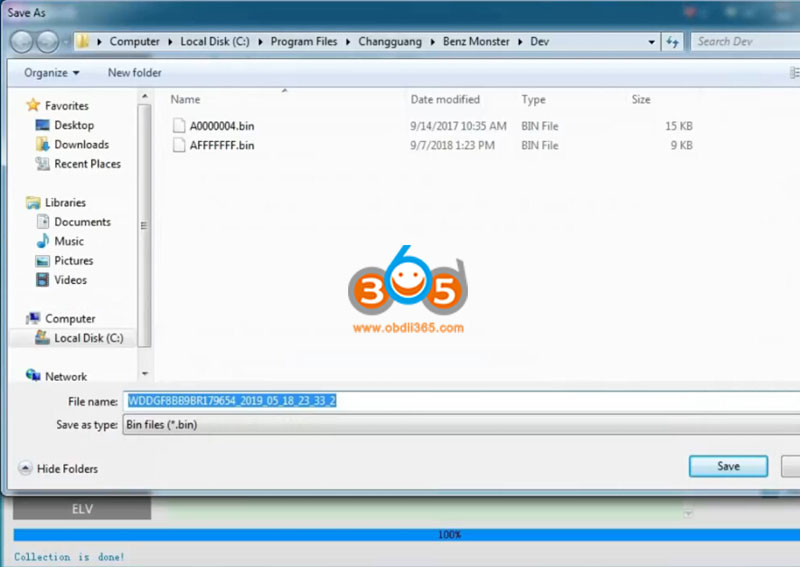

Save data

cgdi-mb-w204-all-keys-lost-6

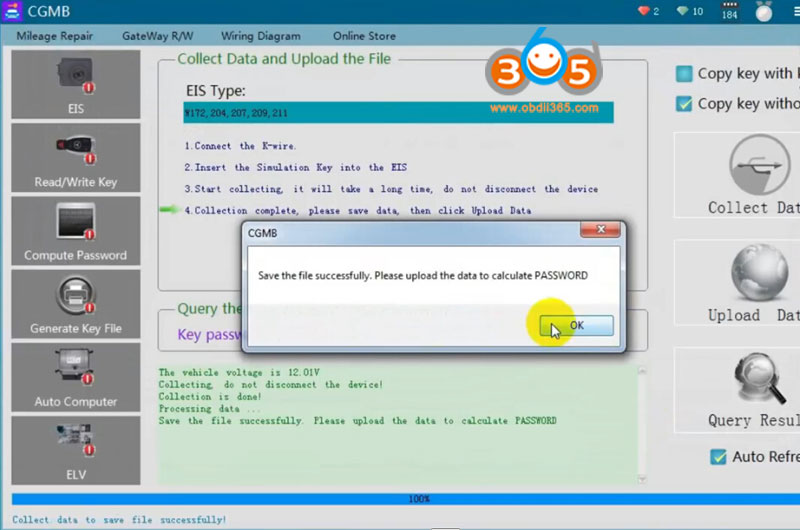

Save file successfully. Upload the data to calculate password.

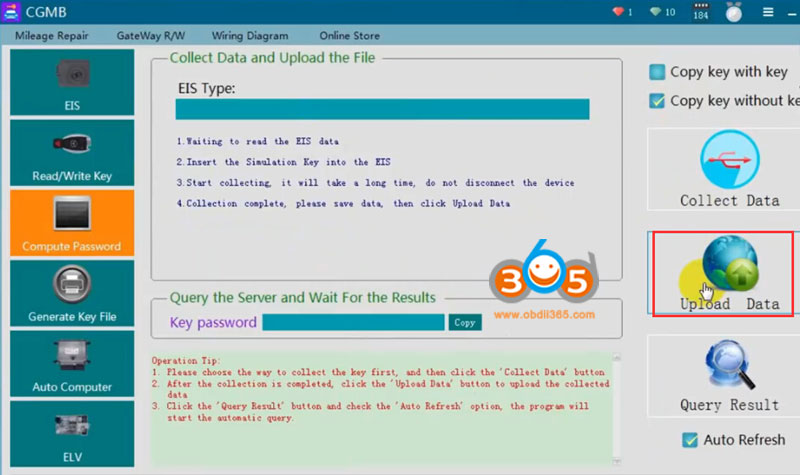

cgdi-mb-w204-all-keys-lost-7

cgdi-mb-w204-all-keys-lost-8

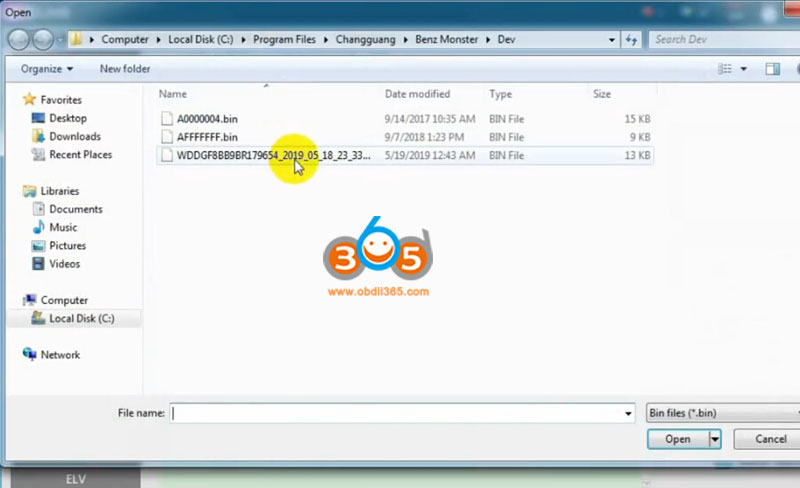

Press Upload Data and select data just saved

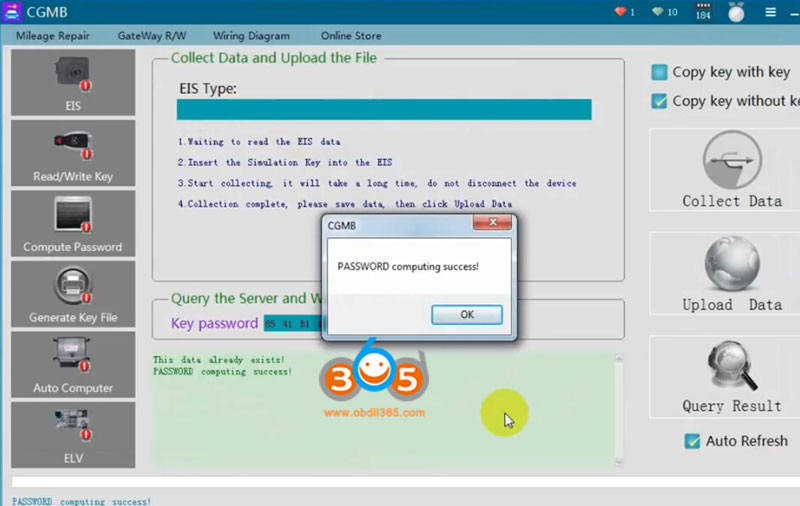

cgdi-mb-w204-all-keys-lost-9

CGDI Prog calculate password success. Copy password.



Step 2: Save EIS data

Go to EIS->Read EIS data

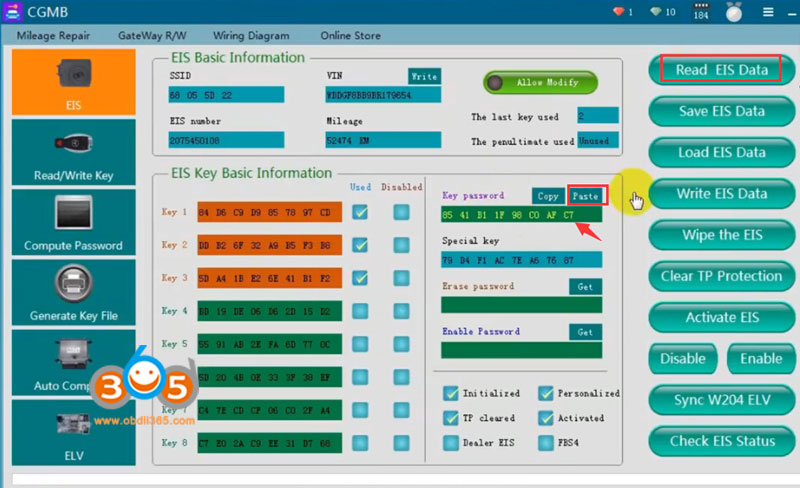

cgdi-mb-w204-all-keys-lost-10
copy password and paste to key password area

cgdi-mb-w204-all-keys-lost-11

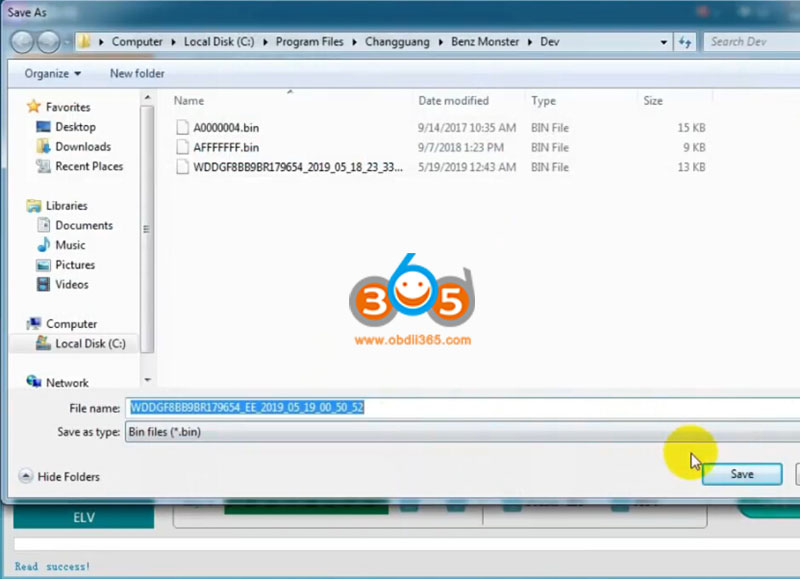

Then save EIS data



Step 3: Generate key file

cgdi-mb-w204-all-keys-lost-12

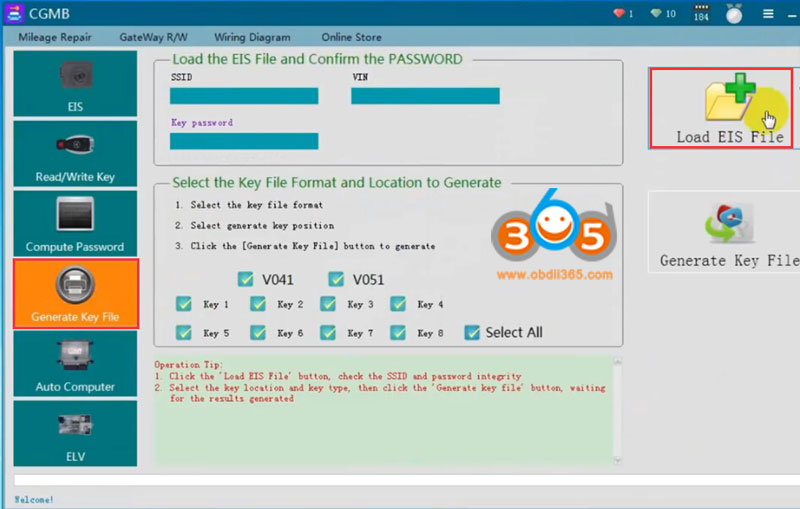

Go to Generate Key File function->Load EIS file

cgdi-mb-w204-all-keys-lost-13

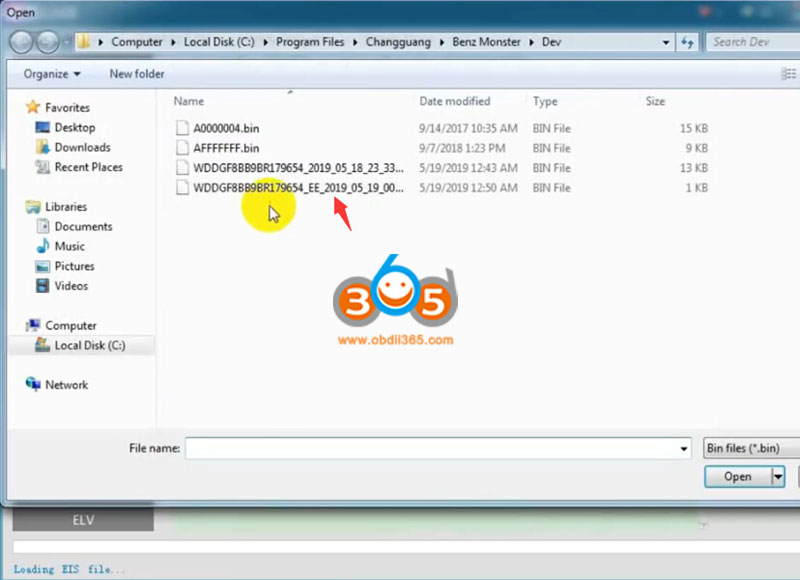

Upload EIS data saved

cgdi-mb-w204-all-keys-lost-14

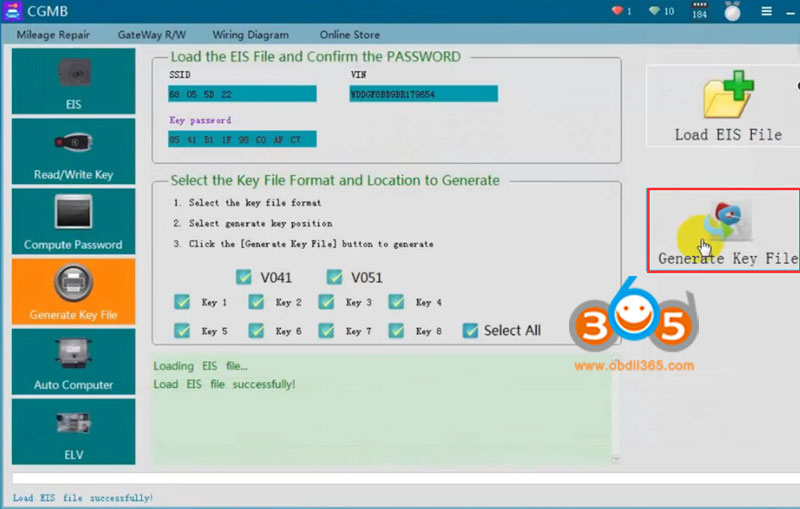

Press Generate key file

cgdi-mb-w204-all-keys-lost-15

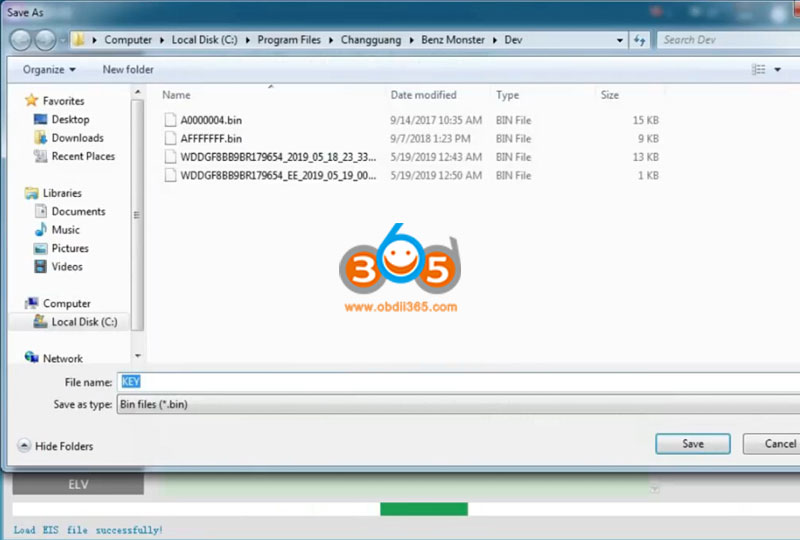

Save key file

cgdi-mb-w204-all-keys-lost-16

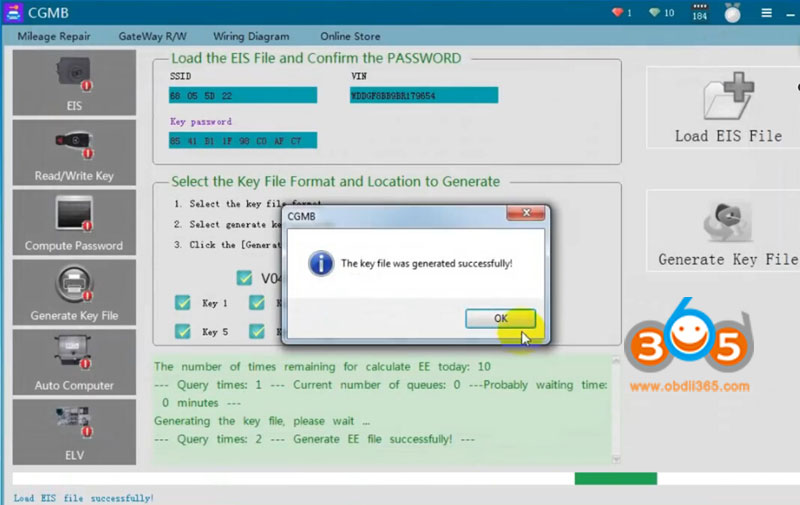

The key file was generated successfully



Step 4: Write key

cgdi-mb-w204-all-keys-lost-17

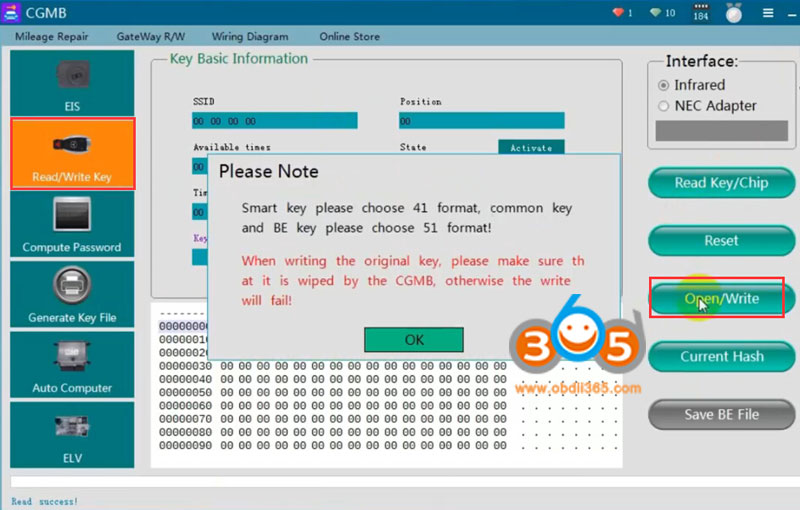

Select Read/Write key->Read key/chip
Press Open/Write

cgdi-mb-w204-all-keys-lost-18

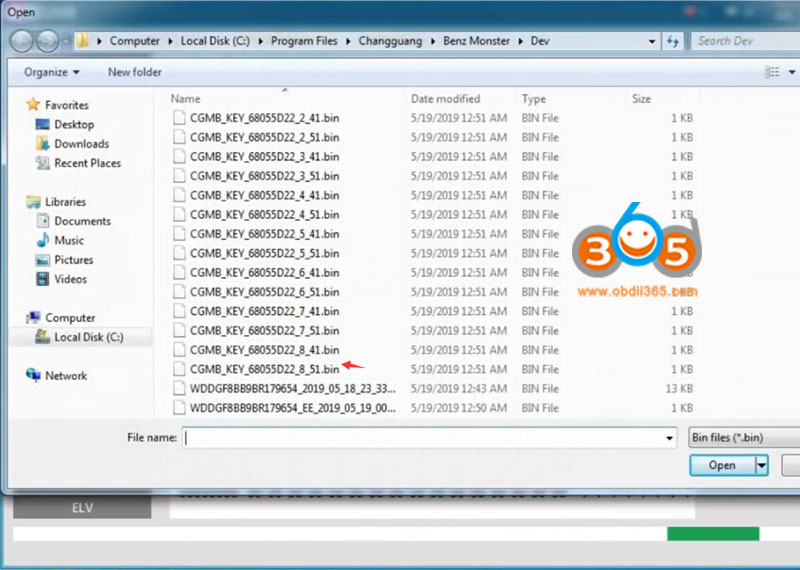

Select a key file (common BE key choose v51 format )

cgdi-mb-w204-all-keys-lost-19

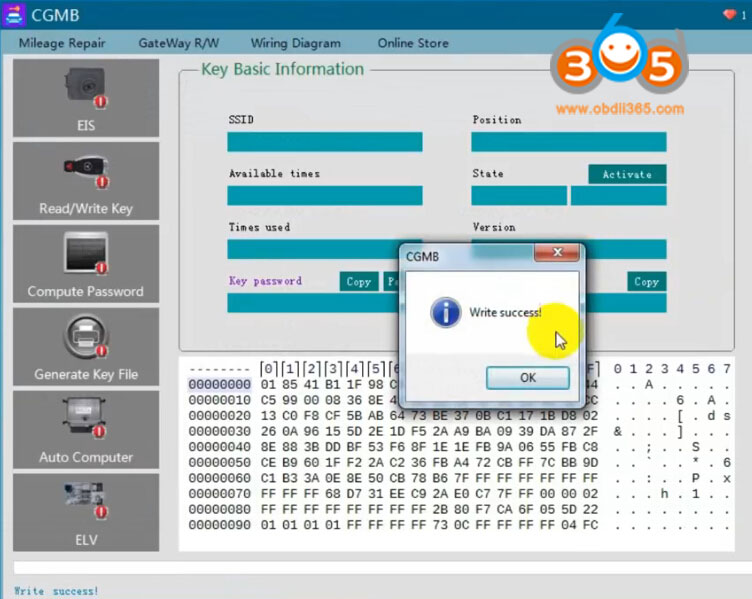

CGDI MB write W204 key success

cgdi-mb-w204-all-keys-lost-20

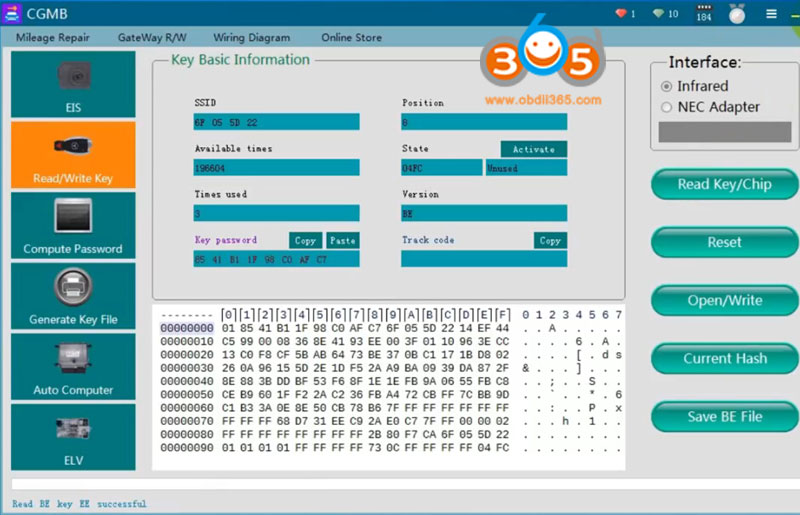

Go to EIS and check EIS data again.

New key was successfully programmed.
