Program Mercedes EIS A246 All Keys Lost with CGDI MB and AC Adapter

New test report:  Programming CLA 2014 with EIS A246 ALL KEY LOST with CGDI MB success in 6 minutes including password calculation.
Model: Mercedes CLA 2014 S A264
Devices to program: CGDI Prog MB and AC adapter for quick data acquisition
Step-by-step procedure:
Step 1: Calculate password

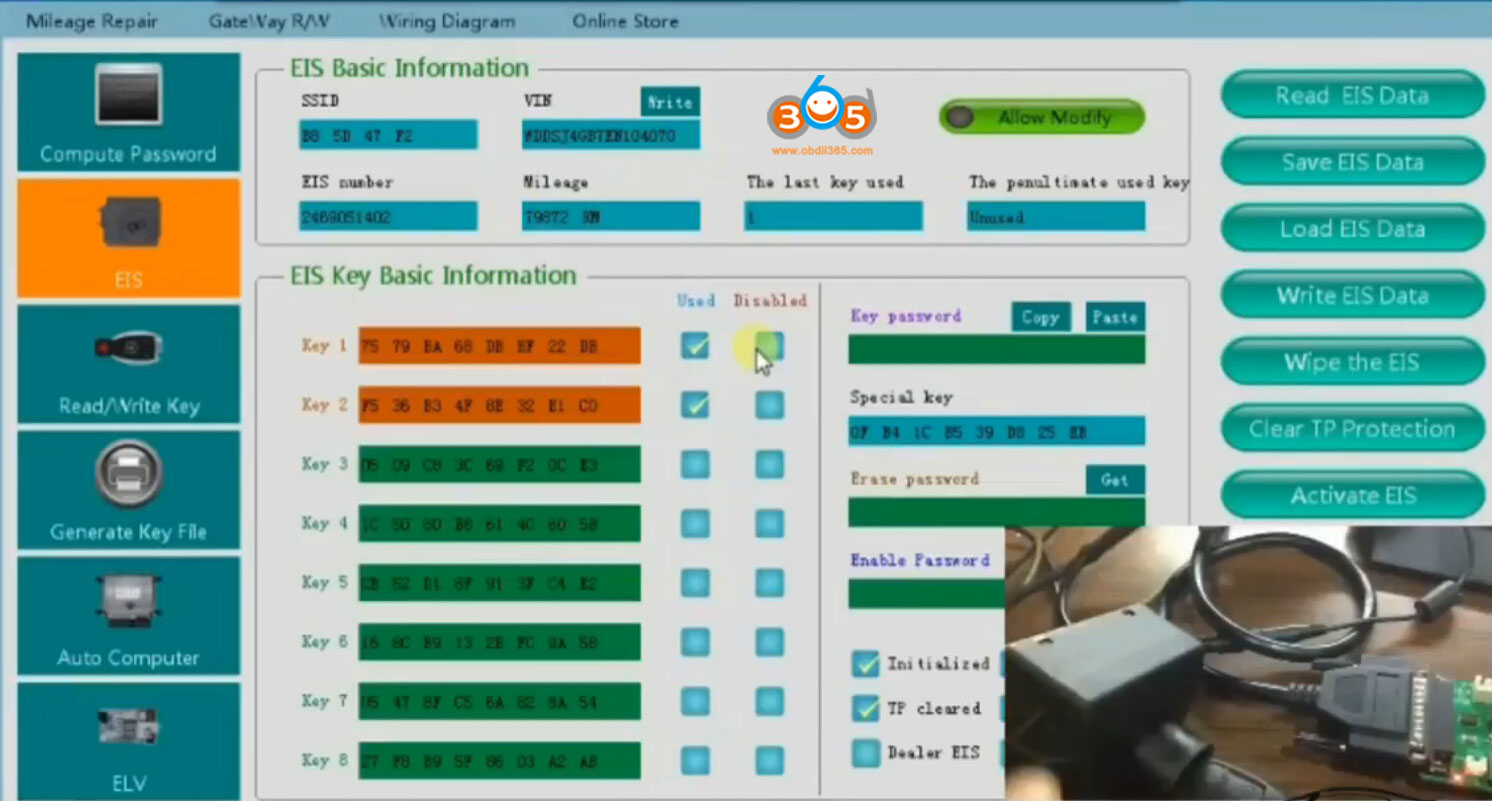

Connect AC adapter with CGDI MB and EIS
cgdi-mb-a246-all-key-lost-1

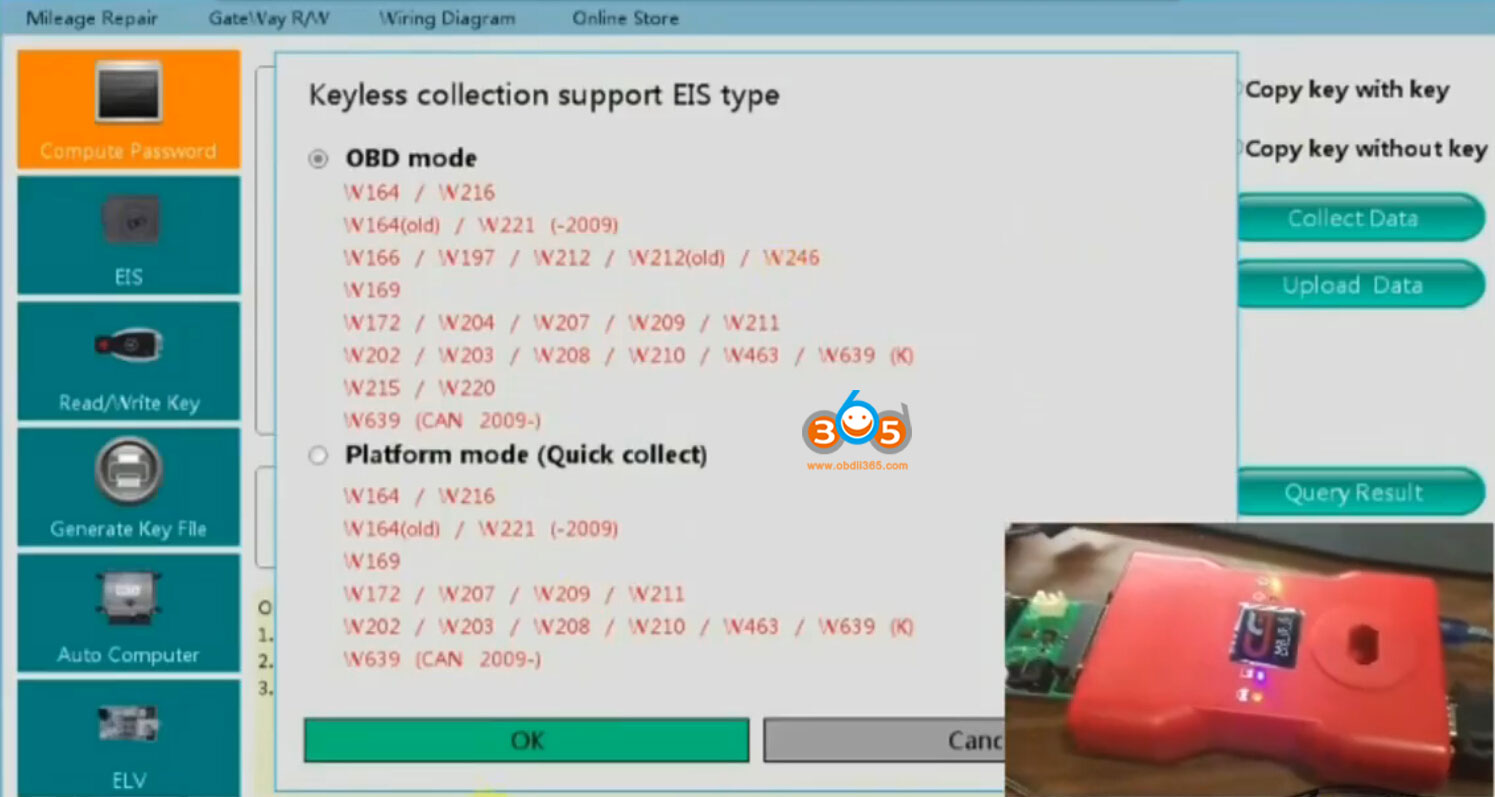

Read EIS data
cgdi-mb-a246-all-key-lost-2

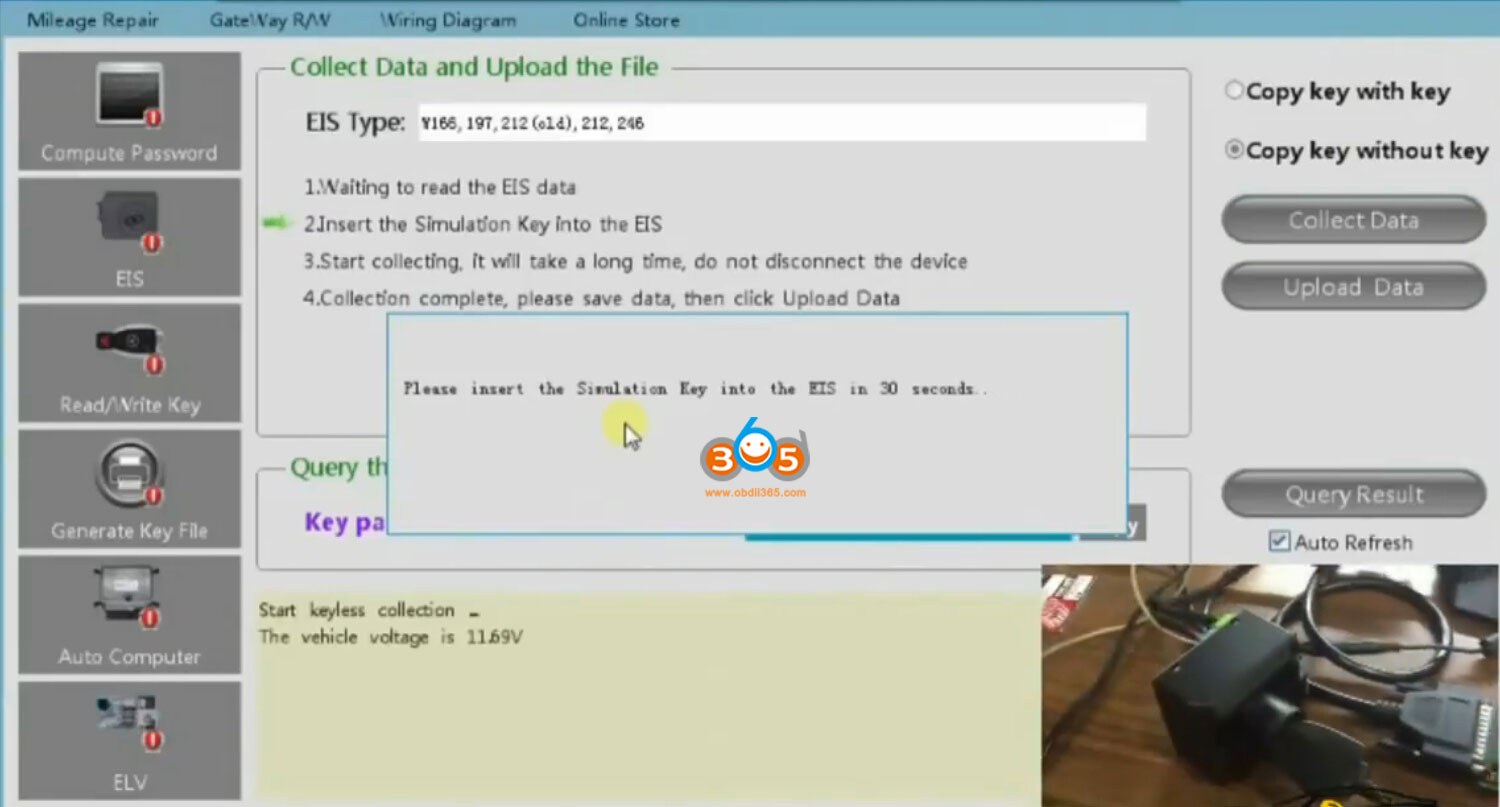

Then go to Compute Password- Copy key without key- Collect data-OBD mode
cgdi-mb-a246-all-key-lost-3
Insert the simulation key into EIS in 30s

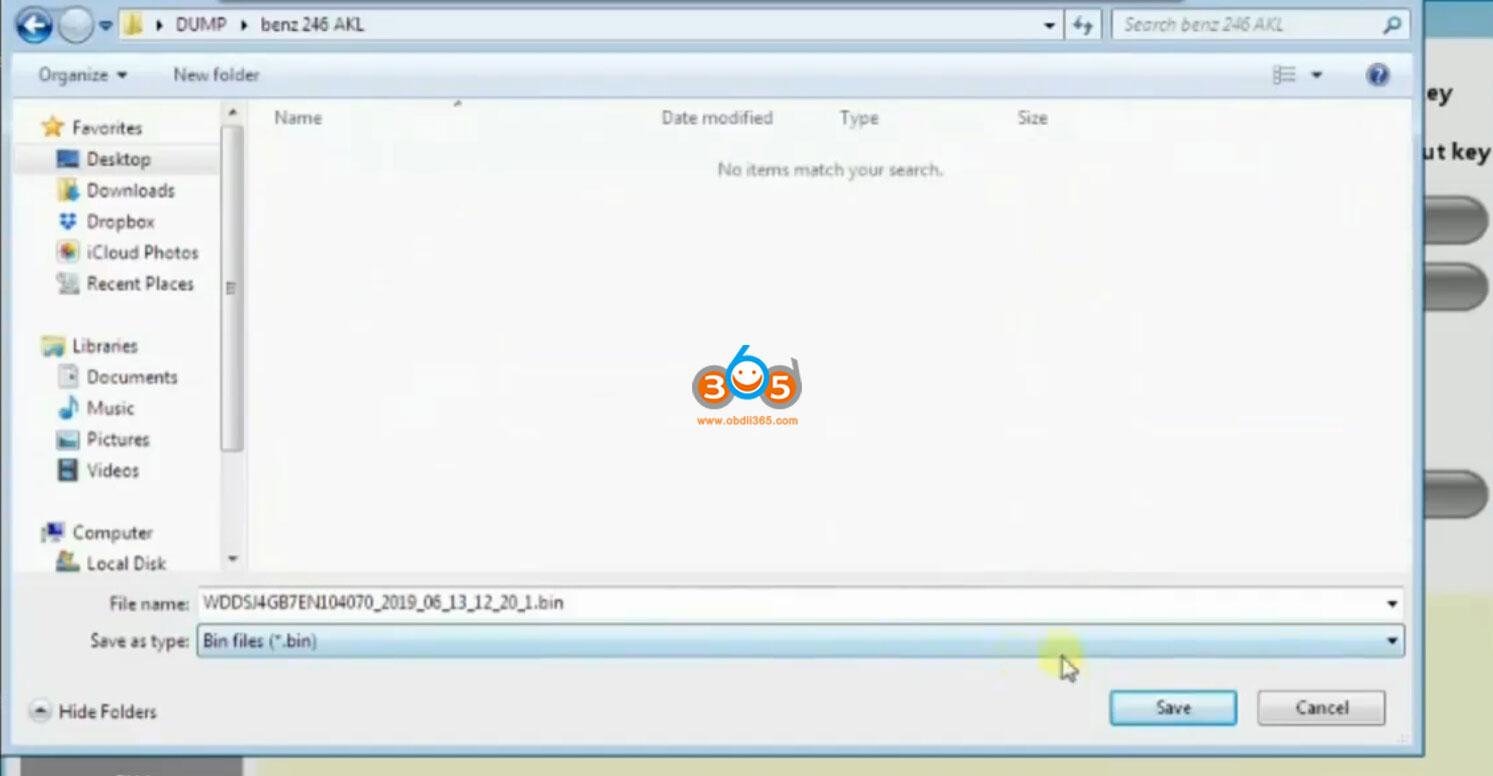

CGDI MB AC Adapter collects data very fast
cgdi-mb-a246-all-key-lost-4

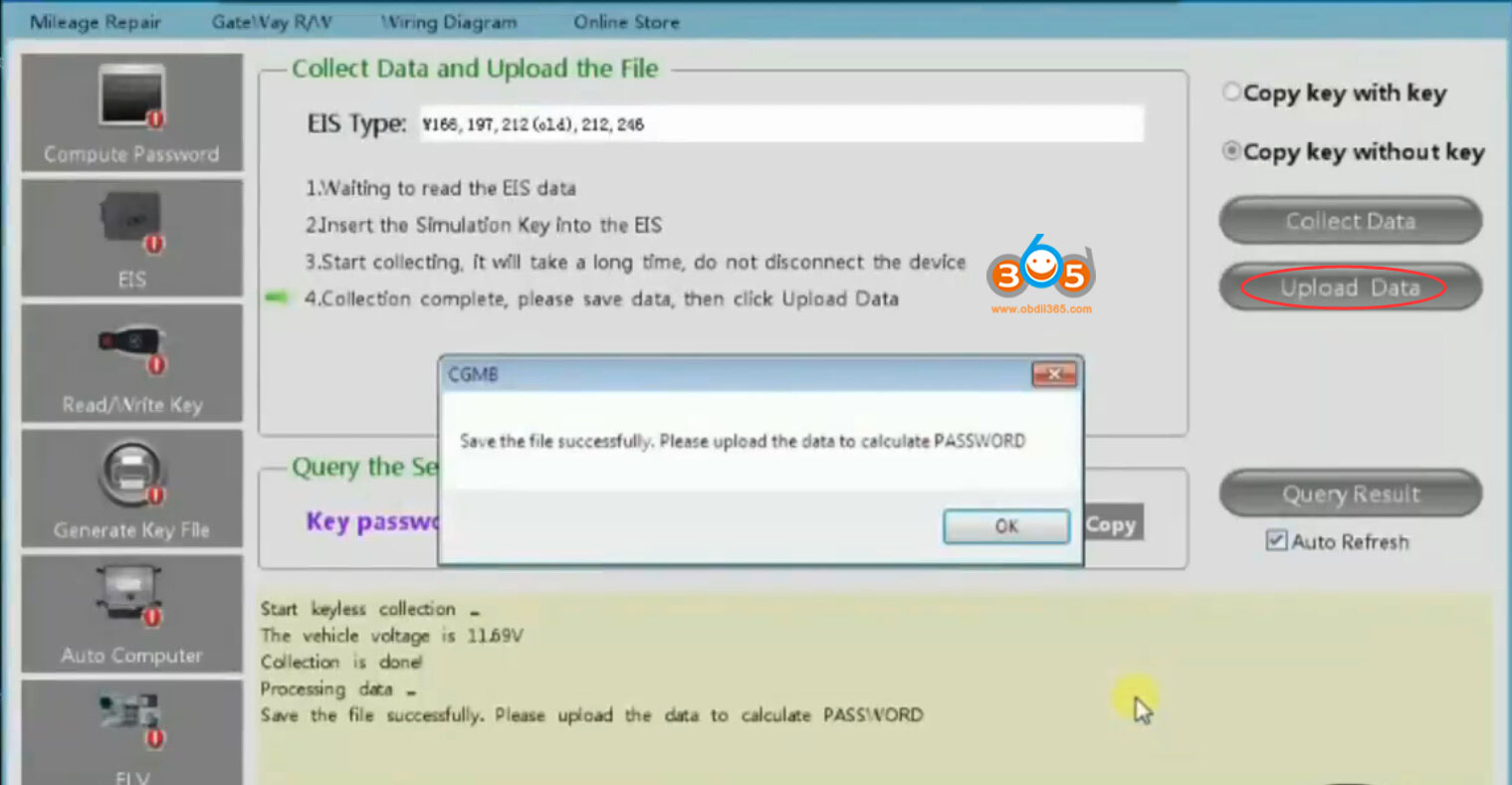

Save key file
cgdi-mb-a246-all-key-lost-5
Upload the data to calculate password
cgdi-mb-a246-all-key-lost-6

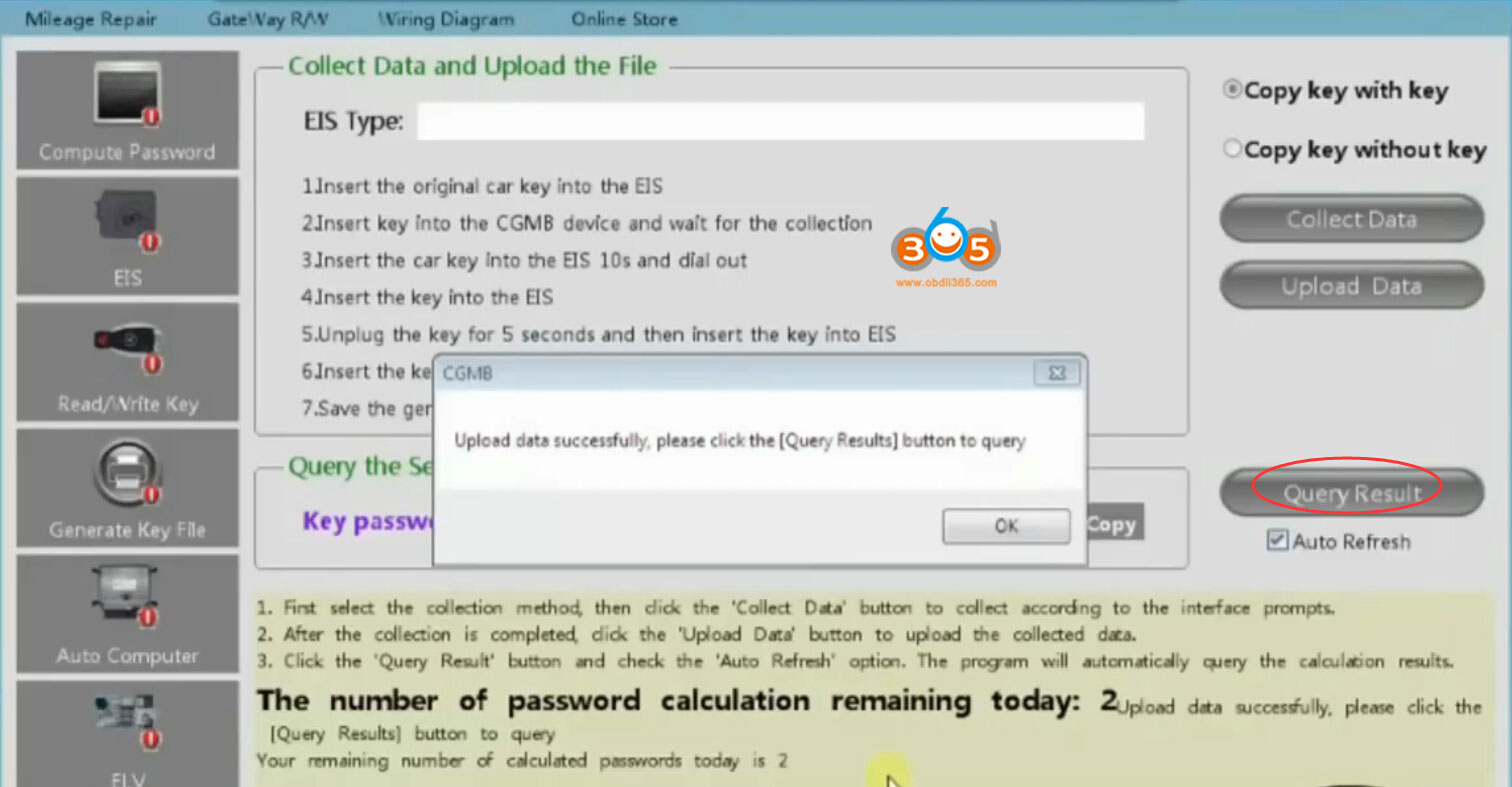

Upload data successfully, press Query Results
cgdi-mb-a246-all-key-lost-7

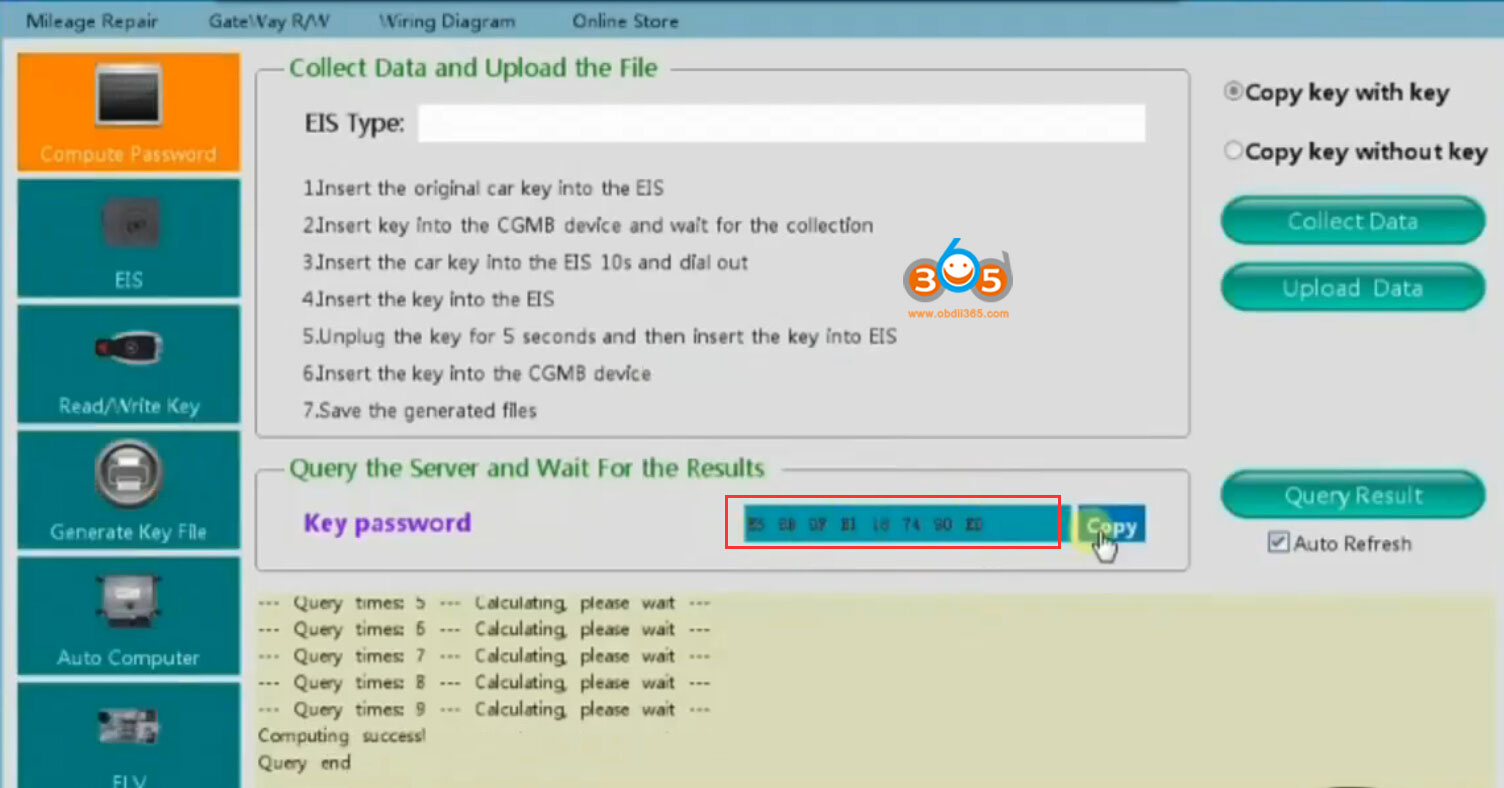

Calculate password success. Copy the pass
Step 2: Generate Key File

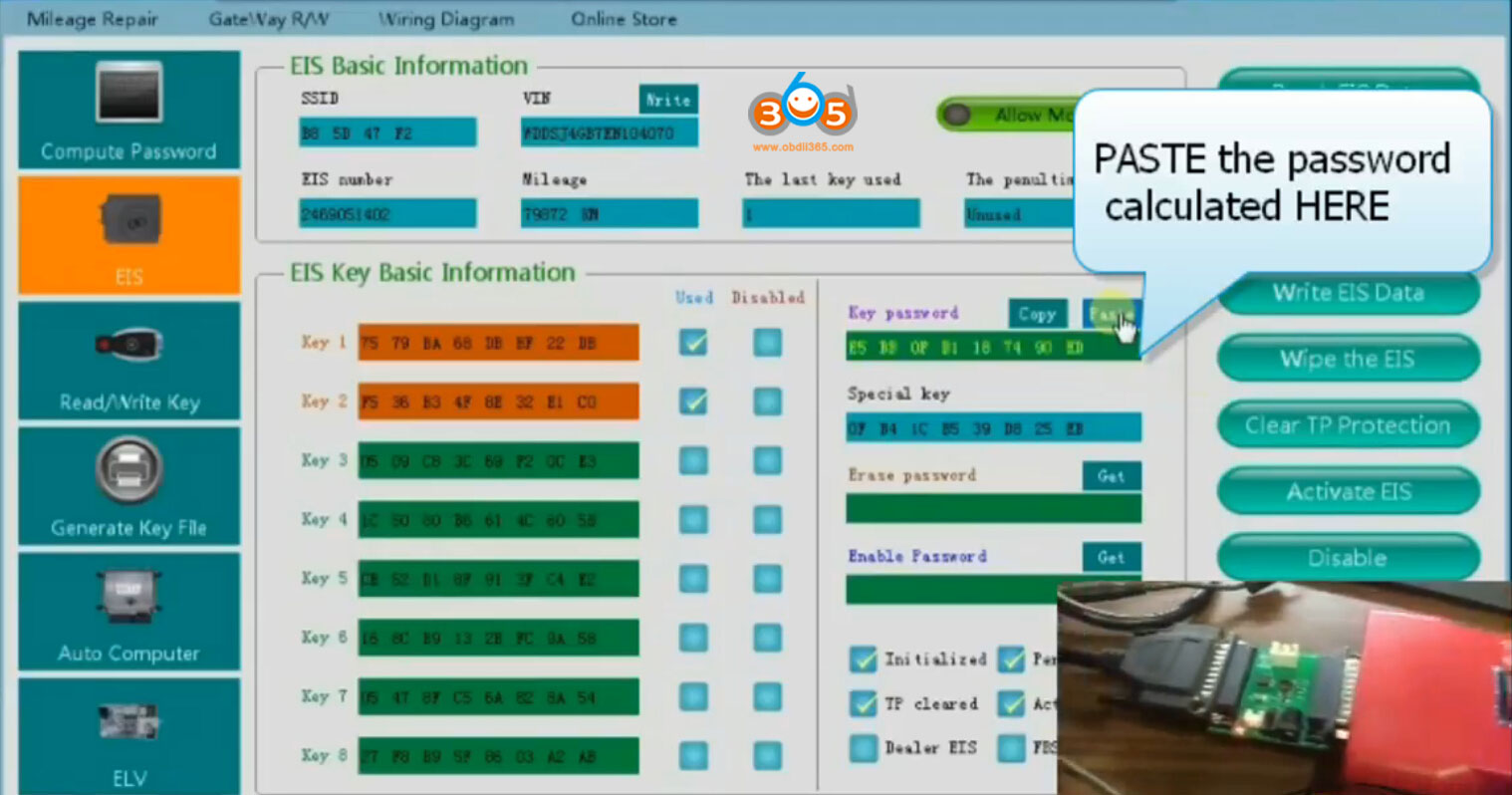

Go to EIS, read EIS data
cgdi-mb-a246-all-key-lost-8

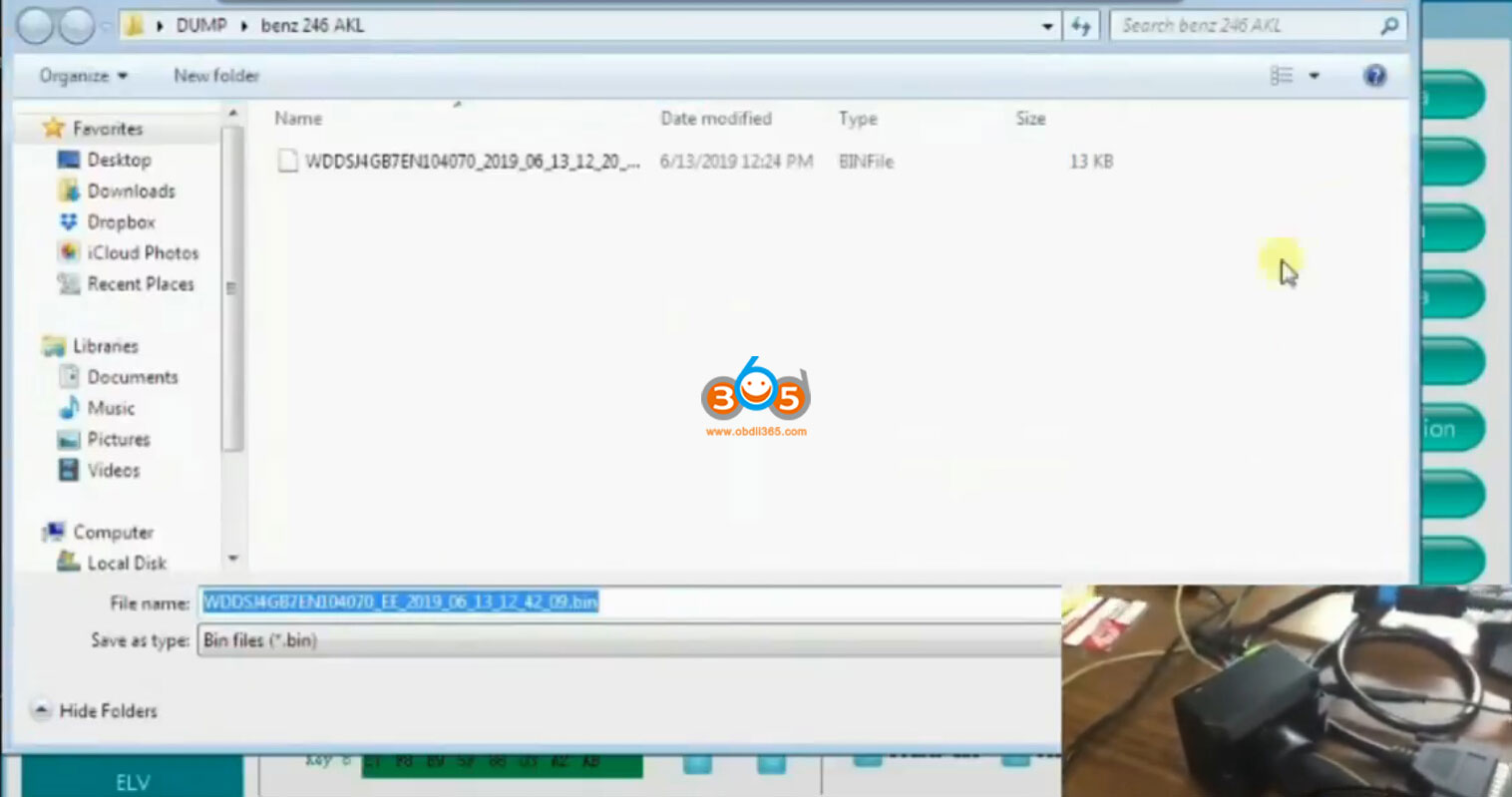

Paste password here
cgdi-mb-a246-all-key-lost-9

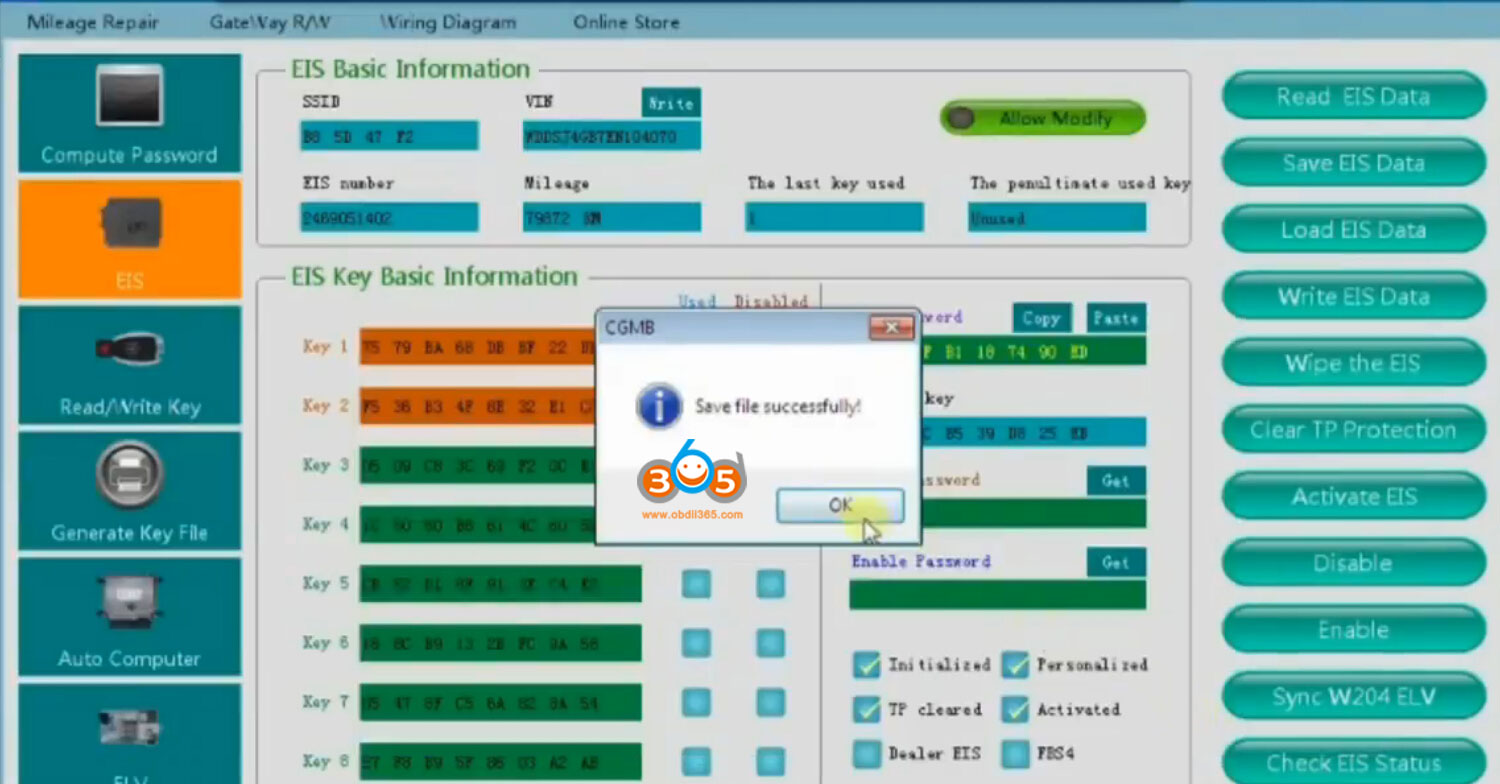

cgdi-mb-a246-all-key-lost-10
Save new EIS data
cgdi-mb-a246-all-key-lost-11

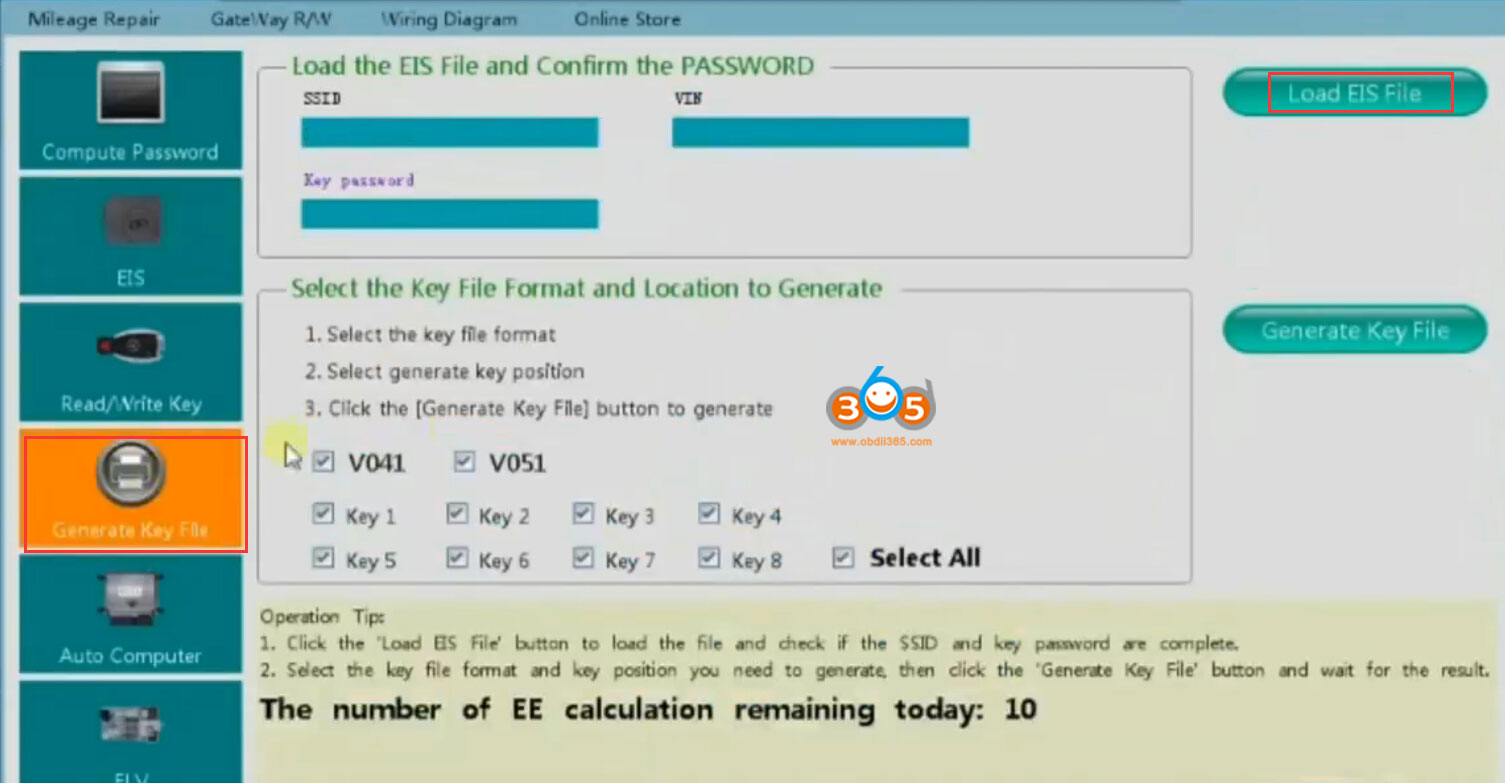

Go to Generate Key File
cgdi-mb-a246-all-key-lost-12

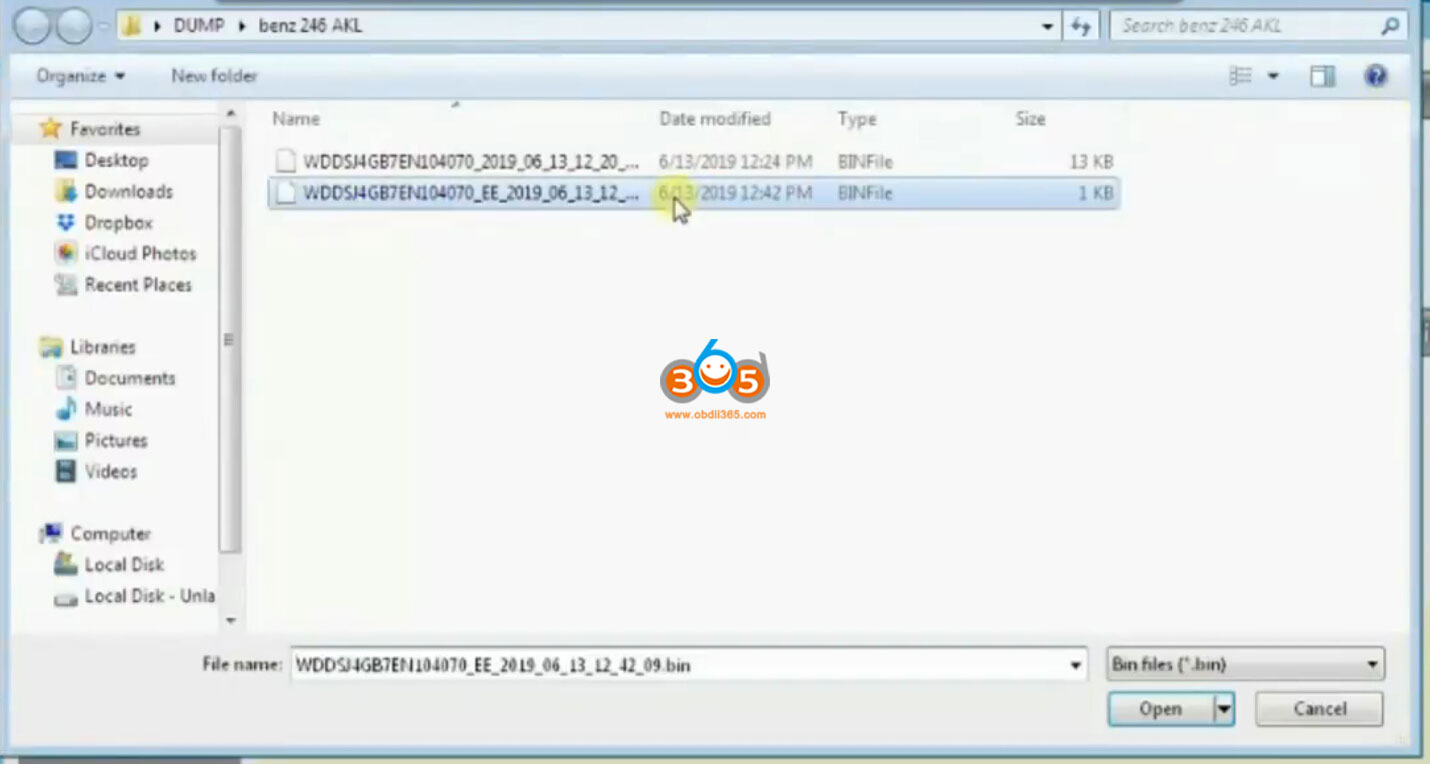

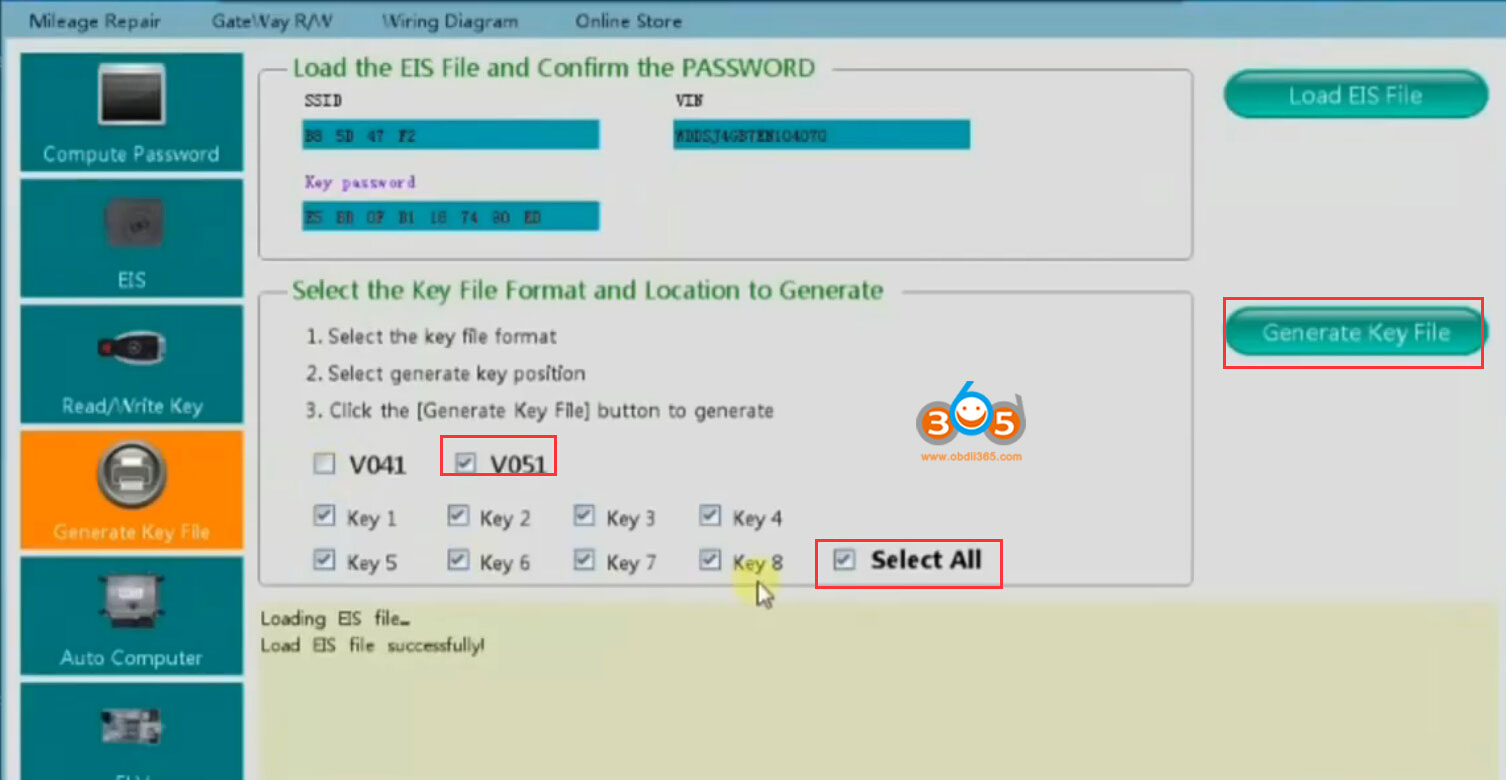

Load EIS data just saved
cgdi-mb-a246-all-key-lost-13

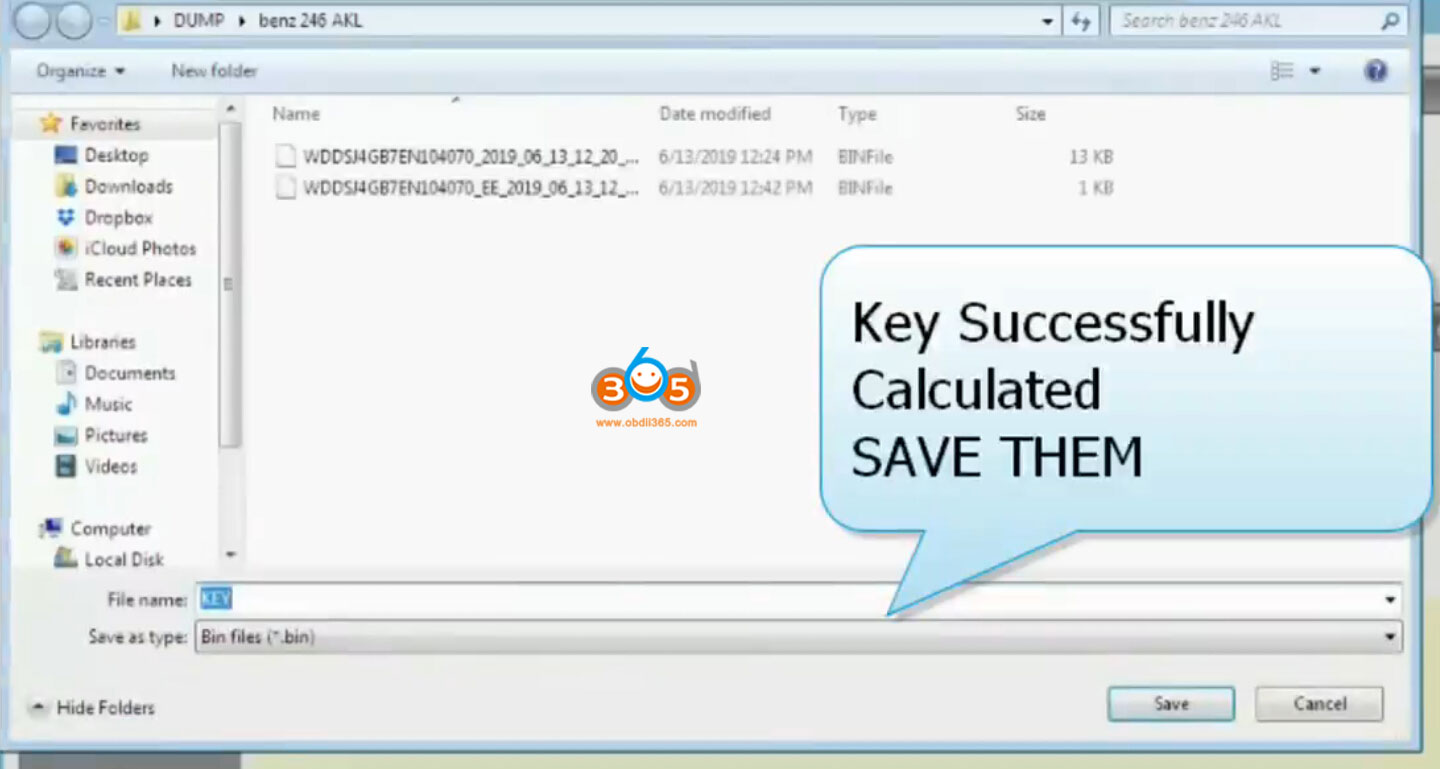

Choose key file format V51 and Generate key file
cgdi-mb-a246-all-key-lost-14
Key successfully calculated. Save them
Step 3: Write Key
Now go to write new key with CGDI MB

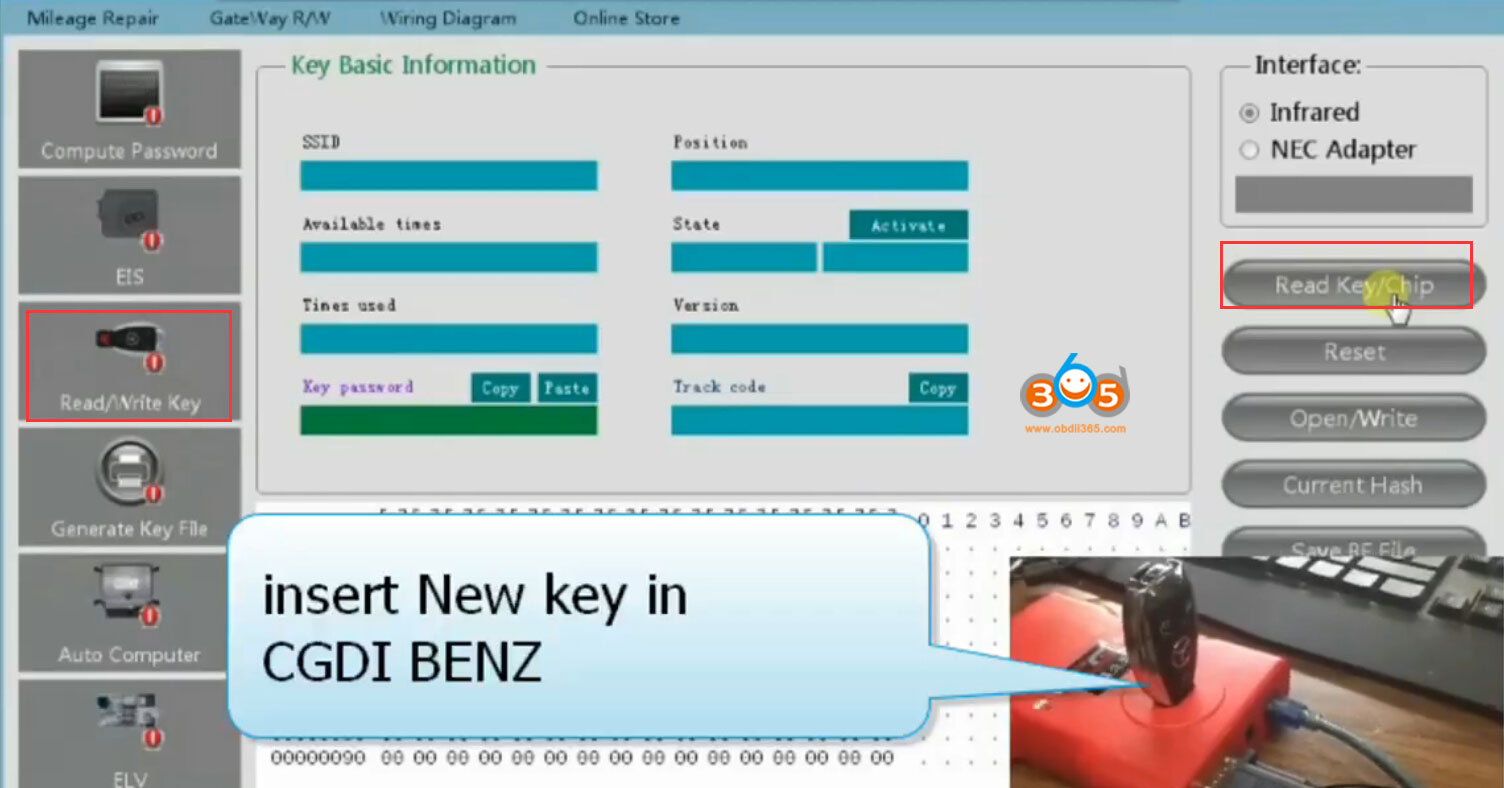

Select Read/Write Key function- Read Key/Chip
cgdi-mb-a246-all-key-lost-15
Insert new key into CGDI Prog

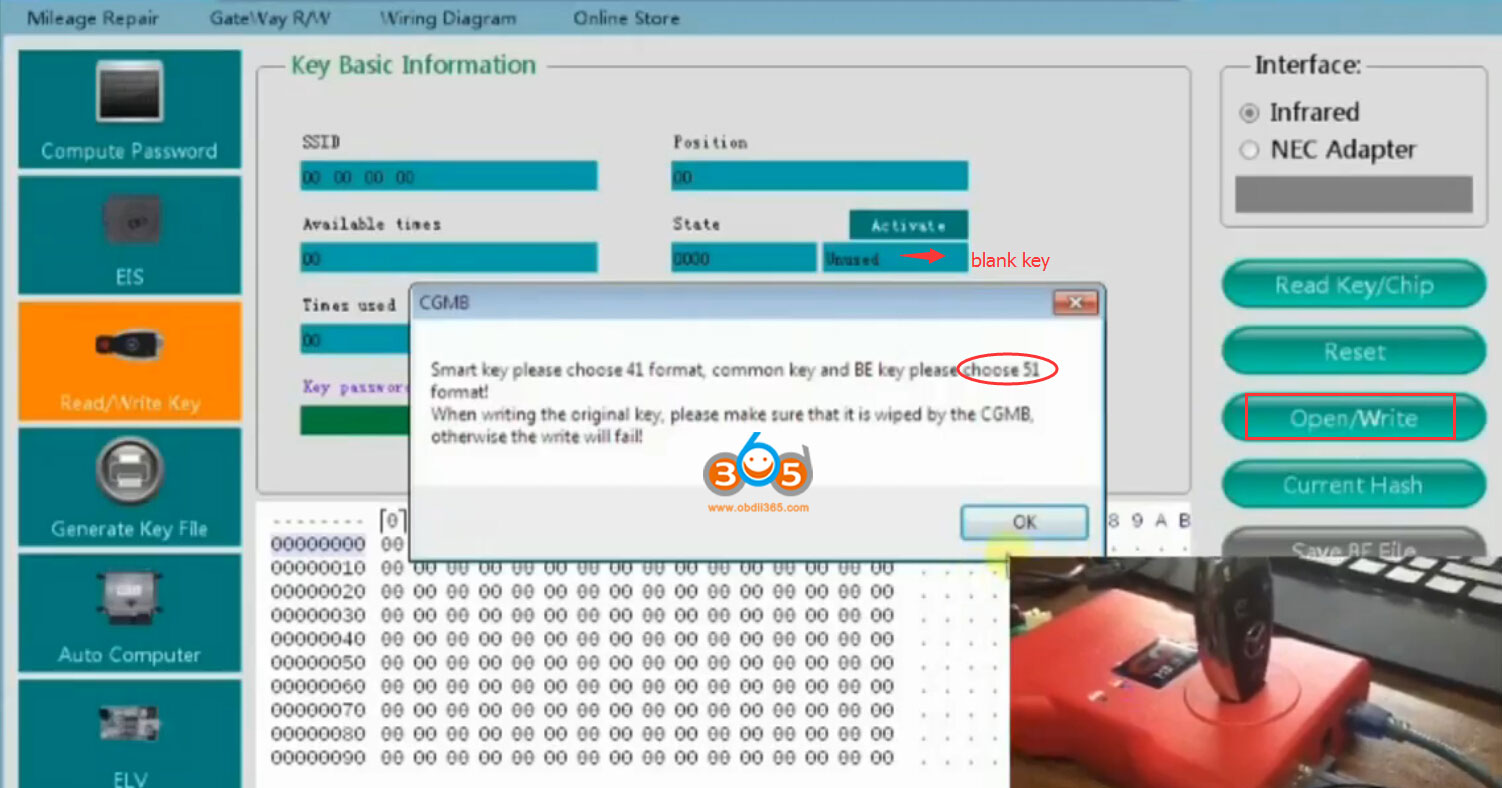

It is a blank key. Press Open/Write
cgdi-mb-a246-all-key-lost-16

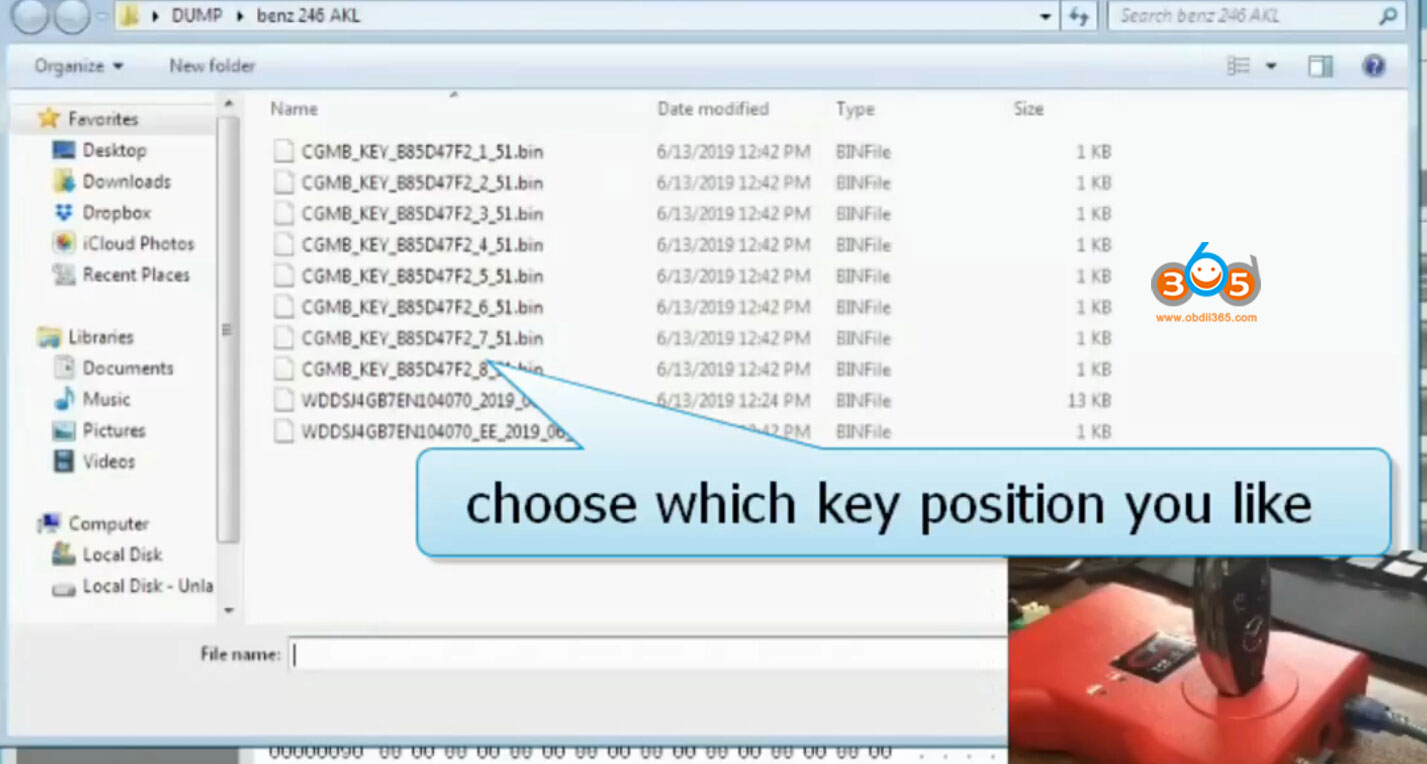

Choose common BE key format V51
cgdi-mb-a246-all-key-lost-17

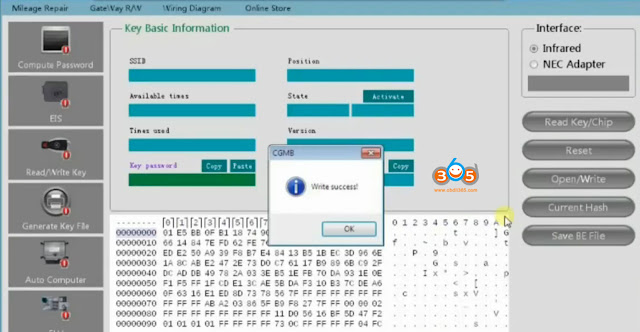

Choose a key position
cgdi-mb-a246-all-key-lost-18

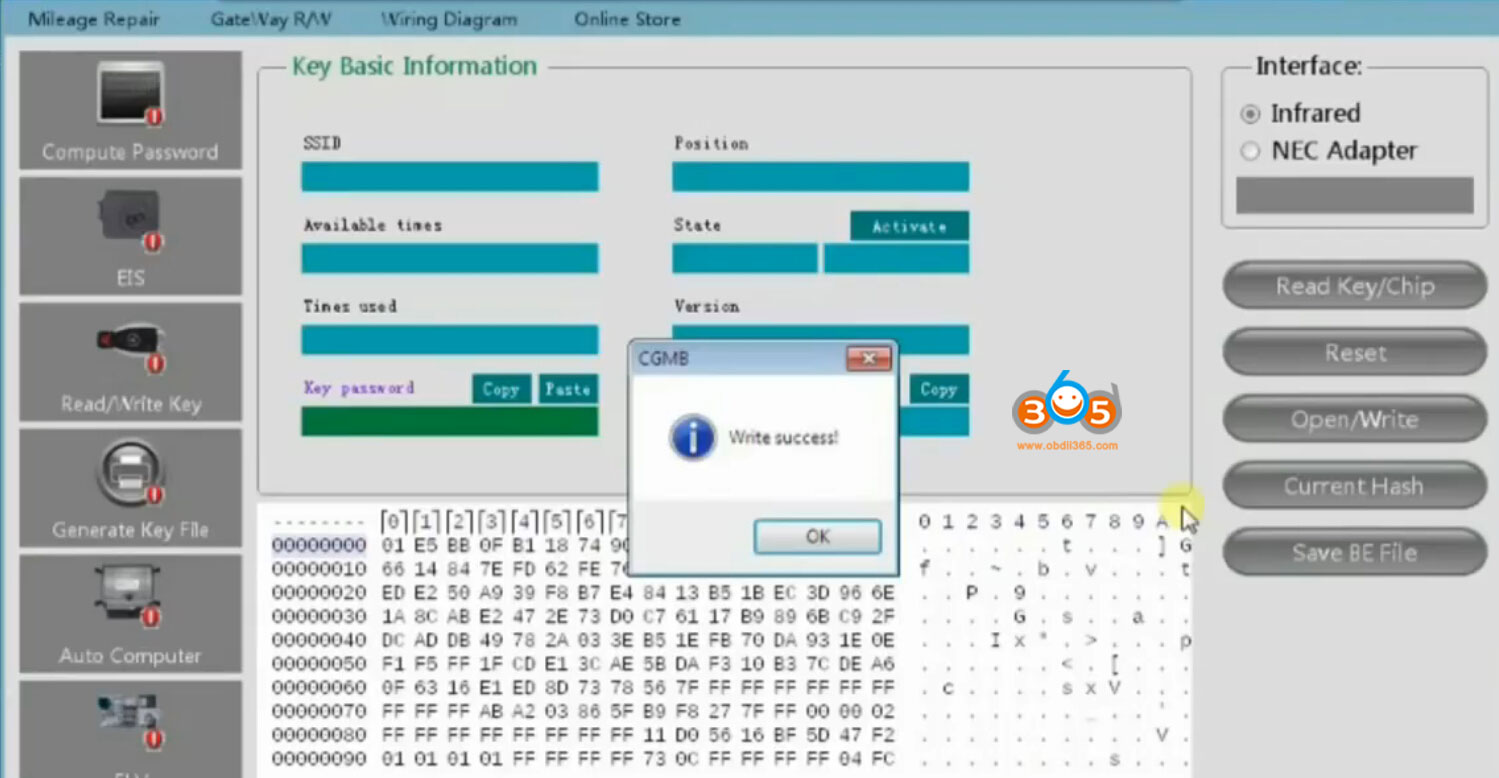

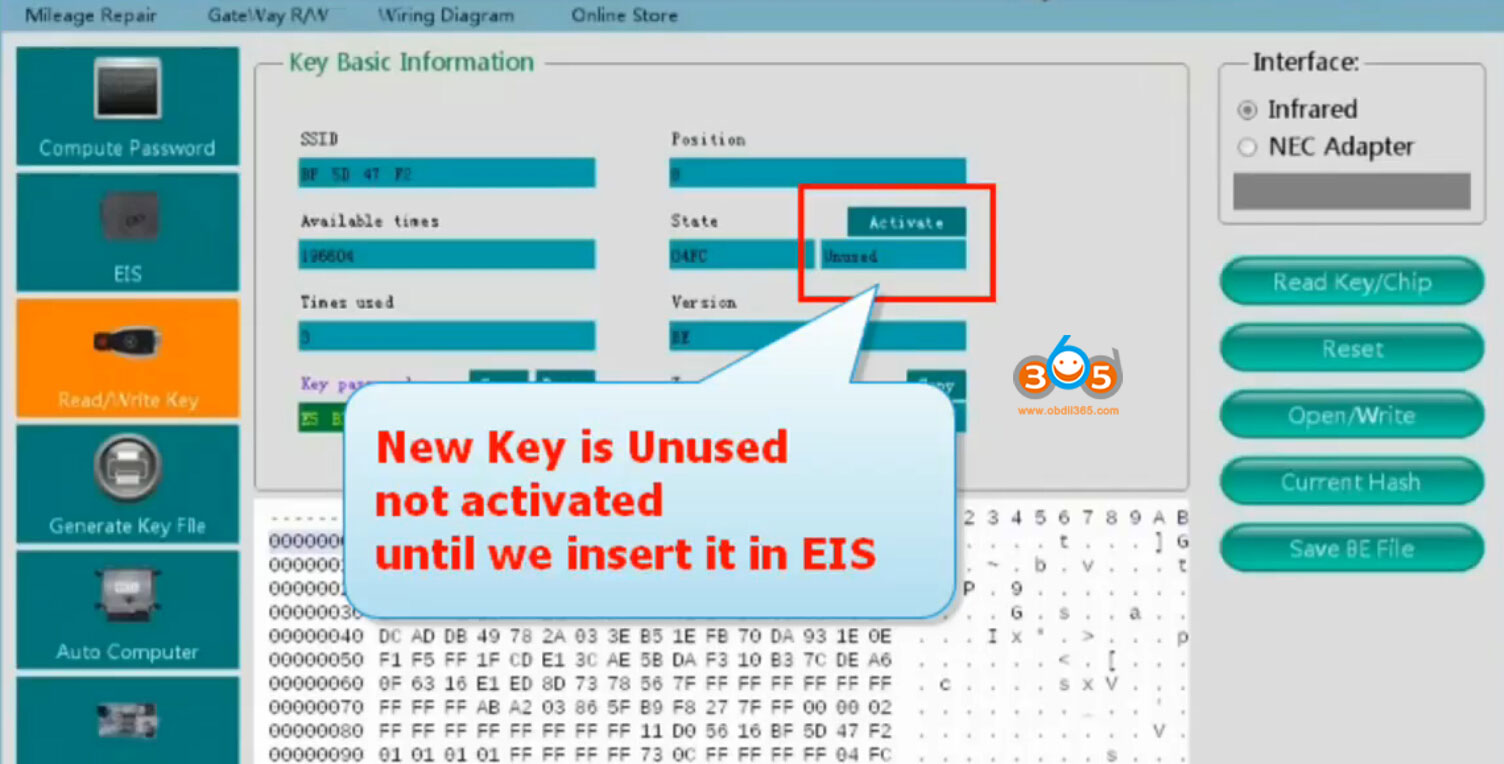

Write key success
cgdi-mb-a246-all-key-lost-19

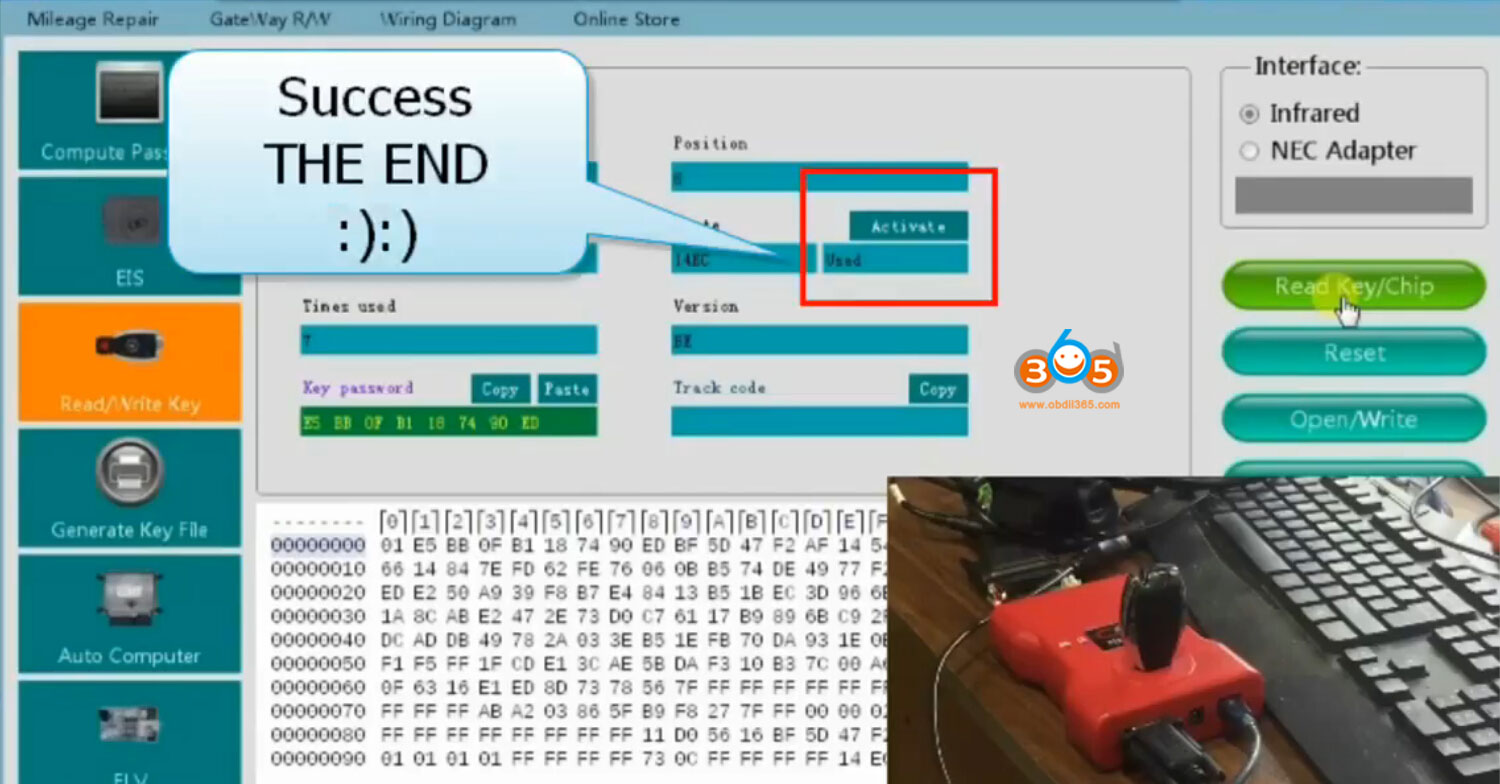

New key is not activated until we insert it in EIS
cgdi-mb-a246-all-key-lost-20
Done.
