CGDI MB OBD adds New Keys to Mercedes 2000-2019

Look here: CGDI MB key programmer reviews and tests report on Mercedes 2000-2019

VVDI-MB-TOOL-full-package

CGDI MB website: http://www.obdii365.com/wholesale/cgdi-prog-benz-key-programmer.html



CGDI MB reviews collection:



Part 1: CGDI MB and Mercedes all keys lost

Part 2: CGDI MB and Mercedes spare key add

Part 3: CGDI MB and Mercedes FBS4



in detail…



Part 1: CGDI Porg MB and Mercedes all keys lost



2009 W164:

W164 EIS type all keys lost possible only after 2009

2012 W212:

Work really good!
W212 is from 2012
Read ezs About 30mins
Upload data
Query
Password given

Read eis info
Paste key password
Save
Then key calculation



Part 2: CGDI MB Programmer and Mercedes spare key add



2000 G500:

BENZ G500 year 2000
Just done a Benz G500 imported from Dubai



2004 W203:

W203 2004 spare key making:
Total time about 13 minute when beginning to programming new key. Read pass NEC key by IR and calculate PSW
Key still working after get PSW.
Done in car.



2004 W203:

W203 2004 spare key making takes about 13 minute when beginning to program a new key.

Read pass NEC key by IR and calculate PSW
Key still working after get PSW.



2004 W211:

W211 2004 year add key ,10 min job!



2005 W203:

Class C W203 2005 adding key on car.
Spare key made in under 10 minutes.



2006 W164:

ML350 W164 2006: Read EZS, add key, write BE key all done in 17mn.

Really fast and i’m happy with the first try on car. Use late software 2.0.0.0
I just plug in the OBD, put key and turn ignition ON and read.

After this step, CGDI will ask only put in EZS and in CGDI.

Just all. PSW query is more longer than 209, about 12mn to get PSW.



2007 W221:

Add Key on W221 2007, i was complete in ~12min. CGDI is very fast
Upload collect data after 2 or 3 min show me PW



2007 w221:

Add key on bench
First try I use VVDI MB
But 2 time upload also failed cannot get pass
So I was change device CGDI from VVDI
1 time upload successful
Good and very fast 10min got pass

2008 W219:

Add key also 15mn OK



2009 W164:

2009 W164 ML450
Key add work
Cgdi 15min
Very good speed!!



2009 W164:

w164 after 2009
I did for testing 2 types of programming _ have got EZS with both programmed keys because customer claimed sometimes EIS works sometimes doesn’t – I have found that connector for immo aerial was desoldered from PCB so when I fixed it – EIS became fully working again – and then I started testing CGDI and made 2 types of programming (all programming on bench – EZS + GATEWAY EMULATOR)
1) programming in case one key is available and adding spare key – ALL OK!
2) programming in case of ALL KEYS LOST – ALL OK!

spare key programming was pretty fast
AKL scenario takes circa 80minutes to get data from EIS and You have to plug in and out emulator key every 5 seconds – I have bought VVDI POWER ADAPTER to pass all hassle on to adapter so You don’t have to watch whole process and move key in and out manually – but it doesn’t work with CGDI – seems adapter works only with VVDI MB and software drives it by adressed pin to switch connection off and on between ezs and key emulator – maybe CGDI TEAM could write a code to their SW and make VVDI POWER ADAPTER useful for all their customers.



2010 W207:

C300 W207 2010 spare key without problem and in 2 minute

(exiting key is BE, so no need server query PSW)



2010 W204:

W204 2010 adding key on bench
Total time about 15mn.



2014 W246:

W246 2014 FSB3: Add key successful in 15mn



2017 W906:
generate a password in Sprinter W906 2017 year.





Part 3: CGDI MB and Mercedes FBS4



No tool can do FBS4 key?

No.  With genuine xentry and daimler fbs server.  Makes FBS4 every day via OBD very fast and easy.

Diagspeed announced the dates of FBS4 solution. But not confirmed yet. The Diagspeed has the reputation of being the best in the Mercedes world to make keys, Reset ECU’s and trouble shoot problems that a normal scan tool can not.  It is worth to take a gamble.



CGDI MB can read FBS4 keys and knows if it’s in a working status or key is damaged

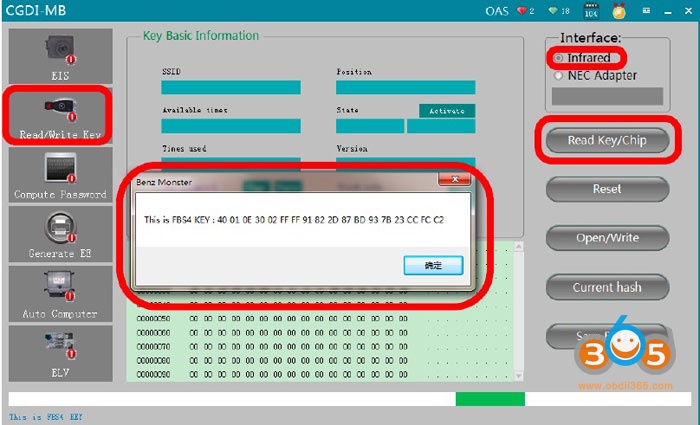

cgdi-mb-fbs4-key-1

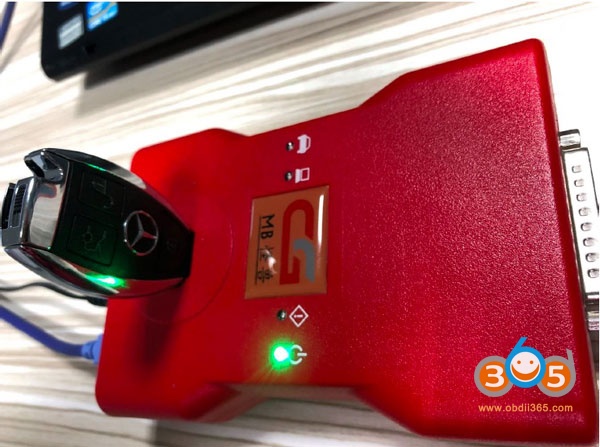

cgdi-mb-fbs4-key-2

Conclusion:



CGDI MB is a good Mercedes key programming tool, as good as VVDI MB TOOL.

It can do a lot for Mercedes like key programming, EIS/EZS functions, key data generation, infrared key abilities, etc.

And it covers many models, including



Obd mode:

W164 / W216

W164 / W221 (-2009)

W16 / W197 / W212 / W212 (old)

W169

W172 / W204 / W207 / W209 / W211

W202 / W203 / W208 / W210 / W463 / W639



Platform mode: (quick collect)

W164 / W216

W164 / W221 (-2009)

W172 / W204 / W207 / W209 / W211

W202 / W203 / W208 / W210 / W463 / W639

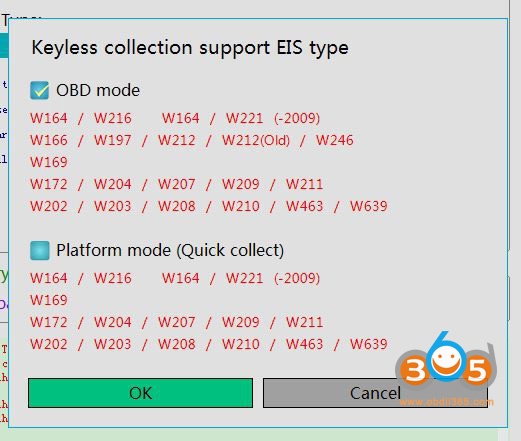

vvdi-mb-vehicle-list

Note: More will be updated here…
