Program Porsche Macan 2015 Key with Autel IM608 via EEPROM

Here’s the procedure of adding new keys to Porsche Macan with Autel MaxiIM IM608 or IM508.

Main Steps:
1. Read D-Flash
2. Make Dealer Key
3. Learn Key

Procedure:

Step 1: Read BCM 1N35H EEPROM

autel-im608-2015-porsche-macan-1
autel-im608-2015-porsche-macan-2

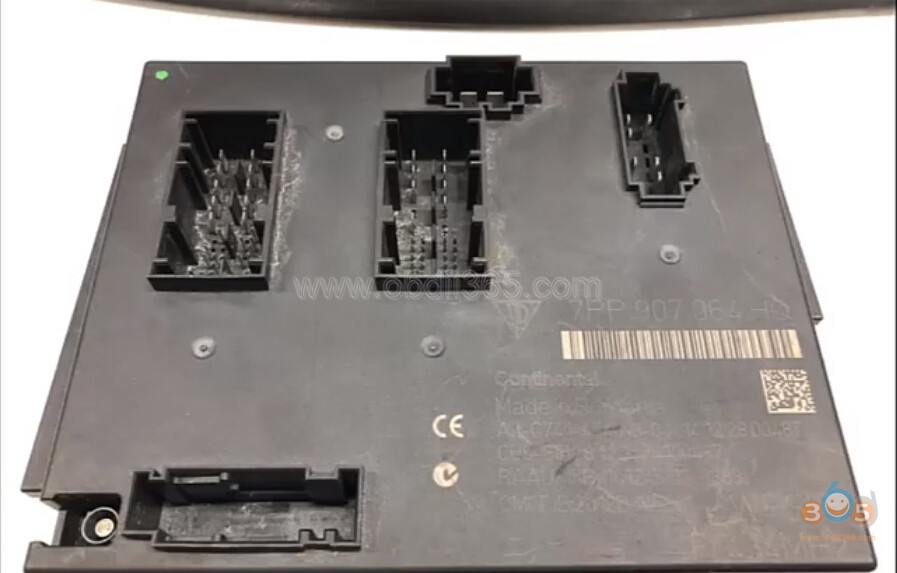

Remove BCM and locate EEPROM Chip 1N35H

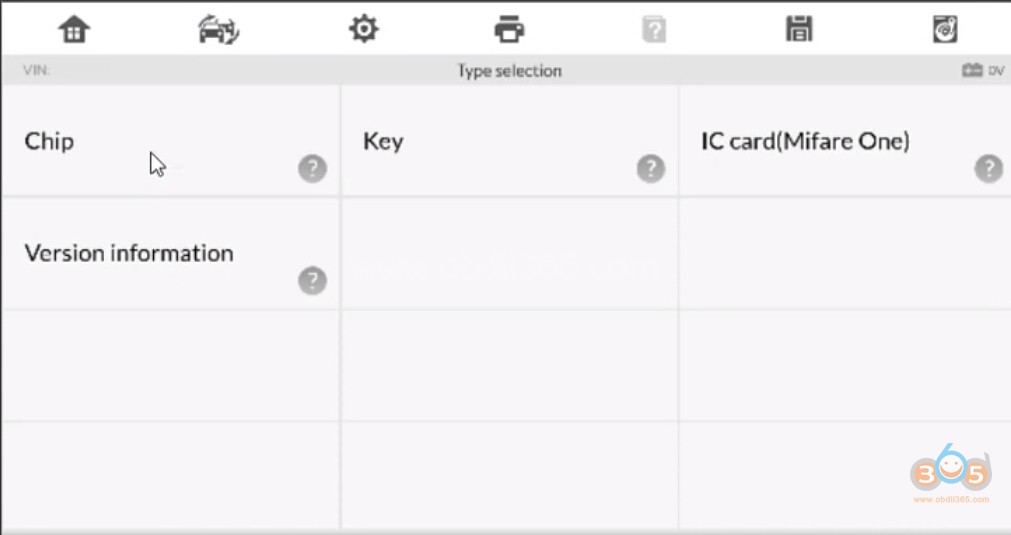

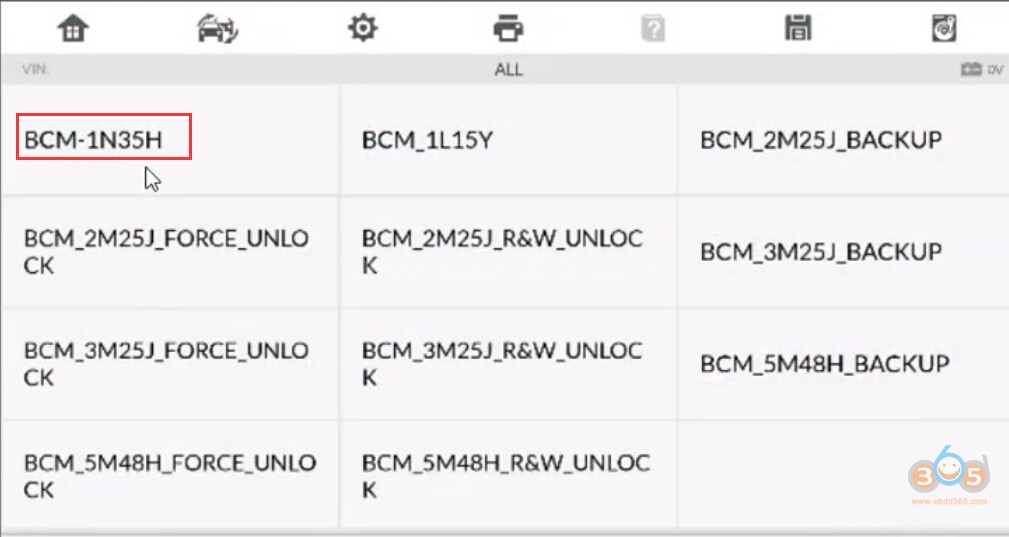

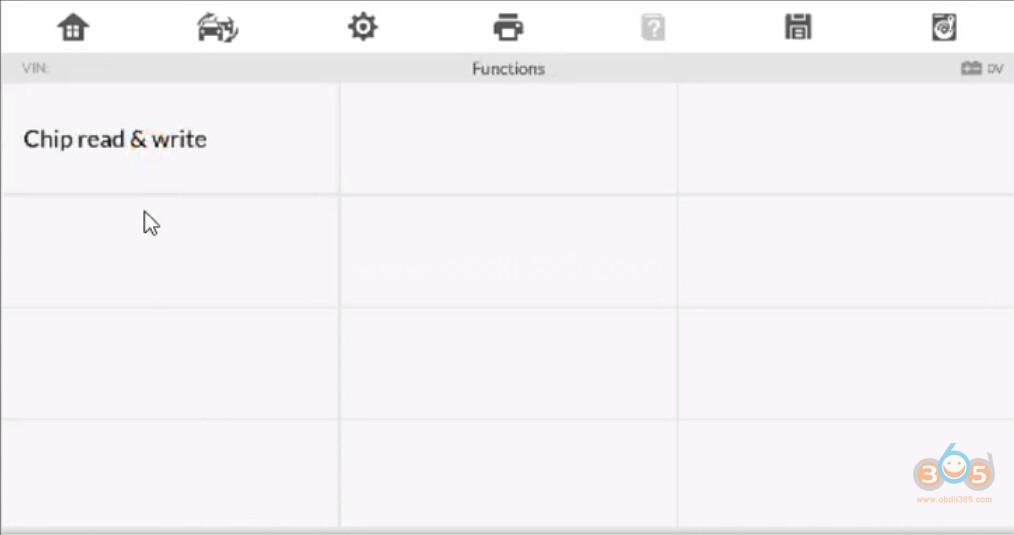

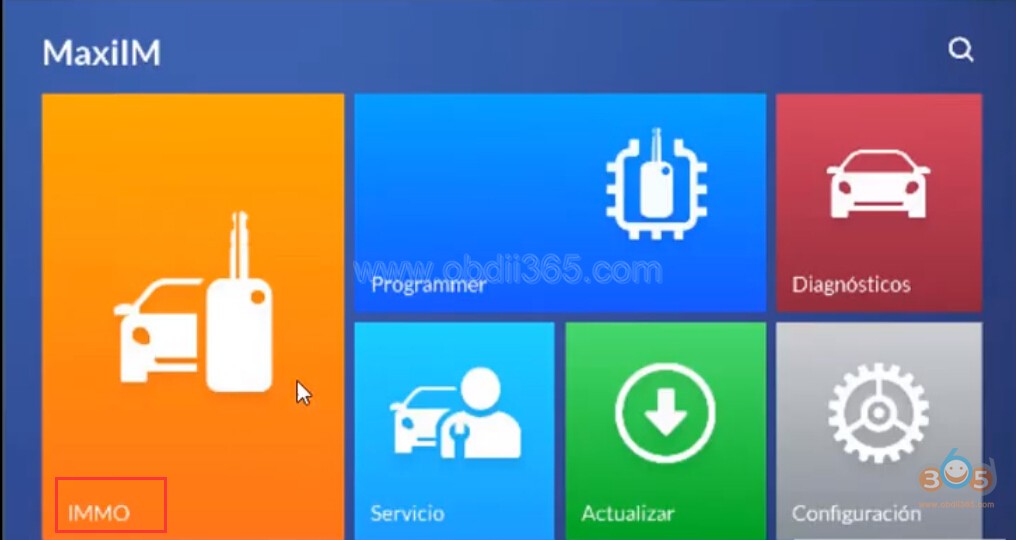

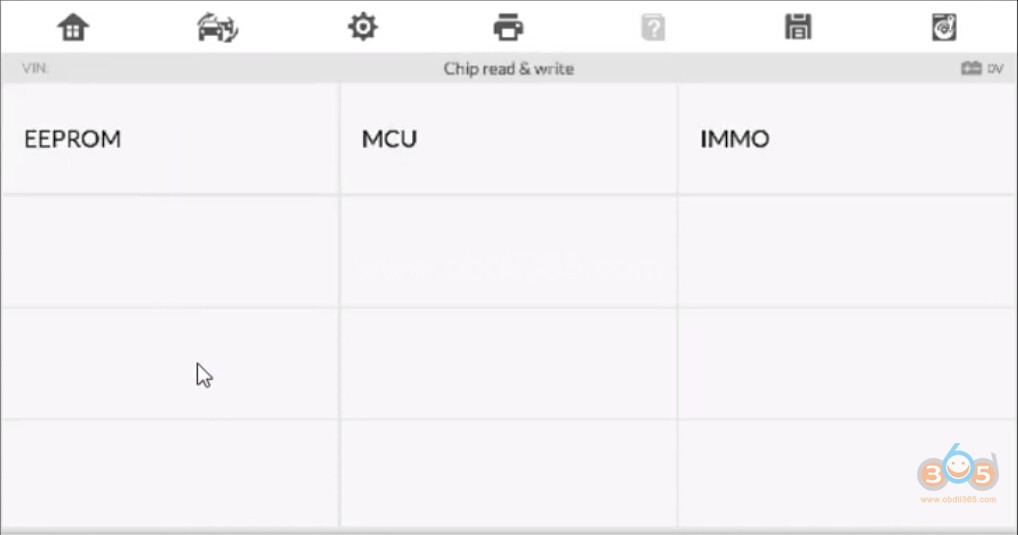

In IM608 tablet, select MaxiIM App-ProgrammerChip function-Chip Read & WriteIMMOPorscheBCM 1N35H

autel-im608-2015-porsche-macan-3



autel-im608-2015-porsche-macan-4



autel-im608-2015-porsche-macan-5



autel-im608-2015-porsche-macan-6



autel-im608-2015-porsche-macan-7



autel-im608-2015-porsche-macan-8

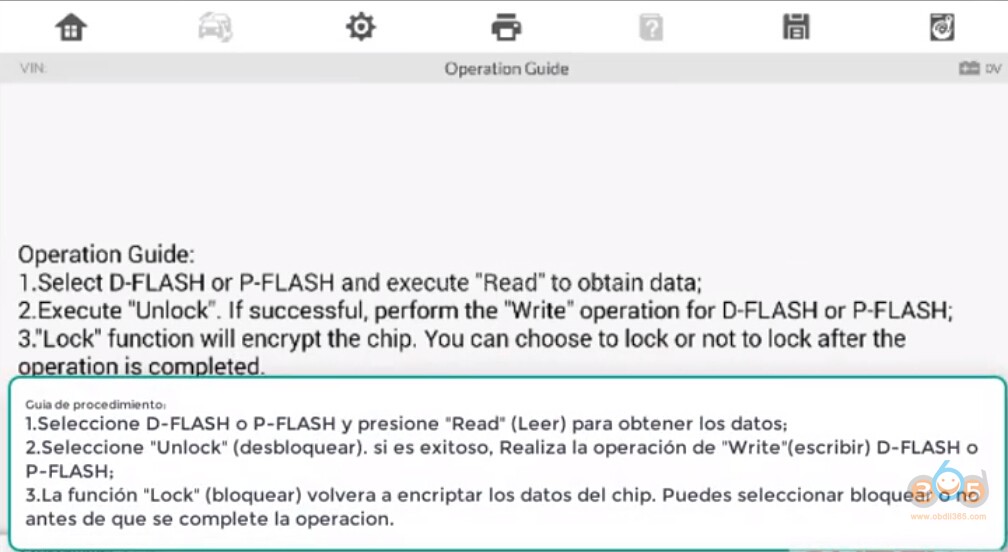

Operation

autel-im608-2015-porsche-macan-9


1. Select D-Flash or P-Flash and execute “Read” to obtain data;
2. Execute “Unlock”. If successful, perform the “Write” operation for D-Flash or P-Flash
3. “Lock” function will encrypt the chip. You can choose to lock or not to lock after the operation completed

autel-im608-2015-porsche-macan-10

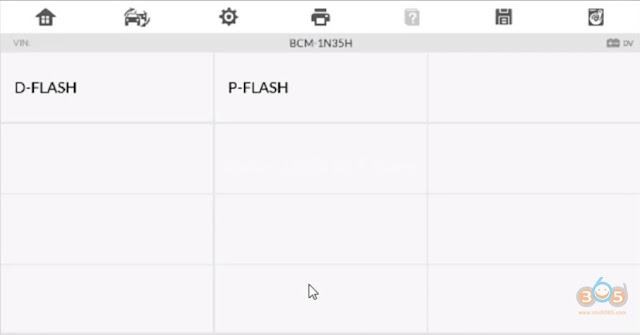

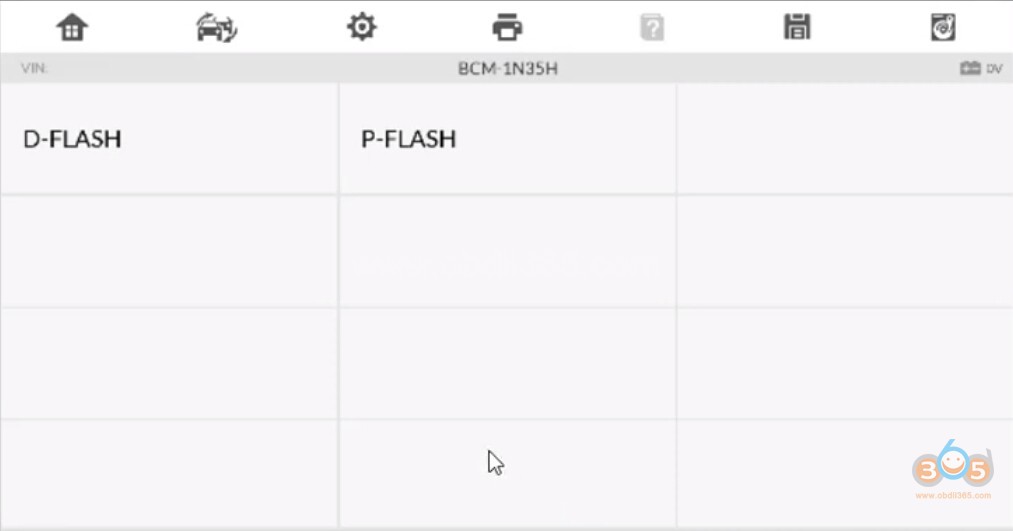

Select D-FLASH

autel-im608-2015-porsche-macan-11

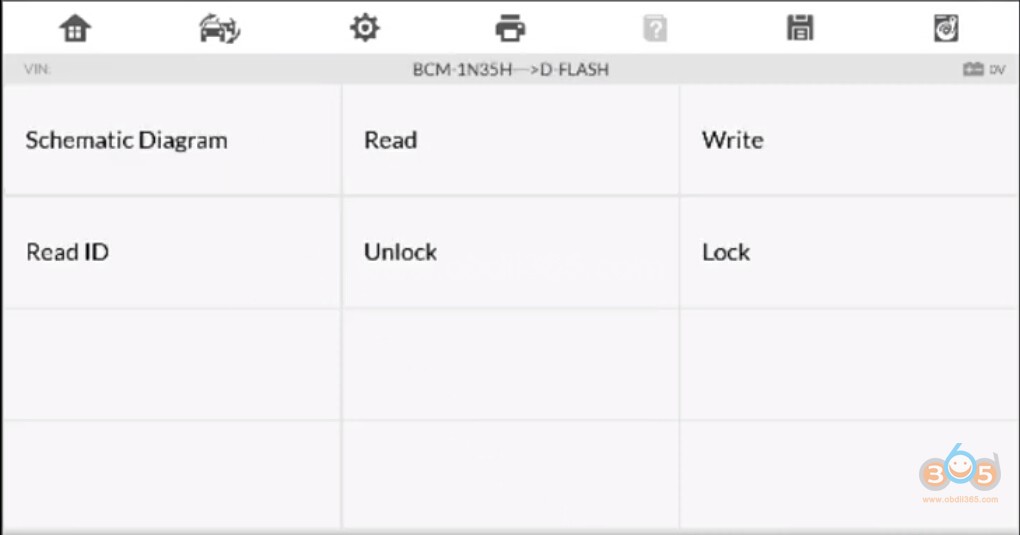

Check wiring diagram

autel-im608-2015-porsche-macan-12



autel-im608-2015-porsche-macan-13

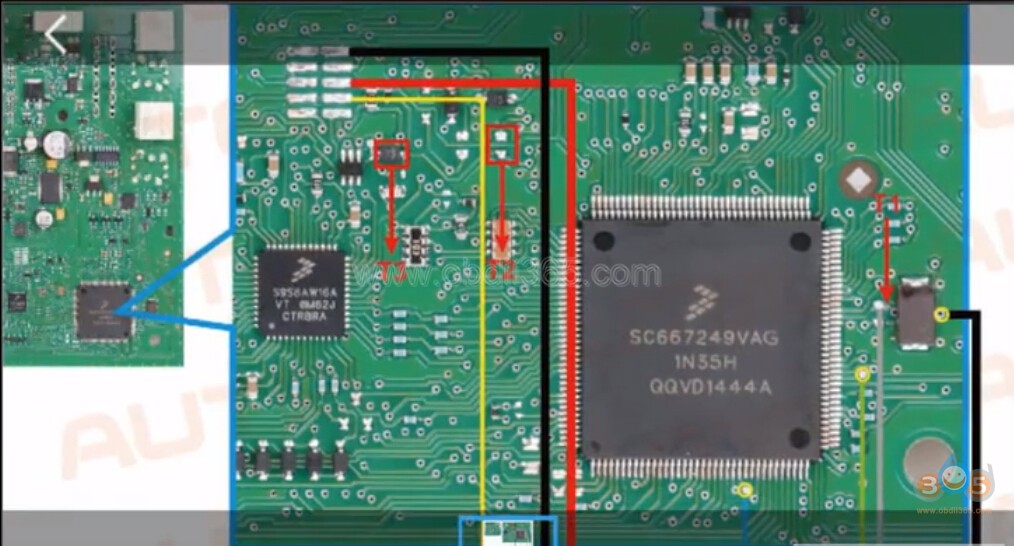

Follow diagram to connect BCM with XP400 programmer

autel-im608-2015-porsche-macan-14

Read ID

autel-im608-2015-porsche-macan-15

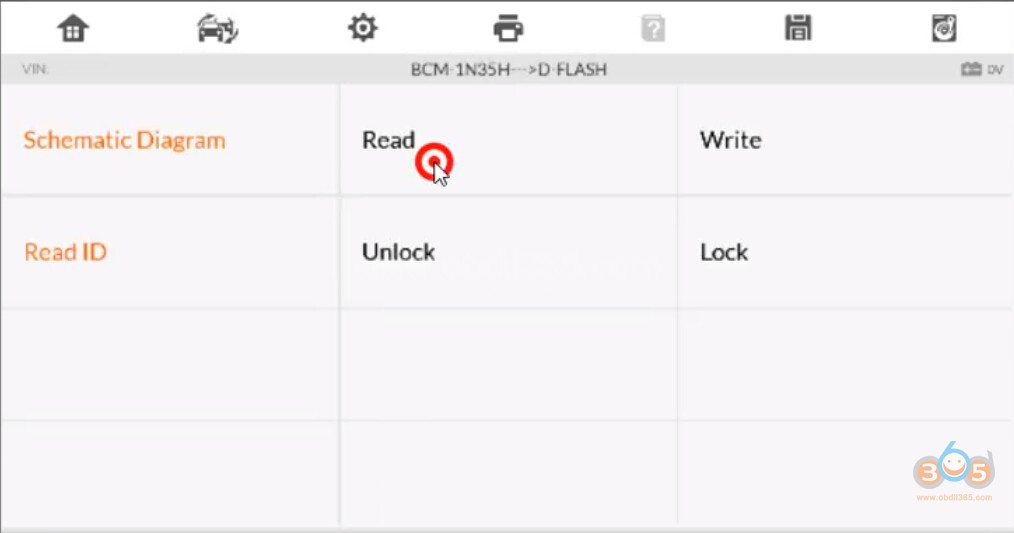

Read chip

autel-im608-2015-porsche-macan-16

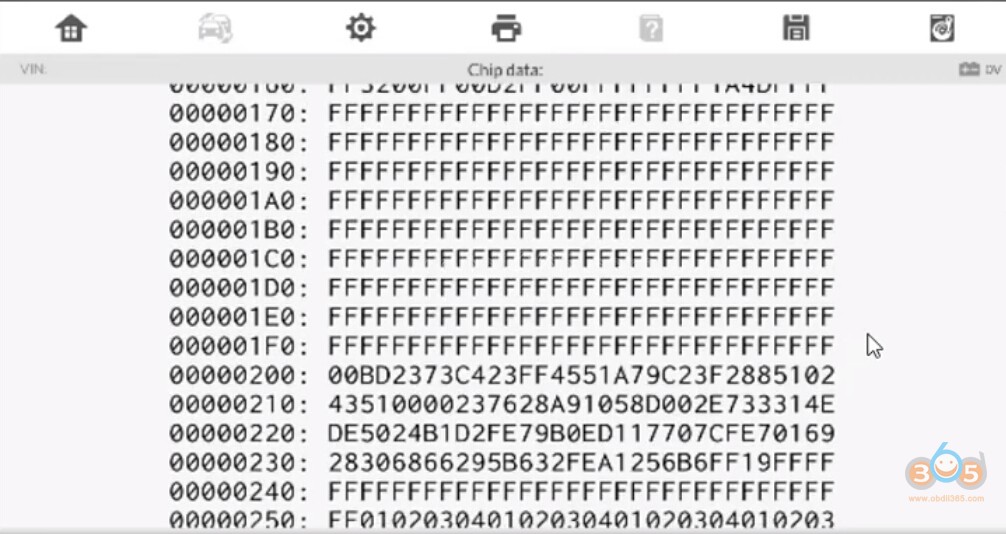

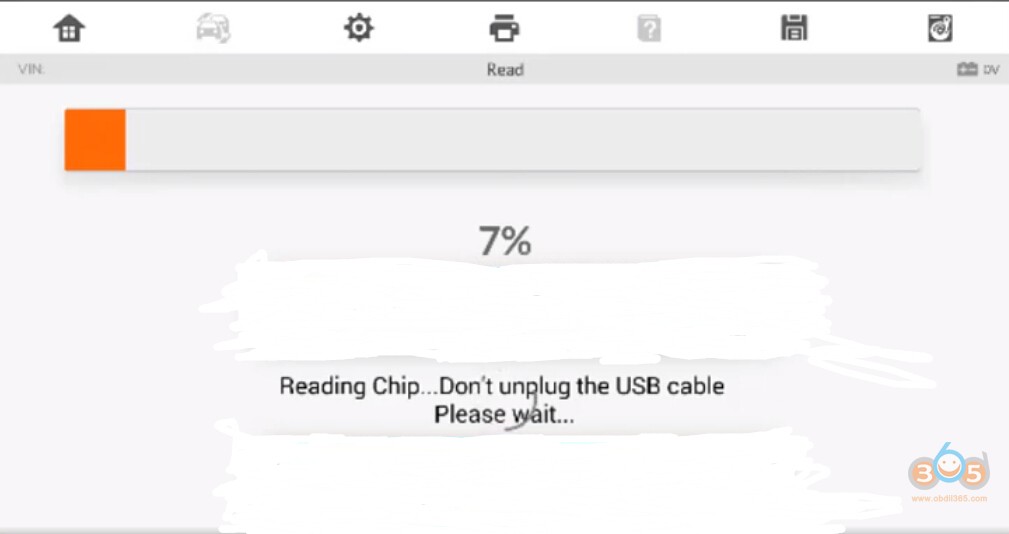

Reading chip. Don’t plug the USB cable

autel-im608-2015-porsche-macan-17
autel-im608-2015-porsche-macan-18



autel-im608-2015-porsche-macan-19

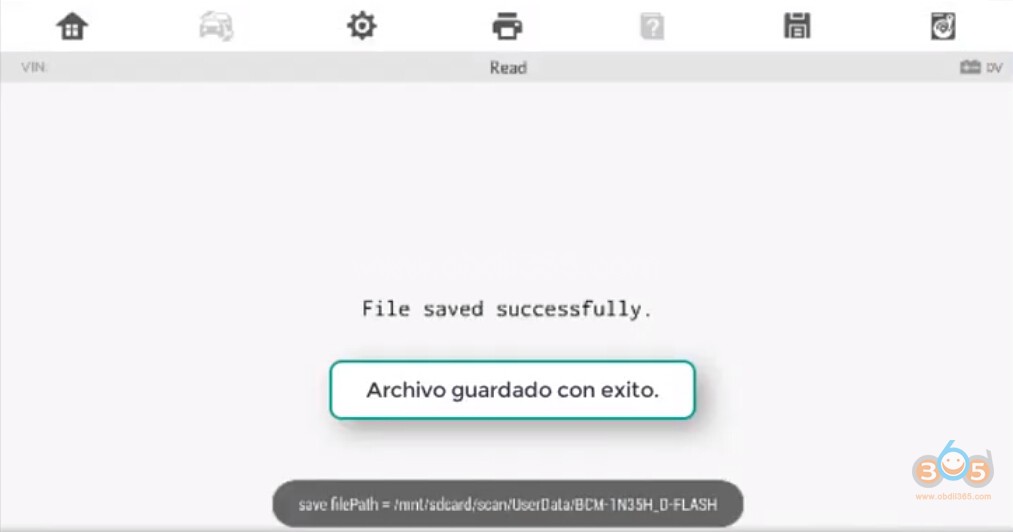

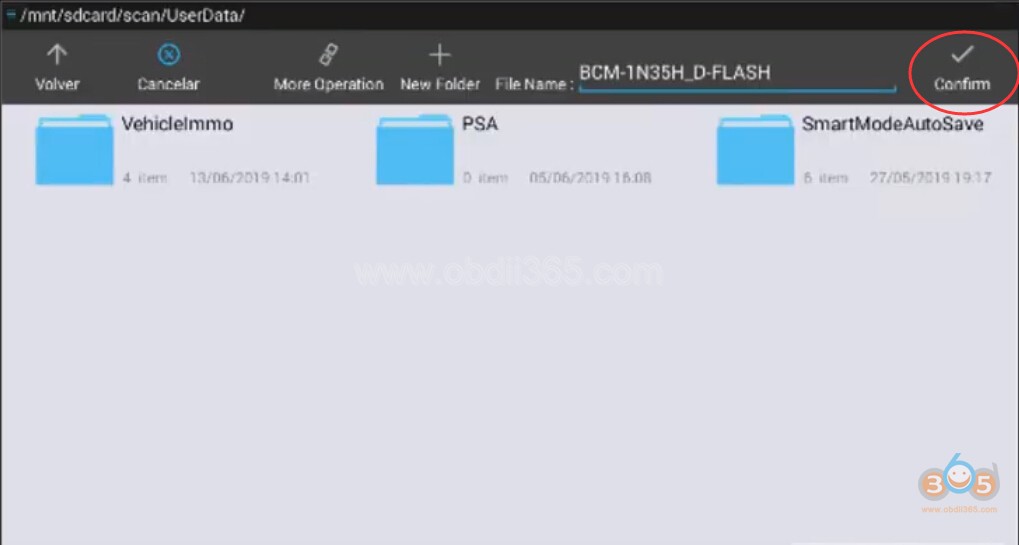

Save D-flash data

Step 2: Make Dealer Key

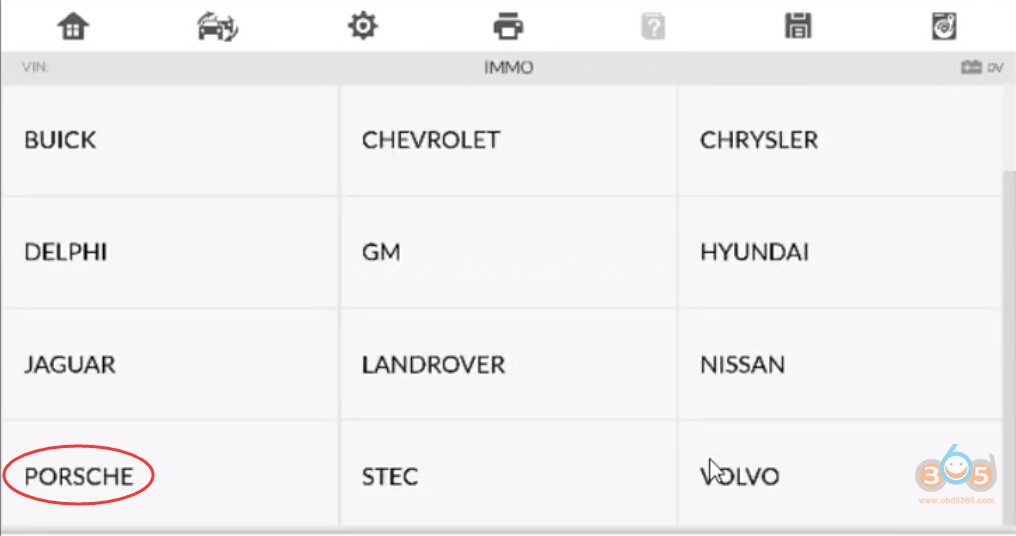

Go to IMMO function

autel-im608-2015-porsche-macan-20

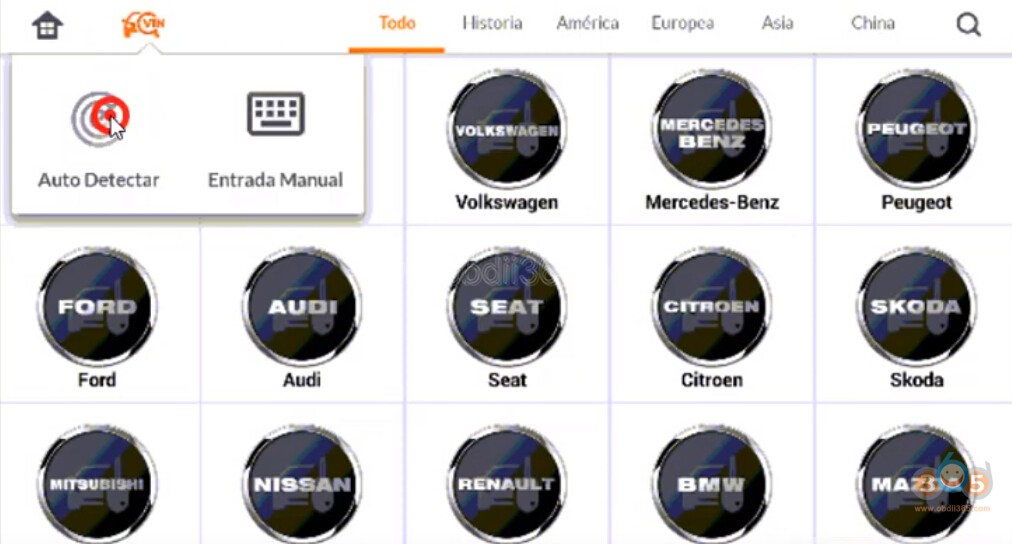

Select Auto Detect vehicle information

autel-im608-2015-porsche-macan-23

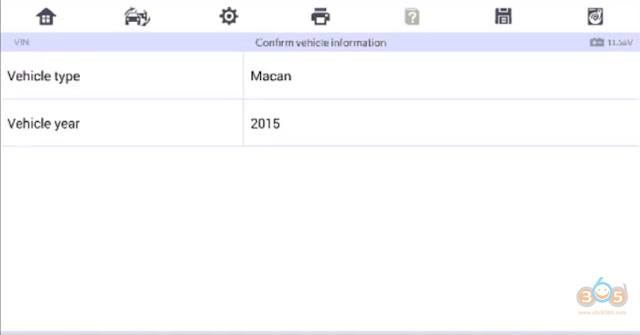

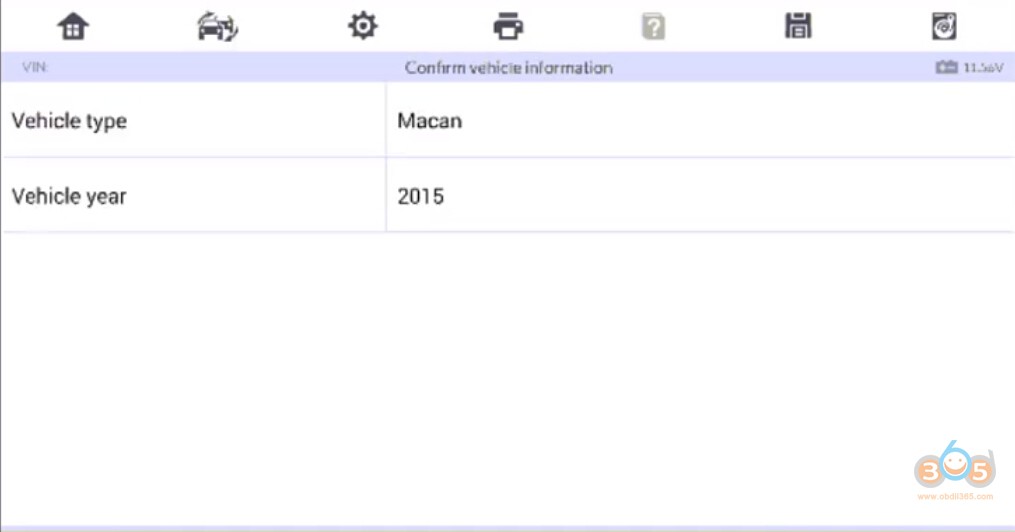

It is a Macan 2015
Analyse vehicle information

autel-im608-2015-porsche-macan-24

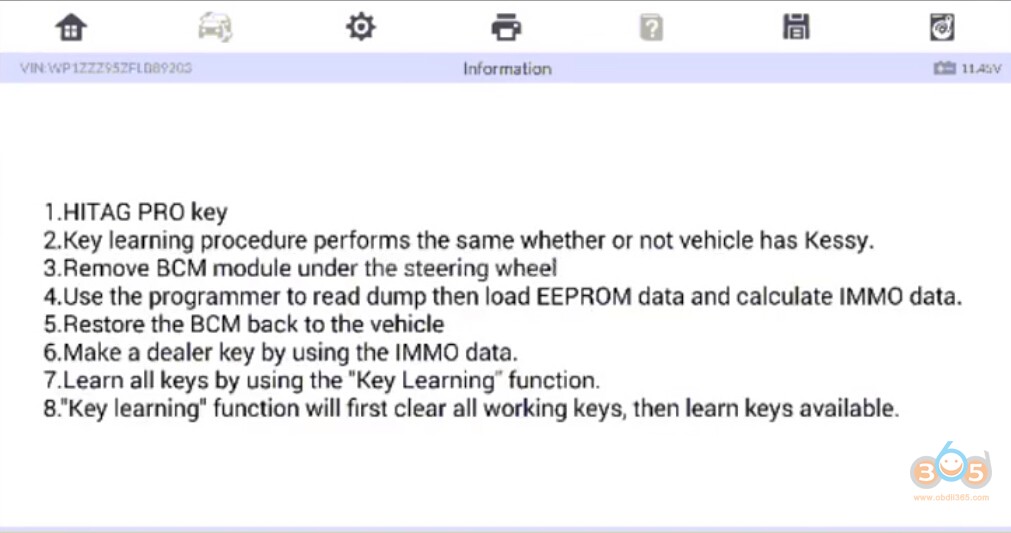

1. HITAG Pro key
2. Key learning procedure performs the same whether or not vehicle has kessay
3. Remove BCM module under the steering wheel
4. Use the programmer to read dump then load EEPROM data and calculate IMMO data
5. Restore the BCM back to the vehicle
6. Make a dealer key by using the IMMO data
7. Learn all keys by using the “Key Learning” function
8. “Key Learning” function will first clear all working keys, then learn keys available.
Press OK to continue

autel-im608-2015-porsche-macan-25

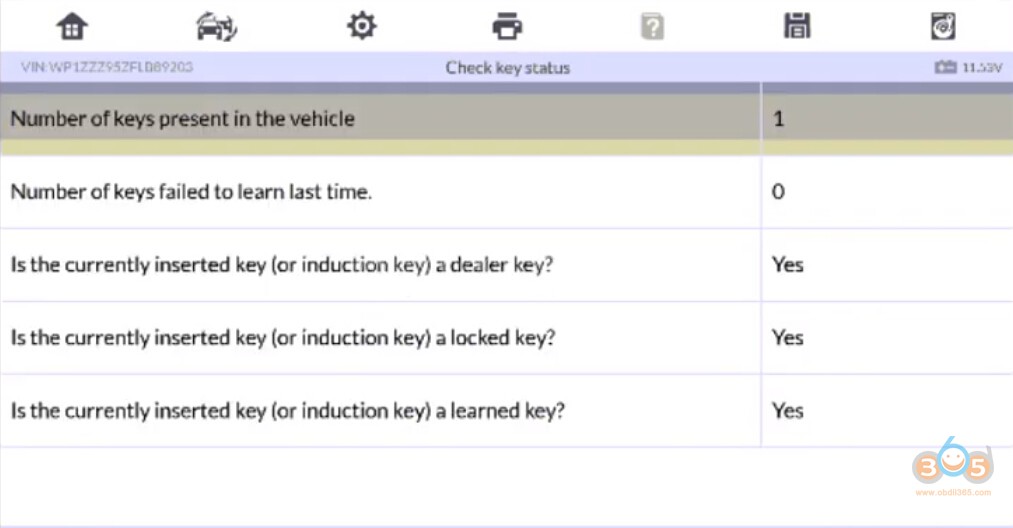

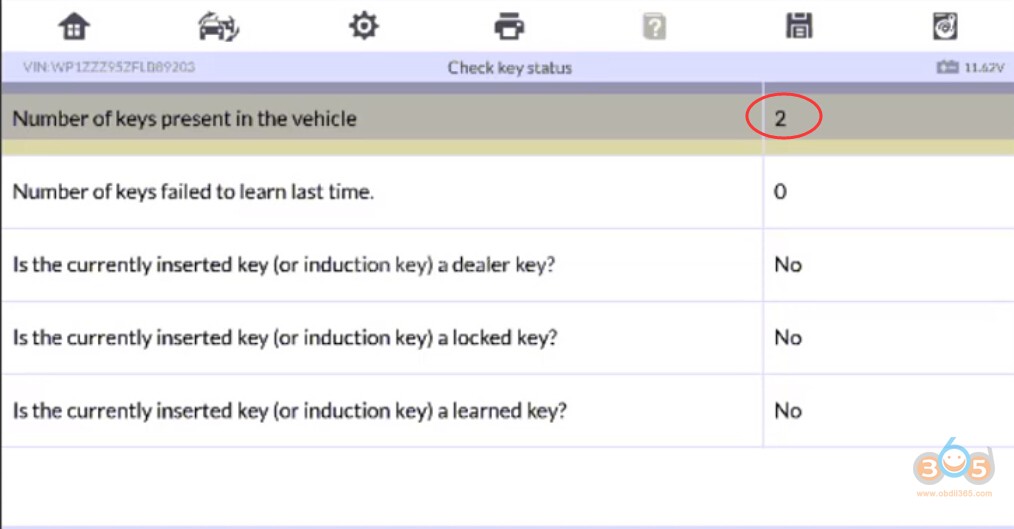

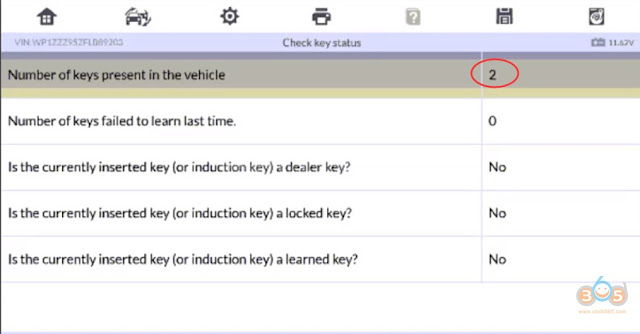

IM608 detects current 1 key exists


Step 3: Key Learning

autel-im608-2015-porsche-macan-26

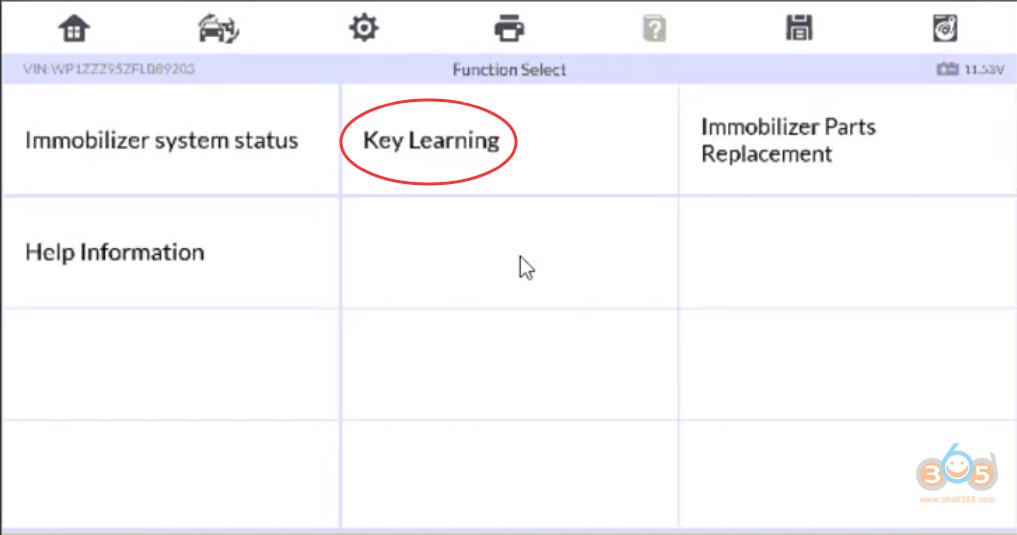

Select Key Learning function

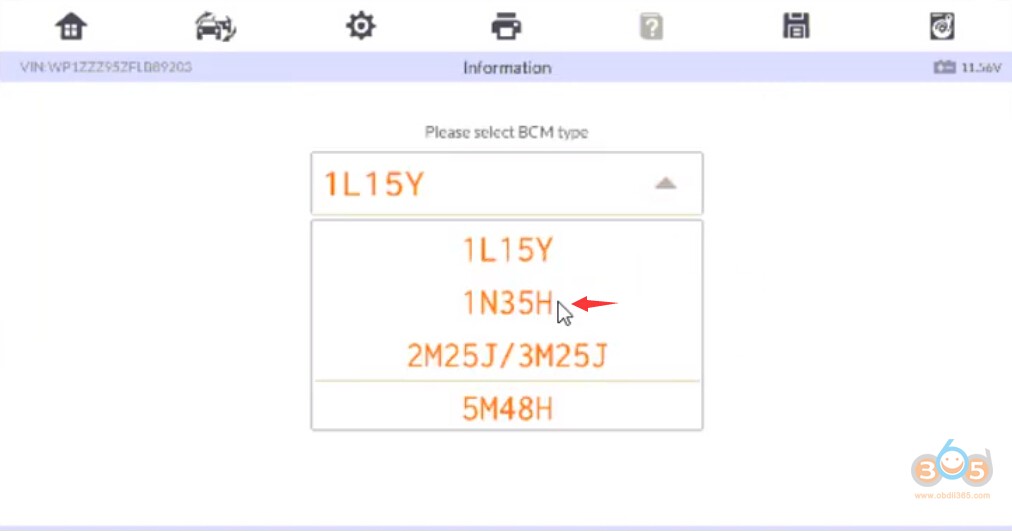

Load EEPROM data

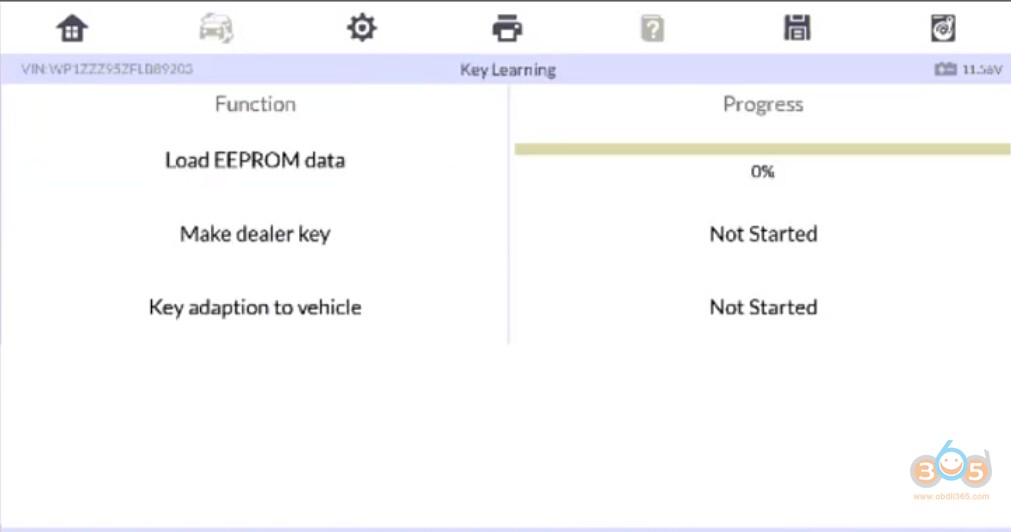

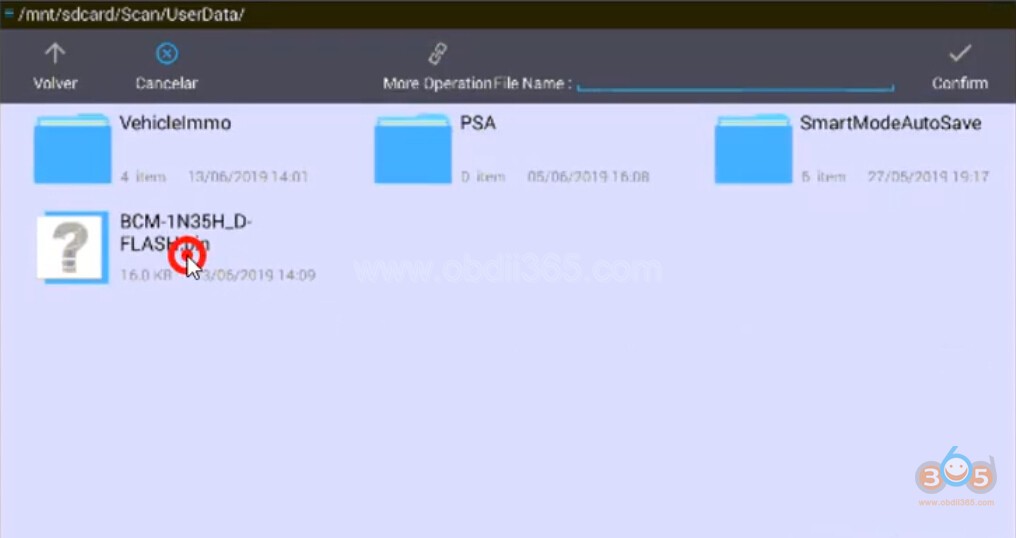

autel-im608-2015-porsche-macan-27



autel-im608-2015-porsche-macan-28

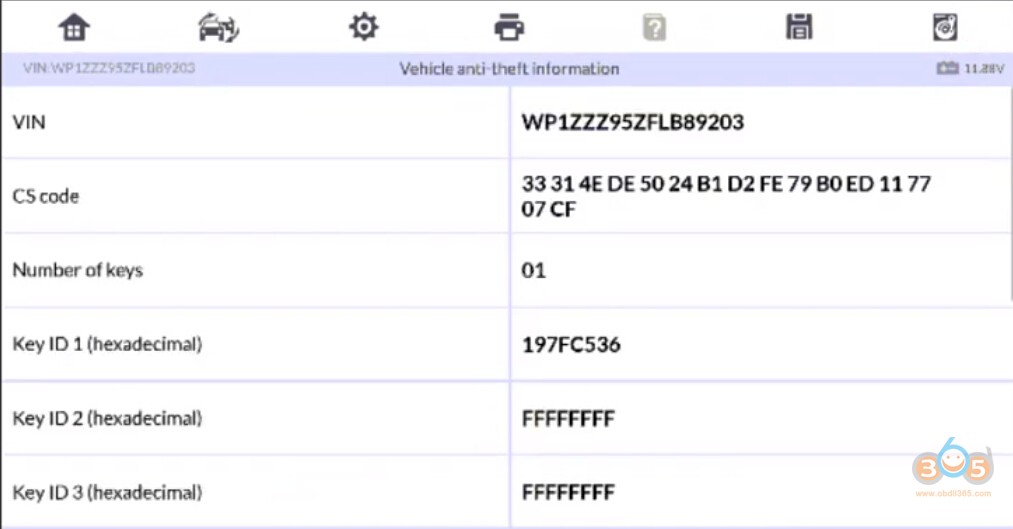

autel-im608-2015-porsche-macan-29



autel-im608-2015-porsche-macan-30

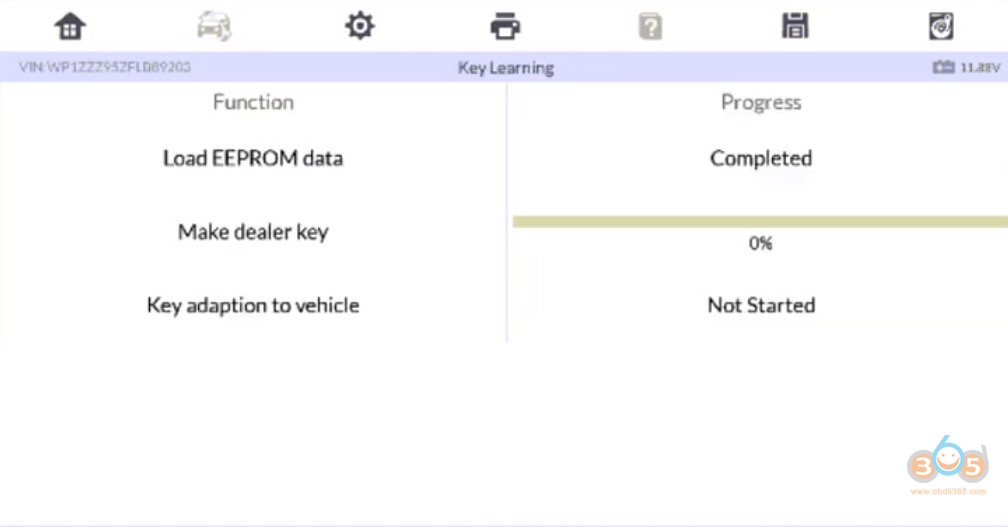

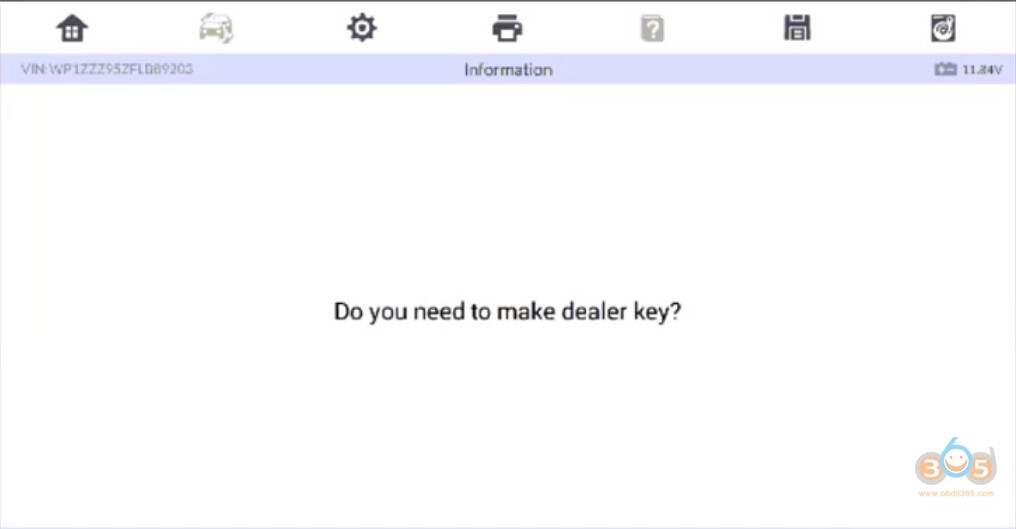

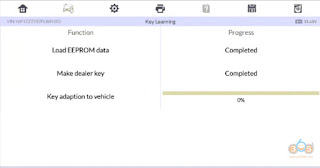

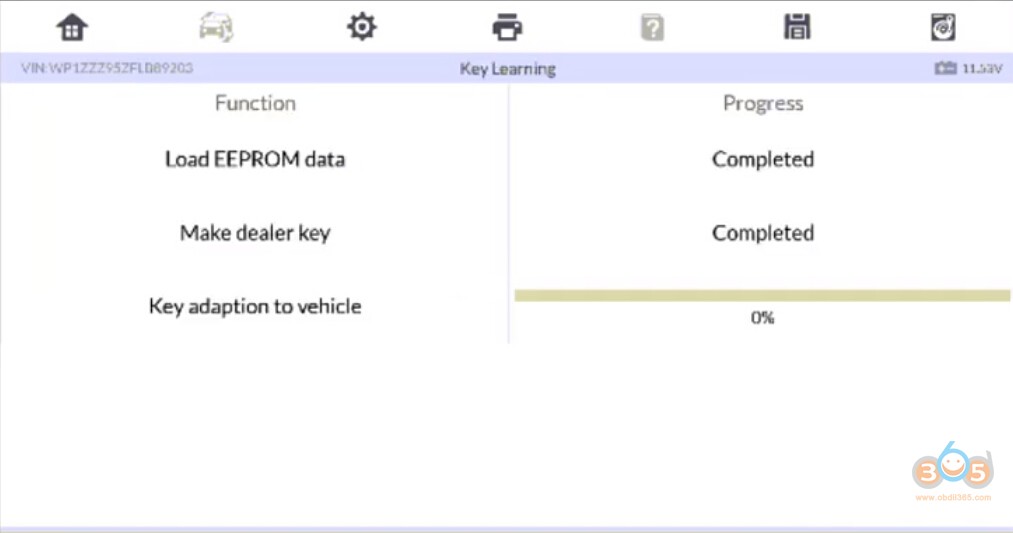

Load data completed. Make dealer key

autel-im608-2015-porsche-macan-31



autel-im608-2015-porsche-macan-32

Make dealer key success. Perform key leaning

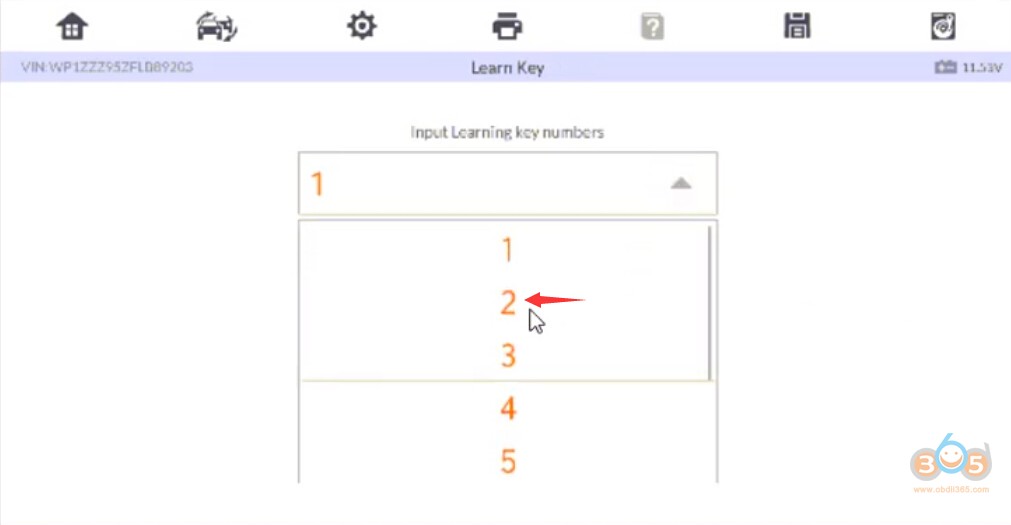

Select number of keys to be learnt: 2
Turn off ignition for 5s and then back to ON. Press OK within 2s.

autel-im608-2015-porsche-macan-33



autel-im608-2015-porsche-macan-34

Key learning in progress

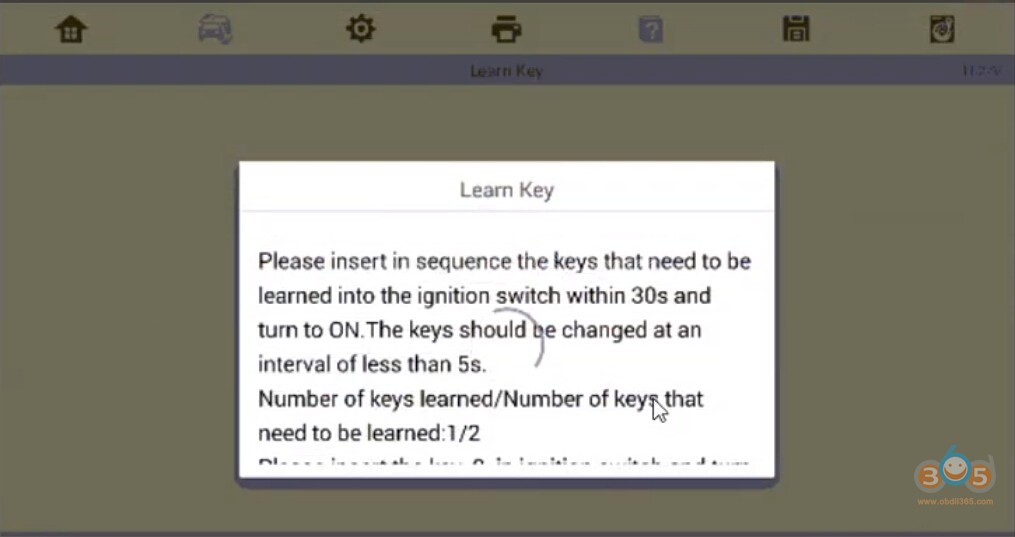

Insert in sequence the keys that need to be learned into ignition switch within 20s and turn to ON.
The keys should be changed at an interval of less than 5s.
Number of keys learned: 1/2

autel-im608-2015-porsche-macan-35
autel-im608-2015-porsche-macan-36

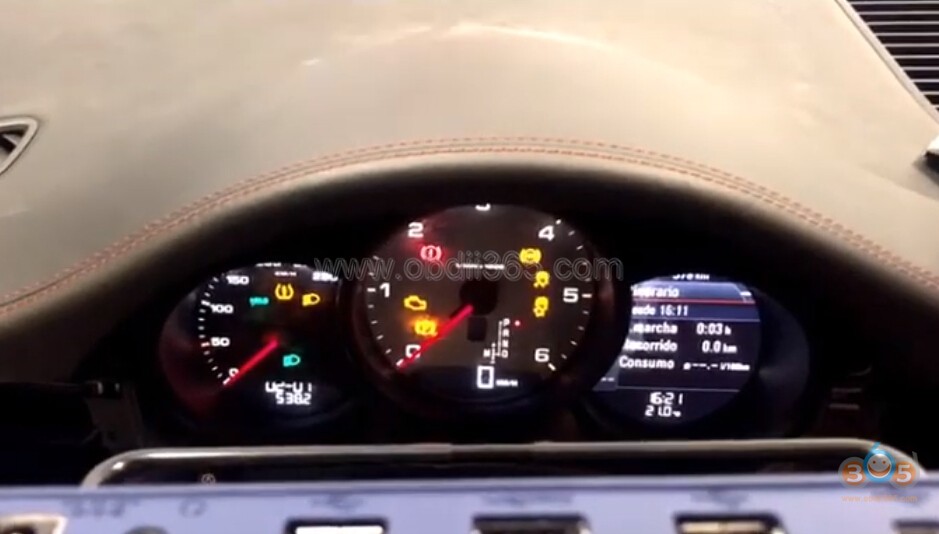

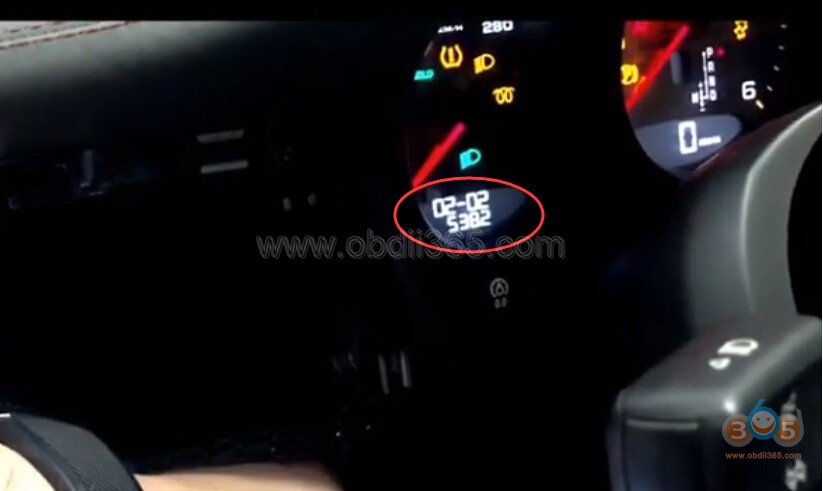

Please insert the key 2 in ignition switch and turn ignition switch to ON

autel-im608-2015-porsche-macan-37



autel-im608-2015-porsche-macan-38

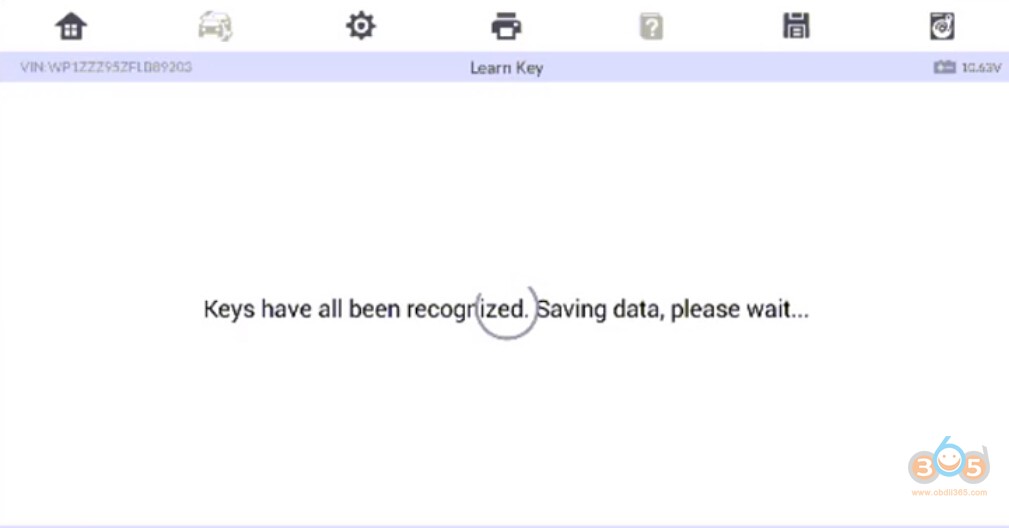

Keys have all been recognized. Save data.

autel-im608-2015-porsche-macan-39

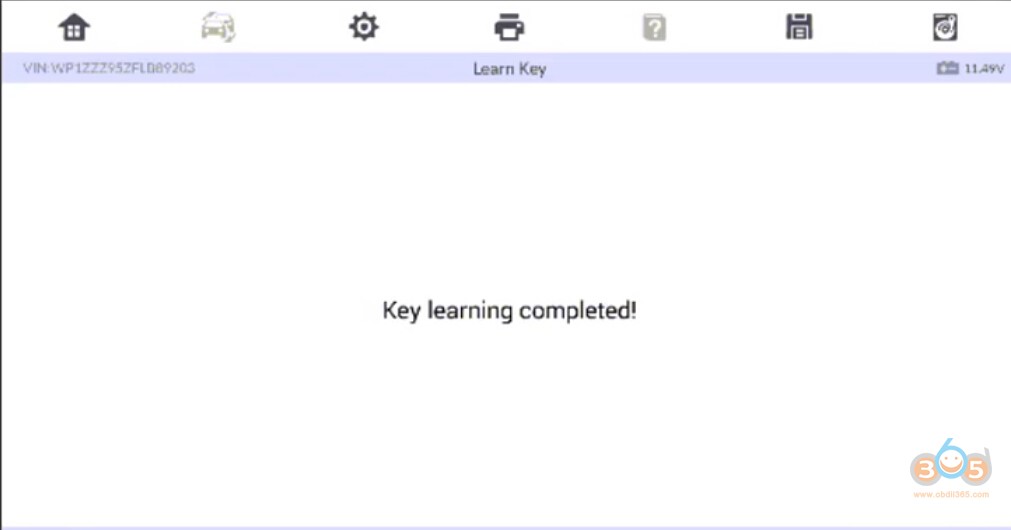

Key learning completed.

autel-im608-2015-porsche-macan-40

Autel IM608 has successfully added a new key to Macan 2015.
