How to Add LEXUS ES350 2007 Smart Key with OBDSTAR X300 DP Plus?

How-to: add smart key to a LEXUS ES350 2007 by OBDSTAR X300 DP PLUS.
Lexus Es350 Obdstar 1

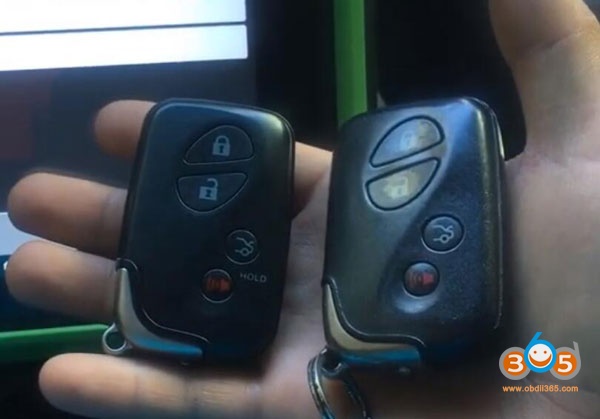

Original key and a new key

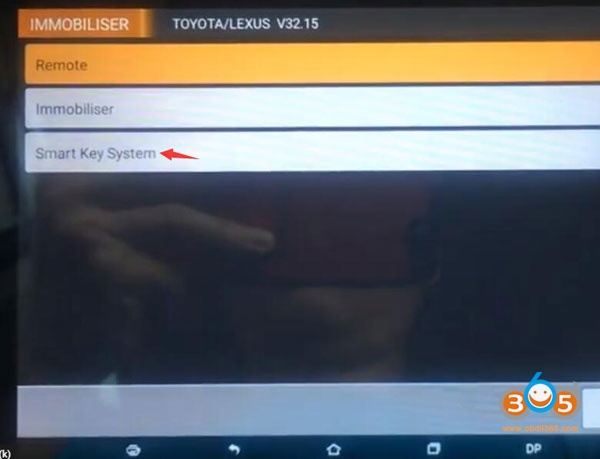

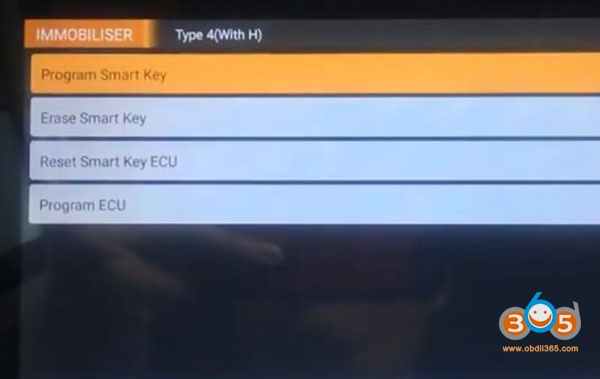

In X300 DP Plus, select Toyota/Lexus->Smart Key System->Type 4 (with H)->Program Smart Key
Lexus Es350 Obdstar 2
Lexus Es350 Obdstar 3
Lexus Es350 Obdstar 4
Lexus Es350 Obdstar 5

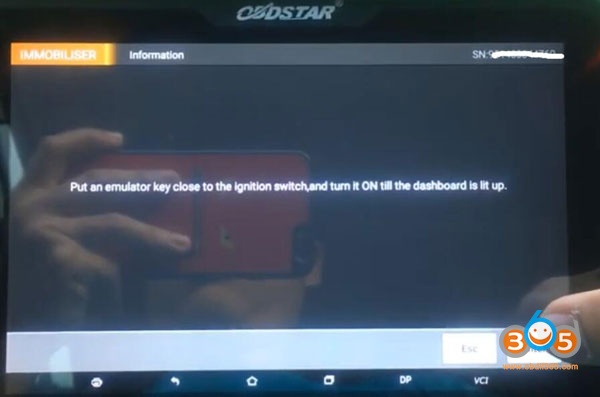

Put an emulator ke close to the ignition switch and turn it ON till the dashboard turns on
Lexus Es350 Obdstar 6

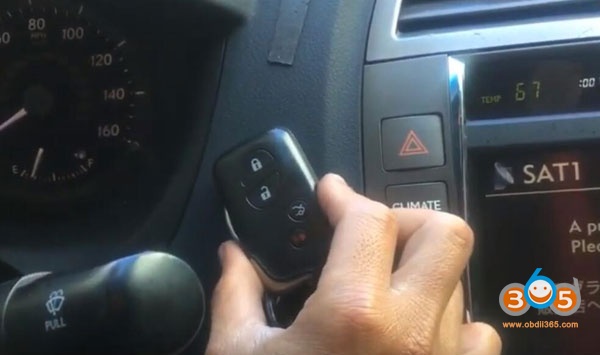

Put an available key close to the ignition switch and turn on ignition, then buzzer beeps once
Lexus Es350 Obdstar 7

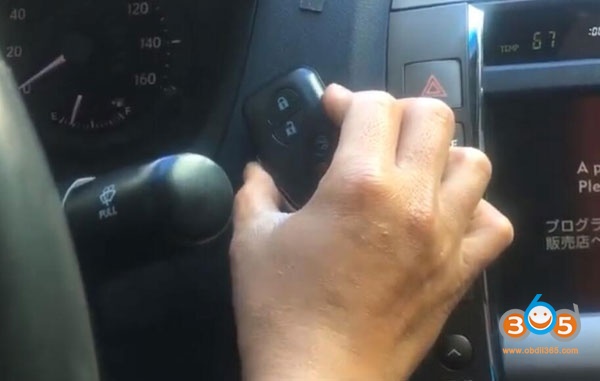

Close a new smart key to the Start button
Lexus Es350 Obdstar 8
Lexus Es350 Obdstar 9
Programming new key in process
Lexus Es350 Obdstar 10

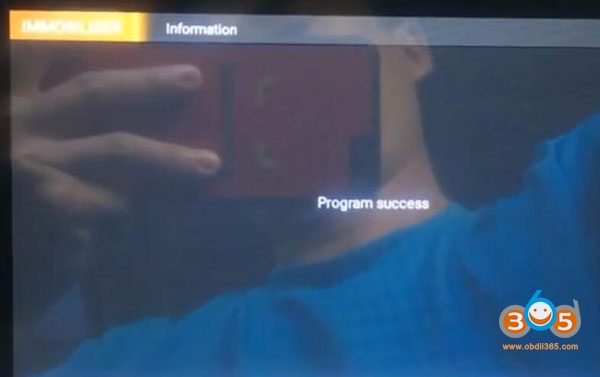

Program success.

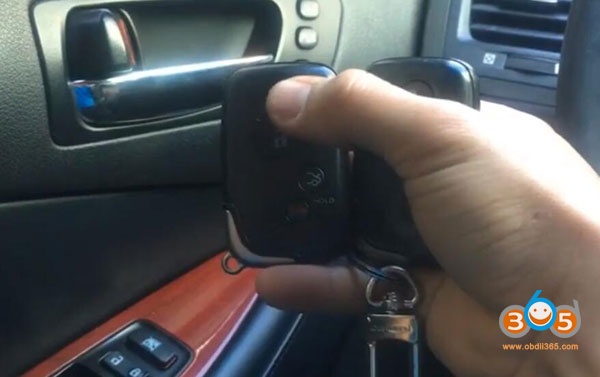

Test the new key.
Lexus Es350 Obdstar 11
It works.
Done.
