How to Reset Honda Accord 2010 Key with Autel IM608?

How to use Autel MaxiIM IM508/IM608 to reset key on a Honda Accord year 2010.



Select IMMO function->Auto VIN->Manual Selection->Accord->Blade Key->Immobilizer(Honda)

Autel Im608 2010 Honda Accord 1

Autel Im608 2010 Honda Accord 2

Autel Im608 2010 Honda Accord 3

Autel Im608 2010 Honda Accord 4

Turn the ignition off.
Identify it is 4th generation immobilizer.

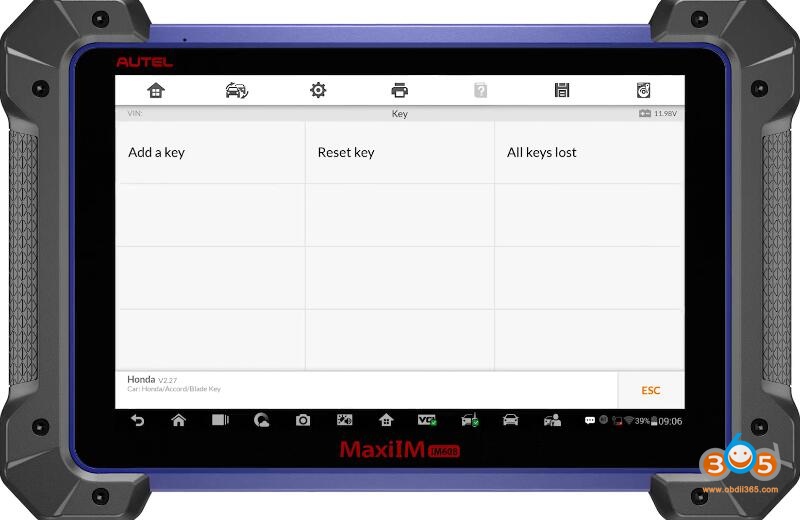

Select Key->Reset Key

Autel Im608 2010 Honda Accord 5

Autel Im608 2010 Honda Accord 6
The registration or the clearance of the key will be recorded by this function.
At least one registered key is required to reset all key steps.

Autel Im608 2010 Honda Accord 7
Insert a registered key and turn on the ignition.

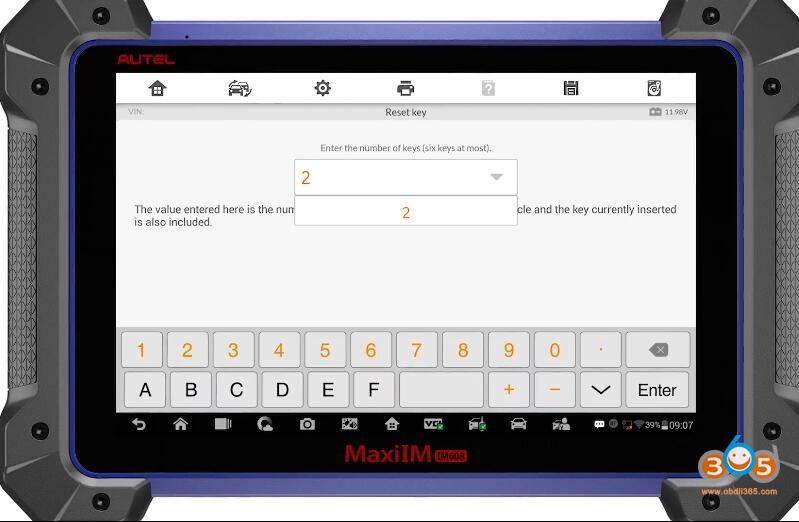

Enter number of keys to be reset

Autel Im608 2010 Honda Accord 8
Turn the ignition off.
Turn the ignition on.
Turn the ignition off within 20s.

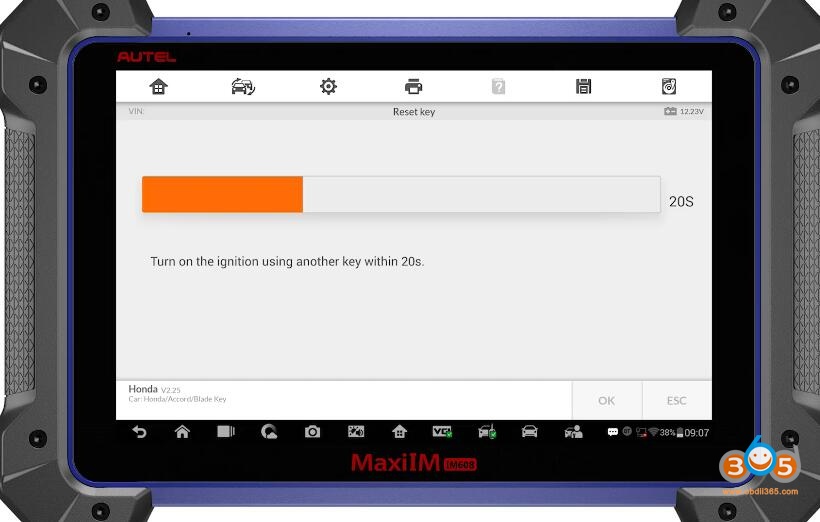

Turn the ignition on using another key within 20s.

Autel Im608 2010 Honda Accord 9
Turn the ignition off within 20s.
Turn the ignition on using the same key within 20s.

Autel Im608 2010 Honda Accord 10
Turn the ignition off.
Turn the ignition on.
Check if the immobilizer indicator lamp goes out.
If yes, Turn the ignition off.
Turn the ignition on using a registered key.
The registration of the key is completed. Turn the ignition off.

Autel Im608 2010 Honda Accord 11
Check all keys to ensure that all of them can start the engine.
