How to Clone VAG DQ200 Gearbox with Autel IM608?

March 13, 2024 Nacy VW key programmer 0

How-to: VW DQ200 gearbox TCU cloning using Autel IM508/IM608 and Gbox.

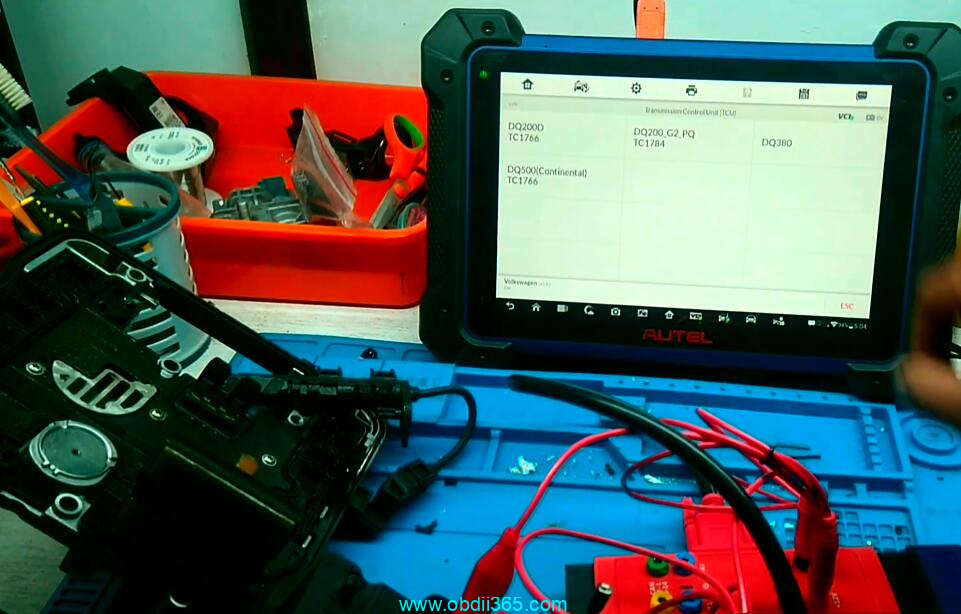

Select Transmission Control Unit TCU->DQ200D TC1766

Autel Im608 Clone DQ200 Gearbox 3

Autel Im608 Clone DQ200 Gearbox 4

Check wiring diagram

Autel Im608 Clone DQ200 Gearbox 5

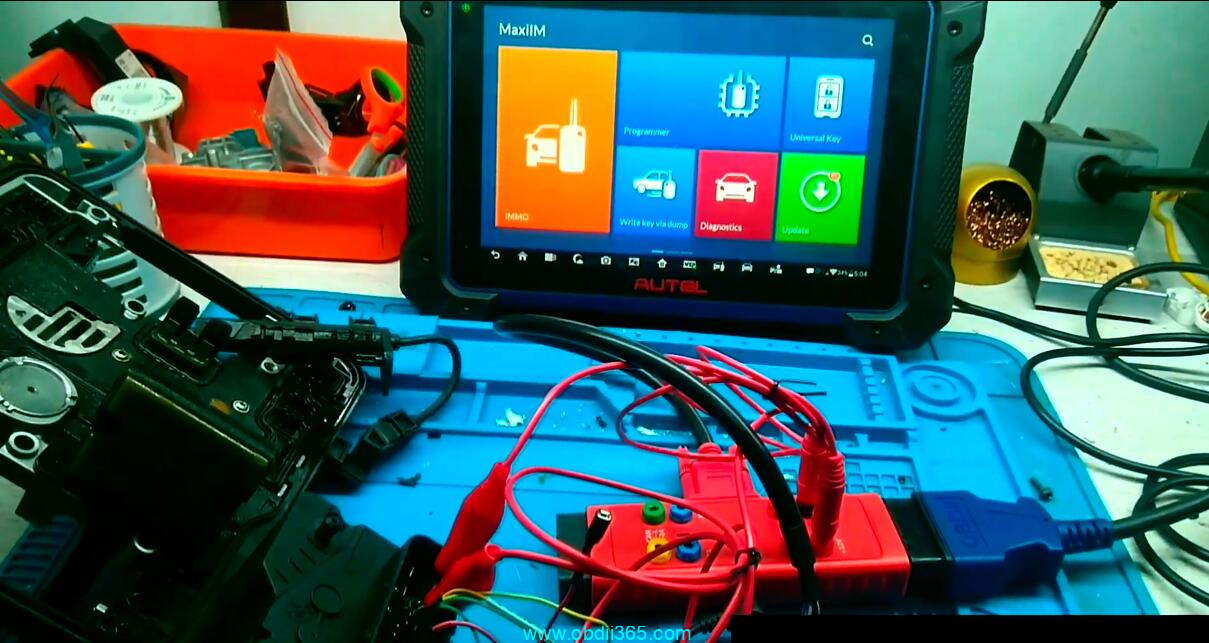

Connect DQ200 TCU with Gbox and IM608 follow the diagram

Autel Im608 Clone DQ200 Gearbox 6

Autel Im608 Clone DQ200 Gearbox 2

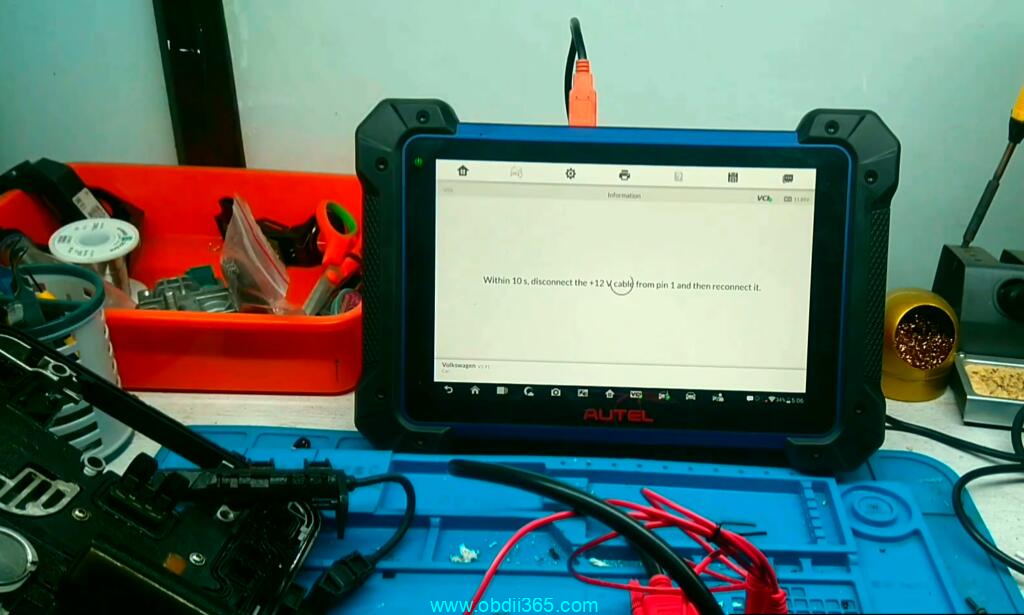

Within 10s, disconnect 12V cable from PIN 1 and then reconnect it.

Autel Im608 Clone DQ200 Gearbox 7
Read flash data

Autel Im608 Clone DQ200 Gearbox 8
Within 10s, disconnect 12V cable from PIN 1 and then reconnect it.
Read flash data successfully, save data

Autel Im608 Clone DQ200 Gearbox 9

Read eeprom data and save.

Autel Im608 Clone DQ200 Gearbox 10
Then write flash and eeprom data separately.
