Autel IM508 adds a spare 8A BA smart key to Toyota Sequoia 2023 using the 30-pin cable.

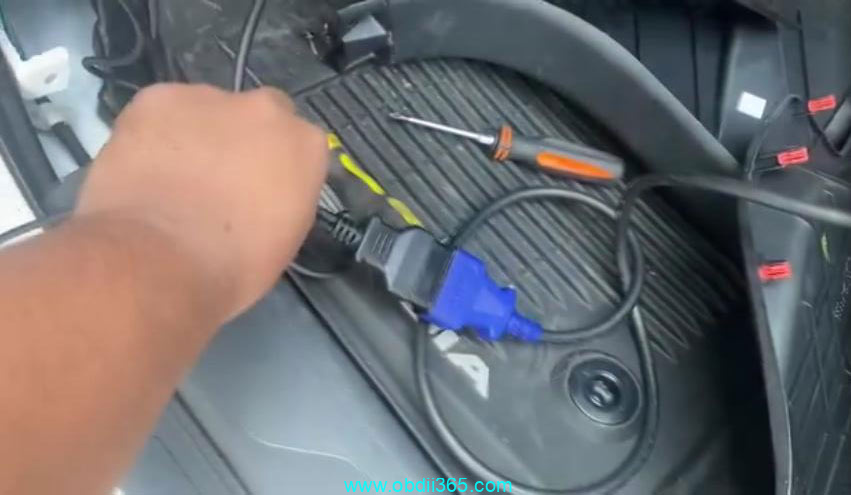

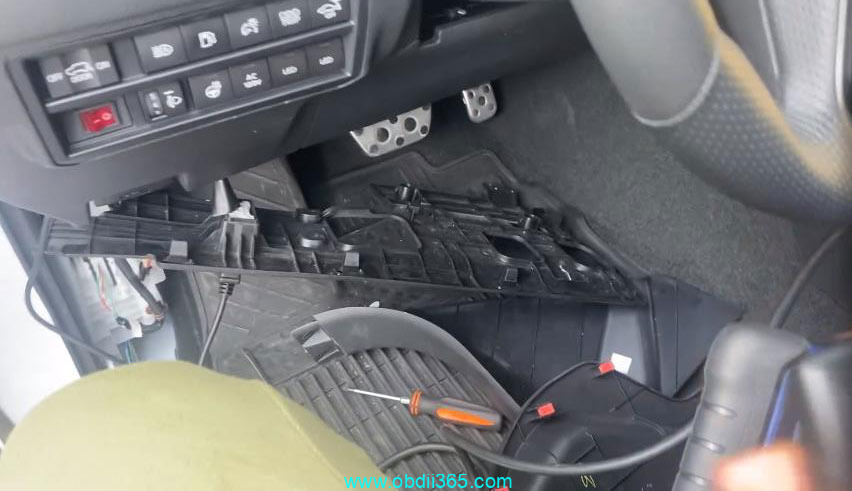

Find smartbox and connect 30 pin cable with smartbox and IM508.
We have shown many instructions on how to connect this Toyota 30 pin cable. Search our blog.
Select Control Unit->Keyless System CAN

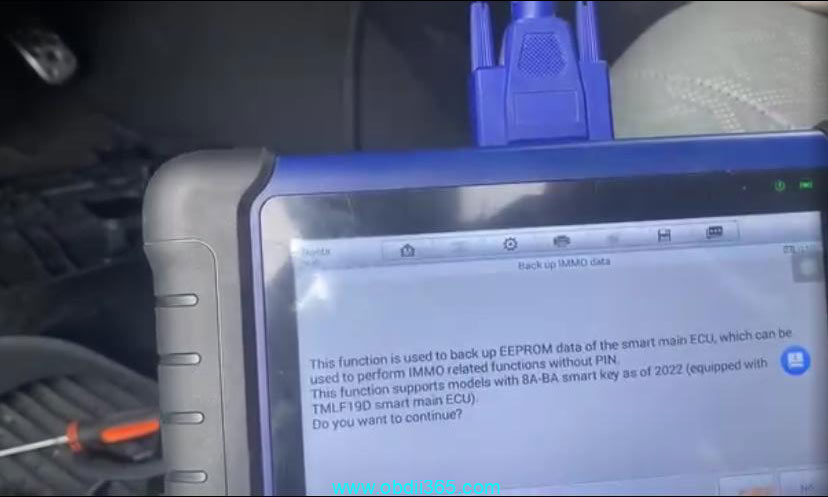

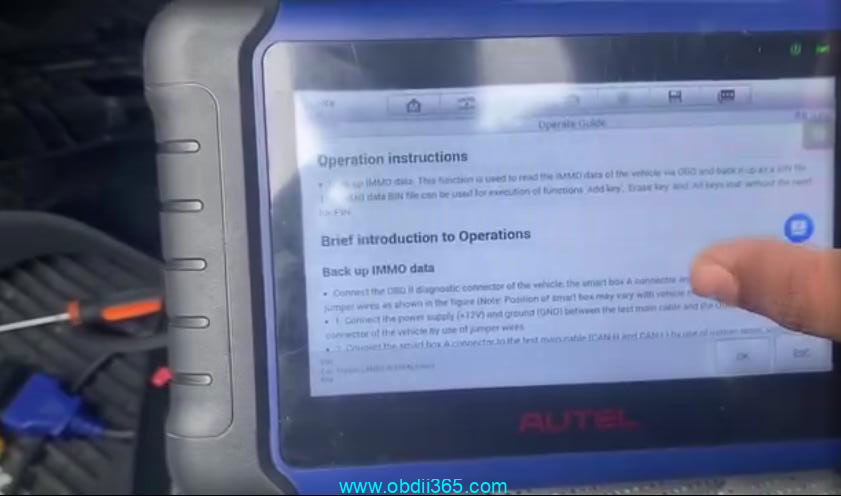

Then Backup immo data.
Make sure the device has a good network connection.
Reading eeprom data
The IMMO data has backed up.
Select Add smart key
Step 1: PIN Verification
Step 2: Key Learning

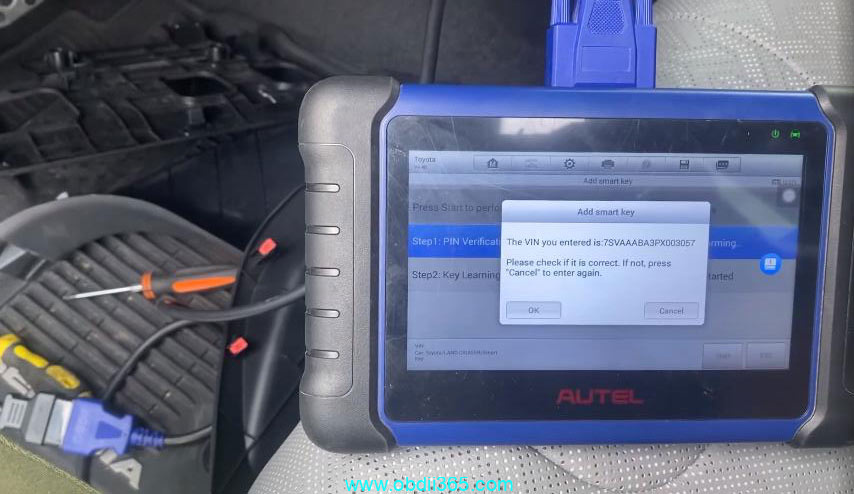

Confirm VIN
Select the eeprom data we have backed up in the previous step

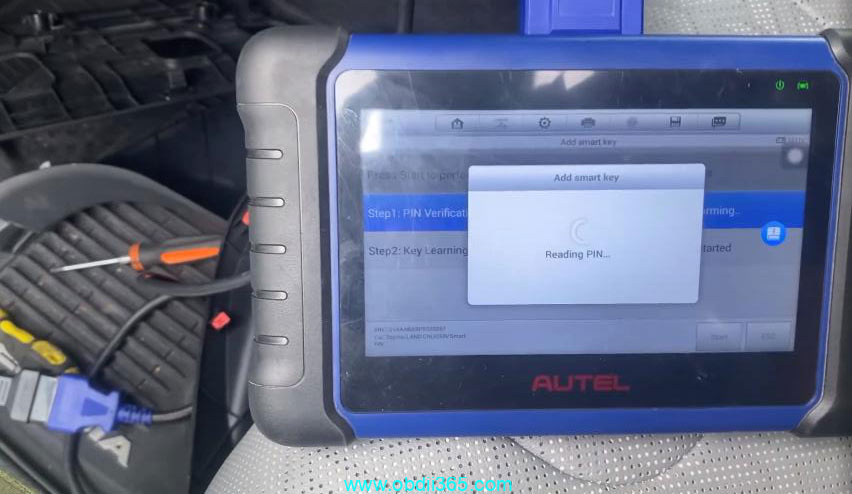

Reading PIN
Then learn key
Add a smart key successfully.
Test the new key.
