Program Acura 04-14 All Keys Lost with Autel MaxiCOM MK808

How-to: program Acura TL 2004-2014 all keys lost using Autel MaxiCOM MK808 diagnostic system.



Device required:

an aftermarket key

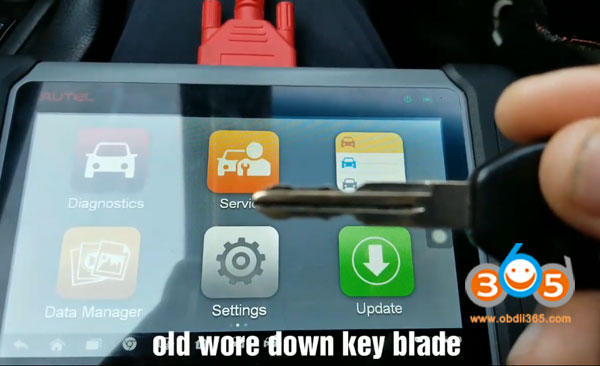

a used key with old wore down key blade

Autel MK808

autel-mk808-acura-all-key-lost-1

autel-mk808-acura-all-key-lost-2

Main procedure:

1.Make new master key

2. add a new key



Step 1: make new master key

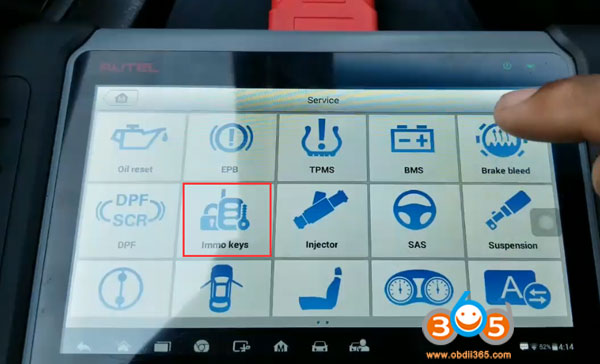

autel-mk808-acura-all-key-lost-3
Select Service Function->IMMO Keys->Acura

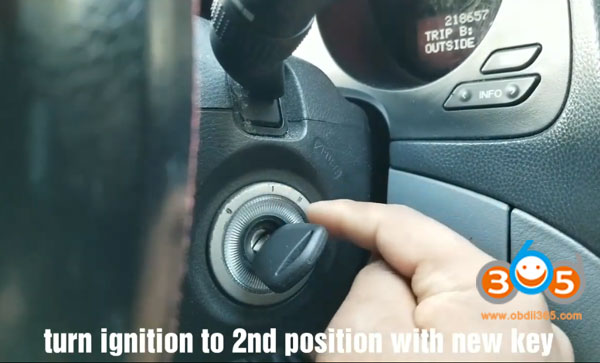

Turn ignition to 2nd position with the aftermarket key

autel-mk808-acura-all-key-lost-5

autel-mk808-acura-all-key-lost-6
flashing green key light means car won’t start

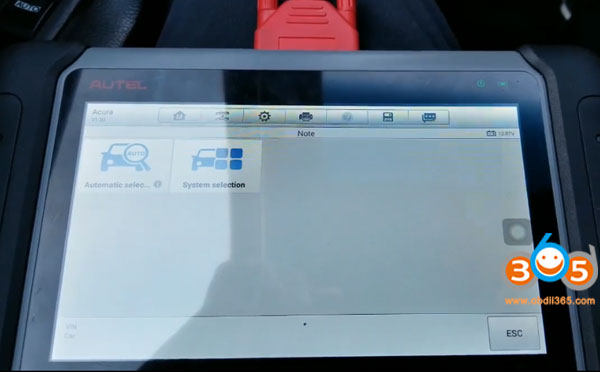

Select System selection->USA->Hot Function

autel-mk808-acura-all-key-lost-4

autel-mk808-acura-all-key-lost-7

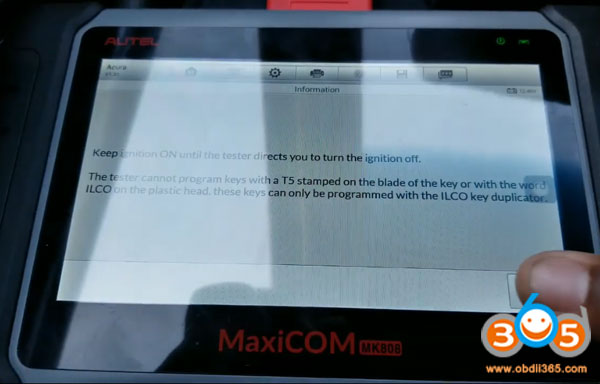

Keep ignition ON until the tester directs you to turn the ignition off

autel-mk808-acura-all-key-lost-8

autel-mk808-acura-all-key-lost-9

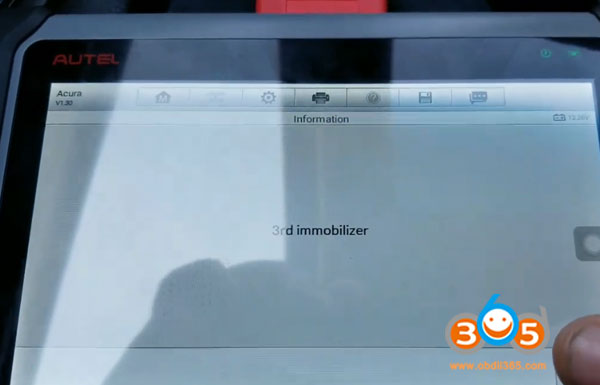

Autel MK808 detects immo type: 3rd generation immobilizer (will also work with 4th generation base models)

autel-mk808-acura-all-key-lost-10

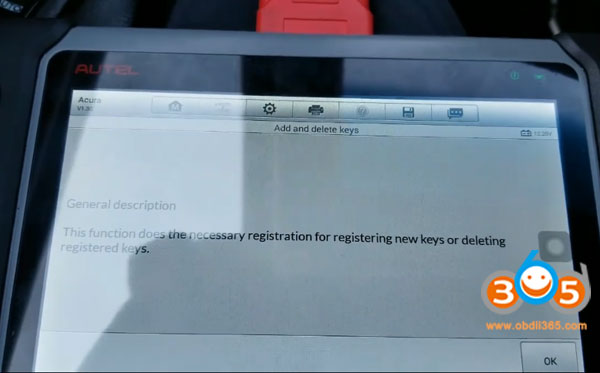

autel-mk808-acura-all-key-lost-12

autel-mk808-acura-all-key-lost-13

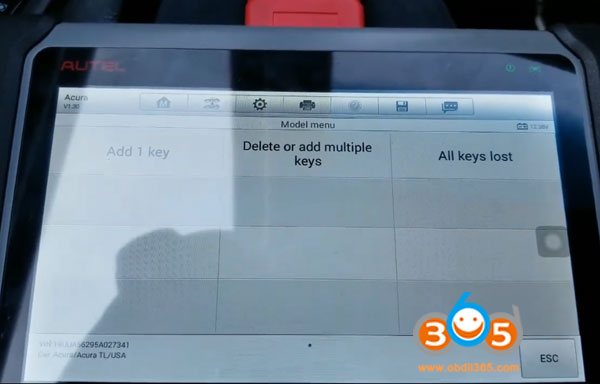

Select Special functions->Add and delete keys

autel-mk808-acura-all-key-lost-14

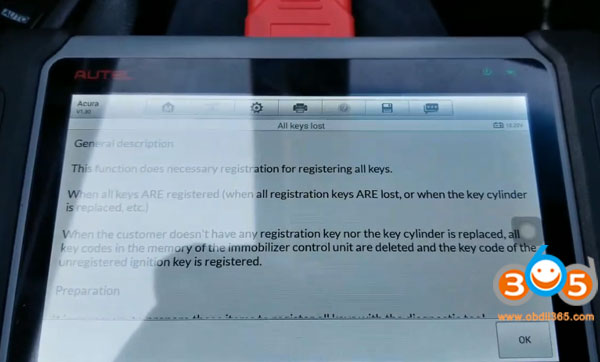

This function does the necessary registration for registering new keys or deleting registered keys.
Select All keys lost

autel-mk808-acura-all-key-lost-15

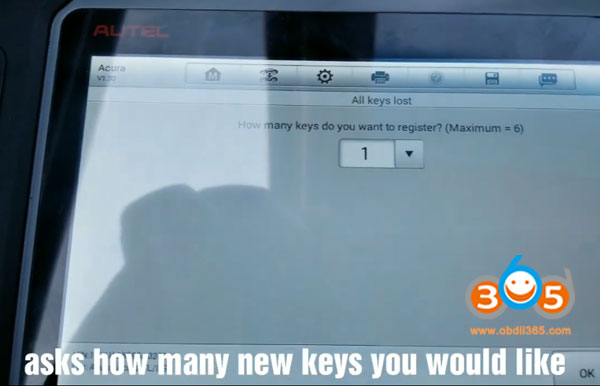

Select how many keys you want to register (maximum 6 keys)
Turn ignition off
programming in process
Turn ignition on

Turn the ignition switch off within 17s
Turn ignition to ON within 14s without changing the key
Turn ignition off

autel-mk808-acura-all-key-lost-16
Check if the immobilizer indicator goes off
Immo light went out key programmed
Turn ignition switch off
Turn ignition on

autel-mk808-acura-all-key-lost-17
Key registration completed
Turn ignition switch off
All all keyless access remotes to ensure each will start the engine
Turn ignition on

autel-mk808-acura-all-key-lost-18

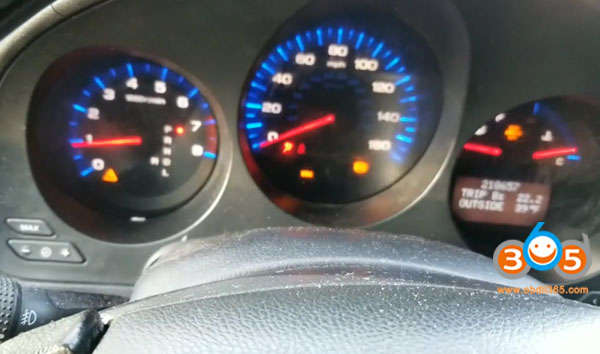

Master key works.



Step 2: Add a key with MK808

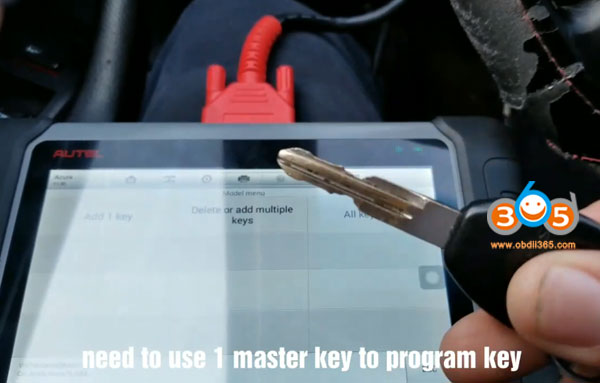

autel-mk808-acura-all-key-lost-19

this is the old key that was deleted
need to use 1 master key to program key

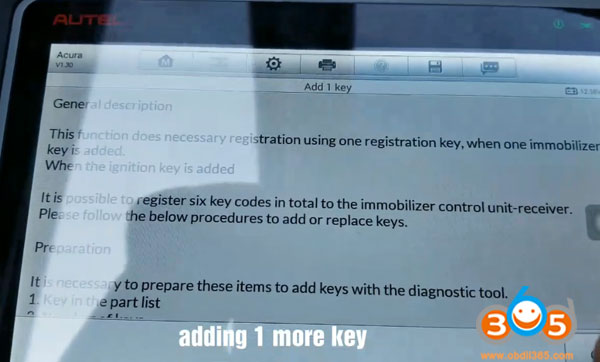

Select Add 1 key
Use a registered key to start the registration of keys

autel-mk808-acura-all-key-lost-20
Turn the ignition to on with an original key or master key

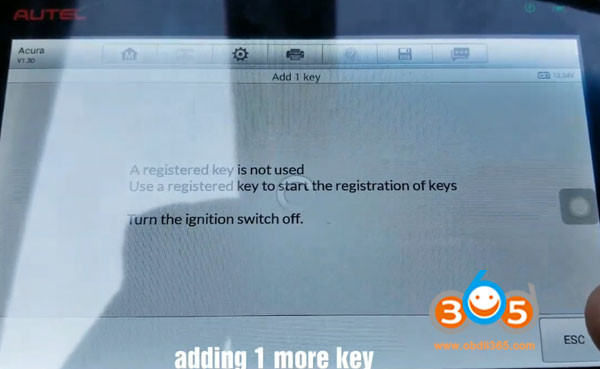

autel-mk808-acura-all-key-lost-21
Turn ignition off
Turn ignition on
add 1 extra key in process
Turn the ignition switch off within 15s
Turn ignition to ON with a new key within 14s
Turn the ignition switch off within 17s

Turn ignition switch to ON within 11s without changing the key
Turn ignition off
Turn ignition on
Immo indicator goes off
2nds key programmed successfully
Turn ignition off

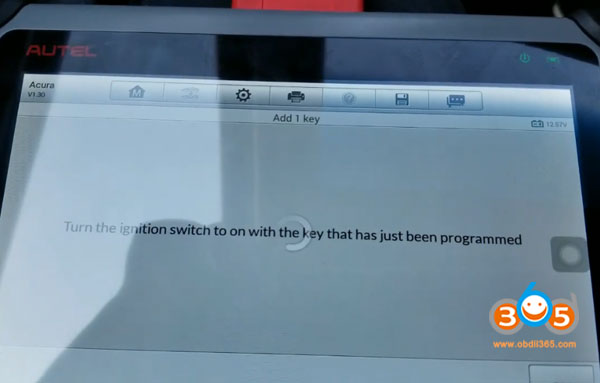

autel-mk808-acura-all-key-lost-23
Turn ignition on with the key just programmed

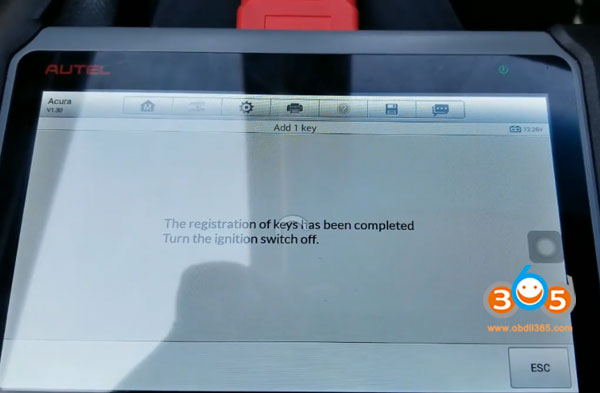

autel-mk808-acura-all-key-lost-24
The registration of keys has been completed
Turn ignition switch off

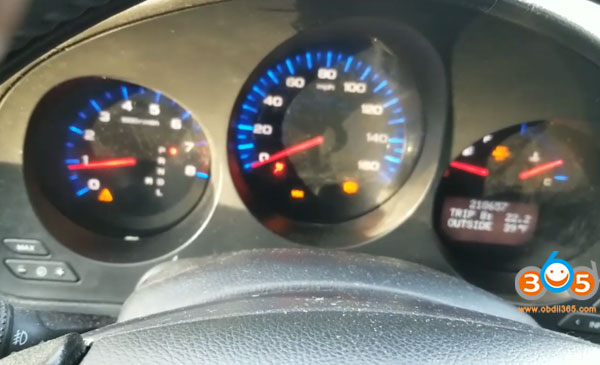

Test the keys to make sure they both work.

autel-mk808-acura-all-key-lost-25
Done.
