Autel IM608 Program W172 All Keys Lost in 7 mins

The fastest way to do W172 all keys lost using Autel MaxiIM IM608 tools:
Step 1: EIS connection
Step 2: password read
Step 3: key file generation
Step 4: key write
in detail…
Step 1: EIS connection

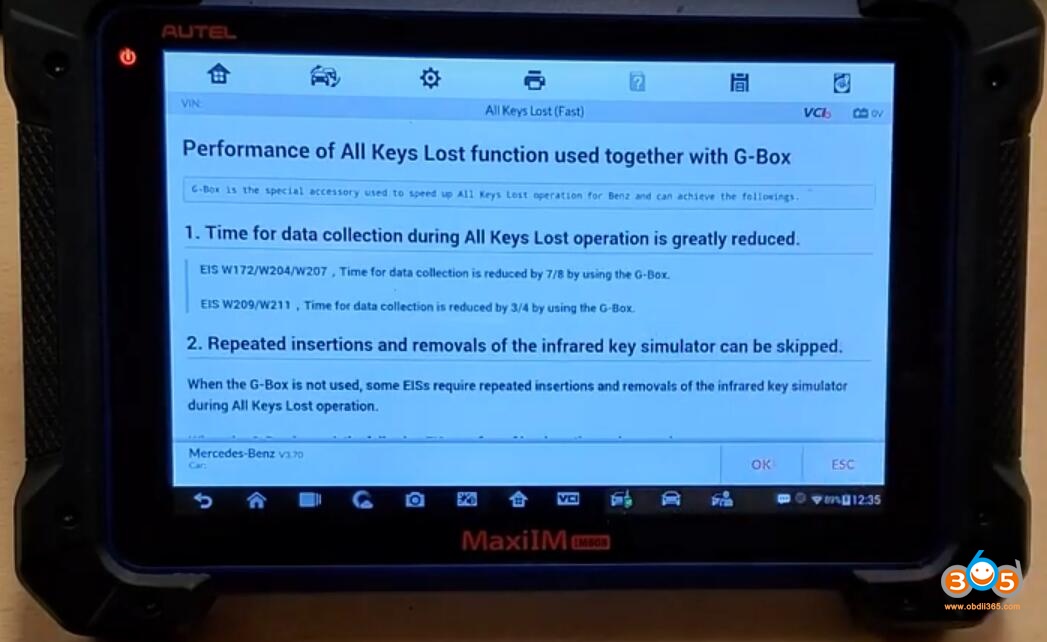

Some tips for Mercedes all keys lost using G-BOX2
autel-im608-w172-akl-1

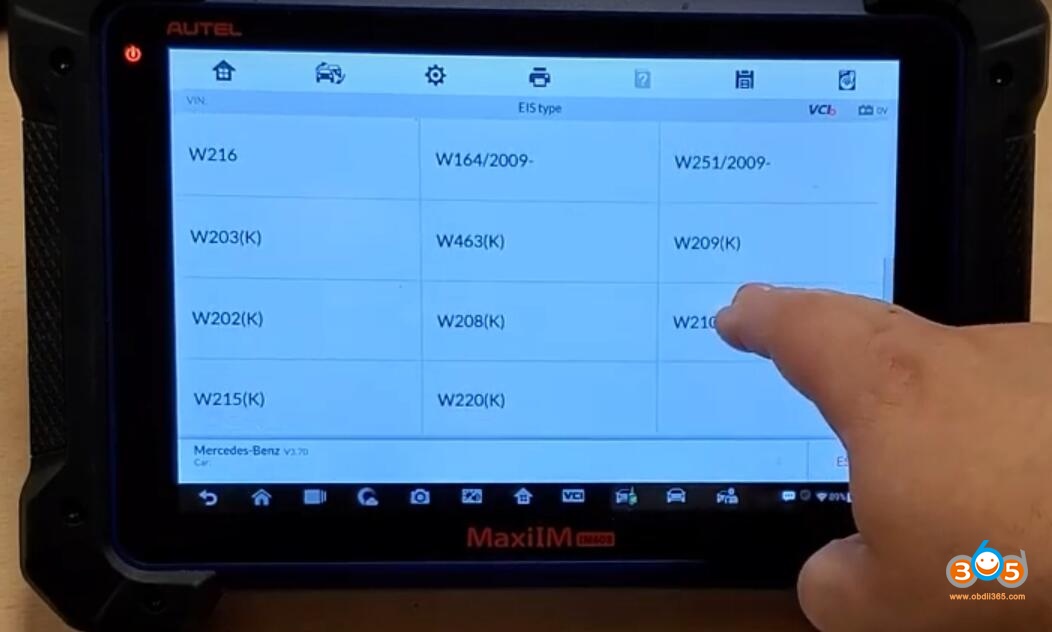

EIS types on Autel Im608
autel-im608-w172-akl-2



autel-im608-w172-akl-3
Here: W172
G-box2 connection for w172/w204/w207 all keys lost
Notes:

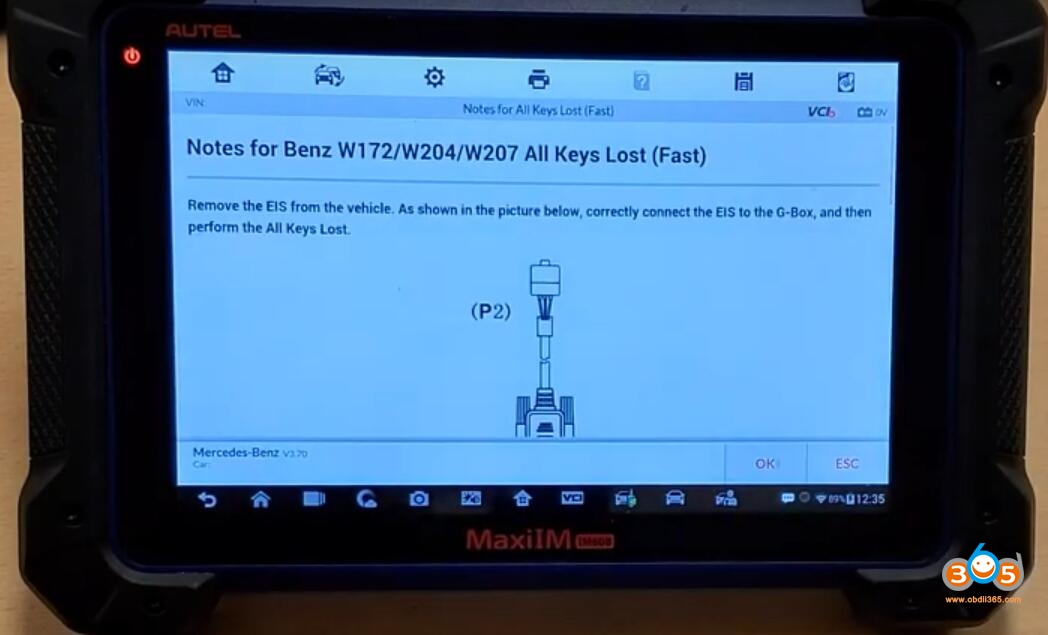

remove the eis from the vehicle, shown in the pic below, correctly connect the eis to the g-box, and then perform the all keys lost
autel-im608-w172-akl-4
autel-im608-w172-akl-5

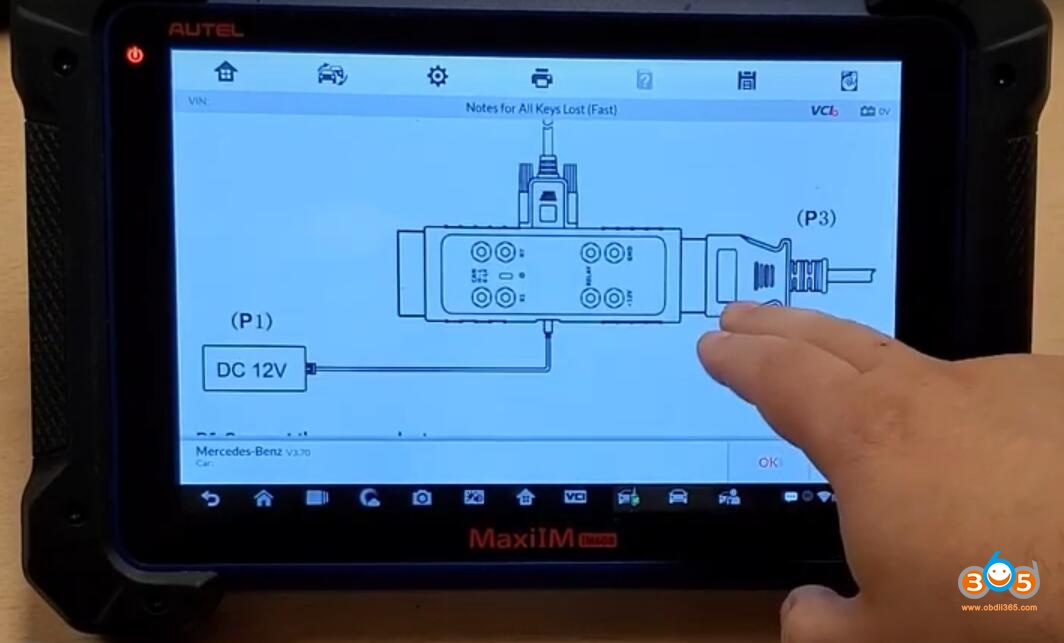

p1: connect the power adapter

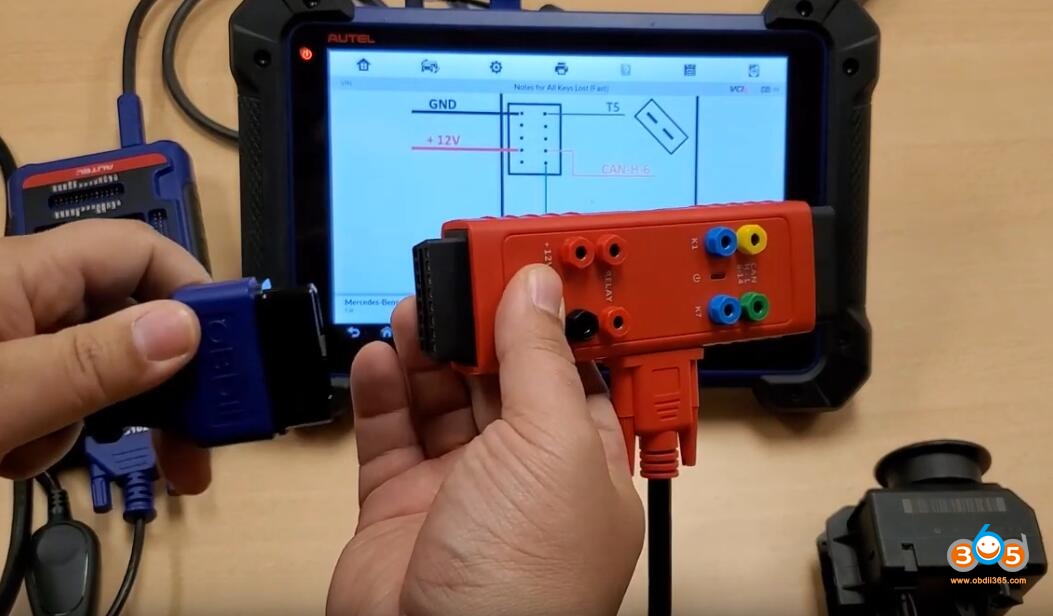

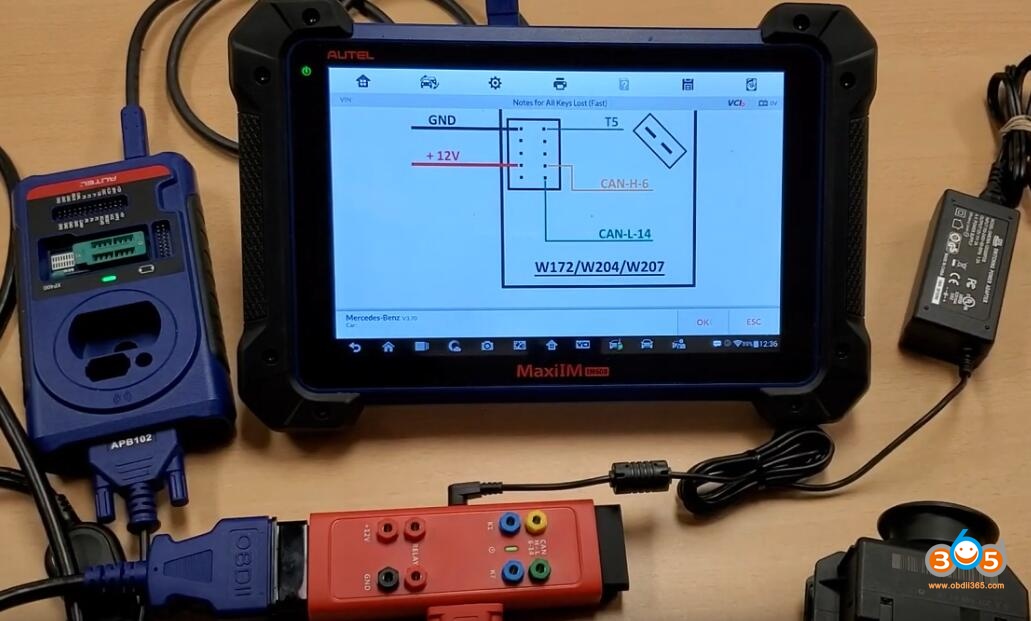

p2: according to the eis wiring diagram, connect the eis to the hb15 harness
autel-im608-w172-akl-6
autel-im608-w172-akl-7
autel-im608-w172-akl-8
autel-im608-w172-akl-9
Step 2: password calculation
Password calculation steps:
  1. connect device, obd cable and obd connector on the wiring harness in sequence
  2. connect the ir key simulator (apb102, apb103) to the programmer
  3. insert the ir key simulator (apb102, apb103) into the eis and start collecting data
  4. password calculation completed!
autel-im608-w172-akl-10

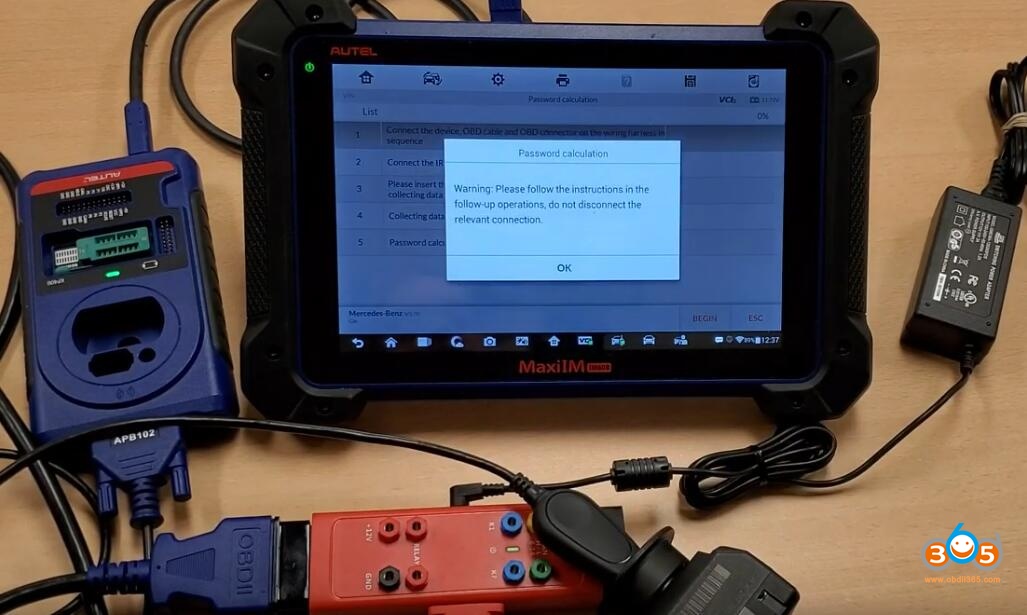

Warning: pls follow the instruction and don’t disconnect the relevant connection
autel-im608-w172-akl-11

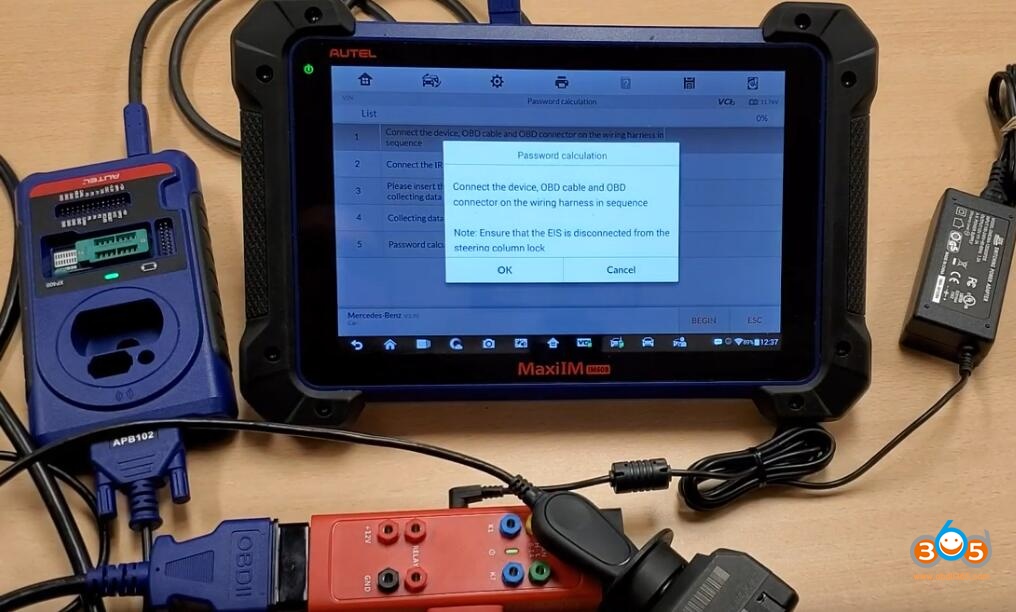

Connect device, obd cable and obd connector on the wiring harness in sequence
Note: ensure that the eis is disconnected from the steering column lock
autel-im608-w172-akl-12
Connect the ir key simulator (apb102, apb103) to the programmer
autel-im608-w172-akl-13

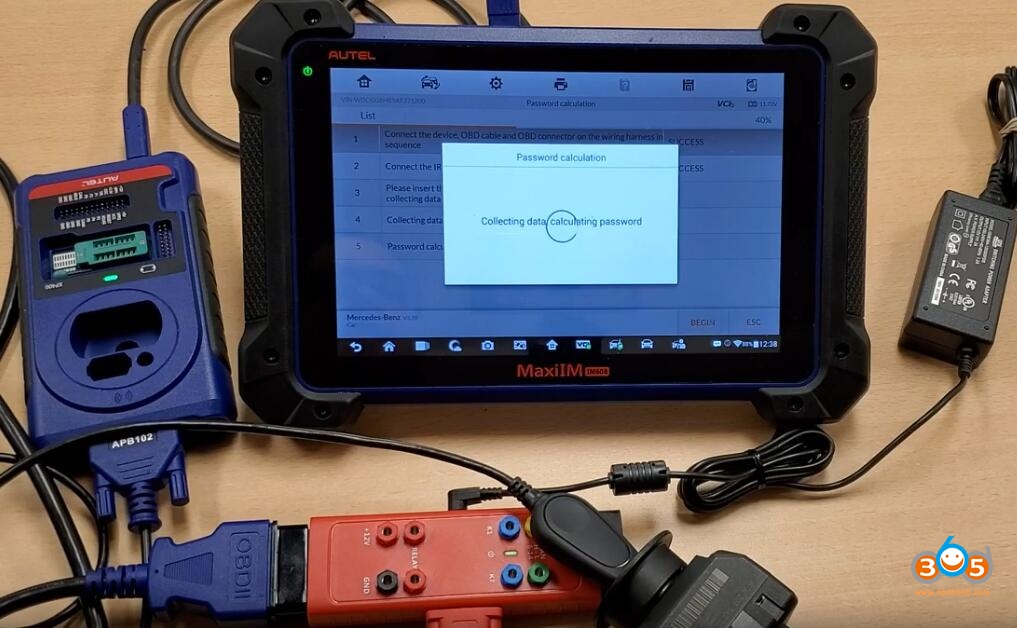

Collecting data calculating password
autel-im608-w172-akl-14
Insert the ir key simulator into the eis
If it’s already inserted, remove and insert it again
autel-im608-w172-akl-15
Collecting data and calculating password is in progress
Please wait
The process will take 10-50 min (it takes longer for some vehicles)
Pls ensure that the device and vehicle battery are stable and sufficient during the process
autel-im608-w172-akl-16

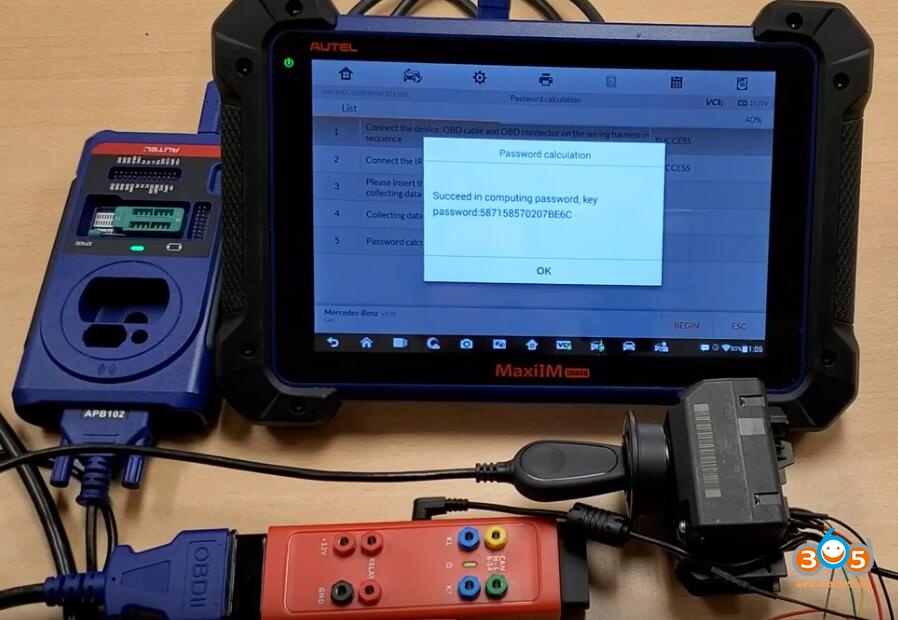

Succeed in computing password
autel-im608-w172-akl-17

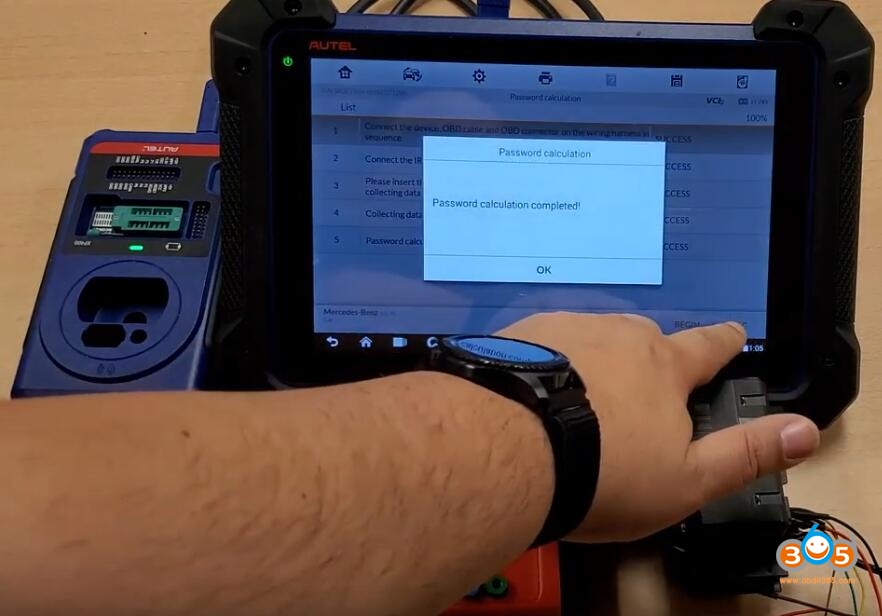

Password calculation completed!
autel-im608-w172-akl-18

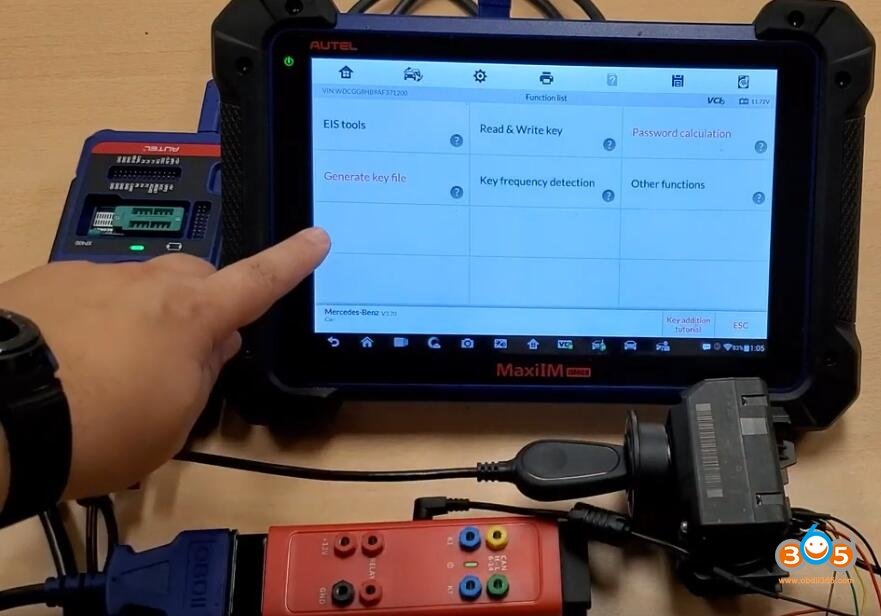

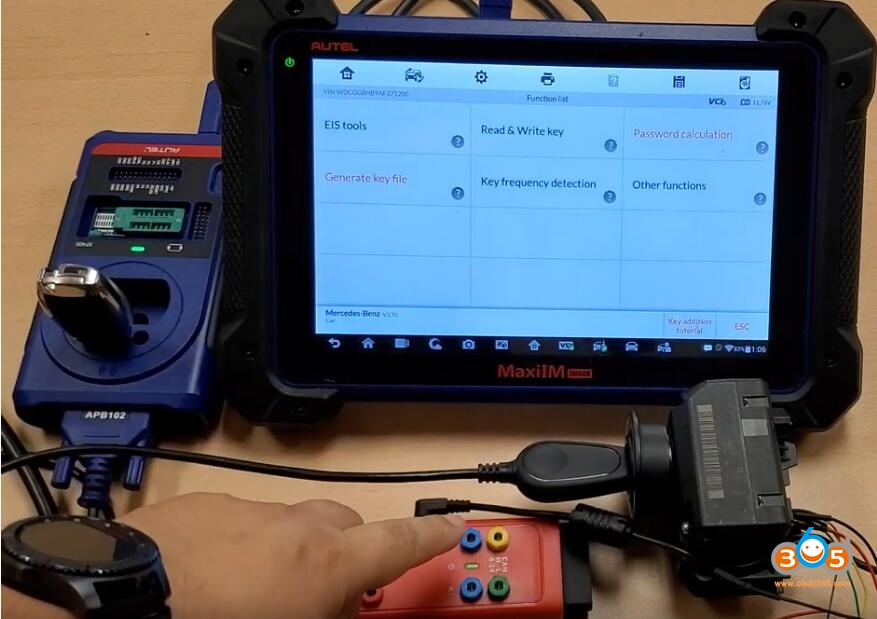

Step 3: key file generation

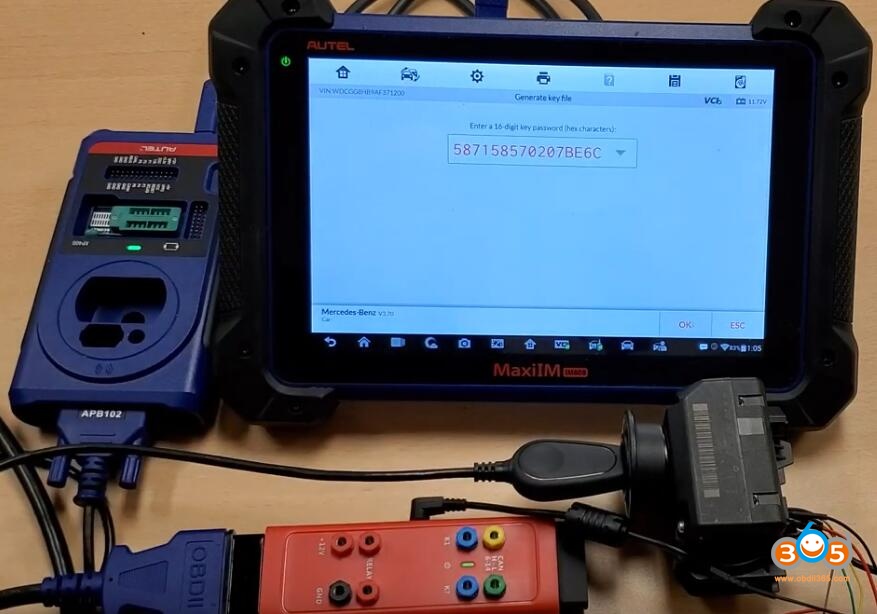

Autel is gonna to generate key file
autel-im608-w172-akl-19
autel-im608-w172-akl-20
autel-im608-w172-akl-21
autel-im608-w172-akl-22
autel-im608-w172-akl-23

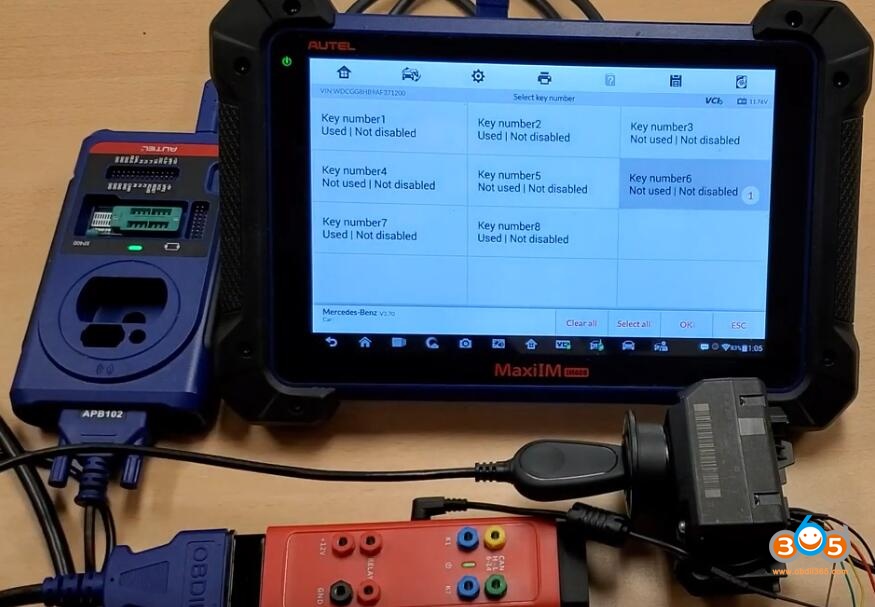

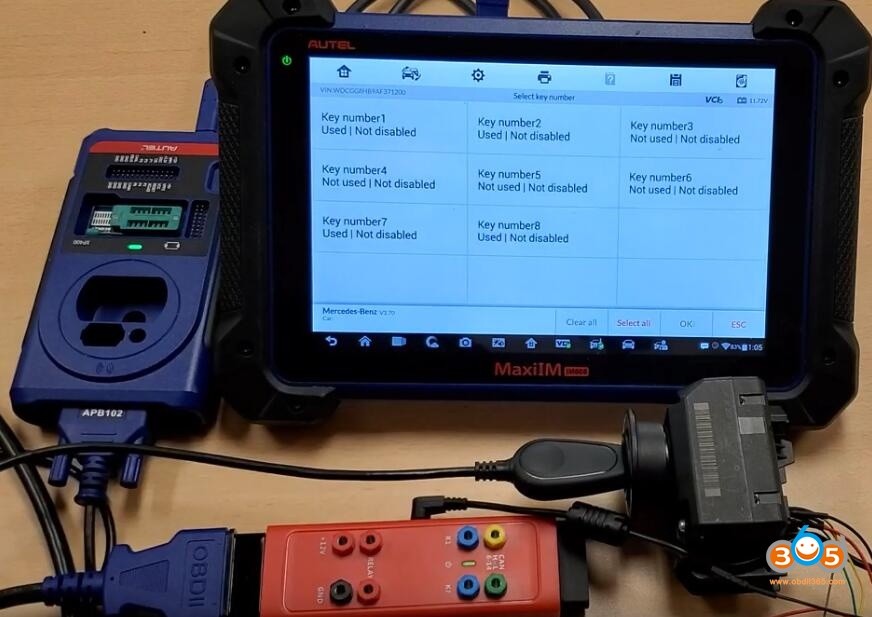

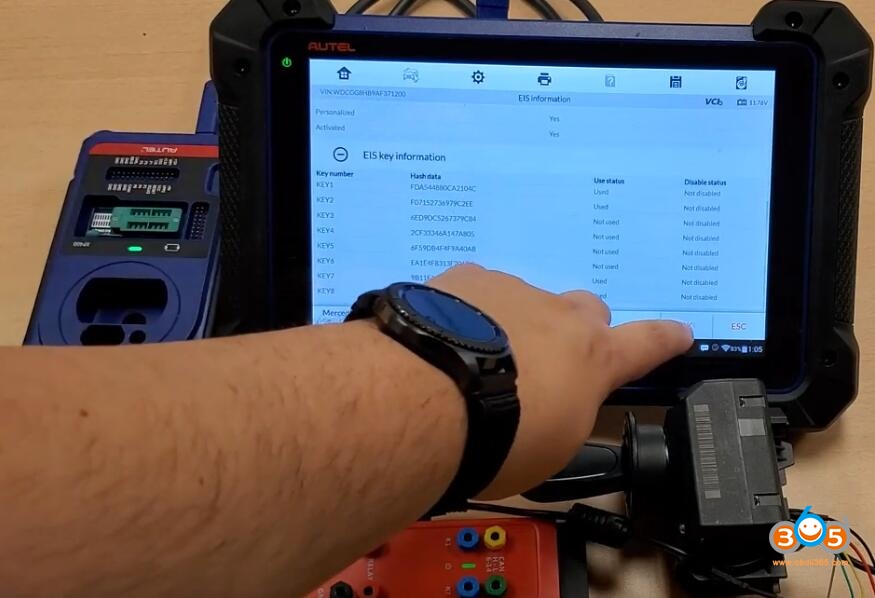

Select key number 6
autel-im608-w172-akl-24

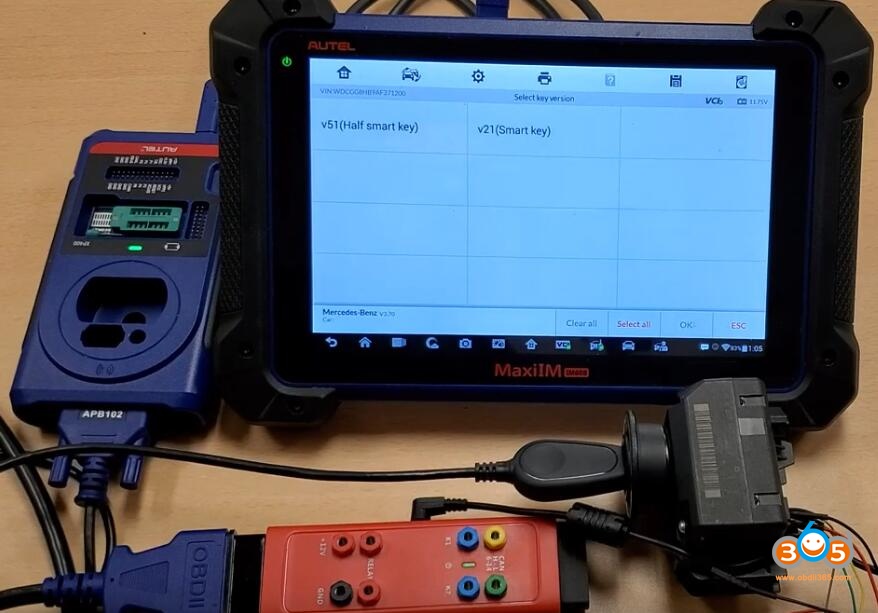

Select v51 (half smart key)
autel-im608-w172-akl-25

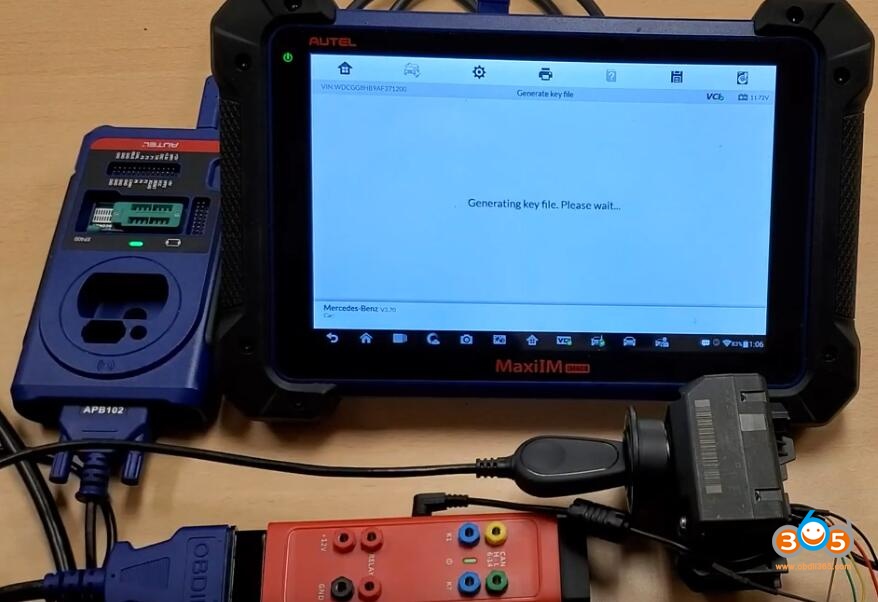

Generating key file
autel-im608-w172-akl-26

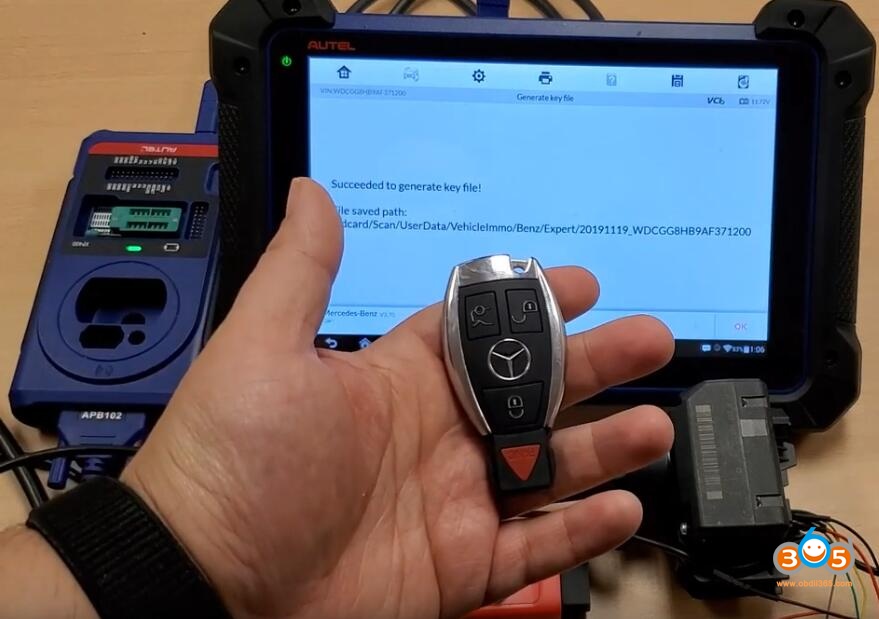

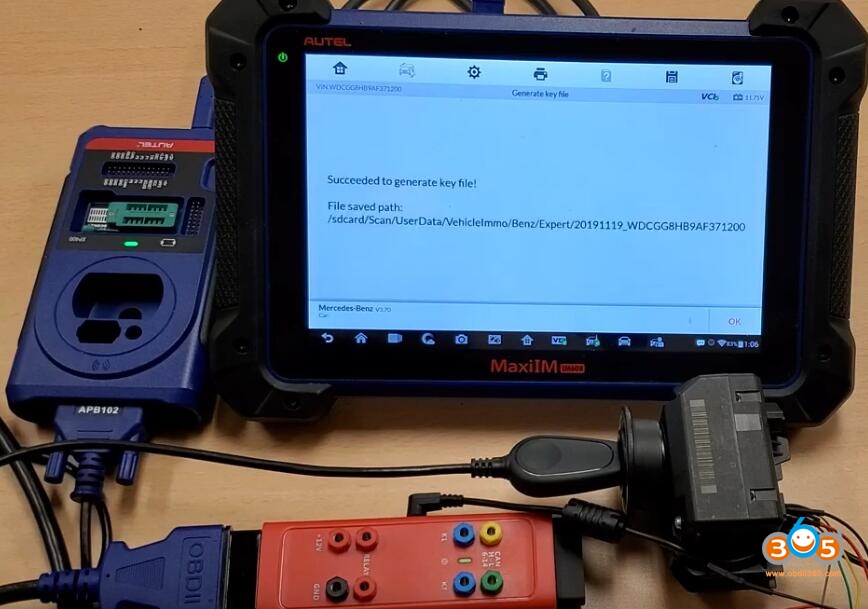

Succeeded to generate key file
autel-im608-w172-akl-27
autel-im608-w172-akl-28
autel-im608-w172-akl-29

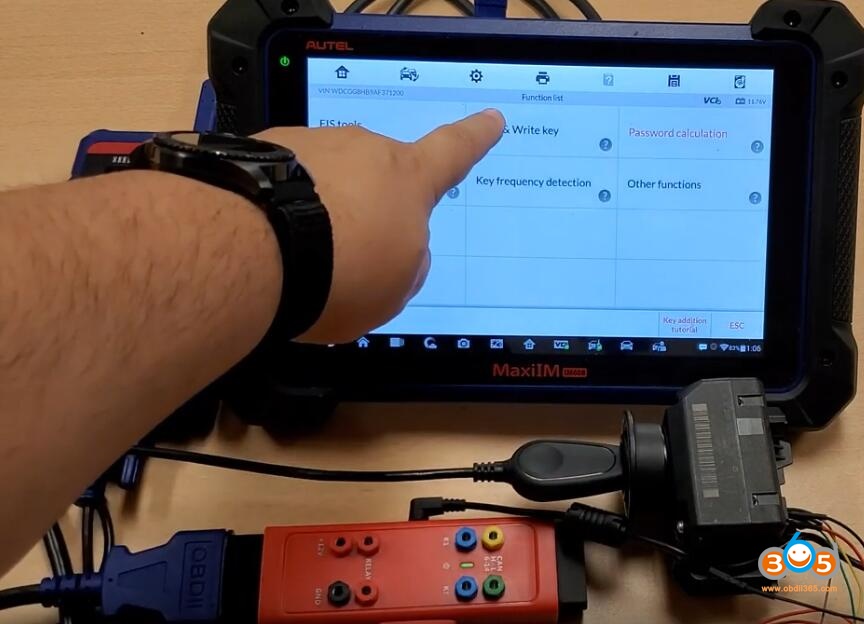

Step 4: key read and write
Autel im608 will read and write key
autel-im608-w172-akl-30
it’s a ir key
autel-im608-w172-akl-31

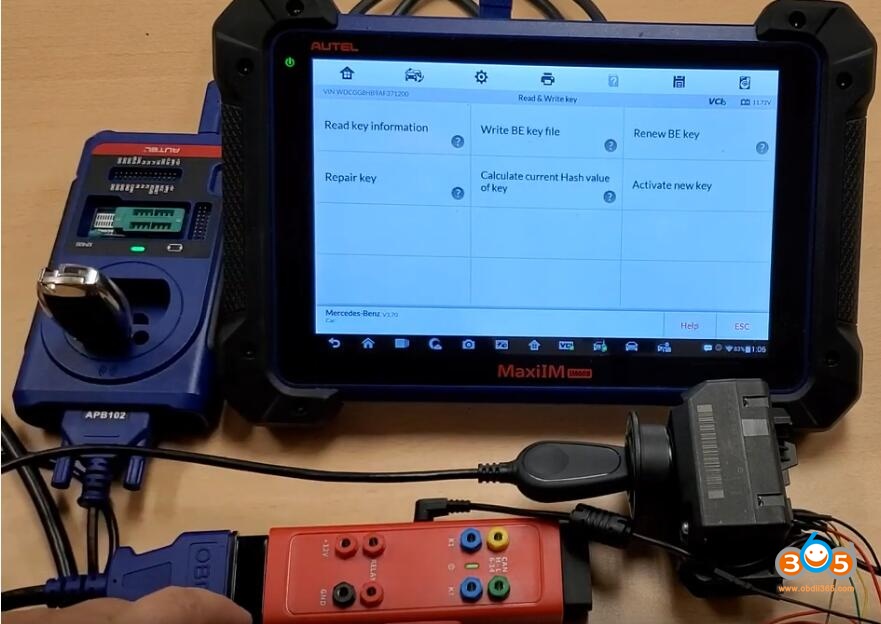

Write BE key file
autel-im608-w172-akl-32

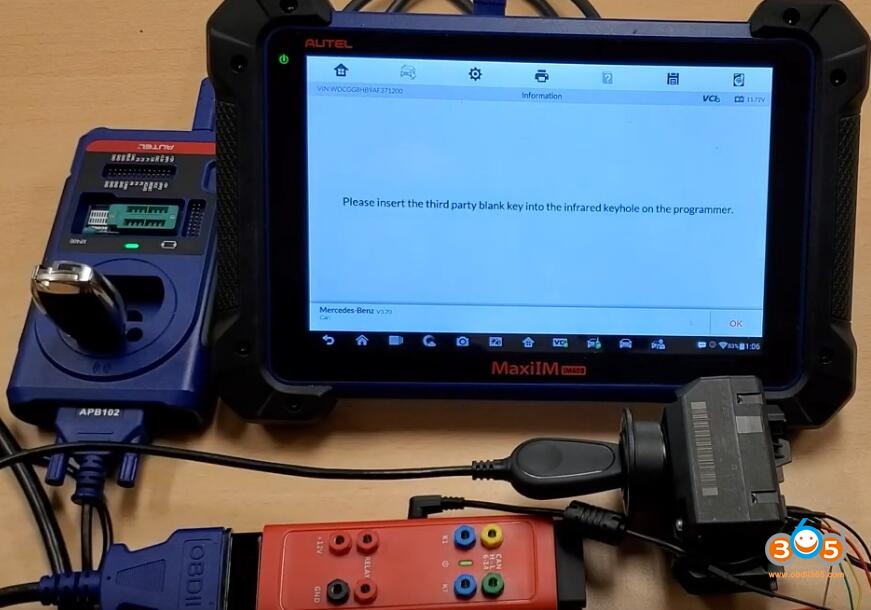

Please insert the third-party blank key into the infrared key hole on the XP400 programmer
autel-im608-w172-akl-33
autel-im608-w172-akl-34

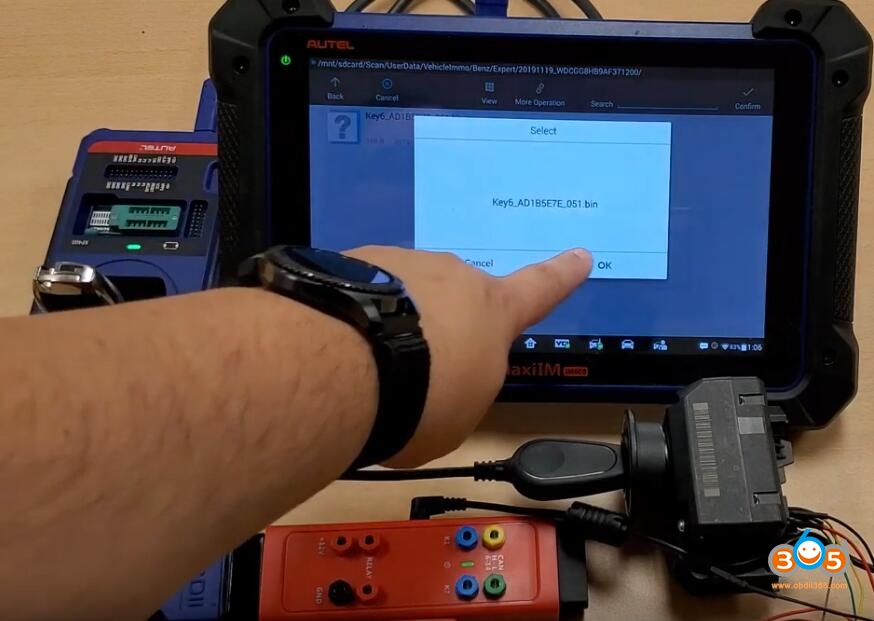

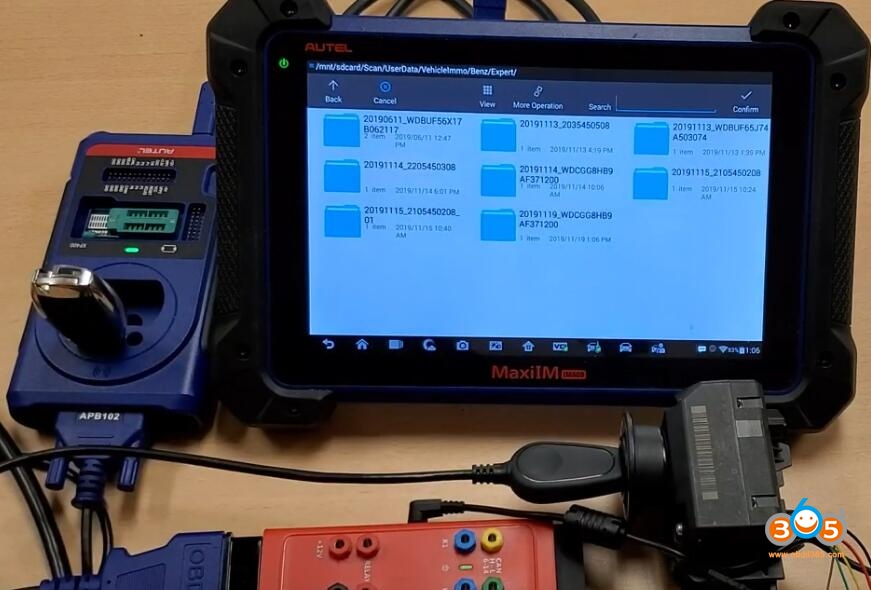

Select key file
autel-im608-w172-akl-35

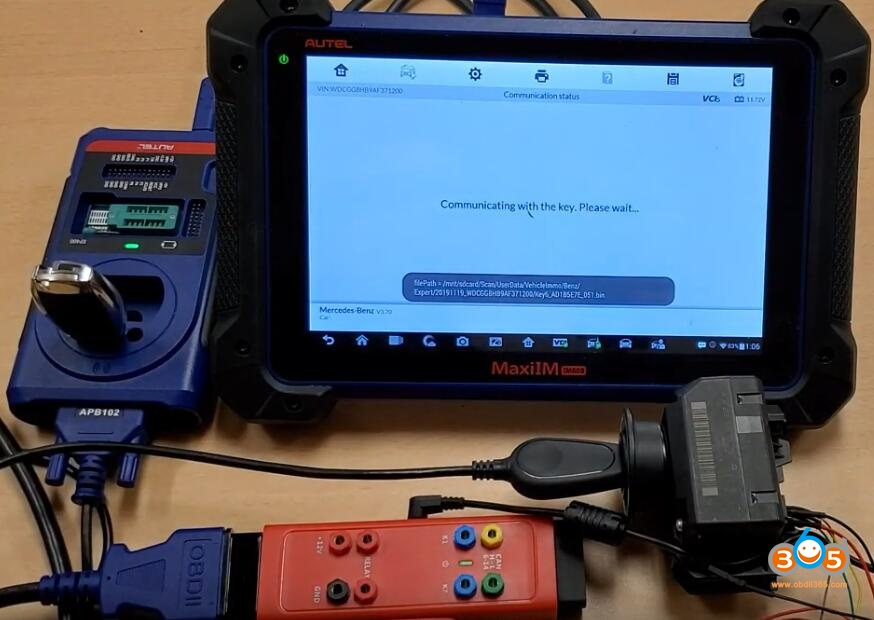

Communicating with the key
autel-im608-w172-akl-36

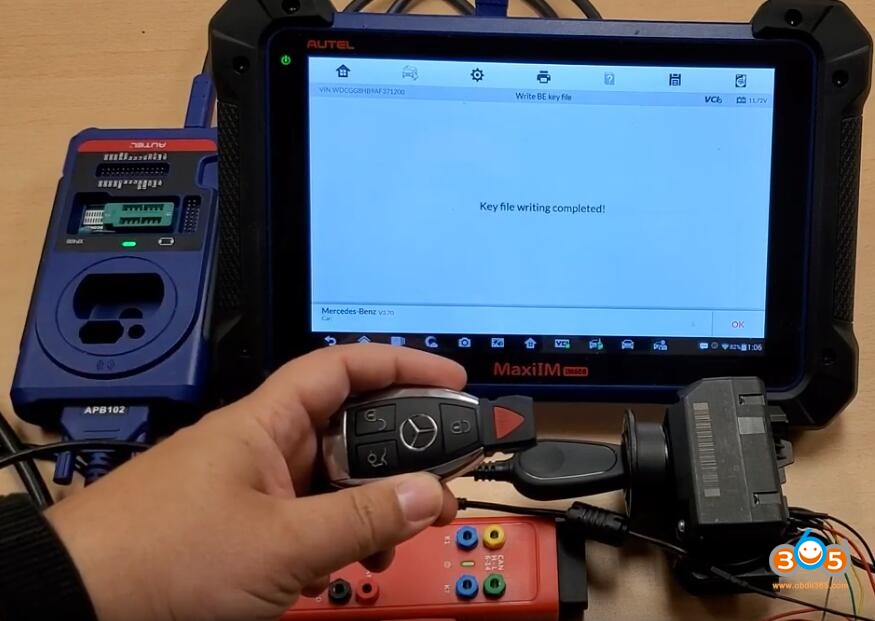

Key file writing completed!
autel-im608-w172-akl-37
autel-im608-w172-akl-38
Job’s done! 7min done!
